JVM (2): loading process of memory structure and classes

One 、 Overview of memory structure

Classloader subsystem

• class After the file enters the virtual machine , First of all to Loading（ load ） then Linking（ link ） Finally, initialize .
• The loaders used for loading are divided into ：Bootstrap ClassLoader（ Boot class loader ）、Extension ClassLoader（ Extend the classloader ）、Application ClassLoader（ Apply the class loader ） .
• The connection is divided into ：Verify（ verification ）、Prepare（ Get ready ）、Resolve（ analysis ）.

Memory area

• PC Registers（PC Register or program counter , The thread has an exclusive share ）
• Stack Area（ Stack area , The thread has an exclusive share ）
• Native Method Stack（ Native Method Stack ） Main scope local method interface api call
• Heap Area（ Heap area ） Main storage objects
• Method Area（ Method area ） The main storage constant 、 Domain 、 Method information, etc .HotSpot Virtual machine specific .

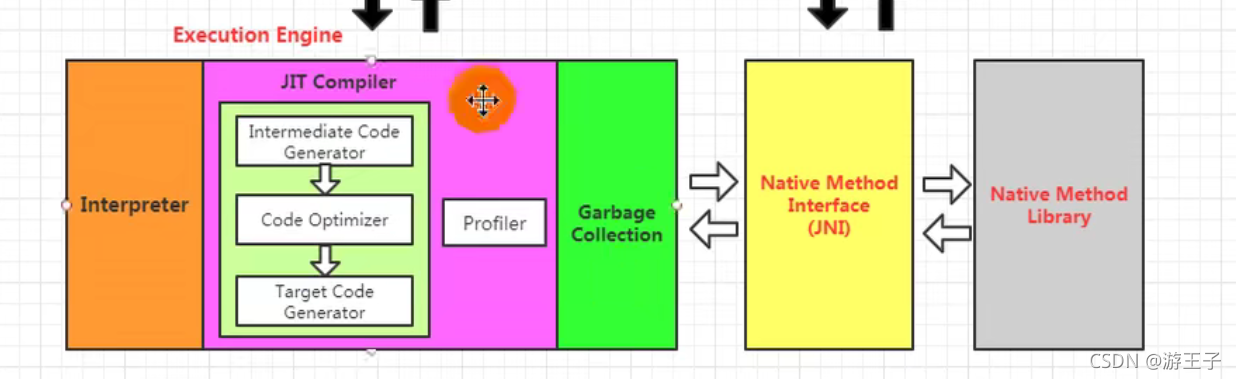

Execution engine

  Two 、 Class loader and class loading process



• The classloader subsystem is responsible for loading from the file system or network class file ,class The file has a specific file ID at the beginning of the file .
• . classLoader Only responsible for class Loading of files , As for whether it can run , By ExecutionEngine decision .
• · The loaded class information is stored in a block of memory called the method area . In addition to class information , The method area also holds runtime constant pool information , It may also include string literals and numeric constants （ This part of the constant information is class Memory mapping for the constant pool part of the file ）

        Such as below ：

  3、 ... and 、 Class loading process （Loading）

  load :

1. Get the binary byte stream that defines a class by its fully qualified name
2. Convert the static storage structure represented by the byte stream into the runtime data structure of the method area
3. Generate a representation of this class in memory java.lang.Class object , As the access to all kinds of data of this class in method area

Add : load .class How to file

• Load directly from the local system
• Get... Through the Internet , Typical scenario : web Applet
• from zip Read in compressed package , Become the future jar、war The basis of format
• Runtime compute generation , The most used is ： Dynamic proxy technique
• Generated from other files , Typical scenario ：JSP application
• Extract... From a proprietary database .class file , Relatively rare
• Get... From the encrypted file , Typical defense class The protection of the file against decompilation

Four 、 Class loading process （Linking）

  verification ​（Verify）​​​​​​

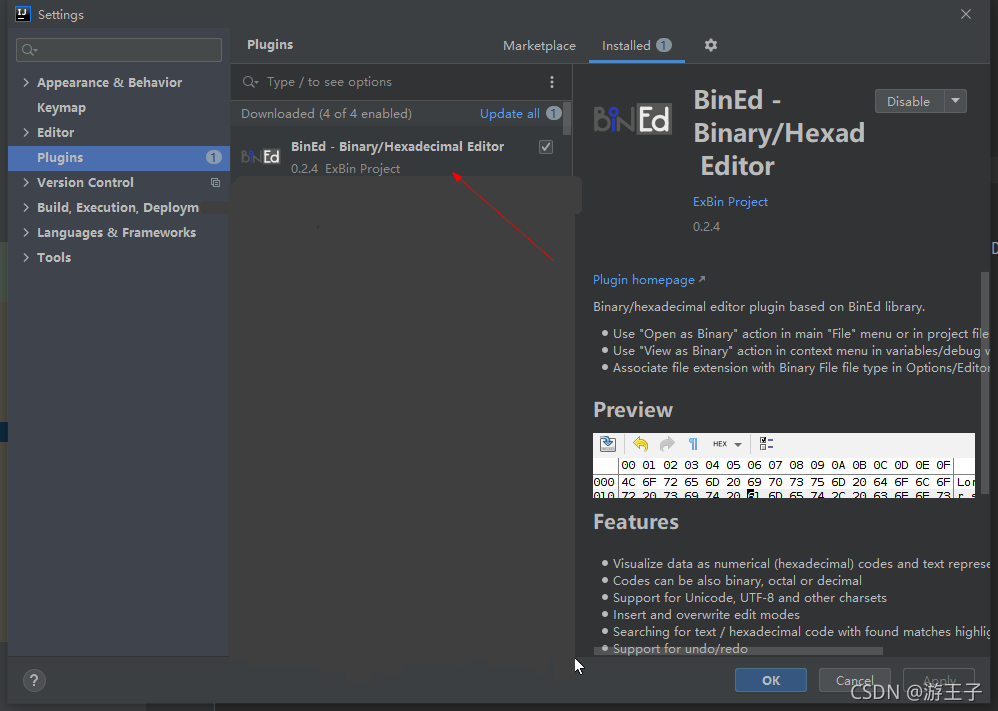

      stay idea Install the binary view plug-in in .

         stay class Right click the file to view the binary, and you will find all java The starting positions of bytecode files are CAFEBABE（ magic number ） , This is the process of verification .

  Get ready （Prepare）

public class HelloApp {
    private static int a = 1; // Prepare link a=0 -> initial a The assignment is 1
}

5、 ... and 、 Class loading process （initialization）

         initialization ：

• The initialization phase is the execution of class constructor methods <clinit>() The process of .
• This method does not need to be defined , yes javac The compiler automatically collects the assignment actions of all class variables in the class and the statements in the static code block .
• The instructions in the constructor method are executed in the order in which the statements appear in the source file .
• <clinit>() Constructor different from class .( relation ： The constructor is from the perspective of virtual machine <init>( ))
• If the class has a parent class ,JVM Will guarantee the subclass <clinit>() Before execution , Of the parent class <clinit>() Execution completed .
• The virtual machine must guarantee a class of <clinit> () Method is locked synchronously under multithreading .

         install BytecodeViewer Plug in view bytecode file .

         example 1： java Code ：

public class HelloApp {
    private static int a = 1;
    static {
        a = 2;
        b = 20;
    }
    private static int b = 10;
}

        Select the to view class File find the following options

        You can find clinit Static code is initialized in top-down order . Variable b stay prepare Phase assignment is 0, Then the static code block executed first in the initialization phase b=20, Then the following code is executed b=10.

// class version 55.0 (55)
// access flags 0x21
public class org/ywz/springbootdemo/HelloApp {

  // compiled from: HelloApp.java

  // access flags 0xA
  private static I a

  // access flags 0xA
  private static I b

  // access flags 0x1
  public <init>()V
   L0
    LINENUMBER 3 L0
    ALOAD 0
    INVOKESPECIAL java/lang/Object.<init> ()V
    RETURN
   L1
    LOCALVARIABLE this Lorg/ywz/springbootdemo/HelloApp; L0 L1 0
    MAXSTACK = 1
    MAXLOCALS = 1

  // access flags 0x8
  static <clinit>()V
   L0
    LINENUMBER 4 L0
    ICONST_1
    PUTSTATIC org/ywz/springbootdemo/HelloApp.a : I
   L1
    LINENUMBER 7 L1
    ICONST_2
    PUTSTATIC org/ywz/springbootdemo/HelloApp.a : I
   L2
    LINENUMBER 8 L2
    BIPUSH 20
    PUTSTATIC org/ywz/springbootdemo/HelloApp.b : I
   L3
    LINENUMBER 10 L3
    BIPUSH 10
    PUTSTATIC org/ywz/springbootdemo/HelloApp.b : I
    RETURN
    MAXSTACK = 1
    MAXLOCALS = 0
}

          example 2：java Code

public class HelloApp {
    private int a = 1;

    public static void main(String[] args) {
        int b = 2;
    }
}

          You can find that when there are no static variables , The bytecode is gone clinit Class constructor method .init Methods are actually constructors .

// class version 55.0 (55)
// access flags 0x21
public class org/ywz/springbootdemo/HelloApp {

  // compiled from: HelloApp.java

  // access flags 0x2
  private I a

  // access flags 0x1
  public <init>()V
   L0
    LINENUMBER 3 L0
    ALOAD 0
    INVOKESPECIAL java/lang/Object.<init> ()V
   L1
    LINENUMBER 4 L1
    ALOAD 0
    ICONST_1
    PUTFIELD org/ywz/springbootdemo/HelloApp.a : I
    RETURN
   L2
    LOCALVARIABLE this Lorg/ywz/springbootdemo/HelloApp; L0 L2 0
    MAXSTACK = 2
    MAXLOCALS = 1

  // access flags 0x9
  public static main([Ljava/lang/String;)V
    // parameter  args
   L0
    LINENUMBER 7 L0
    ICONST_2
    ISTORE 1
   L1
    LINENUMBER 8 L1
    RETURN
   L2
    LOCALVARIABLE args [Ljava/lang/String; L0 L2 0
    LOCALVARIABLE b I L1 L2 1
    MAXSTACK = 1
    MAXLOCALS = 2
}

         example 3：java Code

public class HelloApp {
    static class Father {
        public static int a = 1;

        static {
            a = 2;
        }
    }

    static class Son extends Father {
        public static int b = a;
    }

    public static void main(String[] args) {
        System.out.println(Son.b);
    }
}

        You can find that the constructor initializes the parent class first and then the child class .

// class version 55.0 (55)
// access flags 0x20
class org/ywz/springbootdemo/HelloApp$Son extends org/ywz/springbootdemo/HelloApp$Father {

  // compiled from: HelloApp.java
  NESTHOST org/ywz/springbootdemo/HelloApp
  // access flags 0x8
  static INNERCLASS org/ywz/springbootdemo/HelloApp$Son org/ywz/springbootdemo/HelloApp Son
  // access flags 0x8
  static INNERCLASS org/ywz/springbootdemo/HelloApp$Father org/ywz/springbootdemo/HelloApp Father

  // access flags 0x9
  public static I b

  // access flags 0x0
  <init>()V
   L0
    LINENUMBER 12 L0
    ALOAD 0
    INVOKESPECIAL org/ywz/springbootdemo/HelloApp$Father.<init> ()V
    RETURN
   L1
    LOCALVARIABLE this Lorg/ywz/springbootdemo/HelloApp$Son; L0 L1 0
    MAXSTACK = 1
    MAXLOCALS = 1

  // access flags 0x8
  static <clinit>()V
   L0
    LINENUMBER 13 L0
    GETSTATIC org/ywz/springbootdemo/HelloApp$Son.a : I
    PUTSTATIC org/ywz/springbootdemo/HelloApp$Son.b : I
    RETURN
    MAXSTACK = 1
    MAXLOCALS = 0
}
