Preface

   stay github See an interesting code on , It's Valentine's Day , Share with you ^_^

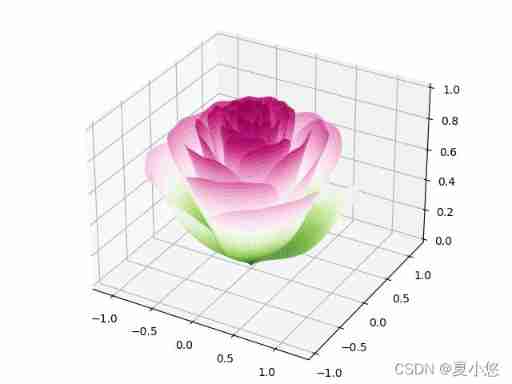

1. in early puberty

  3D The drawing of the model requires grid points , About the role of grid points , stay This blog Has been introduced in , No more details here .

import numpy as np
import matplotlib.pyplot as plt
from mpl_toolkits.mplot3d import Axes3D

fig = plt.figure()
ax = Axes3D(fig)

#  Moved the phase back 6*pi
x = np.linspace(0, 1, num=30)
t = np.linspace(0, 1, num=1200) * 20 * np.pi + 4 * np.pi
x, t = np.meshgrid(x, t)

p = 0.5 * np.pi * np.exp(-t / (8 * np.pi))

#  Add edge perturbation
change = np.sin(15 * t) / 150

#  take t The number of parameters is reduced , Increase the angle of the petals
u = 1 - (1 - np.mod(3.3 * t, 2 * np.pi) / np.pi)**4 / 2 + change
y = 2 * (x**2 - x)**2 * np.sin(p)
r = u * (x * np.sin(p) + y * np.cos(p)) * 1.5
h = u * (x * np.cos(p) - y * np.sin(p))

# PiYG_r
# RdBu_r
surf = ax.plot_surface(r * np.cos(t), r * np.sin(t), h,
                       rstride=1, cstride=1, cmap=plt.cm.RdPu_r)
plt.savefig('img/img1.png')
plt.show()

2. Beating its China

import numpy as np
import matplotlib.pyplot as plt
from mpl_toolkits.mplot3d import Axes3D

fig = plt.figure()
ax = Axes3D(fig)
# plt.axis('off')

x = np.linspace(0, 1, num=30)
t = np.linspace(0, 1, num=1200) * 50 * np.pi - 4 * np.pi
x, t = np.meshgrid(x, t)

p = 0.5 * np.pi * np.exp(-t / (8 * np.pi))
change = np.sin(20 * t) / 50
u = 1 - (1 - np.mod(3.3 * t, 2 * np.pi) / np.pi)**4 / 2 + change
y = 2 * (x**2 - x)**2 * np.sin(p)
r = u * (x * np.sin(p) + y * np.cos(p)) * 1.5
h = u * (x * np.cos(p) - y * np.sin(p))

ax = ax.plot_surface(r * np.cos(t), r * np.sin(t), h,
                     rstride=1, cstride=1, cmap=plt.cm.RdPu_r)

plt.savefig('img/img2.png')
plt.show()

   of mpl_toolkits.mplot3d You can refer to Official documents ;

   For more color combinations, please refer to matplotlib Of colormap The official manual .
