Create a simple battle game with photon pun

Preface ：

photon PUN It is a plug-in used to realize online combat , Through simple design , You can join the hall , Join the room , And fight , Players can synchronize animation, position and other parameters , At the same time through RPC Mechanism , Broadcast parameters , Realize player information sharing in the room .

The war is realized

1. open photon Official website , Then open the account , Sign in .

2. Click on Your Applications, Create an , choice PUN, Fill in as required , And then copy Appid, open unity Create project .

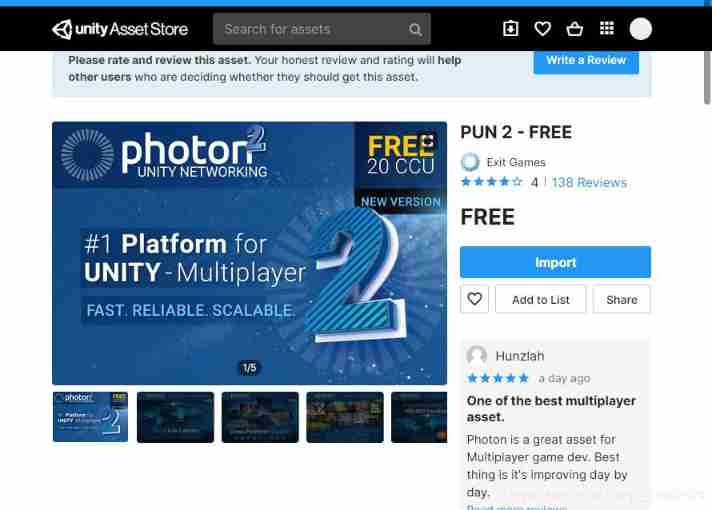

3. stay unity Search in the resource store of photon PUN, Download and import .

4. Paste what you just copied appid, Click on setup project—close

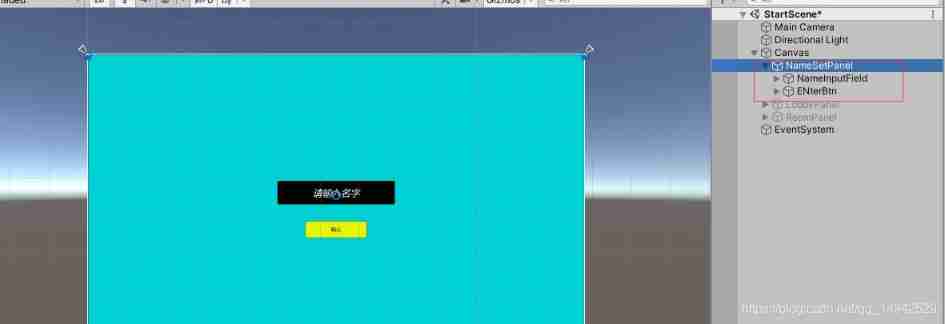

5. Create a new scene , Add the following UI Components , One is the name input panel , Click to enter the hall .

6. Create a new empty object in the scene , name NetWorkManager, Also create a new script NetworkManager, Fill in the namespace PUN, Change the inherited class to MonoBehaviourPunCallbacks, First, in the start Function . Connect to server , The specific code is as follows ：

using System.Collections;
using System.Collections.Generic;
using UnityEngine;
using Photon.Pun;
using UnityEngine.UI;
using Photon.Realtime;

public class NetworkManager : MonoBehaviourPunCallbacks
{

    #region  Private variables
    #endregion
    #region  Open variables
    public static NetworkManager _instance;// Single case
    public InputField nameInputField;// Name input box
    public InputField RoomnameInputField;// Room name input box
    public GameObject readyBtn;// Ready button
    public GameObject startBtn;// Start game button

    public GameObject NamePanel;// Name setting panel
    public GameObject LobbyPanel;// Lobby panels
    public GameObject RoomPanel;// Room panels
    public GameObject StartInitPanel;// Start initializing the panel

    #endregion

    #region Mono function
    private void Awake()
    {

        if (_instance == null)
        {

            _instance = this;
        }
    }

    private void Start()
    {

        PhotonNetwork.ConnectUsingSettings();// Initialize settings , Connect to server
    }

    private void Update()
    {

        if (PhotonNetwork.LocalPlayer.IsMasterClient)// Judge whether it is the owner , If yes, the start game button will be displayed , The ready button is not displayed
        {

            readyBtn.SetActive(false);
            startBtn.SetActive(true);
        }
        else
        {

            readyBtn.SetActive(true);
            startBtn.SetActive(false);
        }
    }
    #endregion
    #region  Button function



    /// <summary>
    ///  Name setting button
    /// </summary>
    public void SetNicknameButton()
    {


        if (nameInputField.text.Length < 2)
            return;
        PhotonNetwork.NickName = nameInputField.text;// Upload the entered name to the network
        if(PhotonNetwork.InLobby)// Judge whether it is in the hall , On the display hall , Hide name panel
        {

            LobbyPanel.SetActive(true);
            NamePanel.SetActive(false);
            Debug.Log(" Already in the hall ");
        }


    }

    /// <summary>
    ///  Create or add room button
    /// </summary>
    public void joinOrCreateRoomBtn()
    {

        if(RoomnameInputField.text.Length<=2)
        {

            return;
        }
        LobbyPanel.SetActive(false);
        RoomOptions roomOptions = new RoomOptions {
     MaxPlayers = 4 };// The maximum number of people in the room 4 people
        PhotonNetwork.JoinOrCreateRoom(RoomnameInputField.text, roomOptions, default);
        RoomPanel.SetActive(true);

    }

    #endregion

    #region Photon function


    public override void OnJoinedRoom()
    {

        if (PhotonNetwork.LocalPlayer.IsMasterClient)// Judge whether it is the owner , If yes, the start game button will be displayed , The ready button is not displayed
        {

            readyBtn.SetActive(false);
            startBtn.SetActive(true);
        }
        else
        {

            readyBtn.SetActive(true);
            startBtn.SetActive(false);
        }


    }
    /// <summary>
    ///  When the server is successfully connected
    /// </summary>
    public override void OnConnectedToMaster()
    {

        NamePanel.SetActive(true);// Show name panel
        StartInitPanel.SetActive(false);// Hide the start initialization panel
        PhotonNetwork.JoinLobby();// Join the lobby
        Debug.Log(" Join the hall successfully ");
    }


    #endregion
}

7. Create a new one RoomManagerList The empty object of , Similarly, create a new RoomMnaager Script , It is mainly used to manage the display of room list ：

using Photon.Pun;
using Photon.Realtime;
using System.Collections;
using System.Collections.Generic;
using UnityEngine;
using UnityEngine.UI;

public class RoomManager : MonoBehaviourPunCallbacks
{

    public GameObject roomNamePrefab;// Precast units shown in the room
    public Transform gridLayout;// The parent of the preform

    /// <summary>
    ///  Room update function , Every time the room disappears or increases , Will call , Therefore, special treatment shall be carried out for the disappearance
    /// </summary>
    /// <param name="roomList"> Returned room parameters </param>
    public override void OnRoomListUpdate(List<RoomInfo> roomList)
    {

        Debug.Log("roomlist:" + roomList.Count);

        for (int i = 0; i < gridLayout.childCount; i++)// Traverse the child objects under the parent object
        {

            if (gridLayout.GetChild(i).gameObject.GetComponentInChildren<Text>().text == roomList[i].Name)// Have the same object
            {

                Destroy(gridLayout.GetChild(i).gameObject);// The destruction
                if (roomList[i].PlayerCount == 0)// If the room player is 0
                {

                    roomList.Remove(roomList[i]);// Remove the room
                }
            }
        }
        foreach (var room in roomList)// Traverse the display of the generated room
        {


            GameObject newRoom = Instantiate(roomNamePrefab, gridLayout.position, Quaternion.identity, gridLayout);// Generate room button
            newRoom.GetComponent<RoomBtn>().roomName = room.Name;// Set room name
            newRoom.GetComponentInChildren<Text>().text = room.Name + "(" + room.PlayerCount + "/4)";// Display parameters

        }
    }
}

8. To click the room button , Access to the room , So add script events to the buttons , Create a new script RoomBtn, The room button is a prefabricated body , It needs to be set in advance , stay scroll view Inside content Click the new button , Then remember to give content add to Vertical layout group and content size fitter Components , Similarly, in the player panel , You also need to design the corresponding preform for the player , The method is similar to , The code is as follows ：

using Photon.Pun;
using Photon.Realtime;
using System.Collections;
using System.Collections.Generic;
using UnityEngine;

public class RoomBtn : MonoBehaviourPunCallbacks
{

    public string roomName;
    void Start()
    {


    }

    /// <summary>
    ///  Click button , Join the room
    /// </summary>
    public void JoinRoomBtn()
    {


        PhotonNetwork.JoinRoom(roomName);// Join the room
        NetworkManager._instance.RoomPanel.SetActive(true);// Show room panels
        NetworkManager._instance.LobbyPanel.SetActive(false);// Hide lobby panels


    }

}

9. After entering the room , Players need to be updated , At the same time, it is necessary to judge whether it is the homeowner , If it is , Homeowners can start the game , If not , A prepare button is displayed . In fact, you can also do an online chat here , Add the following components , As input and display of chat .

Script InRoom Code ：

using Photon.Pun;
using Photon.Realtime;
using System.Collections;
using System.Collections.Generic;
using UnityEngine;
using UnityEngine.UI;

public class InRoom : MonoBehaviourPunCallbacks
{

    public GameObject playerInfoPrefab;// Player button prefab
    public Transform conlayout;// The parent object
    List<GameObject> mplayers = new List<GameObject>();
    Player[] allplayers;

    bool ready = false;

    public InputField contentInput;// Chat input box
    public GameObject textPrefab;// Text prefab
    public Transform layoutContent;// The parent object
    void Start()
    {


    }
   /// <summary>
   ///  When you join a room
   /// </summary>
    public override void OnJoinedRoom()
    {


        allplayers = PhotonNetwork.PlayerList;
        foreach (var item in allplayers)
        {

            GameObject obj = Instantiate(playerInfoPrefab, conlayout);

            m_PlayerInfo _PlayerInfo = obj.GetComponent<m_PlayerInfo>();
            _PlayerInfo.playerName = item.NickName;
            obj.GetComponentInChildren<Text>().text = item.NickName + "(" + " Not prepared " + ")";
            mplayers.Add(obj);
        }
    }

    /// <summary>
    ///  When a player enters , Update player list
    /// </summary>
    /// <param name="newPlayer"></param>
    public override void OnPlayerEnteredRoom(Player newPlayer)
    {

        GameObject obj = Instantiate(playerInfoPrefab, conlayout);
        m_PlayerInfo _PlayerInfo = obj.GetComponent<m_PlayerInfo>();
        _PlayerInfo.playerName = newPlayer.NickName;
        obj.GetComponentInChildren<Text>().text = newPlayer.NickName+"("+" Not prepared "+")";
        mplayers.Add(obj);
    }
    /// <summary>
    ///  When a player leaves , Update player list
    /// </summary>
    /// <param name="otherPlayer"></param>
    public override void OnPlayerLeftRoom(Player otherPlayer)
    {

        foreach (var item in mplayers)
        {

            if (item.GetComponentInChildren<Text>().text.Contains(otherPlayer.NickName))
            {


                Destroy(item);
                break;
            }
        }
    }
    /// <summary>
    ///  When leaving the room , If there are people in the room , Then set others as the owners
    /// </summary>
    public override void OnLeftRoom()
    {

        foreach (var item in mplayers)
        {

            if (item.GetComponentInChildren<Text>().text.Contains(PhotonNetwork.LocalPlayer.NickName))
            {

                if (PhotonNetwork.LocalPlayer.IsMasterClient)
                {

                    foreach (var p in allplayers)
                    {

                        if (p != PhotonNetwork.LocalPlayer)
                        {

                            PhotonNetwork.CurrentRoom.SetMasterClient(p);
                            break;
                        }
                    }

                }

                Destroy(item);
                break;
            }
        }
    }


    Dictionary<string, bool> IsPlayerReady = new Dictionary<string, bool>();// Use dictionaries to broadcast data , Broadcast Dictionary
    /// <summary>
    ///  Prepare button events
    /// </summary>
   public void SetReadyBtn()
    {

        foreach (var item in mplayers)
        {

            m_PlayerInfo playerinfo = item.GetComponent<m_PlayerInfo>();
            if (!IsPlayerReady.ContainsKey(playerinfo.playerName))
            {

                IsPlayerReady.Add(playerinfo.playerName, false);
            }
        }
        ready = !ready;
        foreach (var item in IsPlayerReady)
        {

            if(item.Key== PhotonNetwork.LocalPlayer.NickName)
            {

                IsPlayerReady[item.Key] = ready;
                break;
            }
        }
        photonView.RPC("ReadyBtn", RpcTarget.All,PhotonNetwork.LocalPlayer.NickName,IsPlayerReady);
    }

    [PunRPC]
    void ReadyBtn(string xname,Dictionary<string,bool> keyValuePairs)
    {


        foreach (var item in keyValuePairs)
        {

            if(item.Value==true)
            {

                foreach (var p in mplayers)
                {

                    if(p.GetComponentInChildren<Text>().text.Contains(item.Key))
                    {

                        p.GetComponentInChildren<Text>().text = item.Key + "(" + " Already prepared " + ")";
                        break;
                    }
                }
            }
            else
            {

                foreach (var p in mplayers)
                {

                    if (p.GetComponentInChildren<Text>().text.Contains(item.Key))
                    {

                        p.GetComponentInChildren<Text>().text = item.Key + "(" + " Not prepared " + ")";
                        break;
                    }
                }
            }
        }

        //foreach (var item in mplayers)
        //{

        // Debug.Log(item.GetComponentInChildren<Text>().text);
        // if (item.GetComponentInChildren<Text>().text.Contains(xname))
        // {

        // if(ready)
        // {

        // item.GetComponentInChildren<Text>().text= xname + "(" + " Already prepared " + ")";
        // }
        // else
        // {

        // item.GetComponentInChildren<Text>().text = xname + "(" + " Not prepared " + ")";
        // }
        // break;
        // }
        //}
    }


    // Send a message
    public void SendMessInfoBtn()
    {

        string info = PhotonNetwork.LocalPlayer.NickName + " :" + contentInput.text;
        photonView.RPC("SendMess", RpcTarget.All,info);
    }

    [PunRPC]
    void SendMess(string mess)
    {

        GameObject textobj = Instantiate(textPrefab, layoutContent);
        textobj.GetComponentInChildren<Text>().text = mess;
    }

    // Start the game
    public void StartGameButton()
    {


        photonView.RPC("LoadGameScene", RpcTarget.All);
    }


    [PunRPC]
    void LoadGameScene()
    {

        PhotonNetwork.LoadLevel(1);
    }
}

There is also a code added here , Buttons bound to players ,

Code content ：

using System.Collections;
using System.Collections.Generic;
using UnityEngine;

public class m_PlayerInfo : MonoBehaviour
{

    public string playerName;

}

10. Create a new scene , Remember to add in build setting Inside . In this scenario , Build a simple floor , At the same time, create a new capsule , As a player's prefab Player. Add the following components , Drag him to the following folder , Delete... In the scene Player：


11. Create a new script , Name it GameManager, It is mainly used to generate players , Remember to add , The code is as follows ：

using Photon.Pun;
using Photon.Realtime;
using System.Collections;
using System.Collections.Generic;
using UnityEngine;

public class GameManager : MonoBehaviourPunCallbacks
{


    public static GameManager _insatnce;

    // Start is called before the first frame update
    void Awake()
    {

        _insatnce = this;

        int index = 0;
        Player[] players = PhotonNetwork.PlayerList;
        foreach (var item in players)
        {

            if (item.NickName == PhotonNetwork.NickName)
            {

                index = item.ActorNumber - 1;
                // PhotonNetwork.Instantiate("Player", m_spawns.mySpawns[index].spawnPos.position, Quaternion.identity);
                PhotonNetwork.Instantiate("Player", Vector3.zero, Quaternion.identity);
                Debug.Log("userid:" + item.ActorNumber);
            }
        }
    }
}

12. newly build mPlayer Script , Used to control player movement

using Photon.Pun;
using System.Collections;
using System.Collections.Generic;
using UnityEngine;

public class mPlayer : MonoBehaviourPunCallbacks
{

    void Update()
    {

        if (photonView.IsMine)
        {

            MoveController();
        }
    }
    public void MoveController()
    {

        float h = Input.GetAxis("Horizontal");
        float v = Input.GetAxis("Vertical");
        transform.Translate(new Vector3(h, 0, v) * 10 * Time.deltaTime);
    }
}

13. such , A basic online mechanism for small demo It's done. . In fact, on the whole ,photon This online mechanism , The introduction is very simple , But the later expansion and optimization will take some time .

Finally, the project source code ： Source code address
