Shardingsphere proxy 5.0 sub database and sub table (I)

One 、 sketch

• sketch
  ShardingSphere-Proxy4.0 Has been upgraded to 5.0 了 , However, there are some differences between the two configuration files , This article is about ShardingSphere-Proxy 5.0 In the fall to the ground . Concept 、 table 、 sub-treasury 、 The basic principle and of sub database and sub table 4.0 Same , Need to know can view https://blog.csdn.net/Fu_Shi_rong/article/details/123541413?spm=1001.2014.3001.5501.
• Developer documentation
  https://shardingsphere.apache.org/document/current/cn/dev-manual/

Two 、ShardingSphere-Proxy5.0 to ground

• Environmental Science

  • JAVA JDK download

    https://pan.baidu.com/s/1A-ksNN0YicT3hXjFscGGwA
     Extraction code ：r9e0


  • JDBC Data connection driven download

    https://pan.baidu.com/s/1924iUe7wxGpStAzxxv2K3g
     Extraction code ：jy7z


  • ShardingSphere-Proxy 5.0 download 、

    https://archive.apache.org/dist/shardingsphere/5.0.0/


  • Window 11

• to ground

  • Conditions

    1. Real database
    2. Logical database
    3. ShardingSphere-Proxy5.0 The configuration file

  • step

    1. Create a new real database and table 【hmms.user Table as an example 】

       • Database table structure statement

         SET NAMES utf8mb4;
         SET FOREIGN_KEY_CHECKS = 0;

         -- ----------------------------
         -- Table structure for user
         -- ----------------------------
         DROP TABLE IF EXISTS `user`;
         CREATE TABLE `user`  (
           `useid` int(11) NOT NULL,
           `usenam` varchar(50) CHARACTER SET utf8 COLLATE utf8_general_ci NOT NULL COMMENT ' Login name ',
           `usepwd` varchar(100) CHARACTER SET utf8 COLLATE utf8_general_ci NULL DEFAULT NULL COMMENT ' The login password ',
           `usestate` int(11) NULL DEFAULT 2 COMMENT '-1： Delete 1： Cancellation  2： normal  3： Report the loss of ',
           `usekey` varchar(100) CHARACTER SET utf8 COLLATE utf8_general_ci NULL DEFAULT NULL COMMENT ' User secret key ',
           `usetel` varchar(11) CHARACTER SET utf8 COLLATE utf8_general_ci NULL DEFAULT NULL COMMENT ' User's mobile phone ',
           `createbyid` varchar(50) CHARACTER SET utf8 COLLATE utf8_general_ci NULL DEFAULT NULL COMMENT ' Add by ',
           `createbytime` datetime(0) NULL DEFAULT NULL COMMENT ' Add the time ',
           `modifybyid` varchar(50) CHARACTER SET utf8 COLLATE utf8_general_ci NULL DEFAULT NULL COMMENT ' Modifier ',
           `modifybytime` datetime(0) NULL DEFAULT NULL COMMENT ' Modification time ',
           PRIMARY KEY (`useid`) USING BTREE
         ) ENGINE = InnoDB CHARACTER SET = utf8 COLLATE = utf8_general_ci ROW_FORMAT = Dynamic;
         SET FOREIGN_KEY_CHECKS = 1;


       • The operation results are as follows ：



    2. modify ShardingSphere-Proxy5.0 The configuration file , And connect

       config-sharding.yaml

       # 3、 Create client connection Library
       schemaName: hmms

       #1、 Connect mysql
       dataSources:
         hmmsdatasources-0:
           url: jdbc:mysql://localhost:3306/hmms?serverTimezone=UTC&useSSL=false
           username: root
           password: ****
           connectionTimeoutMilliseconds: 30000
           idleTimeoutMilliseconds: 60000
           maxLifetimeMilliseconds: 1800000
           maxPoolSize: 50
           minPoolSize: 1

       # 2、 Fragmentation rule
       rules:
       - !SHARDING
         tables:
           user: # Table name
             actualDataNodes: hmmsdatasources-0.user-${0..1}  # Table rules
             tableStrategy:
               standard:
                 shardingColumn: useid   # Patch key
                 shardingAlgorithmName: use_MOD  # Tabulation algorithm
         shardingAlgorithms:  # Tabulation algorithm
           use_MOD:  # Modular algorithm
             type: MOD
             props:
               sharding-count: 2


       server.yaml

       rules:
         - !AUTHORITY
           users:
             - [email protected]%:*****
             - [email protected]:sharding
           provider:
             type: ALL_PRIVILEGES_PERMITTED


       Run the command

       # stay ShardingSphere-Proxy bin
       start.bat  Port number

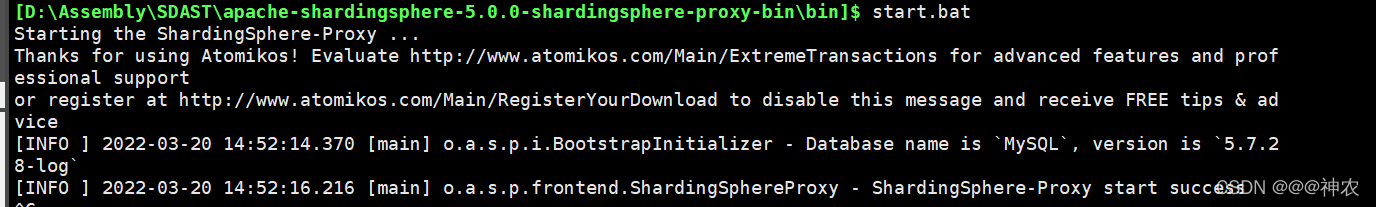

       The operation results are as follows ：



    3. Create a new logical data connection , And execute the table structure and data script

       The execution results of the logic library are as follows ：



       Add two pieces of data to the logical database

       SQL sentence

       INSERT INTO `user` VALUES (1, 'admin', '202CB962AC59075B964B07152D234B70', 2, '123', '123123', 'xiaogang', '2021-08-25 20:12:15', 'xiaogang', NULL);
       INSERT INTO `user` VALUES (2, 'admin', '202CB962AC59075B964B07152D234B70', 2, '123', '123123', 'xiaogang', '2021-08-25 20:12:15', 'xiaogang', NULL);


       The results are as follows ：




  • Sub database and sub table
    ShardingSphere-Proxy 5.0 To configure

    # 3、 Create client connection Library
    schemaName: hmms

    #1、 Connect mysql
    dataSources:
      hmmsdatasources-0:
        url: jdbc:mysql:// The host address : Port number /hmms-0?serverTimezone=UTC&useSSL=false
        username: root
        password:  password
        connectionTimeoutMilliseconds: 30000
        idleTimeoutMilliseconds: 60000
        maxLifetimeMilliseconds: 1800000
        maxPoolSize: 50
        minPoolSize: 1

      hmmsdatasources-1:
        url: jdbc:mysql:// The host address : Port number /hmms-1?serverTimezone=UTC&useSSL=false
        username: root
        password:  password
        connectionTimeoutMilliseconds: 30000
        idleTimeoutMilliseconds: 60000
        maxLifetimeMilliseconds: 1800000
        maxPoolSize: 50
        minPoolSize: 1


    # 2、 Fragmentation rule
    rules:
    - !SHARDING
      tables:
        user:
          actualDataNodes: hmmsdatasources-${0..1}.user-${0..1}
          tableStrategy:
            standard:
              shardingColumn: useid
              shardingAlgorithmName: use_MOD
          databaseStrategy:  # The rules of sub Treasury
              standard:
                shardingColumn: useid
                shardingAlgorithmName: use_MOD
          keyGenerateStrategy:
            column: useid
            keyGeneratorName: snowflake
      shardingAlgorithms:
        use_MOD:
          type: MOD
          props:
            sharding-count: 2
        use_HASH_MOD:
          type: HASH_MOD
          props:
            sharding-count: '2'
      keyGenerators:
        snowflake:
           type: SNOWFLAKE
           props:
             worker-id: 123


  • Sharding algorithm

  1. Modular algorithm

   shardingAlgorithms:  # Tabulation algorithm
      use_MOD:  # Modular algorithm
        type: MOD
        props:
          sharding-count: 2 # The split table data and the expression of the split table must be consistent


2. Range algorithm

     shardingAlgorithms:
       use_BOUNDARY_RANGE:
         type: BOUNDARY_RANGE
         props:
           sharding-ranges: 2,100 # Multiple nodes are separated by commas  [ The node is configured according to the sub table ]
    # remarks
     # The partition key is ：useid int type
     # The sub table is 3 Tables
     #sharding-ranges: 2,100  In order to 2 For the node , Less than 2 Save the data to the table 0,2 To 99 Save to table 1,100 Save the above to the table 3


3. Capacity algorithm

   shardingAlgorithms:
   	use_VOLUME_RANGE:
               type: VOLUME_RANGE
               props:
                 range-lower: '20000000'  # minimum value
                 range-upper: '40000000'  # Maximum
                 #  Interval of segmented interval data
                 sharding-volume: '20000000'
    # remarks
        The minimum value is 2000 ten thousand , In other words, the amount of table data is less than or equal to 2000 ten thousand , The maximum quantity is 4000 ten thousand
        The interval between tables is 2000 ten thousand
        For example, there are two tables ：
       1-2000 ten thousand         Save to table 0
       2001 ten thousand -4000 ten thousand     Save to table 1
        The maximum value is defined according to the number of sub tables
        Divided into three tables , The maximum value is 6000 ten thousand


4. HASH-CODE Algorithm 【 If the fragment key is a string type , Need this algorithm to divide the table 】

     shardingAlgorithms:
       use_HASH_MOD:
         type: HASH_MOD
         props:
           sharding-count: '2'  # Number of tables , Single quotation marks must be added


5. According to the time table algorithm

   shardingAlgorithms:
       use_AUTO_INTERVAL:
           type: AUTO_INTERVAL
           props:
             datetime-lower: '2020-01-01 23:59:59'
             datetime-upper: '2022-12-31 23:59:59'
             #  With 1 Divided by year
             sharding-seconds: '31536000'
             #  With 1 Divided into months
             #sharding-seconds: '2678400'
             #  With 1 Divided in days
             #sharding-seconds: '86400'
    # The maximum value set must match the score table , No one reported wrong. , Table not found


• Distributed ID

  config-sharding.yaml

  # 3、 Create client connection Library
  schemaName: hmms

  #1、 Connect mysql
  dataSources:
    hmmsdatasources-0:
      url: jdbc:mysql://localhost:3306/hmms?serverTimezone=UTC&useSSL=false
      username: root
      password: 1QAZ2WSX3EDC
      connectionTimeoutMilliseconds: 30000
      idleTimeoutMilliseconds: 60000
      maxLifetimeMilliseconds: 1800000
      maxPoolSize: 50
      minPoolSize: 1

  # 2、 Fragmentation rule
  rules:
  - !SHARDING
    tables:
      user:
        actualDataNodes: hmmsdatasources-0.user-${0..1}
        tableStrategy:
          standard:
            shardingColumn: id
            shardingAlgorithmName: use_HASH_MOD
        keyGenerateStrategy:
          column: id
          keyGeneratorName: snowflake
    shardingAlgorithms:
      use_MOD:
        type: MOD
        props:
          sharding-count: 2
      use_HASH_MOD:
        type: HASH_MOD
        props:
          sharding-count: '2'
    keyGenerators:
      snowflake:
         type: SNOWFLAKE
         props:
           worker-id: 123



  Table structure sql sentence

  SET NAMES utf8mb4;
  SET FOREIGN_KEY_CHECKS = 0;

  -- ----------------------------
  -- Table structure for user
  -- ----------------------------
  DROP TABLE IF EXISTS `user`;
  CREATE TABLE `user`  (
    `id` varchar(100),
    `useid` int(11) NOT NULL,
    `usenam` varchar(50) CHARACTER SET utf8 COLLATE utf8_general_ci NOT NULL COMMENT ' Login name ',
    `usepwd` varchar(100) CHARACTER SET utf8 COLLATE utf8_general_ci NULL DEFAULT NULL COMMENT ' The login password ',
    `usestate` int(11) NULL DEFAULT 2 COMMENT '-1： Delete 1： Cancellation  2： normal  3： Report the loss of ',
    `usekey` varchar(100) CHARACTER SET utf8 COLLATE utf8_general_ci NULL DEFAULT NULL COMMENT ' User secret key ',
    `usetel` varchar(11) CHARACTER SET utf8 COLLATE utf8_general_ci NULL DEFAULT NULL COMMENT ' User's mobile phone ',
    `createbyid` varchar(50) CHARACTER SET utf8 COLLATE utf8_general_ci NULL DEFAULT NULL COMMENT ' Add by ',
    `createbytime` datetime(0) NULL DEFAULT NULL COMMENT ' Add the time ',
    `modifybyid` varchar(50) CHARACTER SET utf8 COLLATE utf8_general_ci NULL DEFAULT NULL COMMENT ' Modifier ',
    `modifybytime` datetime(0) NULL DEFAULT NULL COMMENT ' Modification time ',
    PRIMARY KEY (`useid`) USING BTREE
  ) ENGINE = InnoDB CHARACTER SET = utf8 COLLATE = utf8_general_ci ROW_FORMAT = Dynamic;
  SET FOREIGN_KEY_CHECKS = 1;


  Data filling statement

  INSERT INTO `user`(useid,usenam,usepwd,usestate,usekey,usetel,createbyid,createbytime,modifybyid,modifybytime) VALUES (1, 'admin', '202CB962AC59075B964B07152D234B70', 2, '123', '123123', 'xiaogang', '2021-08-25 20:12:15', 'xiaogang', NULL);


  The execution structure is as follows ：
