Design virtual network to realize communication between virtual machine instance and external network

adopt RDO Of packstack Installed OpenStack The virtual network has been configured by default , However, there is no specific configuration , Therefore, it cannot communicate with the external network .

Open vSwitch similar Linux bridge, It can realize the abstraction of layer-2 network , Provide distributed switch function for virtual network , Running on various or the same virtualization platforms in the cloud environment vSwitch Realize the virtual switch of distributed purchasing

OpenStack Virtual machine instances can be assigned two types of addresses , One is private ip Address , This address can be used ip a notice

The other is floating ip Address , This is from Neutron Services provided by components , Unwanted dhcp service , Directly set it statically on the client .

 **** Installation completed successfully ******

Additional information:
 * A new answerfile was created in: /root/packstack-answers-20211108-155737.txt
 * Time synchronization installation was skipped. Please note that unsynchronized time on server instances might be problem for some OpenStack components.
 * File /root/keystonerc_admin has been created on OpenStack client host 192.168.31.250. To use the command line tools you need to source the file.
 * To access the OpenStack Dashboard browse to http://192.168.31.250/dashboard .
Please, find your login credentials stored in the keystonerc_admin in your home directory.
 * The installation log file is available at: /var/tmp/packstack/20211108-155737-AxGfFO/openstack-setup.log
 * The generated manifests are available at: /var/tmp/packstack/20211108-155737-AxGfFO/manifests

1、 Connect the network interface to the external bridge interface br-ex Association

adopt RDO Of packstack Installed OpenStack By default Neutron Components provide virtual network services , Use virtual switches open vSwitch As a network proxy plug-in

The configuration file of the network proxy plug-in is located in /etc/neutron/plugins/ml2/ml2_conf.ini

  analysis ： the vbox, And as a OpenStack node centos7 Of ip The address is configured on the network interface ifcfg-enp0s3 On , This interface has no external bridge interface with the host system br-ex Association , Therefore, it is necessary to configure the network interface and the external bridge interface br-ex Association

stay /etc/sysconfig/network-scripts/ Create a new file in the folder ifcfg-br-ex file ,/etc/sysconfig/network-scripts/ifcfg-br-ex

Add the following

DEVICE=br-ex
DEVICETYPE=ovs
TYPE=OVSBridge
BOOTPROTO=static
IPADDR=192.168.31.250
NETNASK=255.255.255.0
GATEWAY=192.168.31.1
DNS1=114.114.114.114
ONBOOT=yes

Here to the original /etc/sysconfig/network-scripts/ifcfg-enp0s3 Make a backup of the network card configuration file

TYPE=Ethernet
BOOTPROTO=static
DEFROUTE=yes
PEERDNS=yes
PEERROUTES=yes
IPV4_FAILURE_FATAL=no
IPV6INIT=yes
IPV6_AUTOCONF=yes
IPV6_DEFROUTE=yes
IPV6_PEERDNS=yes
IPV6_PEERROUTES=yes
IPV6_FAILURE_FATAL=no
IPV6_ADDR_GEN_MODE=stable-privacy
NAME=enp0s3
UUID=afbf019e-74ec-46aa-8e97-16431f4dc906
DEVICE=enp0s3
ONBOOT=yes
IPADDR=192.168.31.250
NETWORK=255.255.255.0
GATEWAY=192.168.31.1
DNS1=144.144.144.144
DNS2=8.8.8.8

08 Network card configuration of

TYPE=Ethernet
BOOTPROTO=dhcp
DEFROUTE=yes
PEERDNS=yes
PEERROUTES=yes
IPV4_FAILURE_FATAL=no
IPV6INIT=yes
IPV6_AUTOCONF=yes
IPV6_DEFROUTE=yes
IPV6_PEERDNS=yes
IPV6_PEERROUTES=yes
IPV6_FAILURE_FATAL=no
IPV6_ADDR_GEN_MODE=stable-privacy
NAME=enp0s8
UUID=27da7e8a-30e6-4649-8694-5f7fb1d4369f
DEVICE=enp0s8
ONBOOT=no

Modify the configuration file /etc/sysconfig/network-scripts/ifcfg-enp0s3 by

TYPE=OVSPort
DEVICETYPE=ovs
OVS_BRIDGE=br-ex
NAME=enp0s3
UUID=UUID=afbf019e-74ec-46aa-8e97-16431f4dc906
DEVICE=enp0s3
ONBOOT=yes
HWADDR=08:00:27:4F:13:B1

Note here , The first few letters will be missing when copying here after the crash , It took a long time to find the problem ,  Pay attention to the comparison

HWADDR It's a network card MAC Address , stay

  And then restart network

systemctl restart network

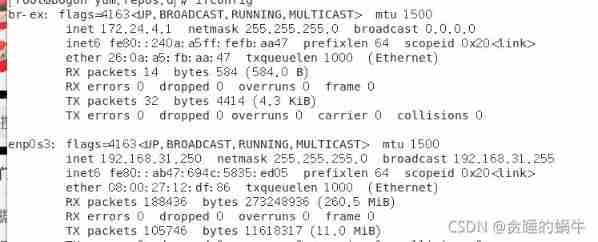

  Check out the Internet

After the modification, it is found that the instance cannot be created ！！！

2、 Configure the virtual network

An internal network is configured by default , An external network , A route .

View routes

1、 Delete existing route

The default configured route has set the external network as the gateway （ It must be completely deleted, or there will be problems later , And the cause of the problem has never been found ）, So delete all the routes

2、 Configure the external network

Delete the network first

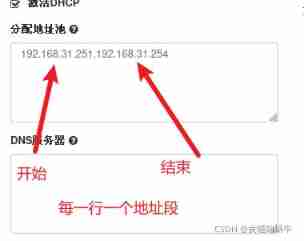

Creating networks

  It should be noted that , You need to set the default virtual machine in advance open vswitch Agent configuration file /etc/neutron/plugins/ml2/openvswitch_agent.ini The bridge mapping for is set to

  continue

 dns The server 114.114.114.114

3、 Adjust the internal network



  Add a dns Server address

4、 Configure the routing

You need to create a new route to connect the internal network and the external network , This configuration is based on each project ,

, Create a new route in the project network （ It is necessary to advance public Set the network as an external network ）



  Click the route name to enter the details

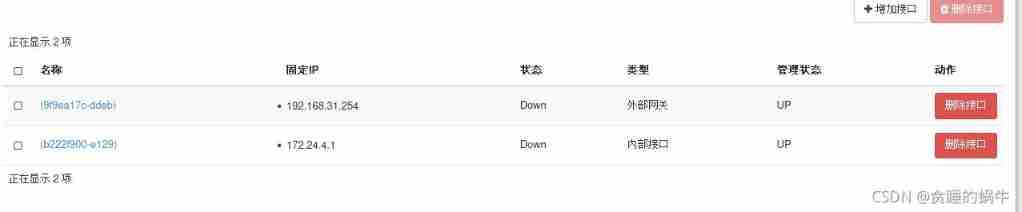

Add interface

Set up the gateway

  Check the network topology , You can see that the router connects the internal and external networks

 5、 Assign floats to virtual machine instances ip Address



  Create port

Note that you want to delete the network , You need to delete the corresponding interface in the route , Then delete the network .

Finally found ssh Configuration of (/etc/ssh/sshd_config) It's not the same ,14.04 The default configuration for is ：

PermitRootLogin without-password

Change it to ：

PermitRootLogin yes

And then restart ssh:

restart ssh

 <physical_network>:<bridge> A comma separated list of tuples maps physical network names to be used for flat and VLAN The proxy node of the network is specific Open vSwitch Bridge name . The length of the bridge name should not exceed 11. Every bridge must exist , And there should be a physical network interface configured as port . All physical networks configured on the server should be mapped to the appropriate bridges on each agent . Be careful ： If you remove a bridge from this mapping , Be sure to disconnect it from the integrated bridge , Because the agent will no longer manage it . （ List value ）

ovs-vsctl show

Defined external network extnet It's mapped to OVS bridge , namely Openstack The instance will pass through the bridge br-ex Access to external networks ,

watch cat /proc/net/dev Check traffic

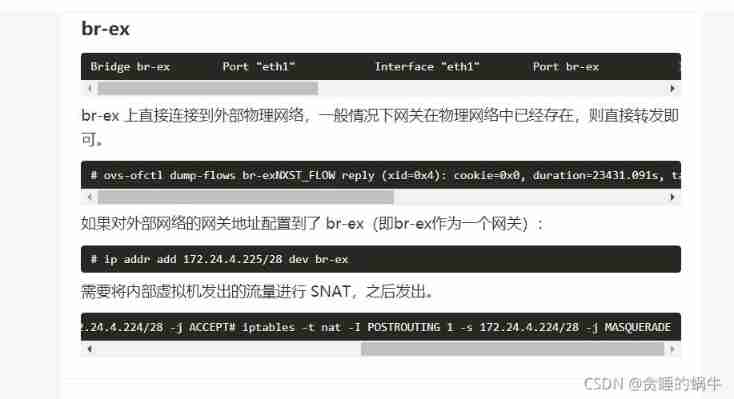

Use network nodes to access the external network eth0 Interface to br-ex In the bridge

Create a second network card , The name of the second network card is enp0s8, Online search found an update , The way network interfaces are named has changed

/etc/neutron/plugins/ml2/ml2_conf.ini

“ request timeout ” Description local issue ICMP There is no response to the package , That is, the router will filter the packet directly

“ Unable to access target host ” explain ： This is not available on the current network IP The address is accessible to the user

ssh

cd ~/.ssh
chmod 700 passkey.pem
ssh -i ~/.ssh/passkey.pem [email protected]

plugin.ini

l3_agent.ini：

openvswitch_agent.ini：

bridge_mappings

Restart configuration

# openstack-service restart neutron

# systemctl restart neutron-l3-agent.service neutron-openvswitch-agent.service

Default network configuration

restart

# openstack-service restart neutron

# systemctl restart neutron-l3-agent.service neutron-openvswitch-agent.service

---

Try to modify

Network nodes - In depth understanding of OpenStack Network implementation Neutron - Wenjiang blog

  Basic knowledge of firewall SNAT Detailed explanation | Erya speaks Buddhism

 iptables -t nat -A POSTROUTING -s 192.168.31.0/24 -o br-ex -j SNAT --to-source 192.168.31.249

glance namely image service, It is a service that provides images for the creation of virtual machines

horizon Provide web The user interface

keystone Provide authentication

nova Quickly automate the creation of virtual machines
