Mqtt.fx connects to Alibaba cloud Internet of things platform

Novice entry level mainly describes the general process and their understanding of learning

Forward thinking ： Old engineer ： Code is not the hardest , The plan is the most difficult . Make clear the plan 、 As long as the code learns it, it will , It will happen sooner or later, right ;

MQTT.fx It is used to debug Alibaba cloud , Just use this configuration , It's the same with SCM configuration , So at the beginning, you don't need to use the board directly. First, use this software to connect Alibaba cloud , Then use the same principle to get it on the board , This chapter focuses on using software to debug Alibaba cloud , SCM provides a general idea

 outline ：
	 Different microcontrollers （srm32 51 NXP...）,				//
	 Different transmission protocols （MQTT HTTPS 4G modbus...）,	//MQTT HTTPS It's all based on TCP/IP Application communication protocol on the Protocol ,modbus It is widely used in industry
	 Different ECs （ Alibaba cloud   Hua Wei Yun  OneNET( Originator )...）,	// Tencent cloud , Atomic cloud （ The punctual atoms ）
	 They are similar in use , As long as you learn a way to understand the principle, you can draw inferences from one instance .

step ：https://www.processon.com/view/link/6124549ce401fd5228f8f94a password ：5555
Cloud configuration ：（ Here it means STM32 equipment Aliyun server MQTT agreement , The upper configuration is the same ）

It can be concluded that the step is 1. Create products ->1.1 Add equipment 2. New projects ->2.1 New application
1. Create products ：

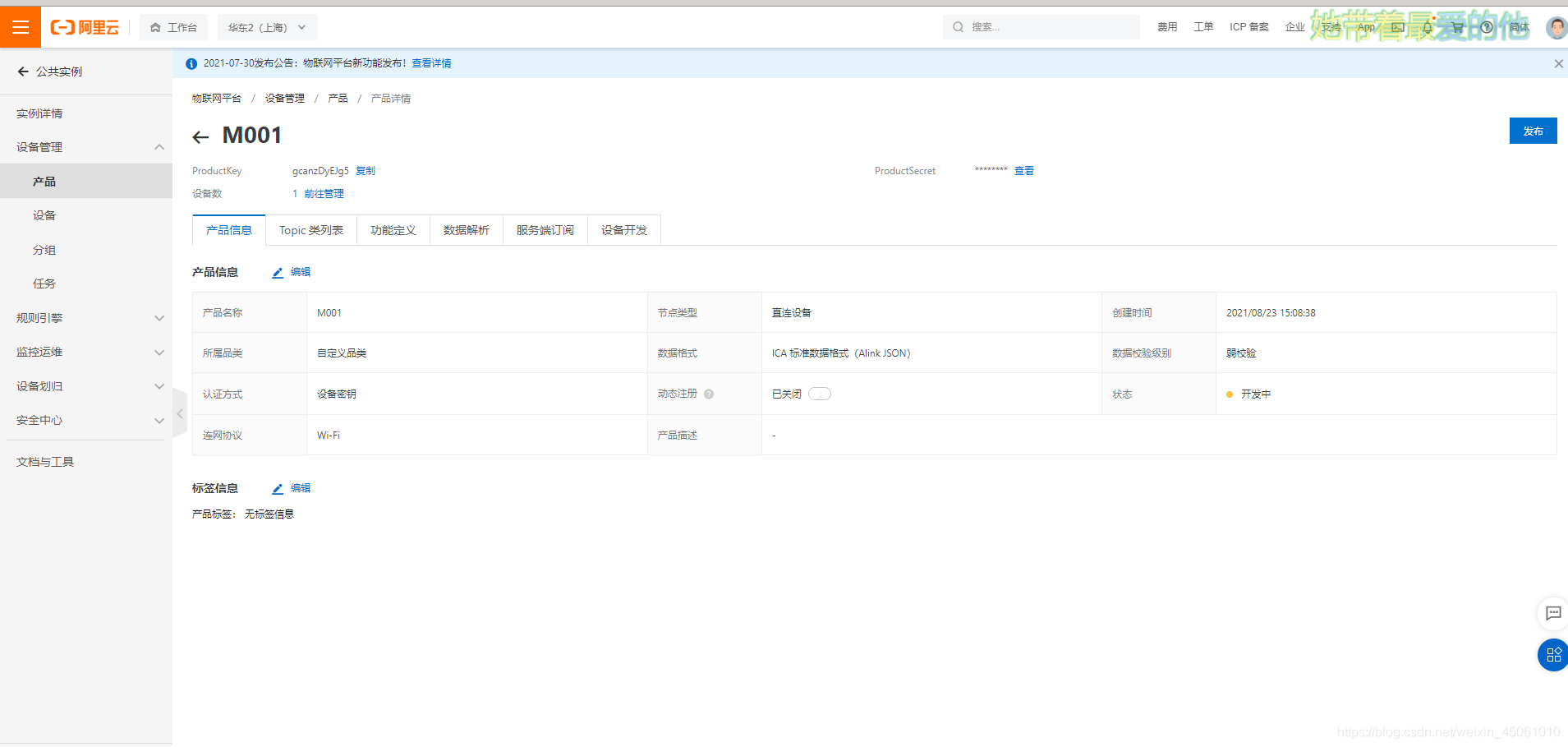

Create success ：

1.1 Add equipment （ Product selection required , Products must be created first ）

Add success ：

software test （MQTT.fx） Connect ：

Alibaba cloud official website uses MQTT.fx Connect IOT connection steps ：
https://help.aliyun.com/document_detail/140507.html

 Refer to Alibaba cloud configuration as follows ：

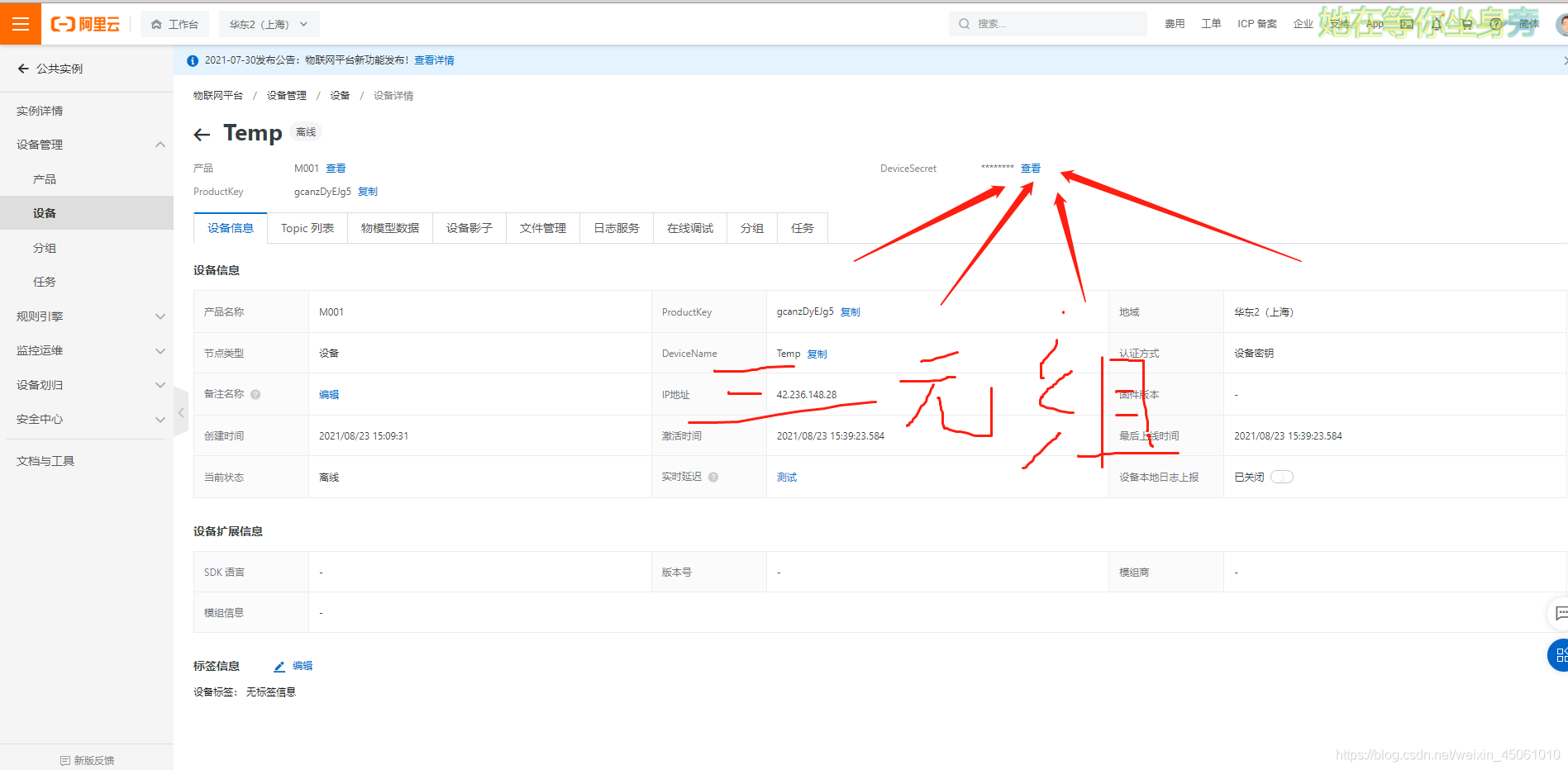

 Certification certificate of equipment      A triple
{

  "id": "12345",
  "version": "1.0",
  "params": {
    "Humidity":47.5,"Temperature":79},
  "method": "thing.event.property.post"
}

Broker Address    Connection domain name
	 Fixed format ：${
    YourProductKey}.iot-as-mqtt.${
    YourRegionId}.aliyuncs.com.
	${
    YourProductKey}： Please replace with... Of the product to which the equipment belongs ProductKey. You can log in to the Internet of things platform console , Get... On the device details page of the corresponding instance .
	${
    YourRegionId}： See regions and zones , Replace with your Region ID.
 Integrate ：gcanzDyEJg5.iot-as-mqtt.cn-shanghai.aliyuncs.com

 Port number ：1883（ Default ）

Client ID		MQTT Protocol fields for .
	 Fixed format ：${
    ClientID}|securemode=${
    Mode},signmethod=${
    SignMethod}|
	${
    ClientId}： equipment 、App or Web And so on Client ID Information .
	${
    Mode}： safe mode .
		securemode=3：TCP Direct Mode , No need to set SSL/TLS Information .
		securemode=2：TLS Direct Mode , Need to set up SSL/TLS Information .
	${
    SignMethod}： Algorithm type , Support hmacmd5 and hmacsha1.
 Integrate ：12345|securemode=3,signmethod=hmacsha1|



User Name
	 Fixed format ：${
    DeviceName}&${
    ProductKey}
 Integrate ：Temp&gcanzDyEJg5



Password
	 Through the selected encryption method , With the equipment of DeviceSecret As the key ,
	 After splicing parameters and parameter values , Encryption generation Password.
 Generate ：86E2D19B4CD7E49A1DDC0961561268E1C78C4C90




 How to publish data
 Of published data Topic
	/sys/gcantktaPzk/test/thing/event/property/post
** Publishing data needs to follow JSON Format , Otherwise, Alibaba cloud will receive errors when parsing **
JSON Format {

	 	 "id": "123",
	 	 "version": "1.0",
	  	"params": {

	  	  "temperature":36
	 	 },
		  "method": "thing.event.property.post"
		}
 Receive Alibaba cloud data
 receive data Topic
	/gcantktaPzk/test/user/get

Single chip connection steps ：
If you are not using Alibaba cloud dedicated WIFI Modules cannot be selected when creating products WIFi Of , If it is popular esp8266 Words , Or brush the firmware that can be connected to Alibaba cloud , Or choose cellular network

summary ： nothing
