After downloading , take hue-4.2.0.tgz Copy files to local yum The source of hue Under the table of contents . This path can be viewed through hdp Source profile acquisition , example :

#  notes :  yes , we have ambari Corresponding HDP.repo file
 cat /etc/yum.repos.d/hdp.repo | grep baseurl

#  The results are as follows
baseurl=http://{
    hostname}/ambari/HDP/centos7/2.6.3.0-235
baseurl=http://{
    hostname}/ambari/HDP-UTILS

# Then the above configuration corresponds to hue The catalogue is
/var/www/html/ambari/HDP/centos7/2.6.3.0-235/hue

1.3 stay Hue The installation node installation must depend on

In the installation Hue Execute the following command on the node of to install the necessary dependencies

yum install -y ant

yum install -y maven

yum install -y git

yum install -y gcc gcc-c++ make

yum install -y cyrus-sasl-devel cyrus-sasl-plain cyrus-sasl-gssapi

yum install -y krb5-devel libxml2-devel libxslt-devel

yum install -y python-setuptools

yum install -y openldap-devel python-devel sqlite-devel openssl-devel gmp-devel libffi-devel saslwrapper-devel

yum install -y mysql mysql-devel

yum install -y asciidoc

yum install -y python-simplejson  #  notes :  If the command runs abnormally , Please go to problem one to see the solution

Two . take Hue Integrated into the Ambari

2.1 take Hue Added to the Ambari management

Execute the following three commands on the master node

VERSION=`hdp-select status hadoop-client | sed 's/hadoop-client - \([0-9]\.[0-9]\).*/\1/'`
rm -rf /var/lib/ambari-server/resources/stacks/HDP/$VERSION/services/HUE
sudo git clone https://github.com/EsharEditor/ambari-hue-service.git /var/lib/ambari-server/resources/stacks/HDP/$VERSION/services/HUE

2.2 Modify the code according to the actual situation

2.2.1 Version changes

2.1 The file downloaded in step involves Hue Version and to be installed Hue edition （4.2） It's inconsistent . Therefore, relevant documents need to be modified .

The documents related to the version are as follows

metainfo.xml
README.md
package/scripts/params.py
package/scripts/setup_hue.py

All that appear in the above documents will be 3.11.0 Replace with 4.2.0 that will do

2.2.2 Script modification

In order to ensure Hue Can download and install normally , We also need to make necessary changes to some scripts
The script directory is as follows

/var/lib/ambari-server/resources/stacks/HDP/2.6/services/HUE/package/scripts/

modify common.py file

First, add the following execution commands , After modification, the result is as follows :
Insert picture description here
Next, comment out the following lines , The comments are followed by the following :

modify setup_hue.py file

Comment out the following two lines , After modification, the following is displayed :
Insert picture description here
modify params.py file

First , modify 32 That's ok ,download_url To configure , The modified results are shown in the following figure :
Insert picture description here
Be careful : The configuration here should be based on your actual situation ! Finally, we need to ensure that download_url Parameters return results and 1.2 The values configured in step are consistent
otherwise hue During the initialization process, there will be 404 Problems lead to failure

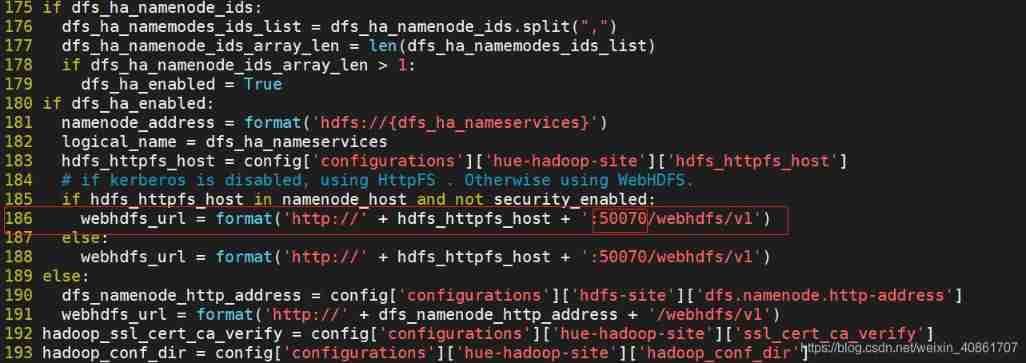

Next , modify 186 That's ok , Change the port number to 50070, as follows :

Insert picture description here

Check configs.sh file

The directory where the file is located :

/var/lib/ambari-server/resources/stacks/HDP/2.6/services/HUE/package/files

Check the file ambari Platform password , Whether the port number is set to and ambari-server Consistent configuration , Inconsistencies need to be corrected

Insert picture description here

2.3 restart ambari-server

After revising 2.2 After the configuration described , Restart by executing the following command ambari-server

ambari-server restart

We can already see in the add services list Hue service
Insert picture description here

3、 ... and . Ambari Install configuration in hue

3.1 hue Configure before formal installation

3.1.1 install hadoop-httpfs

If hdfs To enable the HA Pattern , Then you need to turn on hadoop-httpfs service , because webhdfs Can't automatically sense hdfs-site.xml Inside match HA Highly available information . and HDP It was castrated httpfs Of , So you need to install it manually , The operation is as follows :

 #  install  hadoop-httpfs
 sudo yum install hadoop-httpfs
 #  start-up HttpFs
 sudo service hadoop-httpfs  start（ perhaps /usr/hdp/current/hadoop-httpfs/etc/rc.d/init.d/hadoop-httpfs start）

3.1.2 hdfs Add related configuration

Be careful : In the process of adding the following parameters, you don't need to ignore the prompt that the parameters already exist , Just add the next one

HDFS Components are customized core-site Add the following parameters to the configuration file

hadoop.proxyuser.hue.groups=*

hadoop.proxyuser.hue.hosts=*

hadoop.proxyuser.httpfs.groups=*

hadoop.proxyuser.httpfs.hosts=*

hadoop.proxyuser.livy.groups=*

hadoop.proxyuser.livy.hosts=*

HDFS Components are customized hdfs-site Add the following parameters to the configuration file ：

dfs.namenode.acls.enabled=true

And make sure webhdfs It's on

3.1.3 mysql Database configuration

Need to be in MySQL To create a Hue database

create database hue;

CREATE USER [email protected]'%'IDENTIFIED BY 'password';

GRANT ALL PRIVILEGES ON hue.* TO [email protected]'*' IDENTIFIED BY 'password';

GRANT ALL PRIVILEGES ON hue.* TO [email protected]'%' IDENTIFIED BY 'password';

FLUSH PRIVILEGES;

3.2 hue initialization

At the end of the above configuration , Can be in ambari web Follow the prompts on the interface hue Initialization work

Hue Databases To configure
Insert picture description here
You can also configure to MySQL Configs In the part

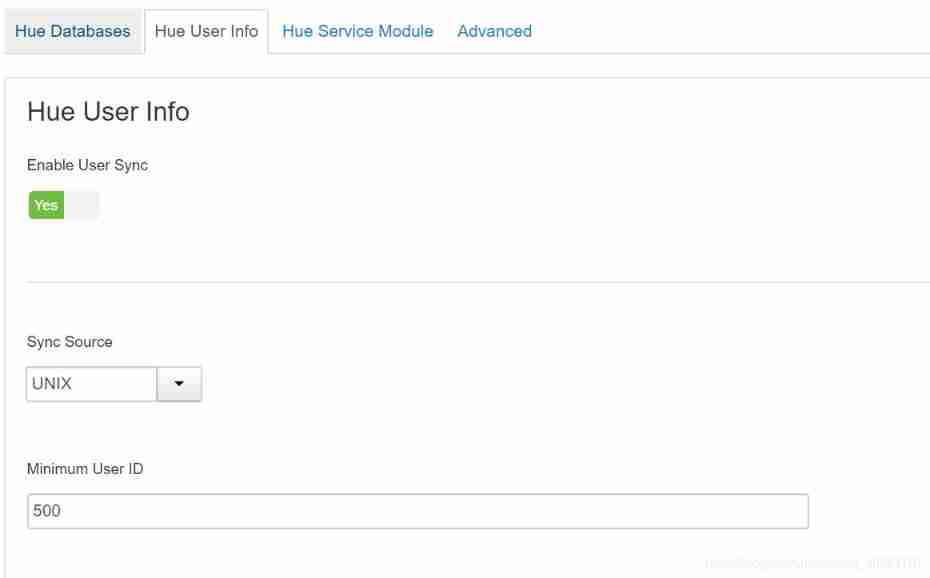

Hue User Info To configure

Enable User Sync, Use linux System local user
Insert picture description here
Hue Service Module To configure

Insert picture description here
Others keep the default values , Click next , Until the installation and deployment are completed
This involves source code compilation , So I will wait a long time
here , If an error is reported , Check and solve the problem according to the relevant error information prompted on the interface

If /usr/local/hue/build/env/bin/ The following directory proves the successful installation

Insert picture description here

Be careful ! Up to the above operation , We have only completed hue Installation work of ,
At this time, the startup or interface jump transfer fails , Because we haven't installed it yet Hue For further configuration

3.3 hue Configuration after initialization

Manually modify Hue The configuration file Hue.ini

Configuration file in /usr/local/hue/desktop/conf/ Under the table of contents . Configure from beginning to end . Need configuration mysql、hive、hdfs、webhdfs、yarn wait . Modify according to your existing components （hue The startup code is pushed to through the interface configuration parameters pseudo-distributed.ini file , This operation is for reference only ）, The details are as follows ：

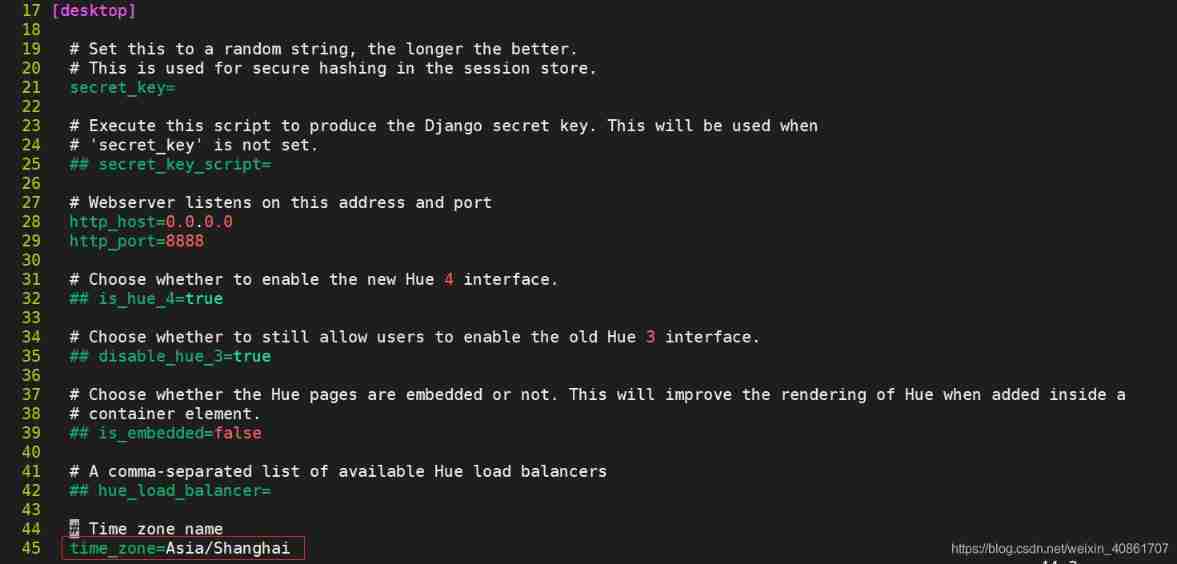

modify [desktop]
Insert picture description here
modify [[database]]

Insert picture description here
modify [hadoop]
Be careful : The example cluster here is enabled HA

Insert picture description here
modify [[yarn_cluesters]]
notes : My example here yarn Also opened. HA To configure

Insert picture description here
modify [[ha]]

Insert picture description here
modify [beeswax]

modify [spark]

Insert picture description here

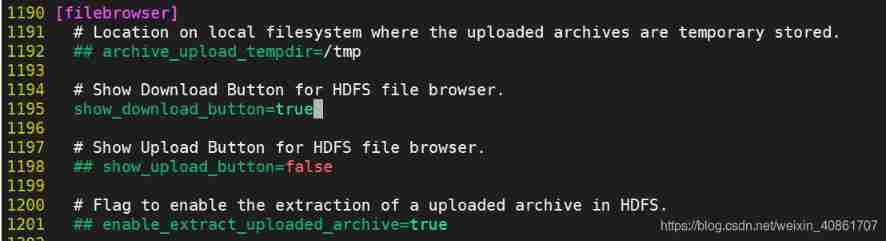

modify [firebrowser]

modify [zookeeper]

Insert picture description here
modify [libzookeeper]

notes : I only list my own components here , If other components are involved , Also modify the configuration file according to the actual situation

3.4 Generate hue Databases and tables

Get into /usr/local/hue/build/env/bin/ Catalog , Execute the following two commands ：

./hue syncdb
./hue migrate

hue The tables in the database are similar to the following figure , Prove the execution is successful :

Insert picture description here

3.5 Start and log in Hue

If you want to enable HBase, start-up hue Before , Start first hbase thrift service,ambari HDP No startup by default hbase thrift, You need to start it manually . stay HBase Master Execution on node ：

/usr/hdp/current/hbase-client/bin/hbase-daemon.sh start thrift

stay Ambari Interface to start Hue, Open on the quick link Hue Interface

The following interface appears , prove hue The installation configuration is normal
Insert picture description here

Enter the account name and password to log in ! My login username here ：hue, password ：hue

Four . Ambari Integrate Hue Problems encountered in the process and solutions

4.1 yum install python-simplejson Report errors :No package python-simplejson available.

Problem description :

#  Perform the following installation simplejson When
yum install python-simplejson -y

Report errors :

No package python-simplejson available.
Error: Nothing to do

Solution :

You can try the following download methods :

Method 1 :

wget https://pypi.python.org/packages/source/s/simplejson/simplejson-3.5.2.tar.gz#md5=10ff73aa857b01472a51acb4848fcf8b --no-check-certificate
tar vxzf simplejson-3.5.2.tar.gz
cd simplejson-3.5.2
python setup.py install

Method 2 :

pip install simplejson

Method 3 :

easy_install simplejson

I finally solved the problem with method 1

4.2 hue Initialization error : ‘ascii’ codec can’t encode character u’\u201c’ in position 3462: ordinal not in range(128)

Problem description :

# hue Initialization error , as follows
File "/usr/lib/python2.6/site-packages/resource_management/core/sudo.py", line 141, in create_file
    fp.write(content)
UnicodeEncodeError: 'ascii' codec can't encode character u'\u201c' in position 3462: ordinal not in range(128)

Question why :
Coding problem
Solution :
Modify the coding method of the error reporting file , as follows :

vim /usr/lib/python2.6/site-packages/resource_management/core/sudo.py
#  Add the following :
import sys

reload(sys)

sys.setdefaultencoding('utf-8')

As shown in the figure below :
Insert picture description here

4.3 hue Initialization error :HTTP request sent, awaiting response… 404 Not Found

#  On the interface install hue Report errors ,  The specific tips are as follows :
2020-11-11 14:08:52 (298 MB/s) - 'hue.tgz' saved [48520359/48520359]

--2020-11-11 14:08:52--  http://{
    ip}/ambari/HDP-UTILS/hue/hue-4.2.0.tgz
Reusing existing connection to 172.16.87.191:80.
HTTP request sent, awaiting response... 404 Not Found
2020-11-11 14:08:52 ERROR 404: Not Found.

FINISHED --2020-11-11 14:08:52--
Total wall clock time: 0.2s
Downloaded: 1 files, 46M in 0.2s (298 MB/s)

Error reason :
From the error prompt , There is no... Under the link given hue-4.2.0.tgz Compressed package
The suspicion is download_url Some configuration resolution problems

Solution :

modify params.py file

cd /var/lib/ambari-server/resources/stacks/HDP/2.6/services/HUE/package/scripts/

vim params.py

#  modify download_url The configuration is as follows , notes : This configuration needs to be modified according to your actual situation , Do not copy and paste directly
download_url = 'cat /etc/yum.repos.d/hdp.repo | grep "baseurl" | grep "ambari/HDP/centos" | awk -F \'=\' \'{print $2"/hue /hue-4.2.0.tgz"}\''

After modification , Reinitialize , Problem solved !

4.4 hue An error is reported when the interface is opened : 1044, “Access denied for user ‘hue’@’%’ to database ‘desktop/desktop.db’”

Problem description :
hue After initialization and successful startup ,ambari Click on quicklinks Get into Hue An error is reported in the interface :

OperationalError at /hue/accounts/login/
(1044, "Access denied for user 'hue'@'%' to database 'desktop/desktop.db'")
Request Method:	GET
Request URL:	http://ambari-191-master:8888/hue/accounts/login/?next=/
Django Version:	1.6.10
Exception Type:	OperationalError
Exception Value:
(1044, "Access denied for user 'hue'@'%' to database 'desktop/desktop.db'")
Exception Location:	/usr/local/hue/build/env/lib/python2.7/site-packages/MySQL_python-1.2.5-py2.7-linux-x86_64.egg/MySQLdb/connections.py in __init__, line 193
Python Executable:	/usr/local/hue/build/env/bin/python2.7
Python Version:	2.7.5

Question why :
hue Database initialization exception

Solution :

Get into /usr/local/hue/build/env/bin/ Catalog , Execute the following two commands ：

./hue syncdb
./hue migrate

Restart after correct hue, And related components , Click the link , The interface displays normally !
Insert picture description here

4.5 hue Interface access hdfs Report errors Cannot access: /. Note: you are a Hue admin but not a HDFS superuser, “hadoop” or part of HDFS supergroup, “supergroup”

Error details :


Cannot access: /. Note: you are a Hue admin but not a HDFS superuser, "hadoop" or part of HDFS supergroup, "supergroup".

SecurityException: Failed to obtain user group information: org.apache.hadoop.security.authorize.AuthorizationException: User: hue is not allowed to impersonate hue (error 403)

Error reason :
Permission problems , hue The user does not have the corresponding hdfs Access to directory

Solution :

by hue Add the following configuration
This configuration is consistent with 3.1.1 The host name in the process is consistent
Insert picture description here
Modify the following configuration , take Default User The value of is configured as an error reporting user

After modifying the above configuration , Restart hue. The problem can be solved

原网站

版权声明
本文为[New objects first]所创，转载请带上原文链接，感谢
https://yzsam.com/2022/02/202202161410258482.html

当前位置：网站首页>Ambari (VII) --- ambari integrated hue4.2 document (valid for personal test)

Ambari (VII) --- ambari integrated hue4.2 document (valid for personal test)

One . Preparation before installation

1.1 Environment configuration

1.2 download Hue Installation package

1.3 stay Hue The installation node installation must depend on

Two . take Hue Integrated into the Ambari

2.1 take Hue Added to the Ambari management

2.2 Modify the code according to the actual situation

2.2.1 Version changes

2.2.2 Script modification

2.3 restart ambari-server

3、 ... and . Ambari Install configuration in hue

3.1 hue Configure before formal installation

3.1.1 install hadoop-httpfs

3.1.2 hdfs Add related configuration

3.1.3 mysql Database configuration

3.2 hue initialization

3.3 hue Configuration after initialization

3.4 Generate hue Databases and tables

3.5 Start and log in Hue

Four . Ambari Integrate Hue Problems encountered in the process and solutions

4.1 yum install python-simplejson Report errors :No package python-simplejson available.

4.2 hue Initialization error : ‘ascii’ codec can’t encode character u’\u201c’ in position 3462: ordinal not in range(128)

4.3 hue Initialization error :HTTP request sent, awaiting response… 404 Not Found

4.4 hue An error is reported when the interface is opened : 1044, “Access denied for user ‘hue’@’%’ to database ‘desktop/desktop.db’”

4.5 hue Interface access hdfs Report errors Cannot access: /. Note: you are a Hue admin but not a HDFS superuser, “hadoop” or part of HDFS supergroup, “supergroup”

边栏推荐

猜你喜欢

随机推荐
