Preface

   With the schematic diagram , Can design hardware PCB, In the design PCB There is also a coordinated priority action , Mapping encapsulation , The components of the schematic library are designed by us . In order to better describe the packaging design process , This paper describes the chip resistor capacitor 0603 Chip packaging , Create PATCH PADS , Connect the components of the schematic diagram to the pin package .

<br>

Schematic packaging analysis

   Hardware development notes （ 7、 ... and ）: Basic process of hardware development , To make a USB turn RS232 Module （ 6、 ... and ）： establish 0603 Encapsulate and associate principle primitive devices _ Schematic diagram

  • Serial number 1：USB Port packaging , see datasheet establish
  • Serial number 2：CON encapsulation , Use dip2.54,2dip
  • Serial number 3：ASM1117-3.3V encapsulation , see datasheet establish
  • Serial number 4：CON encapsulation , Use dip2.54,3dip
  • Serial number 5： Capacitor package , choose 0603 establish
  • Serial number 6：CH340G encapsulation , see datashee establish
  • Serial number 7： Crystal oscillator package , see datasheet establish
  • Serial number 8：MAX232 Component packaging , see datasheet establish
  • Serial number 9：CON encapsulation , Use dip2.54,5dip

   above , Actually com There is a universal ,0603 These are also general standard packages .

<br>

establish 0603 encapsulation

  0603 Mainly capacitance , Common packaging for basic sensors such as resistors .
   The same resistance has different power ,0805 The power is 1/8W,0603 The power is 1/10W, So the power of the two is different .
   The capacitance is generally different from the withstand voltage ,0805 The maximum operating voltage and the maximum load voltage are 400V and 800V,0603 The maximum operating voltage and the maximum load voltage are 200V and 400V, So the withstand voltage of the two is different .

0603 Package dimension drawing of

   Hardware development notes （ 7、 ... and ）: Basic process of hardware development , To make a USB turn RS232 Module （ 6、 ... and ）： establish 0603 Encapsulate and associate principle primitive devices _ Insert a picture _02

Other similar package dimension drawings （ Indicative only ）

   Hardware development notes （ 7、 ... and ）: Basic process of hardware development , To make a USB turn RS232 Module （ 6、 ... and ）： establish 0603 Encapsulate and associate principle primitive devices _ Schematic diagram _03
   Hardware development notes （ 7、 ... and ）: Basic process of hardware development , To make a USB turn RS232 Module （ 6、 ... and ）： establish 0603 Encapsulate and associate principle primitive devices _ encapsulation _04
   Hardware development notes （ 7、 ... and ）: Basic process of hardware development , To make a USB turn RS232 Module （ 6、 ... and ）： establish 0603 Encapsulate and associate principle primitive devices _ Insert a picture _05

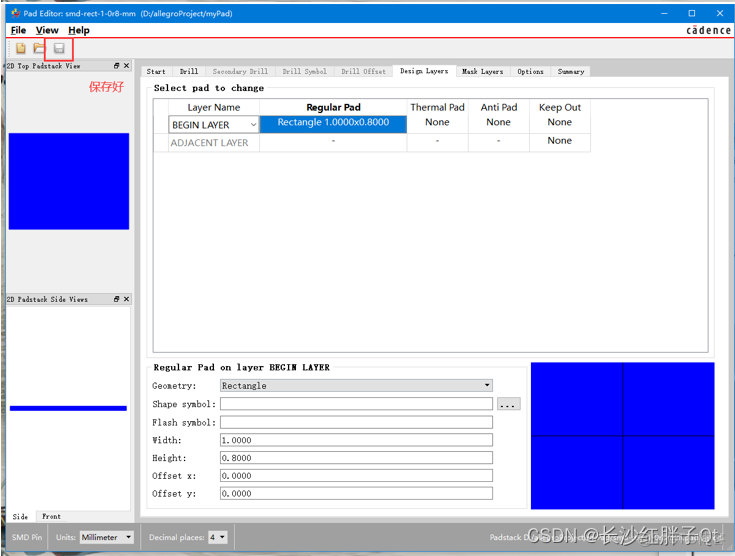

establish Pad Pad （ Rectangle ,SMT Patch pad ）

   Hardware development notes （ 7、 ... and ）: Basic process of hardware development , To make a USB turn RS232 Module （ 6、 ... and ）： establish 0603 Encapsulate and associate principle primitive devices _ Insert a picture _06
   Hardware development notes （ 7、 ... and ）: Basic process of hardware development , To make a USB turn RS232 Module （ 6、 ... and ）： establish 0603 Encapsulate and associate principle primitive devices _ Insert a picture _07
   Hardware development notes （ 7、 ... and ）: Basic process of hardware development , To make a USB turn RS232 Module （ 6、 ... and ）： establish 0603 Encapsulate and associate principle primitive devices _ Insert a picture _08
   Hardware development notes （ 7、 ... and ）: Basic process of hardware development , To make a USB turn RS232 Module （ 6、 ... and ）： establish 0603 Encapsulate and associate principle primitive devices _ encapsulation _09
   Hardware development notes （ 7、 ... and ）: Basic process of hardware development , To make a USB turn RS232 Module （ 6、 ... and ）： establish 0603 Encapsulate and associate principle primitive devices _ Insert a picture _10
   Hardware development notes （ 7、 ... and ）: Basic process of hardware development , To make a USB turn RS232 Module （ 6、 ... and ）： establish 0603 Encapsulate and associate principle primitive devices _ encapsulation _11
   see ：
   Hardware development notes （ 7、 ... and ）: Basic process of hardware development , To make a USB turn RS232 Module （ 6、 ... and ）： establish 0603 Encapsulate and associate principle primitive devices _ Insert a picture _12

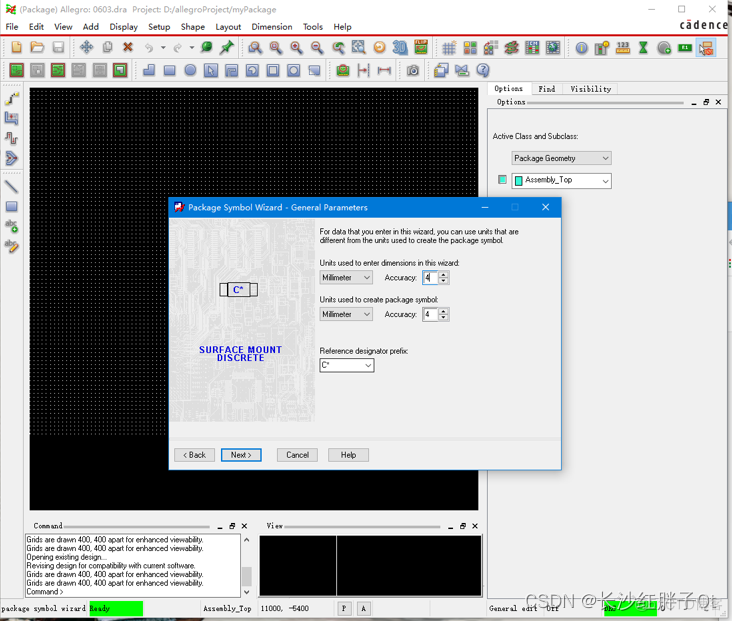

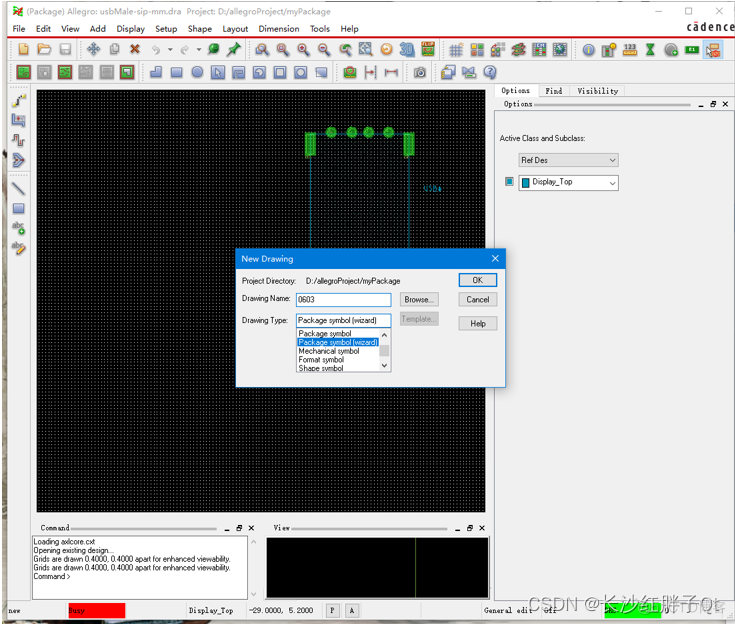

establish 0603 Component packaging

   Hardware development notes （ 7、 ... and ）: Basic process of hardware development , To make a USB turn RS232 Module （ 6、 ... and ）： establish 0603 Encapsulate and associate principle primitive devices _ Schematic diagram _13
   Hardware development notes （ 7、 ... and ）: Basic process of hardware development , To make a USB turn RS232 Module （ 6、 ... and ）： establish 0603 Encapsulate and associate principle primitive devices _ Insert a picture _14
   Hardware development notes （ 7、 ... and ）: Basic process of hardware development , To make a USB turn RS232 Module （ 6、 ... and ）： establish 0603 Encapsulate and associate principle primitive devices _ Schematic diagram _15
   Hardware development notes （ 7、 ... and ）: Basic process of hardware development , To make a USB turn RS232 Module （ 6、 ... and ）： establish 0603 Encapsulate and associate principle primitive devices _ encapsulation _16
   Hardware development notes （ 7、 ... and ）: Basic process of hardware development , To make a USB turn RS232 Module （ 6、 ... and ）： establish 0603 Encapsulate and associate principle primitive devices _ encapsulation _17
   Hardware development notes （ 7、 ... and ）: Basic process of hardware development , To make a USB turn RS232 Module （ 6、 ... and ）： establish 0603 Encapsulate and associate principle primitive devices _ Schematic diagram _18
   Hardware development notes （ 7、 ... and ）: Basic process of hardware development , To make a USB turn RS232 Module （ 6、 ... and ）： establish 0603 Encapsulate and associate principle primitive devices _ encapsulation _19
   Hardware development notes （ 7、 ... and ）: Basic process of hardware development , To make a USB turn RS232 Module （ 6、 ... and ）： establish 0603 Encapsulate and associate principle primitive devices _ Schematic diagram _20
   Hardware development notes （ 7、 ... and ）: Basic process of hardware development , To make a USB turn RS232 Module （ 6、 ... and ）： establish 0603 Encapsulate and associate principle primitive devices _ Insert a picture _21
   Hardware development notes （ 7、 ... and ）: Basic process of hardware development , To make a USB turn RS232 Module （ 6、 ... and ）： establish 0603 Encapsulate and associate principle primitive devices _ Schematic diagram _22
   Delete the superfluous C, The reservation is top Of ：
   Hardware development notes （ 7、 ... and ）: Basic process of hardware development , To make a USB turn RS232 Module （ 6、 ... and ）： establish 0603 Encapsulate and associate principle primitive devices _ Insert a picture _23
   Delete pin serial number ：
   Hardware development notes （ 7、 ... and ）: Basic process of hardware development , To make a USB turn RS232 Module （ 6、 ... and ）： establish 0603 Encapsulate and associate principle primitive devices _ Schematic diagram _24

<br>

Schematic Association encapsulation

Step one ： Open the schematic project

   Hardware development notes （ 7、 ... and ）: Basic process of hardware development , To make a USB turn RS232 Module （ 6、 ... and ）： establish 0603 Encapsulate and associate principle primitive devices _ Insert a picture _25
   Hardware development notes （ 7、 ... and ）: Basic process of hardware development , To make a USB turn RS232 Module （ 6、 ... and ）： establish 0603 Encapsulate and associate principle primitive devices _ Schematic diagram _26

Step two ： Double click the component to add the package

   Hardware development notes （ 7、 ... and ）: Basic process of hardware development , To make a USB turn RS232 Module （ 6、 ... and ）： establish 0603 Encapsulate and associate principle primitive devices _ encapsulation _27
   Hardware development notes （ 7、 ... and ）: Basic process of hardware development , To make a USB turn RS232 Module （ 6、 ... and ）： establish 0603 Encapsulate and associate principle primitive devices _ encapsulation _28
