Network packet multi-layer transmission demonstration

Demonstration of multi-layer packet transmission

One 、 Local operation process

• install Node.js ,LTS Version can

• install yarn

  • According to different operating systems , Perform the appropriate steps
  • perform yarn --version To confirm that the installation was successful

• Get this project

  • function git clone https://github.com/KKZ20/TCP-UDP.git Pull project code
  • If you already have this project code （ For example, the cute brother who checks homework ） Skip this step

• Go to the project folder (cd TCP-UDP perhaps cd TCP-UDP-master, Look at the name of your local folder ）, Installation dependency , Follow the steps below

  • perform yarn add antd install Ant-Deisgn Component libraries depend on
  • perform npm install rc-queue-anim --save install Ant-Motion Animation library dependency （ In and out animation ）
  • perform npm install rc-animate --save install Ant-Motion Animation library dependency （CSS Style animation ）

• perform yarn start, You can do it locally 3000 Port view ！Enjoy it！

In addition, you can also check online through online access ！

Two 、 General description of program design

1. Overall directory structure

|--node_modules      //  Library used in project engineering , according to package.json install , A very large , Follow the above running procedure to generate
   |--...
   `--...( Many documents are not listed one by one )
|--public            //  Resource file
   |--index.html     //  Page navigation
   `--...( Many documents are not listed one by one )
|--src
   |--backend 2      //  Calculation of various protocol header information （ Focus on ！）
      |--Bridge.js   //  Getting data from a page , And send it to each protocol header for processing and calculation
      |--Ethernet.js //  Ethernet header information calculation
      |--IP.js       // IP Header calculation
      |--TCP.js      // TCP Header calculation
      |--UDP.js      // UDP Header calculation
      `--test.js     //  Test files
   |--App.css            //  Home page style
   |--App.js             //  The main page realizes （ Focus on ！）
   |--App.test.js        //  Files generated when the project is created
   |--index.css			 //  Files generated when the project is created
   |--logo.svg           //  Files generated when the project is created
   |--reportWebVitals.js //  Files generated when the project is created
   `--setupTests.js      //  Files generated when the project is created
|--.gitignore             // git Ignore the configuration of tracking when submitting
|--package-lock.json      //  The project uses dependent configuration files （ Lock the version numbers of all modules ）
|--package.json           //  The project uses dependent configuration files （ Modules used in the project ）
|--yarn.lock              //  Flat presentation projects use dependent configuration files
`--README.md              // You're now reading this!

2. The algorithm part

About packets in TCP/IP The code of the continuously encapsulated process in the four layer protocol is stored in /src/backend 2/ Under the table of contents .

When inputting a piece of data , The program first converts the content of this data from ASCII Character conversion to binary , And then according to TCP/IP The protocol encapsulates data packets from top to bottom .

application layer ： The binary string converted from the input data .

Transport layer ： Add TCP/UDP The first one , among TCP Head length 20 byte 、UDP Head length 8 byte .TCP The content of the first part is set in TCP.js In file , Defines a class TCPSegment Used to generate a TCP Data segment ;UDP The content of the first part is set in UDP.js In file , Defines a class UDPDatagram Used to generate a UDP The datagram . Both of them need to create a “IP Fake head ” To calculate the checksum . The calculation of checksum takes TCP/UDP The first one （ Include IP Fake head ）, Will each 16 Add bits , And will add more than 16 Shift the content of bit to the right 16 After the bit and then low 16 Add bits , So cycle until the sum does not exceed 16 position , Take the addition and negation at this time , Get the results .

The network layer ： Add IP The first one . This demo program uses IPv4 The first part of the version , Chief, 20 byte , The content is set in IP.js In file , Defines a class IPv4Packet Used to generate a IPv4 Data packets . In the process of generating data packets, it is necessary to calculate the checksum . Calculation method: simultaneous interpreting layer .

Network interface layer ： Add Ethernet header to the header of network layer content . This demo program uses Ethernet II Ethernet frame format header , Chief, 14 byte , The content is set in Ethernet.js In file , Defines a class EthernetFrame Used to generate an Ethernet frame . Because the minimum length of Ethernet frame is 60 byte , If the Ethernet frame length after packet is still insufficient 60 byte , At the end of the frame 0 fill . in addition , At the end of the Ethernet frame FCS Checksums fields , use CRC32 The algorithm performs the calculation of this check sum .

3、 ... and 、 Instructions

1. Overall operation flow chart

2. Examples demonstrate

According to one , Open the interface （ Access server or Local installation depends on + function ）

After opening, you will see a concept introduction , Users can view the brief instructions for the use of this program and the knowledge introduction of each protocol header here

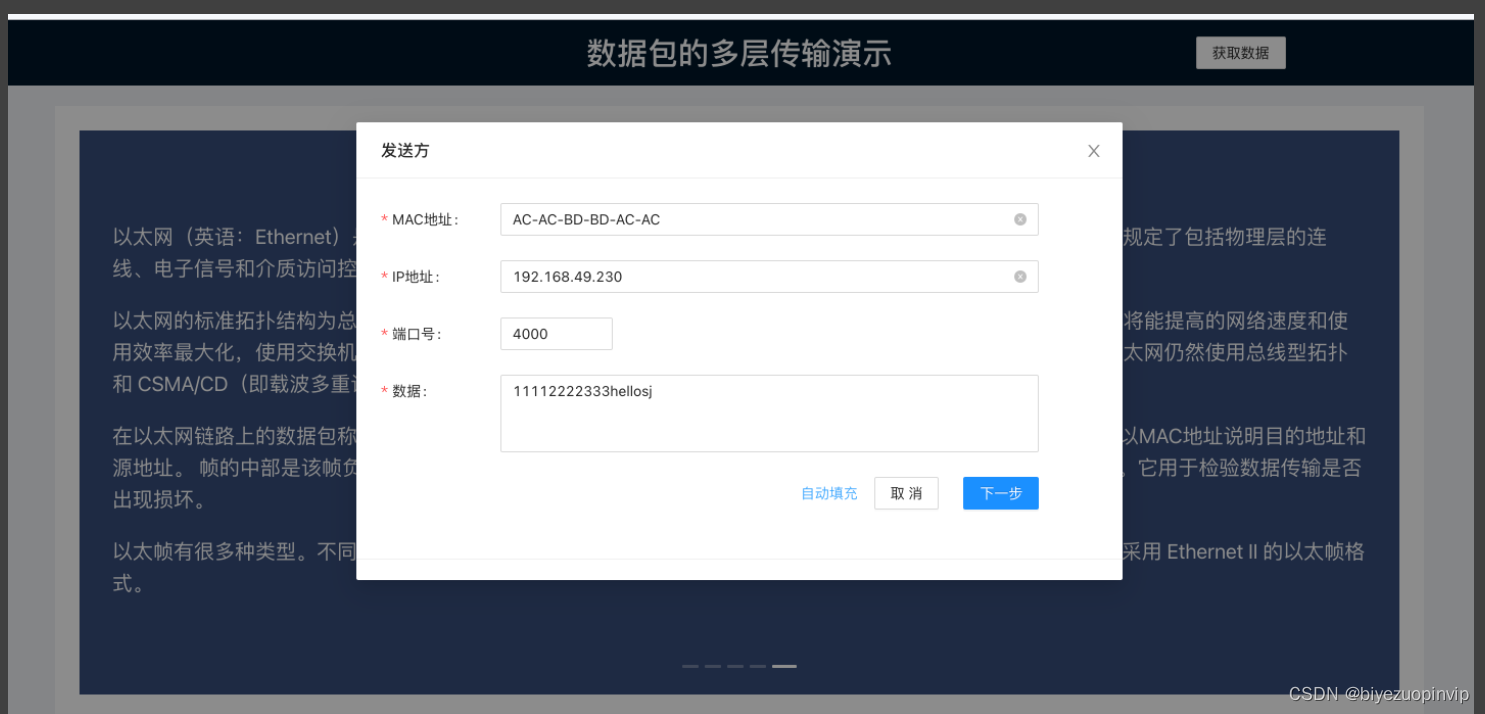

Click on the top right corner “ Get data button ”, The input form will pop up , The user sends here / Input Party's MAC Address 、IP Address and port number , And the data to be transmitted . Users can also click auto fill , To automatically fill in the default data

When the user input data format is wrong, it will give feedback , Include data not entered 、 Wrong input format 、 Illegal scope, etc （ example ：IP Wrong address input ）

After entering the data , The user can see a process of data packet transmission in multi-layer Protocol , Here is continuous animation

Users can click “ Detailed process ” page , To perform one-step control （ The previous step 、 next step 、 Reset ）

Click on the specific agreement header / Data blocks , You can view the details

In addition, we are also interested in TCP/UDP Switch and fill bytes are supported
