14x1.5cm vertical label is a little difficult, VFP calls bartender to print

Test environment description ：
WIDNOWS 10 64bit PRO（ The lower version cannot be installed BarTender2022）
The printer Jiabo GP-1324D
VFP9 SP2 7423

This software is really good for labeling , It's good to start with .

Create a new by using the new document wizard 14cmx1.5cm Vertical label for

Select the corresponding label printer

Set related settings such as single column or multi column

Create a named data source

Binding named data sources

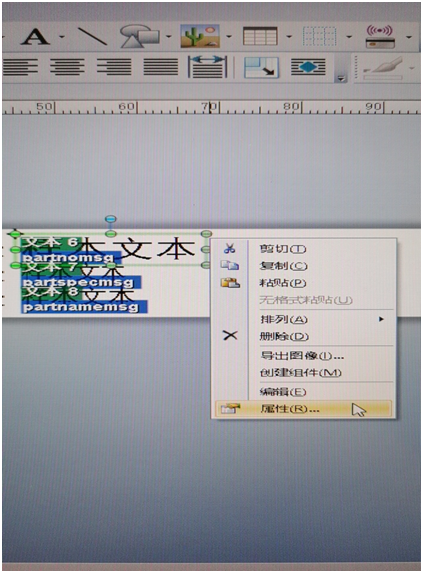

Select the text or label QR code , Right click -》 Select Properties

Select the data source tab , Click the gesture icon to select

Here is the change data source name wizard , You can select the corresponding data source in the list

Close... After setting

Operate according to the above figure , Assign all the text or two code of the required variables to the named data source .

Store the created tag in the location you need to call .

Then you can go through VFP The program prints the label , Here is the code ：

&& TMP301 It's a temporary table
&&  establish BarTender The object of
XX=CREATEOBJECT("BarTender.Application")
&&  Open label , Returns the label object
PrintLab=XX.FORMATS.OPEN(MCPATH_FRM + 'MC43011.BTW',.T.,"")
&&  Parameters 1： Named data source name ( Be sensitive to size ), Parameters 2： value PrintLab.SetNamedSubStringValue("fastnomsg",TMP301.FASTNOMSG)

PrintLab.SetNamedSubStringValue("partnomsg",TMP301.PARTNOMSG)

PrintLab.SetNamedSubStringValue("partspecmsg",TMP301.PARTSPECMSG)

PrintLab.SetNamedSubStringValue("partnamemsg",TMP301.PARTNAMEMSG)

PrintLab.SetNamedSubStringValue("qrcorerpt",TMP301.PARTNOMSG)
&&  Output to printer , Parameters 2：.F.＝ Do not display the window for selecting a printer . Don't make mistakes in the parameters passed, or the machine will crash
PrintLab.Printout(.T.,.F.)

Testing is completed , Perfect printing ！！！

2022-06-24 SUN In Huaian, North Jiangsu
