Myrpc version 3

RPC The concept of

Background knowledge

• RPC Basic concepts of , Core functions

common RPC frame

Duboo Basic function

1. Telematics
2. Transparent remote procedure call based on interface method
3. Load balancing
4. Service registry

RPC The process

client Call the remote method -> request serialize -> Protocol code -> Network transmission -> Server side -> Deserialization request -> Call the local method to get response -> serialize -> code ->……

---

Version iteration process

Catalog

from 0 At the beginning RPC Iterative process of ：

• version0 edition ： Complete a with less than 100 lines of code RPC Example
• version1 edition ： Improve the common message format （request,response）, The client's dynamic proxy completes the request Encapsulation of message formats
• version2 edition ： Support the server to expose multiple service interfaces , Server program abstraction , Normalization
• version3 edition ： Use a high-performance network framework netty The realization of network communication , And the refactoring of client code
• version4 edition ： Custom message format , Support multiple serialization methods （java Native , json…）
• version5 edition : Implementation of server registration and discovery ,zookeeper As a registry
• version6 edition : Implementation of load balancing strategy

---

3.MyRPC edition 3

Background knowledge

• netty The use of high-performance network framework

Questions in this section

How to improve this rpc Performance of ? We can start from two aspects , Network transmission from BIO To NIO, Serialization should reduce the length of byte stream , Improve serialization and deserialization efficiency

Well-known rpc frame ：dubbo, grpc Is to use netty Bottom layer for communication

Upgrade process ：

Premise ： maven pom.xml The file import netty

<dependency>
    <groupId>io.netty</groupId>
    <artifactId>netty-all</artifactId>
    <version>4.1.51.Final</version>
</dependency>

upgrade 1： Refactoring client code

The client code is too messy , Let's refactor the code first , Only in this way can it be used later netty To implement the client , The clients with different network connections have the same structure , alike api

Suppose we now have two clients ：SimpleRPCClient( Use java BIO The way ), NettyRPCClient（ Use netty Network transmission ）, So what are the commonalities between them ? Send request and get response It's commonness , The way to establish a connection is different from the way to send a request .

//  Commonalities are extracted
public interface RPCClient {

    RPCResponse sendRequest(RPCRequest response);
}
// SimpleRPCClient Implement this interface , Different network modes have different implementations
@AllArgsConstructor
public class SimpleRPCClient implements RPCClient{

    private String host;
    private int port;
    //  The client initiates a request call ,Socket Establishing a connection , Initiate request Request, Get a response Response
    //  there request It's packaged , Different service Different packaging is required ,  The client only knows Service Interface , A layer of dynamic proxy is needed to encapsulate different objects according to reflection Service
    public RPCResponse sendRequest(RPCRequest request) {

        try {

            //  Launch once Socket Connection request
            Socket socket = new Socket(host, port);
            ObjectOutputStream objectOutputStream = new ObjectOutputStream(socket.getOutputStream());
            ObjectInputStream objectInputStream = new ObjectInputStream(socket.getInputStream());
            System.out.println(request);
            objectOutputStream.writeObject(request);
            objectOutputStream.flush();
            RPCResponse response = (RPCResponse) objectInputStream.readObject();
            //System.out.println(response.getData());
            return response;
        } catch (IOException | ClassNotFoundException e) {

            System.out.println();
            return null;
        }
    }
}

and RPCClientProxy Class needs to add a RPCClient Class variables , Introduce different client(simple,netty), You can call the public interface sendRequest Send a request , So the client code structure is very clear :

• RPCClient: Different network connections , The client of network transmission mode implements this interface respectively

• XXXRPCClient: Concrete implementation class

• RPCClientProxy： A dynamic proxy Service class , Encapsulate different Service Request for Request object , And hold a RPCClient object , Responsible for the communication with the server ,

thus , The client code is refactored , The structure is clearer , A use case is ：

//  Build a use java Socket The client of the transmission
SimpleRPCClient simpleRPCClient = new SimpleRPCClient("127.0.0.1", 8899);
//  Pass this client into the proxy client
RPCClientProxy rpcClientProxy = new RPCClientProxy(simpleRPCClient);
//  The proxy client depends on different services , Get a proxy class ,  And the methods of this proxy class can be or enhanced （ Encapsulated data , Send a request ）
UserService userService = rpcClientProxy.getProxy(UserService.class);
//  Calling method
User userByUserId = userService.getUserByUserId(10);

upgrade 2： Use netty Way to transmit data ： Realization NettyRPCServer, NettyRPCCLient, It is suggested to learn first netty Start code of

netty Server-side implementation

/** *  Realization RPCServer Interface , Responsible for monitoring and sending data  */
@AllArgsConstructor
public class NettyRPCServer implements RPCServer {

    private ServiceProvider serviceProvider;
    @Override
    public void start(int port) {

        // netty  Service thread group boss Responsible for establishing connections , work Responsible for specific requests
        NioEventLoopGroup bossGroup = new NioEventLoopGroup();
        NioEventLoopGroup workGroup = new NioEventLoopGroup();
        System.out.printf("Netty The server has started ...");
        try {

            //  start-up netty The server
            ServerBootstrap serverBootstrap = new ServerBootstrap();
            //  initialization
            serverBootstrap.group(bossGroup,workGroup).channel(NioServerSocketChannel.class)
                    .childHandler(new NettyServerInitializer(serviceProvider));
            //  Synchronous blocking
            ChannelFuture channelFuture = serverBootstrap.bind(port).sync();
            //  Loop monitoring
            channelFuture.channel().closeFuture().sync();
        } catch (InterruptedException e) {

            e.printStackTrace();
        } finally {

            bossGroup.shutdownGracefully();
            workGroup.shutdownGracefully();
        }
    }
    @Override
    public void stop() {

    }
}

netty server Initialization class

/** *  initialization , Mainly responsible for serialization encoding and decoding ,  Need to be solved netty The problem of sticking to the package of  */
@AllArgsConstructor
public class NettyServerInitializer extends ChannelInitializer<SocketChannel> {

    private ServiceProvider serviceProvider;
    @Override
    protected void initChannel(SocketChannel ch) throws Exception {

        ChannelPipeline pipeline = ch.pipeline();
        //  The message format  [ length ][ Message body ],  Solve the sticking problem
        pipeline.addLast(new LengthFieldBasedFrameDecoder(Integer.MAX_VALUE,0,4,0,4));
        //  Calculate the length of the current message to be sent , Write to front 4 In bytes
        pipeline.addLast(new LengthFieldPrepender(4));
        //  It's still used here java  Serialization mode , netty The built-in decoding and encoding support the transmission structure
        pipeline.addLast(new ObjectEncoder());
        pipeline.addLast(new ObjectDecoder(new ClassResolver() {

            @Override
            public Class<?> resolve(String className) throws ClassNotFoundException {

                return Class.forName(className);
            }
        }));
        pipeline.addLast(new NettyRPCServerHandler(serviceProvider));
    }
}

netty server Concrete handler

/** *  Because it's the server side , We know that the format of the received request is RPCRequest * Object The type is OK , Just force the transformation  */
@AllArgsConstructor
public class NettyRPCServerHandler extends SimpleChannelInboundHandler<RPCRequest> {

    private ServiceProvider serviceProvider;
    @Override
    protected void channelRead0(ChannelHandlerContext ctx, RPCRequest msg) throws Exception {

        //System.out.println(msg);
        RPCResponse response = getResponse(msg);
        ctx.writeAndFlush(response);
        ctx.close();
    }
    @Override
    public void exceptionCaught(ChannelHandlerContext ctx, Throwable cause) throws Exception {

        cause.printStackTrace();
        ctx.close();
    }
    RPCResponse getResponse(RPCRequest request) {

        //  Get the service name
        String interfaceName = request.getInterfaceName();
        //  Get the corresponding service implementation class of the server
        Object service = serviceProvider.getService(interfaceName);
        //  Reflection calls method
        Method method = null;
        try {

            method = service.getClass().getMethod(request.getMethodName(), request.getParamsTypes());
            Object invoke = method.invoke(service, request.getParams());
            return RPCResponse.success(invoke);
        } catch (NoSuchMethodException | IllegalAccessException | InvocationTargetException e) {

            e.printStackTrace();
            System.out.println(" Method execution error ");
            return RPCResponse.fail();
        }
    }
}

client netty The implementation of the

/** *  Realization RPCClient Interface  */
public class NettyRPCClient implements RPCClient {

    private static final Bootstrap bootstrap;
    private static final EventLoopGroup eventLoopGroup;
    private String host;
    private int port;
    public NettyRPCClient(String host, int port) {

        this.host = host;
        this.port = port;
    }
    // netty Client initialization , Reuse
    static {

        eventLoopGroup = new NioEventLoopGroup();
        bootstrap = new Bootstrap();
        bootstrap.group(eventLoopGroup).channel(NioSocketChannel.class)
                .handler(new NettyClientInitializer());
    }
    /** *  Here we need to operate , because netty All transmissions are asynchronous , You send request, Will return immediately ,  Instead of the corresponding response */
    @Override
    public RPCResponse sendRequest(RPCRequest request) {

        try {

            ChannelFuture channelFuture  = bootstrap.connect(host, port).sync();
            Channel channel = channelFuture.channel();
            //  send data
            channel.writeAndFlush(request);
            channel.closeFuture().sync();
            //  The obtainable result of blocking , By giving channel Design alias , Get... Under a specific name channel The content in （ This is in hanlder Set in ）
            // AttributeKey yes , Thread isolated , There is no thread safety issue .
            //  In fact, it should not be blocked , You can use the callback function
            AttributeKey<RPCResponse> key = AttributeKey.valueOf("RPCResponse");
            RPCResponse response = channel.attr(key).get();
            System.out.println(response);
            return response;
        } catch (InterruptedException e) {

            e.printStackTrace();
        }
        return null;
    }
}

initialization ： Consistent with the server , I won't post the code

ClientHandler Design ：

public class NettyClientHandler extends SimpleChannelInboundHandler<RPCResponse> {

    @Override
    protected void channelRead0(ChannelHandlerContext ctx, RPCResponse msg) throws Exception {

        //  Received response,  to channel Design alias , Give Way sendRequest Read in response
        AttributeKey<RPCResponse> key = AttributeKey.valueOf("RPCResponse");
        ctx.channel().attr(key).set(msg);
        ctx.channel().close();
    }
    @Override
    public void exceptionCaught(ChannelHandlerContext ctx, Throwable cause) throws Exception {

        cause.printStackTrace();
        ctx.close();
    }
}

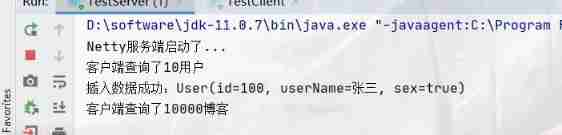

result ：

summary

In this version, we have completed the reconfiguration of the client , Enable it to support multiple versions of client extensions （ Realization RPCClient Interface ）

And use netty The communication between client and server is realized

this RPC Maximum pain point

java It has its own serialization method （Java Serialization writing is not just a complete class name , It also contains the definition of the entire class , Contains all referenced classes ）, Not universal enough , Not enough efficient

---
