        Hello everyone , I steal the moon by riding the wind . Thank you for reading my article , I hope it is helpful to you who are reading ！ below , Let's study together ！

In the last article , According to the use and configuration of data permissions in the open source framework _ Take advantage of the wind to steal the moon's blog -CSDN Blog _ If configured according to the framework database I got a lot of reading from my friends , Presumably, I pay more attention to the ruoyi framework , Many friends are using ruoyi framework for development , that , In this article , I will mainly talk about the process and use of integrating building block reports according to the framework . Because I need to use online design print styles in actual projects , therefore , Search on Baidu , eureka JimuReport Introduction of building block report , And the project is completely free and can be applied to enterprise projects , This is very commendable .

      This article mainly introduces how to integrate building block reports according to the framework and adjust the display of building block reports , Make the building block report look integrated with your own project , Both beautiful and meet user needs .

        In the process of referring to the official configuration of building block report according to the framework , There is no big problem in the process . Here are the main overview points ：

1、 In the project pom.xml Join in jar Packet dependency , What I use here is 1.5.0 edition , Friends in need can modify the version number appropriately

<dependency>
  <groupId>org.jeecgframework.jimureport</groupId>
  <artifactId>jimureport-spring-boot-starter</artifactId>
  <version>1.5.0-beta</version>
</dependency>

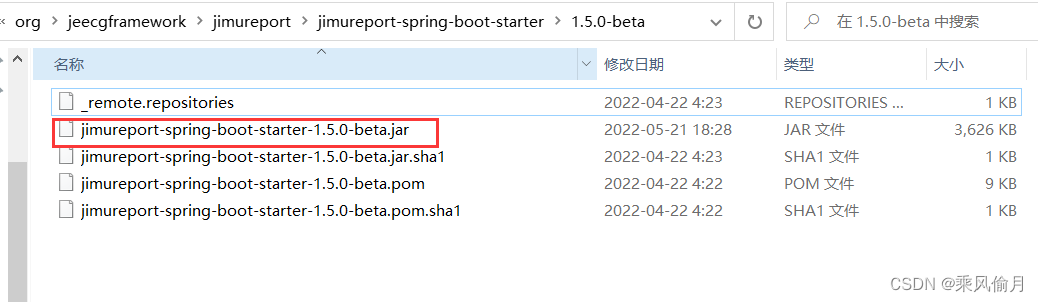

The jar Packages can be configured on their own Maven Local warehouse found , As shown in the figure

  The following will mainly focus on this jar Package modification , Make it integrated with your own project , More beautiful .

2、 Public tables needed to create building block reports , The script uses mysql 5.7 edition

jimureport.sql

3、 stay RuoYiApplication The main program adds the building block scanning directory ,

Be careful ： My name here is changed to WanCangApplication, The package name has also been changed , It's called com.wancang. Friends can adjust according to the package name of the project , The default is com.ruoyi

@SpringBootApplication(exclude = { DataSourceAutoConfiguration.class },scanBasePackages = {"org.jeecg.modules.jmreport", "com.wancang"})

Pictured

  When referencing packages , At the same time, the building block scanning directory is also added , It's still floating red , Report errors , You can click the item to restart , solve the problem . Here's the picture ：

4、 Because in the project , I didn't join Token Mechanism , therefore , Need to be in ruoyi-framework Add running anonymous access to the module , Temporarily do not do permission control .

.antMatchers("/jmreport/**").anonymous()

  As shown in the figure ：

Here we are , The building block report can be said to be completed in accordance with the framework integration , After starting the project , Type in the browser http://localhost:8881/jmreport/list（ there 8881 Port is the service port ） Be able to access , Indicates successful integration .



These are the basic steps of integration , After visiting the link , The effect displayed on the page of the building block report , however , Need to integrate into your own project , The ideal state is to be able to display in the framework of ruoyi , That would be perfect . therefore , The following is the highlight

In the background configuration menu of ruoyi management , Pictured

System management -> Menu management , Add a menu item , As shown in the figure

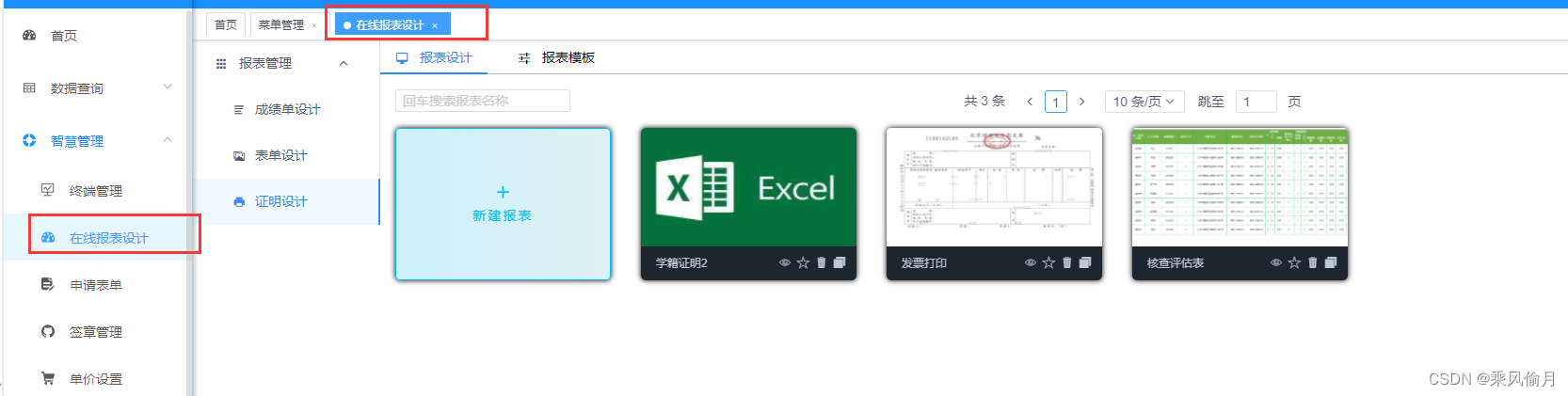

Go back to the menu , Click the online report design menu , As shown in the figure below

Here we are , Building block report sheet page can be integrated into ruoyi framework for display , A keen reader , You may see that the building block report here does not show title, And the menu name on the left can be modified , The display style has changed a little , exactly , This mainly involves modifying the above mentioned jimureport Off line jar Package problem

Use WinRAR The decompression tool opens the file , Entry directory templates\jmreport\desreport Next , hold index.ftl、list.ftl Copy the file out ,

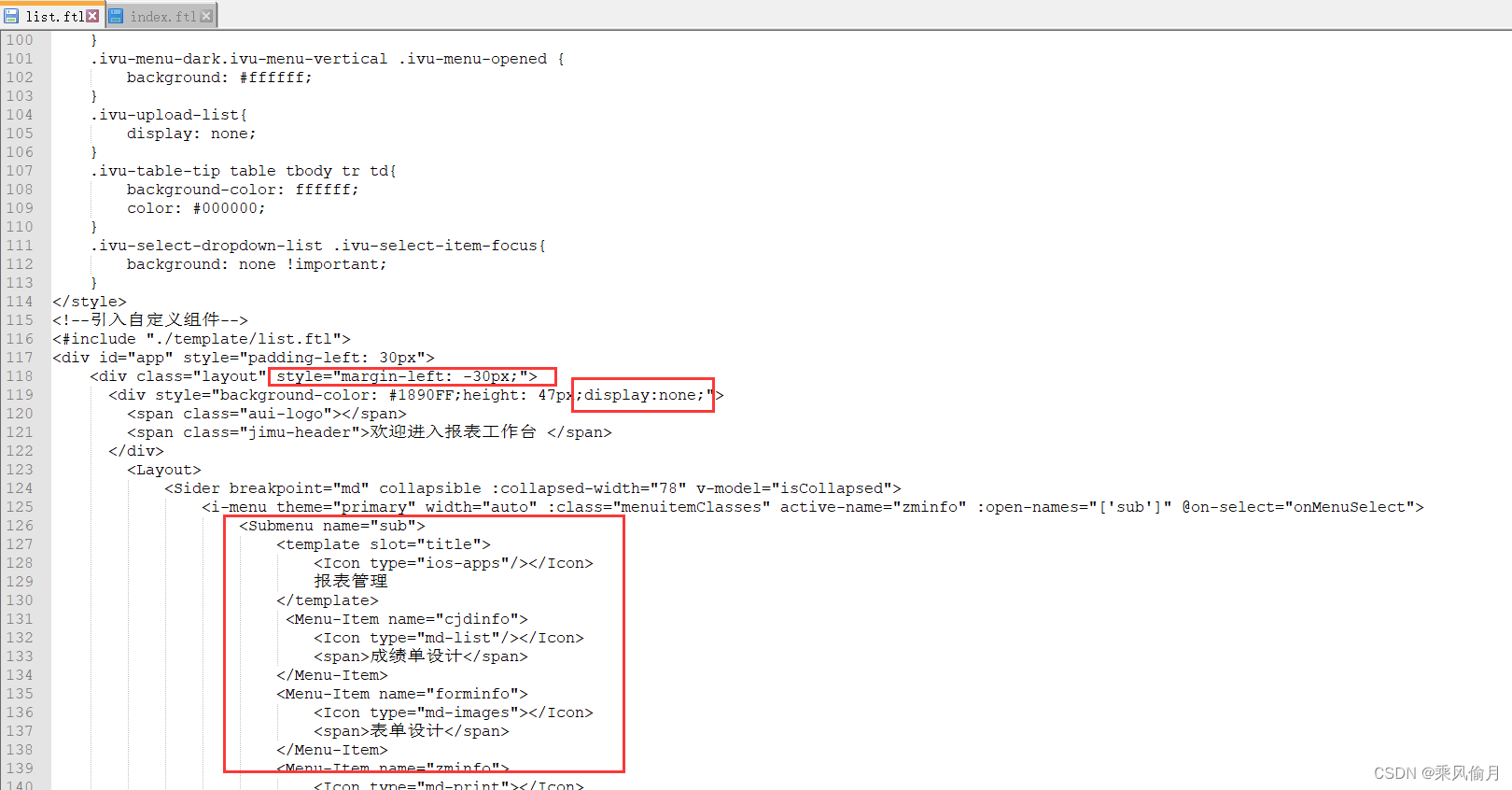

  Use Notepad++ The text tool opens list.ftl file , Modification does not display title Welcome to the contents of the report workbench , add display:none; in addition , Change the menu name on the left to what you want , At the same time, it can increase and also reduce , It can be formulated according to business needs .



The above modified document , Copy it again , Just overwrite the original file .

If you modify the page display logo, Can open static\jmreport\desreport_\corelib, Put your own logo Replace the original logo, The name must be the same .

  Here we are , If you integrate the building block report according to the framework, it will be successfully completed , Like friends, please click three likes . If you don't think it's very clear , Have a question , You can leave a message and contact me , thank you ！！
