Internal structure of SOC chip

Preface

The goal of this article is to SOC Have a preliminary understanding of the internal structure , Just know the function of each module . According to online public information , Sort out some content I pay attention to .

SOC internal structure

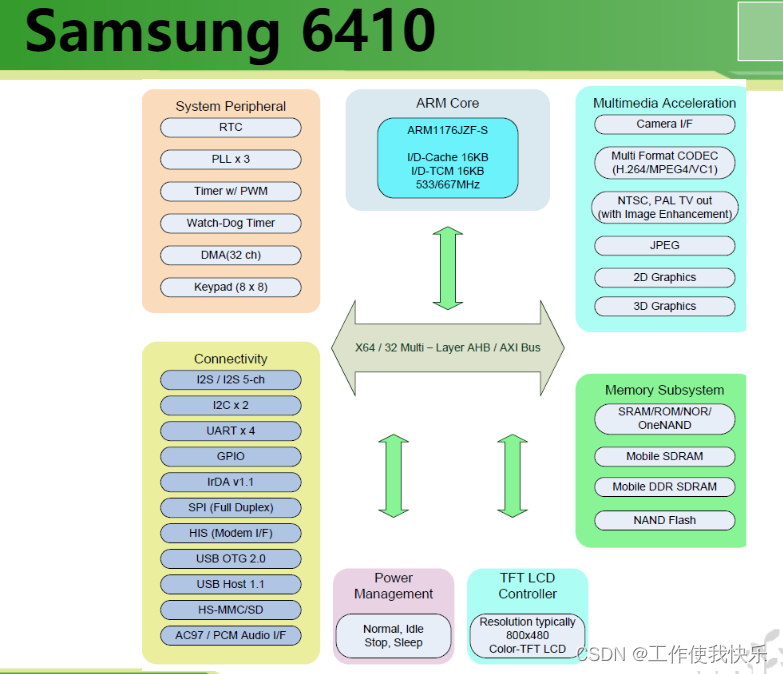

Summarize some common SOC Internal structure block diagram , From public information .
