Halcon installation and testing in vs2017, DLL configuration in vs2017

One 、 First download halcon, And install

Download first 22.05 edition , The name of the downloaded file is “halcon-22.05.0.0-x64-win64.zip”, The size is 6.34G, After decompressing ：

When installing, you will first open the console window , Then open the local web page ：

  I didn't notice the change of the installation position in the setting , Default install to C Dish up , And after opening, it is traditional Chinese , I have a headache like this , So it was uninstalled later , Re downloaded 18.11 edition “halcon-18.11.4.0-windows.exe”, The size is 1.74G, Installation , The download method is , Browser search halcon Official website , Open this English website HALCON – The power of machine vision: MVTec Software：

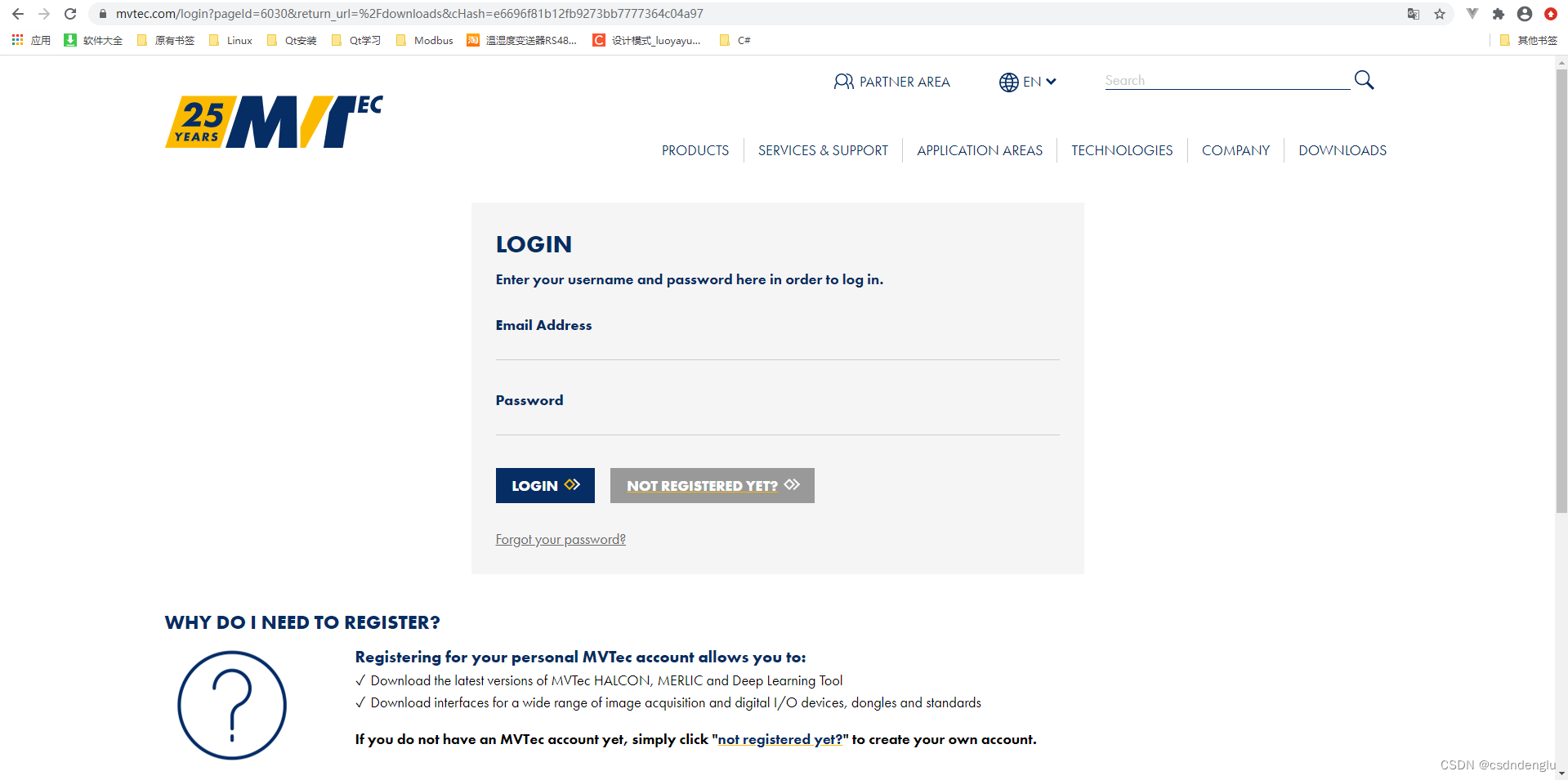

Click after entering DOWNLOADS, Will let you login , If you don't have an account, register first ：



  And then click HALCON DOWNLOADS：

HALCON DOWNLOADS

  The download address of each version will appear , Click the corresponding version to download ：

When the download is complete , install , You can choose to install it in D disc , There are no other special requirements , Just install it according to the default options , After the installation, it's HALCON HDevelop 18.11 Steady (64-bit) and HALCON HDevelop 18.11 Steady XL (64-bit)：

The difference between the two , Netizens said ：

1.hdevelop  Suitable for ordinary resolution images , Less than or equal to  32k x 32k ;

2.hdevelop xl Suitable for large resolution images , Greater than 32k x 32k ;

3. The running speed is the same .

4. Static takes up almost the same volume .

5.xl Resources are expensive .

Be careful ： Open will report an error , Put the current month's license Files in license Under the folder, you can open .

Two 、 stay HALCON In the middle of C++ Code

open halcon Then select the icon in the upper left corner , Browse HDevelop The sample program .

  I browse the sample program here and report a 21040 The fault of ：

When the program opens the routine, it finds this directory “C:\Users\Public\Documents\MVTec\HALCON-18.11-Steady”, and “HALCON-18.11-Steady” The folder does not exist , I have this directory on my computer “C:\Users\Public\Documents\MVTec\HALCON-18.11”. Look at netizens' posts like this and say “ Please download Halcon Switch the assistant to fix , Please keep the default routine directory and do not modify ！”. But I put “HALCON-18.11” Copy and paste the folder , Change it to “HALCON-18.11-Steady”, At this time, the routine can be opened . But try Halcon Switch whether the assistant works

After opening the routine ：

  Then export C++, Click on , file - export

Click export , Generate the file ：

3、 ... and 、 stay vs2017 Configuration test in halcon

find halcon The installation directory

  stay vs2017 in , New console project （ Only another contains main Function file ）, And the exported halcon The exported file opens , Copy and paste the code into vs2017 In the project file ：

 .h Configuration of directory ：

project - attribute -C/C++- routine - Additional include configuration in directory （ Note that this inclusion may be sequential , If the order is wrong, you may not find the definition , Then put what you can't find in front ）：

 lib To configure ：

project - attribute - The linker - routine - Configure in the additional Library Directory

  project - attribute - The linker - Input - Configure... In additional dependencies

dll To configure ：

dll You can put it directly under the same level directory where the executable file is generated （ It is commonly debug or release Under the table of contents ）, however dll Too much is messy , It can be configured to vs in .

project - attribute - The linker - routine - Configure in the additional Library Directory

Be careful , The following style is wrong , Never be clever , If you think the branch is clear, just Branch （ I've suffered a lot , cry ...） , It doesn't matter .

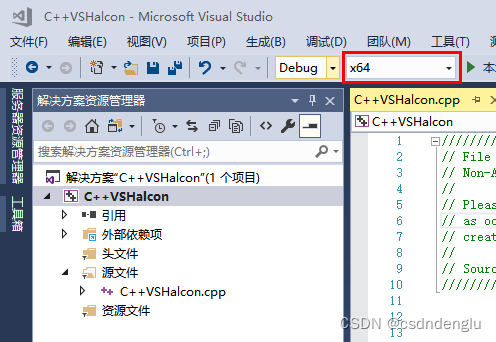

  then , Choose the right one , Otherwise an error

You can debug later , The most important thing is this action() function , Can be in main Add a... To the function Sleep Stop it ：



.h、lib、dll It can be configured as a relative path , It might be more convenient
