AutoCAD -- summarize three methods of drawing rounded corners in CAD

CAD There are three ways to draw rounded corners

Mode of operation

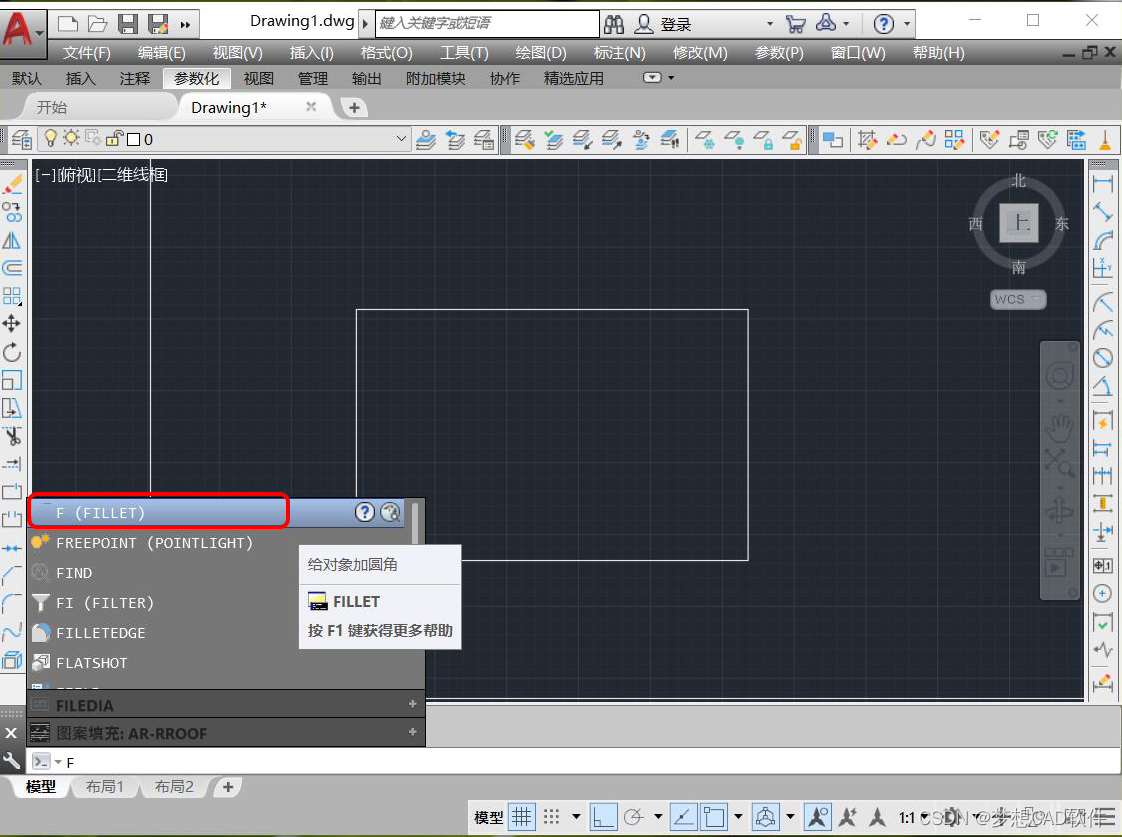

1. Enter the fillet object command “FILLET”（ Shortcut key ：F）, Press space , Input again “r”, Space , Enter the radius of the fillet , And then the space , Then select first 、 Two objects , Fillet command completed .

Fillet command F

Input r

radius

Select the first object

Select the second object

2. Rectangular shortcut keys “REC”, Draw a rectangle , Press the space bar , Then enter the fillet object command “FILLET”（ Shortcut key ：F）, Space , Input again “r”, Space , Enter the space after the radius of the fillet , Then enter the polyline “P” Space , Rectangle fillet is finished .

Rectangular shortcut keys

Input F Fillet command

Enter the fillet radius

Radius value

Polyline P

Select the polyline

3. Enter the rectangular shortcut command “REC”, Press space , Enter the fillet command “F” Then enter the fillet radius according to the prompt , Space again , Then follow the prompts to specify the first point 、 Second points , Draw the rounded rectangle directly .

Rectangular shortcut keys REC

Round corners F

radius

Specify the first point

Specify another point
