Learn about Prometheus from 0 to 1

2022-06-11 16:28:00 【jerry_ dyy】

Introduction to monitoring platform ：

The unified monitoring platform is composed of seven roles ： Monitoring source 、 Data collection 、 data storage 、 Data analysis 、 Data presentation 、 Early warning center 、CMDB( Enterprise software and hardware asset management )

Monitoring source ：

From the level of , It can be roughly divided into three layers , Business application layer 、 Middleware layer 、 Infrastructure layer . The business application layer mainly includes application software 、 Enterprise message bus, etc , The middleware layer includes the database 、 cache 、 Configuration center 、 And other system software , The infrastructure layer mainly includes physical machines 、 virtual machine 、 Containers 、 Network devices 、 Storage devices, etc .

Data collection ：

Data sources are so diverse , The task of data collection is not easy . Data collection can be divided into business indicators 、 Application indicators 、 System software monitoring indicators 、 System indicators . Apply monitoring indicators such as ： Usability 、 abnormal 、 throughput 、 response time 、 Current number of waiting transactions 、 Resource utilization 、 Request quantity 、 Log size 、 performance 、 Queue depth 、 Number of threads 、 Number of service calls 、 Traffic volume 、 Service availability, etc , Business monitoring indicators such as large amount of running water 、 Flow area 、 Flow details 、 Number of requests 、 response time 、 Number of responses, etc , System monitoring indicators are as follows: ：CPU load 、 Memory load 、 Disk load 、 The Internet IO、 disk IO、tcp The number of connections 、 Number of processes, etc .

In terms of acquisition mode, it can be generally divided into interface acquisition 、 client agent collection 、 Active capture through network protocol （http、snmp etc. ）

data storage ：

The collected data is usually stored in the file system （ Such as HDFS）、 Index system （ Such as elasticsearch）、 Index library （ Such as influxdb）、 Message queue （ Such as kafka, Temporarily store or buffer messages ）、 database （ Such as mysql）

Data analysis ：

For the collected data , Data processing . There are two types of processing ： Real time processing and batch processing . Technology includes Map/Reduce Calculation 、 Full log retrieval 、 Flow computation 、 Index calculation, etc , The key point is to select different calculation methods according to different scenarios .

Data presentation ：

Display the processing results in a chart , In the multi screen era , Cross device support is essential .

early warning ：

If problems are found during data processing , An exception analysis is required 、 Risk estimation and event triggering or alarm .

CMDB( Enterprise software and hardware asset management ):

CMDB It is a very important link in the unified monitoring platform , Although there are many kinds of monitoring sources , But most of them are related , For example, the application runs in the running environment , The normal operation of applications depends on the network and storage devices , An application also depends on other applications （ Business depends on ）, Once any one of the links goes wrong , Will lead to the unavailability of the application .CMDB In addition to storing hardware and software assets , Also store such an association between assets , An asset has failed , We should be able to quickly know which other assets will be affected according to this relationship , Then solve the problem one by one .

Why choose Prometheus?

Prometheus VS Zabbix：

	Time of issue	development language	performance	Community support	Container support	Enterprise use	Deployment difficulty
Prometheus	2016	go	Support ten thousand as a unit	Relatively inferior zabbix, But the number is increasing day by day	Not only support swarm Native clusters , And support Kubernetes Monitoring of container clusters , It is the best solution for container monitoring at present	Basically use Kubernetes With the container enterprise ,prometheus Is the best choice	There's only one core server Components , One command to start
Zabbix	2012	c + php	Up to 10000 bytes	Widely applied , Support more mature , Any problems encountered can be found	Zabbix Appeared earlier , At that time, the container was not born , Naturally, the support for containers is also relatively poor	In traditional monitoring system , Especially in server related monitoring , Take the absolute advantage of	Multiple systems , A variety of monitoring information collection methods

Framework principle ：

Prometheus Server：

Prometheus Sever yes Prometheus The core part of a component , Responsible for the acquisition of monitoring data , Storage and query .Prometheus Server You can monitor targets through static configuration management , It can also be used in combination with Service Discovery Dynamic management of monitoring objectives , And get data from these monitoring targets . secondly Prometheus Sever The collected data needs to be stored ,Prometheus Server It's a real-time database in itself , The collected monitoring data is stored in the local disk according to the time series .Prometheus Server It provides customized PromQL, Realize the query and analysis of data . in addition Prometheus Server The ability to federate clusters can be made from other Prometheus Server Get data from the instance .

Exporters：

Exporter Pass the endpoint of monitoring data collection through HTTP The form of service is exposed to Prometheus Server,Prometheus Server By accessing the Exporter Provided Endpoint Endpoint , That is, the monitoring data that needs to be collected can be obtained . Can be Exporter It is divided into 2 class ：

Collect directly ： This kind of Exporter It's built in right Prometheus Monitoring support , such as cAdvisor,Kubernetes,Etcd,Gokit etc. , Both are built directly for Prometheus Expose endpoint of monitoring data .

Indirect acquisition ： The original monitoring target does not directly support Prometheus, So it needs to pass Prometheus Provided Client Library Write the monitoring and acquisition program of the monitoring target . for example ：Mysql Exporter,JMX Exporter,Consul Exporter etc. .

AlertManager：

stay Prometheus Server Support based on Prom QL Create alarm rules , If meet Prom QL The rules of definition , An alarm will be generated . stay AlertManager from Prometheus server Termination received alerts after , There will be de duplication , grouping , And route to the corresponding acceptance method , Call the police . Common ways of receiving are ： E-mail ,pagerduty,webhook etc. .

PushGateway:

Prometheus Data collection is based on Prometheus Server from Exporter pull data , So when the network environment doesn't allow Prometheus Server and Exporter When communicating , have access to PushGateway To transit . adopt PushGateway Take the initiative of monitoring data of internal network Push To Gateway in ,Prometheus Server Using the Exporter Same way , Take the monitoring data from PushGateway pull To Prometheus Server.

Prometheus The workflow of the ：

1、Prometheus server Regularly from the configured jobs perhaps exporters Middle pull metrics, Or receive from Pushgateway Sent by metrics, Or from other Prometheus server Middle pull metrics;

2、Prometheus server Store the collected... Locally metrics, And run the defined alerts.rules, Record new time series or directions Alert manager Push alarm ;

3、Alertmanager According to the configuration file , Processing of received alarms , Give an alarm ;

4、 stay Web UI or Grafana in , adopt PromQL from Prometheus server Query and visualize the collected data .

Installation and deployment ：

install Prometheus:

Getting started | Prometheus

Download | Prometheus

tar -zxvf prometheus-*.tar.gz Decompress it .

Get into prometheus-* Unpack the directory , To configure prometheus.yml：

# my global config
global:
  scrape_interval: 15s # Set to every 15 Seconds from Target Collect data once , The default is 1 Minutes at a time
  evaluation_interval: 15s # Set to every 15 Second evaluate the rules , The default is 1 Minutes at a time
  # scrape_timeout is set to the global default (10s).
# Alertmanager configuration
alerting:
  alertmanagers:
    - static_configs:
        - targets: ["localhost:9093"] # To configure alertmanager Address
# Load rules once and periodically evaluate them according to the global 'evaluation_interval'.
rule_files:
    - "prometheus.rules.yml" # Configuration rules file
  # - "first_rules.yml"
  # - "second_rules.yml"
# A scrape configuration containing exactly one endpoint to scrape:
# Here it's Prometheus itself.
scrape_configs:
  # The job name is added as a label `job=<job_name>` to any timeseries scraped from this config.
  # To configure a job, This is where prometheus Do it yourself exporter, monitor prometheus own
  - job_name: "prometheus"
    # metrics_path defaults to '/metrics'
    # scheme defaults to 'http'.
    static_configs:
      - targets: ["172.16.0.213:9090"]
        labels:
          instance: prometheus
  # To configure mysql exporter, monitor mysql
  - job_name: "mysqld_exporter"
    static_configs:
      - targets: ["localhost:9104"]
        labels:
          instance: mysql_208
  # To configure linux exporter, monitor linux host
  - job_name: "node_exporter"
    static_configs:
      - targets: ["localhost:9100"]
        labels:
          instance: linux_208
  # monitor Visitor management this JVM process
  - job_name: "vms"
    metrics_path: /vms/actuator/prometheus
    static_configs:
            - targets: ["localhost:10109"]

To configure prometheus.rules.yml:

groups:
# Configure a rule , When the rules are met , Will push the alarm information to alertmanager
- name: InstanceDown
  rules:
  - alert: " The service process died "
    expr: up == 0 # be based on Prom QL Alarm rule created by expression
    for: 5m # If it's continuous 5 The test results within minutes are up == 0, Then push the alarm information to alertmanager
    labels:
      severity: critical # The severity of the alarm
    annotations: # Alarm content
      summary: "Instance { { $labels.instance }} down"
      description: "{ { $labels.instance }} of job { { $labels.job }} has been down for more than 5 minutes."
- name: MemoryRule
  rules:
  - alert: " High memory usage alarm "
expr: ((node_memory_MemFree_bytes + node_memory_Buffers_bytes + node_memory_Cached_bytes)) / node_memory_MemTotal_bytes * 100 > 80 # be based on Prom QL Alarm rule created by expression
    for: 5m # If it's continuous 5 The memory usage detected within minutes is higher than 80%, Then push the alarm information to alertmanager
    labels:
      severity: "High" # The severity of the alarm
annotations: # Alarm content
      summary: " service name :{ {$labels.alertname}}"
      description: " Business 500 Call the police : { { $value }}"
      value: "{ { $value }}"

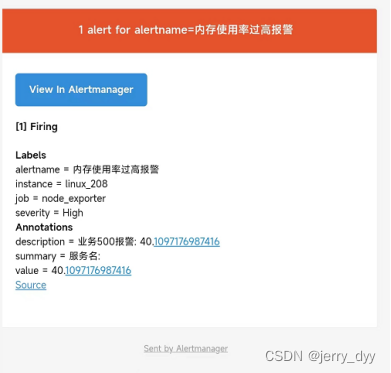

This is the alarm message received by the mailbox ：

After configuration , Start it up .

Access address ：localhost:9090

install Grafana:

With Grafana | Grafana documentation

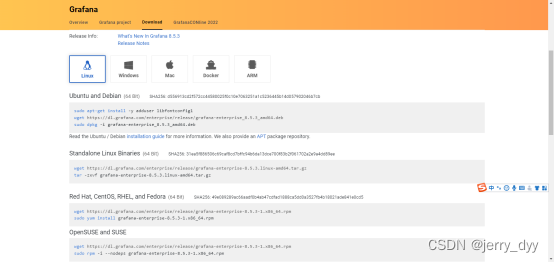

Download Grafana | Grafana Labs

download , decompression , start-up .

Access address ：172.16.0.213:3000

install AlertManager:

Download | Prometheus

download , decompression , To configure alertmanager.yml file ：

global:
  smtp_smarthost: 'smtp.qq.com:465'
  smtp_from: '1737***[email protected]'
  smtp_auth_username: '1737***[email protected]'
  smtp_auth_password: 'idhcsx***qoe***'
  smtp_require_tls: false
route:
  receiver: 'mail-dyy'
  group_wait: 1s
  group_interval: 5s
  repeat_interval: 1h
  group_by: ['alertname']
receivers:
- name: 'mail-dyy'
  email_configs:
  - to: '1737***[email protected]'

Subsequent extensions ：

The monitoring platform expands with the expansion of the application platform . At present, we have made a minimum closed loop , contain prometheus、alertmanager、grafana、node_exporter、mysqld_exporter And so on , Can monitor linux The server 、 monitor mysql、 Monitor specific java project . But it needs a lot of horizontal expansion , For example monitoring MQ、 monitor Redis、 monitor Nginx wait . When doing these horizontal expansions , There are two main points to be grasped , namely Exporter、Grafana Templates , and Exporter Exposed monitoring items need to be consistent with Grafana Inside the template PromQL correspond , If there is no corresponding ready-made template , You need to create it manually .
