Zero basic learning canoe panel (6) -- switch/indicator

• I am a Ant soldier , Focus on the field of on-board diagnosis , Especially good at CANoe Tool use


• Looking for organizations , Answer questions and solve doubts , Fishing and chatting , Blog source code , Click to add 【 Love each other and family 】


• Zero base learning CANoe Panel Summary of design catalogue , Click the jump

---

Preface

• stay Panel In design ,Switch/Indicator Is the most commonly used control , compatible button Control , It can be used as a switch , It can also be used as a display , A lot of function , Next, we will explain the property settings one by one through examples .
• Demonstrate hardware and software environment Win11 x64 ; CANoe 11 SP2 x64


Picture file (Image File)

1️⃣ Here's the picture , These controls are Switch/Indicator Control , The reason in panel This control is widely used in , Because of Image File attribute , You can make this control show physical properties , Be clear at a glance ;

• Zero base learning CANoe Panel（5）—— Change the value of a variable , The control image also changes , What's going on ? Click the jump


---

Switch/Indicator The level of the control changes

• 1️⃣
• The bitmap bound by the first control below is 3 Color , Corresponding to this 2 It's worth , So I Keep clicking the left mouse button ,Test_1 The value of the variable is 0 and 1 Transformation between
• The bitmap bound by the second control below is 6 Color , Corresponding to this 5 It's worth , So I Keep clicking the left mouse button ,Test_2 The value of the variable is 0 and 4 Transformation between , here we are 4 after , Click again , It's back to 0.
• If I pass Data Window settings Test_2 The value is greater than 4 Well , such as 5, Then the color of the second control remains unchanged , Because it exceeds the value that the bitmap can represent .

---

---

2️⃣ Set it to be similar to Button Self recovery type of control

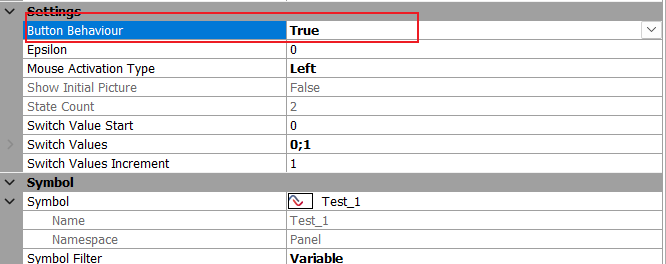

• Here's the picture , take Test_1 Of Button Behavior Attribute marking True, Just like Button The same , Since the recovery .


---

---

Switch/Indicator Control's keystroke behavior

• Under normal circumstances , The behavior of the mouse we choose Only Left , That is, only the left mouse button works , If set to mouse Left And Right Well


---

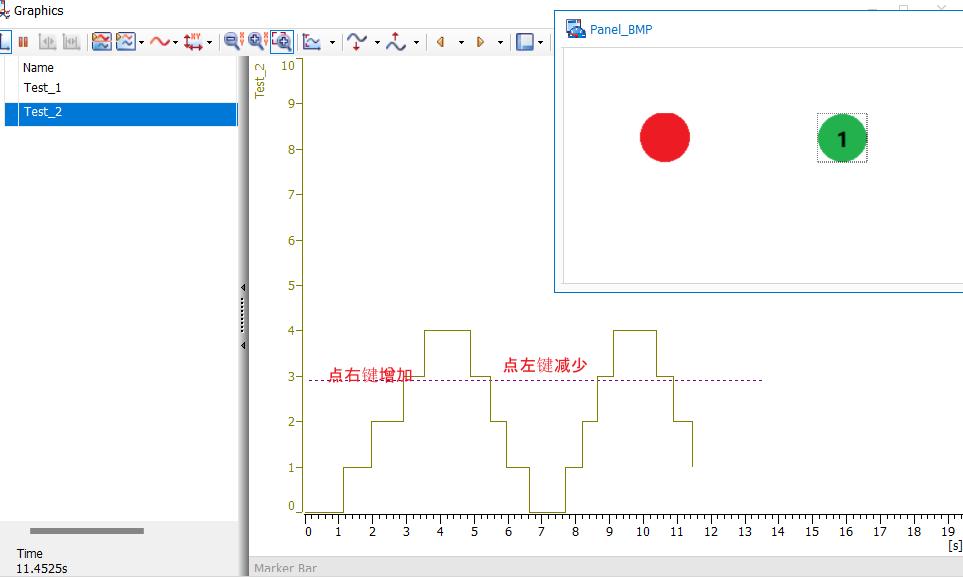

• Set as mouse Left And Right, Signal behavior ： Right click +1, left-click -1;




summary

• It needs to be used in the demonstration demo engineering , You can follow the official account online disk below to get it by yourself , Thank you for reading .
