11. Provider service registration of Nacos service registration source code analysis

11.nacos Provider service registration of service registration source code analysis

Source environment description :

springcloud 2020.0.4
springcloud alibaba 2021.1
Refer to the nacos edition ：1.4.1
Source code analysis project code address

primary coverage

At present, blogs are mainly nacos-client End code analysis , It mainly introduces how the client communicates with the server , Include ：

1. nacos-client How to register the current micro service to nacos-server
2. nacos-client How to maintain and nacos-server The heart of
3. nacos-client Every time 10s Rotation pull service instance list
4. nacos-client How to receive nacos-server Service change push （udp The way ）

Service provider service registration source code analysis

nacos Registration center integration springcloud project pom as follows .nacos And springcloud Integration of , Mainly by the following starter To realize

   <dependency>
       <groupId>com.alibaba.cloud</groupId>
       <artifactId>spring-cloud-starter-alibaba-nacos-discovery</artifactId>
   </dependency>

At present starter The class structure of the module is as follows ：

Description of main assembly classes

Configuration class NacosDiscoveryAutoConfiguration

@Configuration(proxyBeanMethods = false)
@ConditionalOnDiscoveryEnabled
@ConditionalOnNacosDiscoveryEnabled
public class NacosDiscoveryAutoConfiguration {

	//  assembly  nacos  Registry properties
	@Bean
	@ConditionalOnMissingBean
	public NacosDiscoveryProperties nacosProperties() {

		return new NacosDiscoveryProperties();
	}
	// NacosServiceDiscovery  It encapsulates the method of interacting with the registry to obtain service instances
	//  Such as ：List<ServiceInstance> getInstances(String serviceId)
	@Bean
	@ConditionalOnMissingBean
	public NacosServiceDiscovery nacosServiceDiscovery(
			NacosDiscoveryProperties discoveryProperties,
			NacosServiceManager nacosServiceManager) {

		return new NacosServiceDiscovery(discoveryProperties, nacosServiceManager);
	}
}

Configuration class NacosDiscoveryEndpointAutoConfiguration Used to expose service health 、 Health indicators and other data .
Configuration class NacosServiceRegistryAutoConfiguration, Assembly service registration related functions （ a key ）

@Configuration(proxyBeanMethods = false)
@EnableConfigurationProperties
@ConditionalOnNacosDiscoveryEnabled
@ConditionalOnProperty(value = "spring.cloud.service-registry.auto-registration.enabled", matchIfMissing = true)
@AutoConfigureAfter({
     AutoServiceRegistrationConfiguration.class,
		AutoServiceRegistrationAutoConfiguration.class,
		NacosDiscoveryAutoConfiguration.class })
public class NacosServiceRegistryAutoConfiguration {

	//  Service registration class ： Current microservice information , Register by this class to nacos In the service registry
	@Bean
	public NacosServiceRegistry nacosServiceRegistry(
			NacosDiscoveryProperties nacosDiscoveryProperties) {

		return new NacosServiceRegistry(nacosDiscoveryProperties);
	}
	//  Service registration information
	@Bean
	@ConditionalOnBean(AutoServiceRegistrationProperties.class)
	public NacosRegistration nacosRegistration(
			ObjectProvider<List<NacosRegistrationCustomizer>> registrationCustomizers,
			NacosDiscoveryProperties nacosDiscoveryProperties,
			ApplicationContext context) {

		return new NacosRegistration(registrationCustomizers.getIfAvailable(),
				nacosDiscoveryProperties, context);
	}
	//  Service automatic registration class , Called by this class  NacosServiceRegistry  Registration in
	@Bean
	@ConditionalOnBean(AutoServiceRegistrationProperties.class)
	public NacosAutoServiceRegistration nacosAutoServiceRegistration(
			NacosServiceRegistry registry,
			AutoServiceRegistrationProperties autoServiceRegistrationProperties,
			NacosRegistration registration) {

		return new NacosAutoServiceRegistration(registry,
				autoServiceRegistrationProperties, registration);
	}
}

Service registration process analysis

from WebServerInitializedEvent Event triggered service registration

// AbstractAutoServiceRegistration： springcloud  The services provided automatically register top-level encapsulation classes
public abstract class AbstractAutoServiceRegistration<R extends Registration>
		implements AutoServiceRegistration, ApplicationContextAware, ApplicationListener<WebServerInitializedEvent> {

	//  Receive the event callback of service initialization completion
	@Override
	@SuppressWarnings("deprecation")
	public void onApplicationEvent(WebServerInitializedEvent event) {

		bind(event);
	}
	@Deprecated
	public void bind(WebServerInitializedEvent event) {

		ApplicationContext context = event.getApplicationContext();
		if (context instanceof ConfigurableWebServerApplicationContext) {

			if ("management".equals(((ConfigurableWebServerApplicationContext) context).getServerNamespace())) {

				return;
			}
		}
		this.port.compareAndSet(0, event.getWebServer().getPort());
		this.start();
	}
	public void start() {

		if (!isEnabled()) {

			if (logger.isDebugEnabled()) {

				logger.debug("Discovery Lifecycle disabled. Not starting");
			}
			return;
		}
		// only initialize if nonSecurePort is greater than 0 and it isn't already running
		// because of containerPortInitializer below
		if (!this.running.get()) {

			// ##  Publish service pre registration events
			this.context.publishEvent(new InstancePreRegisteredEvent(this, getRegistration()));
			// ##  Enforcement registration （ Here from  NacosServiceRegistry  Realization ）
			register();
			if (shouldRegisterManagement()) {

				registerManagement();
			}
			//  Publish service registration completion event
			this.context.publishEvent(new InstanceRegisteredEvent<>(this, getConfiguration()));
			this.running.compareAndSet(false, true);
		}

	}
}

nacos The client registers the service NacosServiceRegistry

public class NacosServiceRegistry implements ServiceRegistry<Registration> {

	@Override
	public void register(Registration registration) {

		if (StringUtils.isEmpty(registration.getServiceId())) {

			log.warn("No service to register for nacos client...");
			return;
		}
	    // ##  Get the registration service
		NamingService namingService = namingService();
		// ##  The service name  ${spring.application.name}
		String serviceId = registration.getServiceId();
		// ##  Service group , Default  DEFAULT_GROUP
		String group = nacosDiscoveryProperties.getGroup();
		// ##  Build service information class
		Instance instance = getNacosInstanceFromRegistration(registration);

		try {

			// ###  The registration service performs registration （ See below  NacosNamingService ）
			namingService.registerInstance(serviceId, group, instance);
			log.info("nacos registry, {} {} {}:{} register finished", group, serviceId,
					instance.getIp(), instance.getPort());
		}
		catch (Exception e) {

			log.error("nacos registry, {} register failed...{},", serviceId,
					registration.toString(), e);
			// rethrow a RuntimeException if the registration is failed.
			// issue : https://github.com/alibaba/spring-cloud-alibaba/issues/1132
			rethrowRuntimeException(e);
		}
	}
}

Registry service class ：NamingService

public class NacosNamingService implements NamingService {

 @Override
    public void registerInstance(String serviceName, String groupName, Instance instance) throws NacosException {

        NamingUtils.checkInstanceIsLegal(instance);
        String groupedServiceName = NamingUtils.getGroupedName(serviceName, groupName);
        // ##  Temporary node , Add heartbeat task （ See below BeatReactor）
        if (instance.isEphemeral()) {

            BeatInfo beatInfo = beatReactor.buildBeatInfo(groupedServiceName, instance);
            beatReactor.addBeatInfo(groupedServiceName, beatInfo);
        }
        //  Enforcement registration
        serverProxy.registerService(groupedServiceName, groupName, instance);
    }
}

Classes that actually interact with the registry ：NamingProxy

public class NamingProxy implements Closeable {

	public void registerService(String serviceName, String groupName, Instance instance) throws NacosException {

        NAMING_LOGGER.info("[REGISTER-SERVICE] {} registering service {} with instance: {}", namespaceId, serviceName,
                instance);
        //  Construct the parameter information of the current service node
        final Map<String, String> params = new HashMap<String, String>(16);
        params.put(CommonParams.NAMESPACE_ID, namespaceId); // namespace
        params.put(CommonParams.SERVICE_NAME, serviceName); // serviceName
        params.put(CommonParams.GROUP_NAME, groupName); //  Group information
        params.put(CommonParams.CLUSTER_NAME, instance.getClusterName()); //  Cluster information , Default  DEFAULT
        params.put("ip", instance.getIp()); //  Current node ip
        params.put("port", String.valueOf(instance.getPort())); //  Current node port
        params.put("weight", String.valueOf(instance.getWeight())); //  Current node weight
        params.put("enable", String.valueOf(instance.isEnabled()));
        params.put("healthy", String.valueOf(instance.isHealthy())); //  Current node health status
        params.put("ephemeral", String.valueOf(instance.isEphemeral())); //  Whether to temporary node
        params.put("metadata", JacksonUtils.toJson(instance.getMetadata())); //  Metadata

        //  Perform the requested
        reqApi(UtilAndComs.nacosUrlInstance, params, HttpMethod.POST);
    }

	//  Initiate request
	public String reqApi(String api, Map<String, String> params, Map<String, String> body, List<String> servers,
            String method) throws NacosException {


        params.put(CommonParams.NAMESPACE_ID, getNamespaceId());
        if (CollectionUtils.isEmpty(servers) && StringUtils.isBlank(nacosDomain)) {

            throw new NacosException(NacosException.INVALID_PARAM, "no server available");
        }

        NacosException exception = new NacosException();
        if (StringUtils.isNotBlank(nacosDomain)) {

            for (int i = 0; i < maxRetry; i++) {
     //  Retry mechanism
                try {

                	 #### http call nacos The server registers Services
                    return callServer(api, params, body, nacosDomain, method);
                } catch (NacosException e) {

                    exception = e;
                    if (NAMING_LOGGER.isDebugEnabled()) {

                        NAMING_LOGGER.debug("request {} failed.", nacosDomain, e);
                    }
                }
            }
        }
        NAMING_LOGGER.error("request: {} failed, servers: {}, code: {}, msg: {}", api, servers, exception.getErrCode(),
                exception.getErrMsg());
        throw new NacosException(exception.getErrCode(),
                "failed to req API:" + api + " after all servers(" + servers + ") tried: " + exception.getMessage());
    }

	public String callServer(String api, Map<String, String> params, Map<String, String> body, String curServer,
            String method) throws NacosException {

        long start = System.currentTimeMillis();
        long end = 0;
        injectSecurityInfo(params);
        Header header = builderHeader();
        String url;
        if (curServer.startsWith(UtilAndComs.HTTPS) || curServer.startsWith(UtilAndComs.HTTP)) {

            url = curServer + api;
        } else {

            if (!IPUtil.containsPort(curServer)) {

                curServer = curServer + IPUtil.IP_PORT_SPLITER + serverPort;
            }
            url = NamingHttpClientManager.getInstance().getPrefix() + curServer + api;
        }
        try {

        	// ##  Use  restTemplate  Mode request  nacos Server side   Register for services
            HttpRestResult<String> restResult = nacosRestTemplate
                    .exchangeForm(url, header, Query.newInstance().initParams(params), body, method, String.class);
            end = System.currentTimeMillis();
            MetricsMonitor.getNamingRequestMonitor(method, url, String.valueOf(restResult.getCode()))
                    .observe(end - start);
            if (restResult.ok()) {

                return restResult.getData();
            }
            if (HttpStatus.SC_NOT_MODIFIED == restResult.getCode()) {

                return StringUtils.EMPTY;
            }
            throw new NacosException(restResult.getCode(), restResult.getMessage());
        } catch (Exception e) {

            NAMING_LOGGER.error("[NA] failed to request", e);
            throw new NacosException(NacosException.SERVER_ERROR, e);
        }
    }
}

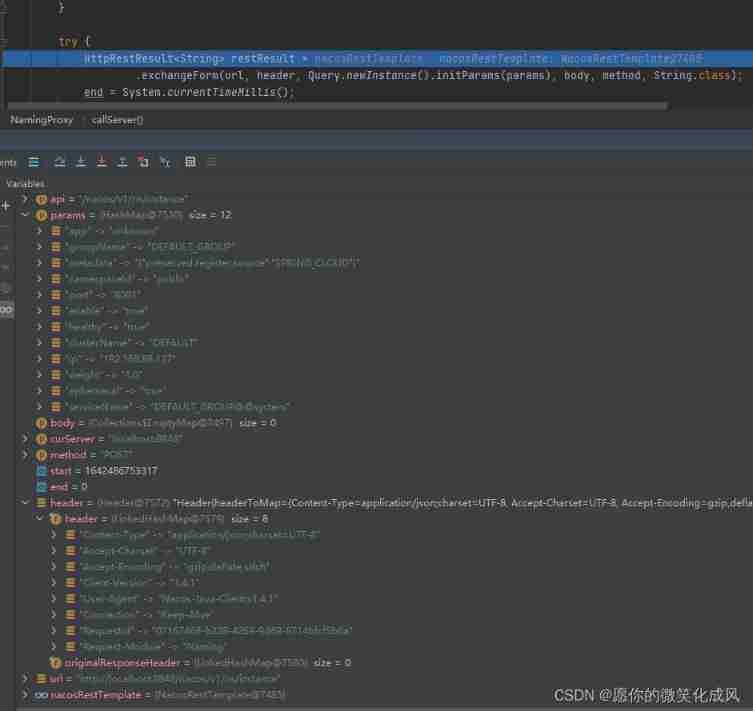

callServer Parameter information of

Come here , The service registration is completed , Can be in nacos Under the service management of the registry , See the registered service information .

nacos Client heartbeat mechanism BeatReactor

NacosNamingService At first BeatReactor

public class NacosNamingService implements NamingService {

    private HostReactor hostReactor; //  Main engine reactor ： Pull the service list regularly , maintain upd Push service
    private BeatReactor beatReactor; //  Heartbeat reactor ： Report the heartbeat to the server
    private NamingProxy serverProxy; //  Registry service agent , Communicate with the registration server

    private void init(Properties properties) throws NacosException {

        ValidatorUtils.checkInitParam(properties);
        this.namespace = InitUtils.initNamespaceForNaming(properties);
        InitUtils.initSerialization();
        initServerAddr(properties);
        InitUtils.initWebRootContext(properties);
        initCacheDir();
        initLogName(properties);

        this.serverProxy = new NamingProxy(this.namespace, this.endpoint, this.serverList, properties);
        this.beatReactor = new BeatReactor(this.serverProxy, initClientBeatThreadCount(properties));
        this.hostReactor = new HostReactor(this.serverProxy, beatReactor, this.cacheDir,
        		isLoadCacheAtStart(properties),
                isPushEmptyProtect(properties),
                initPollingThreadCount(properties));
    }
}

BeatReactor The code analysis

public class BeatReactor implements Closeable {

	//  Building functions
    public BeatReactor(NamingProxy serverProxy, int threadCount) {

        this.serverProxy = serverProxy;
        //  Created a scheduling thread pool
        this.executorService = new ScheduledThreadPoolExecutor(threadCount, new ThreadFactory() {

            @Override
            public Thread newThread(Runnable r) {

                Thread thread = new Thread(r);
                thread.setDaemon(true);
                thread.setName("com.alibaba.nacos.naming.beat.sender");
                return thread;
            }
        });
    }
    //  from  NacosNamingService  Call... When the service is registered
    public void addBeatInfo(String serviceName, BeatInfo beatInfo) {

        NAMING_LOGGER.info("[BEAT] adding beat: {} to beat map.", beatInfo);
        String key = buildKey(serviceName, beatInfo.getIp(), beatInfo.getPort());
        BeatInfo existBeat = null;
        //fix #1733
        if ((existBeat = dom2Beat.remove(key)) != null) {

            existBeat.setStopped(true);
        }
        dom2Beat.put(key, beatInfo);
        //  Start a heartbeat task
        executorService.schedule(new BeatTask(beatInfo), beatInfo.getPeriod(), TimeUnit.MILLISECONDS);
        MetricsMonitor.getDom2BeatSizeMonitor().set(dom2Beat.size());
    }

	//  Heartbeat Services
    class BeatTask implements Runnable {

        BeatInfo beatInfo;
        public BeatTask(BeatInfo beatInfo) {

            this.beatInfo = beatInfo;
        }
        @Override
        public void run() {

            if (beatInfo.isStopped()) {

                return;
            }
            long nextTime = beatInfo.getPeriod();
            try {

            	//  Send a heartbeat
                JsonNode result = serverProxy.sendBeat(beatInfo, BeatReactor.this.lightBeatEnabled);
                long interval = result.get("clientBeatInterval").asLong();
                boolean lightBeatEnabled = false;
                if (result.has(CommonParams.LIGHT_BEAT_ENABLED)) {

                    lightBeatEnabled = result.get(CommonParams.LIGHT_BEAT_ENABLED).asBoolean();
                }
                BeatReactor.this.lightBeatEnabled = lightBeatEnabled;
                if (interval > 0) {

                    nextTime = interval;
                }
                int code = NamingResponseCode.OK;
                if (result.has(CommonParams.CODE)) {

                    code = result.get(CommonParams.CODE).asInt();
                }
                //  When sending heartbeat , The service is not registered , Then register the service
                if (code == NamingResponseCode.RESOURCE_NOT_FOUND) {

                    Instance instance = new Instance();
                    instance.setPort(beatInfo.getPort());
                    instance.setIp(beatInfo.getIp());
                    instance.setWeight(beatInfo.getWeight());
                    instance.setMetadata(beatInfo.getMetadata());
                    instance.setClusterName(beatInfo.getCluster());
                    instance.setServiceName(beatInfo.getServiceName());
                    instance.setInstanceId(instance.getInstanceId());
                    instance.setEphemeral(true);
                    try {

                        serverProxy.registerService(beatInfo.getServiceName(),
                                NamingUtils.getGroupName(beatInfo.getServiceName()), instance);
                    } catch (Exception ignore) {

                    }
                }
            } catch (NacosException ex) {

                NAMING_LOGGER.error("[CLIENT-BEAT] failed to send beat: {}, code: {}, msg: {}",
                        JacksonUtils.toJson(beatInfo), ex.getErrCode(), ex.getErrMsg());
            }
            //  After heartbeat processing , Add another heartbeat task
            executorService.schedule(new BeatTask(beatInfo), nextTime, TimeUnit.MILLISECONDS);
        }
    }
}

Data sent by heartbeat

Pull service information regularly HostReactor

public class HostReactor implements Closeable {


	//  Local service cache
    private final Map<String, ServiceInfo> serviceInfoMap;

    public HostReactor(NamingProxy serverProxy, BeatReactor beatReactor, String cacheDir, boolean loadCacheAtStart,
            boolean pushEmptyProtection, int pollingThreadCount) {

        // init executorService
        // #  Task scheduling thread pool
        this.executor = new ScheduledThreadPoolExecutor(pollingThreadCount, new ThreadFactory() {

            @Override
            public Thread newThread(Runnable r) {

                Thread thread = new Thread(r);
                thread.setDaemon(true);
                thread.setName("com.alibaba.nacos.client.naming.updater");
                return thread;
            }
        });
        // #  Heartbeat response heap
        this.beatReactor = beatReactor;
        this.serverProxy = serverProxy;
        this.cacheDir = cacheDir;
        if (loadCacheAtStart) {

            this.serviceInfoMap = new ConcurrentHashMap<String, ServiceInfo>(DiskCache.read(this.cacheDir));
        } else {

            this.serviceInfoMap = new ConcurrentHashMap<String, ServiceInfo>(16);
        }
        this.pushEmptyProtection = pushEmptyProtection;
        this.updatingMap = new ConcurrentHashMap<String, Object>();
        //  Handling error messages ： Local file cache failure processing
        this.failoverReactor = new FailoverReactor(this, cacheDir);
        // ## **  initialization UDP Receiving services
        this.pushReceiver = new PushReceiver(this);
        this.notifier = new InstancesChangeNotifier();

        NotifyCenter.registerToPublisher(InstancesChangeEvent.class, 16384);
        NotifyCenter.registerSubscriber(notifier);
    }
	//  Update the service list by service name
	public void updateService(String serviceName, String clusters) throws NacosException {

        ServiceInfo oldService = getServiceInfo0(serviceName, clusters);
        try {

            //  Go to the remote server to query the service list
            String result = serverProxy.queryList(serviceName, clusters, pushReceiver.getUdpPort(), false);
            //  Process the obtained service list , And save to  serviceInfoMap  In cache
            if (StringUtils.isNotEmpty(result)) {

                processServiceJson(result);
            }
        } finally {

            if (oldService != null) {

                synchronized (oldService) {

                    oldService.notifyAll();
                }
            }
        }
    }
    //  Regular update service
    public class UpdateTask implements Runnable {

        long lastRefTime = Long.MAX_VALUE;
        private final String clusters;
        private final String serviceName;
        /** * the fail situation. 1:can't connect to server 2:serviceInfo's hosts is empty */
        private int failCount = 0;

        public UpdateTask(String serviceName, String clusters) {

            this.serviceName = serviceName;
            this.clusters = clusters;
        }
        private void incFailCount() {

            int limit = 6;
            if (failCount == limit) {

                return;
            }
            failCount++;
        }
        private void resetFailCount() {

            failCount = 0;
        }
        @Override
        public void run() {

        	//  Default 10s
            long delayTime = DEFAULT_DELAY;
            try {

                ServiceInfo serviceObj = serviceInfoMap.get(ServiceInfo.getKey(serviceName, clusters));
                if (serviceObj == null) {
     //  The local cache doesn't have , Pull from the server , Go straight back to
                    updateService(serviceName, clusters);
                    return;
                }
                //  The server push was not received , Refresh the service list information
                if (serviceObj.getLastRefTime() <= lastRefTime) {

                    updateService(serviceName, clusters);
                    serviceObj = serviceInfoMap.get(ServiceInfo.getKey(serviceName, clusters));
                } else {

                    // if serviceName already updated by push, we should not override it
                    // since the push data may be different from pull through force push
                    //  If you receive a push from the server during , There is no need to update
                    refreshOnly(serviceName, clusters);
                }
                lastRefTime = serviceObj.getLastRefTime();
                if (!notifier.isSubscribed(serviceName, clusters) && !futureMap
                        .containsKey(ServiceInfo.getKey(serviceName, clusters))) {

                    // abort the update task
                    NAMING_LOGGER.info("update task is stopped, service:" + serviceName + ", clusters:" + clusters);
                    return;
                }
                if (CollectionUtils.isEmpty(serviceObj.getHosts())) {

                    incFailCount();
                    return;
                }
                delayTime = serviceObj.getCacheMillis(); // 10s
                resetFailCount();
            } catch (Throwable e) {

                incFailCount();
                NAMING_LOGGER.warn("[NA] failed to update serviceName: " + serviceName, e);
            } finally {

            	//  Add another scheduled task , Pull the service list information .
            	//  Decay retry mechanism
                executor.schedule(this, Math.min(delayTime << failCount, DEFAULT_DELAY * 60), TimeUnit.MILLISECONDS);
            }
        }
    }
}

When refreshing the service list , Will send to the server upd Push related information ：udp port

Receive service push PushReceiver Udp Server side

public class PushReceiver implements Runnable, Closeable {

    public PushReceiver(HostReactor hostReactor) {

        try {

            this.hostReactor = hostReactor;
            //  An available port will be randomly bound , As udp Push port of
            this.udpSocket = new DatagramSocket();
            //  A thread pool for a thread
            this.executorService = new ScheduledThreadPoolExecutor(1, new ThreadFactory() {

                @Override
                public Thread newThread(Runnable r) {

                    Thread thread = new Thread(r);
                    thread.setDaemon(true);
                    thread.setName("com.alibaba.nacos.naming.push.receiver");
                    return thread;
                }
            });
            //  Start the current thread , perform run Method
            this.executorService.execute(this);
        } catch (Exception e) {

            NAMING_LOGGER.error("[NA] init udp socket failed", e);
        }
    }
    @Override
    public void run() {

        while (!closed) {

            try {

                // byte[] is initialized with 0 full filled by default
                byte[] buffer = new byte[UDP_MSS];
                DatagramPacket packet = new DatagramPacket(buffer, buffer.length);
                // udp Receive the data sent by the service
                udpSocket.receive(packet);

                String json = new String(IoUtils.tryDecompress(packet.getData()), UTF_8).trim();
                NAMING_LOGGER.info("received push data: " + json + " from " + packet.getAddress().toString());

                PushPacket pushPacket = JacksonUtils.toObj(json, PushPacket.class);
                String ack;
                //  If dom change , Or service change
                if ("dom".equals(pushPacket.type) || "service".equals(pushPacket.type)) {

                    //  Update service data
                    hostReactor.processServiceJson(pushPacket.data);

                    // send ack to server
                    ack = "{\"type\": \"push-ack\"" + ", \"lastRefTime\":\"" + pushPacket.lastRefTime + "\", \"data\":"
                            + "\"\"}";
                } else if ("dump".equals(pushPacket.type)) {

                    // dump data to server
                    ack = "{\"type\": \"dump-ack\"" + ", \"lastRefTime\": \"" + pushPacket.lastRefTime + "\", \"data\":"
                            + "\"" + StringUtils.escapeJavaScript(JacksonUtils.toJson(hostReactor.getServiceInfoMap()))
                            + "\"}";
                } else {

                    // do nothing send ack only
                    ack = "{\"type\": \"unknown-ack\"" + ", \"lastRefTime\":\"" + pushPacket.lastRefTime
                            + "\", \"data\":" + "\"\"}";
                }
                //  Send a response
                udpSocket.send(new DatagramPacket(ack.getBytes(UTF_8), ack.getBytes(UTF_8).length,
                        packet.getSocketAddress()));
            } catch (Exception e) {

                if (closed) {

                    return;
                }
                NAMING_LOGGER.error("[NA] error while receiving push data", e);
            }
        }
    }

}
