Use performance to see what the browser is doing

Preface

Chrome Browser's Performance Panels provide us with the ability to detect page performance , But it provides more than just some performance data . This article will be from the perspective of working principle , Combined with the recording results of the actual project , Explore the other information that the performance panel has revealed to us .

Performance panel

About the function and usage of the panel , You can refer to this article [1]. This section mainly introduces the relationship between browser architecture and performance panel .

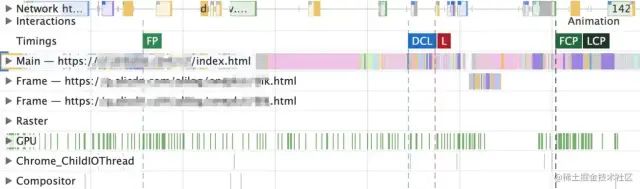

Because the final standard architecture has not yet been determined , The implementation details of each browser are different . Here we have Chrome The architecture of , Compare the architecture to the performance panel . From the figure below, we can see the main threads presented by the performance panel . The performance panel does not contain all the threads in the architecture , Mainly related to the page rendering process .

Network

Network Represents the network thread in the browser process , We can see that the timeline contains all the call information for network requests and file downloads , And identify different types of resources with different colors .

Main

Main Represents the main thread in the rendering process , It's all about rendering basic things , Script execution 、 Pattern calculation 、 Layout calculation 、 Drawing and so on .

Compositor & Raster

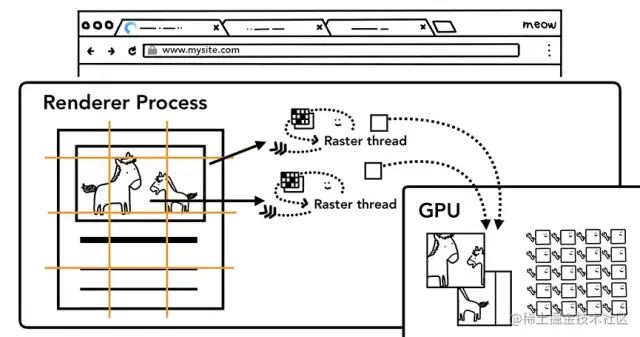

Compositor Represents the compositing thread in the rendering process ,Raster Represents the grid thread in the rendering process . Now the browser draws a page , It can be divided into the following steps ：

• The main thread divides the page into layers （ It will be mentioned later Update Layer Tree）

• Grid threads rasterize each layer separately

• The composition thread merges the rasterized blocks into a page

We can see , In the performance panel, the main thread finally invokes the raster thread to render the actual rendering .

GPU

obviously , This part is GPU Process Medium GPU Threads .

Browser work report

Next, we're going to look roughly at the time dimension , Take a look at the browser recording 「 The work report 」.

Download and parse the document

The starting point of our journey will be from clicking on Chrome Performance Panel Of  Reload[2]  Button （ It's like refreshing ） Start . The current page is unloaded first , With several log reports , The browser started index.html Download work for .HTML After downloading the document , The browser starts to follow HTML Standard pair index.html To analyze [3], In the main thread, the received text string is parsed as DOM . We can notice that ,HTML The process of parsing is not done in one go , This is because HTML Other external resources are usually included , Such as images 、CSS、JS etc. . These files need to be retrieved by network request or cache . among , When HTML The parser resolves to  <script>  When labeling ,HTML The parsing of the document stops , Instead, load 、 Parsing and executing scripts . therefore , You can see from the timeline of the main thread that ,Parse HTML The process is intermittent .

The treatment of different resources

The following processing strategies can be seen in the main thread , However, there is a big gap between the length and length of different resources , The screenshots are difficult , There's no presentation here .

So what are the browser's processing strategies for different resources ？

• Browser download HTML And analyze , If it comes to the outside CSS And so on , It will be by Browser In process network Thread Download

• When CSS When the download ,HTML The parsing process can continue

• When parsing encounters the outside Script label （ It doesn't contain async、defer attribute ） when , Parsing stopped , Until the script is downloaded and executed

in general , The browser to HTML The parsing process will not be CSS、IMG The download of resources is blocked , But the loading and execution of the script stops HTML Parsing . This is mainly because JS May change DOM Structure , Or is it JS Dynamically load other JS Re change DOM And other potential problems .

obviously , Although the browser can be concurrent several network Threads download resources , But if you just deal with it like the above strategy , When it comes to  <script>  when , If the file is large or the latency is high , It could happen 「 The script monopolizes the thread and no other resources are being downloaded 」 The empty window period of （idle network）. therefore ,pre-loader[4] （ perhaps preload scanner And so on ） Will be outside the main thread , Scan the rest of the tags , make the best of network Thread downloads other resources . This mechanism can be optimized  19\%[5]  Load duration of .

Script parsing execution

For the complex background application of heavy business logic , The performance overhead of scripting , It's often the dominant . We can see from the example below that , Remove beforeunload Previous uninstall , Scripts themselves account for more than half of their time . analysis HTML In the second place , As for other style calculations 、 Micro task 、 Garbage collection, etc , It's not the most painful place . Of course , The example project itself focuses on business logic ,JavaScript The amount of code determines its high cost . Sometimes we can consider using  async  perhaps  defer  Property to improve page performance , The differences between the two will not be repeated . What needs to be specified is the dynamic addition of scripts . As shown in the following example code , The script is append Once in the document, it will start to download , And default and  async  Having the same behavior , namely 「 Load first and execute first 」.

let script = document.createElement('script');
script.src = "/xxx/a.js";
document.body.append(script);
 Copy code

If you set up  async  attribute , Will follow  defer  Come on , namely 「 Load first, execute first 」.

function loadScript(src) {
  let script = document.createElement('script');
  script.src = src;
  script.async = false;
  document.body.append(script);
}

//  because  async = false, So do it in sequence  big; otherwise （ Usually first ） perform  small
loadScript("/xxx/big.js");
loadScript("/xxx/small.js");
 Copy code

As you can see from the following figure , Call stack execution appendChild Method added dynamically  script  Script , Soon after, the download started . After downloading the dynamically loaded script , The first time to start script execution .

lifecycle and paint timing

The following figure shows the article [6] Page lifecycle flowchart mentioned in . In this section we combine Performance, Look at the picture .

beforeunload

because Performance Is recorded on an existing page reload, So the life cycle of the record starts with the unloading of the page . Here's the picture Main Shown ,beforeunload event [7] First triggered by the browser . It can be noted that , Yellow bar Event: beforeunload It's an activity triggered by the browser itself , We call it root activity （Root activities）[8].

pagehide

We can notice from the figure below that , Why is the sequence of events triggered inconsistent with the above lifecycle flowchart , yes pagehide -> visibilitychange -> unload Well ？ in fact , In the design before the browser , If the page is visible during the unload phase ,visibilitychange Will be in pagehide Trigger later , As in the screenshot below . This makes the page unload in different visual situations , There is an inconsistent life cycle and sequence of events , Bring complexity to developers . In future new versions of browsers , The sequence of events in the unload phase is unified , At present, the progress is in this  issue[9]  Next . Because of the adjustment of this part ,unload It is no longer recommended to use in code implementation .

first paint

First distinguish the next two time points ：

• first paint： It refers to the time when the first pixel begins to draw on the screen , For example, the background color of a page

• first contentful paint： It's about the time to start drawing content , Such as text or pictures

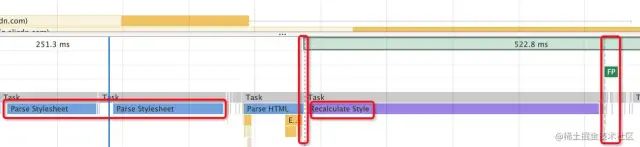

from Performance in , We can see the first series of actions drawn （ Some of the process is very fast , The screenshots save ）：

1. CSS Loading complete

2. Parse Stylesheet： Parsing style sheets , build CSSOM

3. Recalculate Style： Recalculate style , Determine style rules

4. Layout： According to the calculation results, the layout is carried out , Determine the size and location of elements

5. Update Layer Tree： Update render layer tree

6. Paint： according to Layer Tree Draw page （ Location 、 size 、 Color 、 Frame 、 Shadow, etc ）

7. Composite Layers： Composite layer , The browser merges layers and outputs them to the screen

Layout After that, the process is very fast , Zoom in here to see ：

DOMContentLoaded

DOMContentLoaded Express HTML Has been fully loaded and parsed , Of course, stylesheets 、 Images and other resources may not have been loaded yet . As you can see from the following figure , After many paragraphs HTML After the parsing ,DCL After that, there was nothing else Parse HTML 了 .

pageshow/load

When navigation causes the browser to render a document in a window , The browser will be in window Trigger on pageshow event , Please refer to here for specific timing [10]. More Than This , When the page is first loaded ,pageshow The event will be in load Trigger after event .

So back to Performance Time axis , We can see from the figure below , In the red dotted line （ Mark the load） after , Browser triggered pageshow event , This is the root activity mentioned above .

Mission and performance issues

It's a pity that ,Performance It's not clear that Event Loop. The gray one in the picture below Task Not macro tasks , It stands for 「 The main thread is busy at present , Unable to respond to user interaction 」;Run Microtasks It's really a micro task at the end of a task . When we click on the call stack to observe , You can see the callback function in the source code and the corresponding source location . adopt Task Can locate performance problems .RAIL Model [11] Tell us we need to focus on occupancy CPU beyond 50ms The complex task of , To provide a coherent interactive experience . Of course , Here is more about the response requirements of the interaction phase , It's not necessarily a requirement for the initial loading phase .

summary

From the perspective of working principle , Combined with the recording results of the actual project , A practical test of theoretical knowledge was carried out .Performance It's not just a performance analysis tool , Or explore the browser working principle of the little overlord learning machine . in general , The work of the browser is substantial and complex , In contrast to our daily fishing experience , We still need to deepen our study and thinking .
