MHA high availability cluster deployment and failover of database

There are some problems in the traditional master-slave architecture in the previous article （ for example ： Single point of failure, etc ）, New content will be added to this blog to solve these problems .

One 、MHA Concept

MHA（MasterHigh Availability） It's an excellent set of MySQL Software for failover and master-slave replication in high availability environment .
MHA The emergence of is to solve MySQL Single point problem .
MySQL During failover ,MHA Can do 0-30 Automatic failover within seconds .
MHA It can ensure the consistency of data to the greatest extent in the process of failover , To achieve real high availability .

1、MHA The composition of

MHA Node（ Data nodes ）
MHA Node Run on each MySQL Server .
MHA Manager（ The management node ）
MHA Manager It can be deployed separately on a separate machine , Manage multiple master-slave colony ; It can also be deployed in one slave Node .
MHA Manager It will detect the master node . When master Failure time , It can automatically send the latest data to slave Upgrade to a new master, And then put all the other slave Point back to the new master. The entire failover process is completely transparent to the application .

2、MHA Characteristics

During automatic failover ,MHA Trying to save binary logs from the down primary server , Ensure that data is not lost to the greatest extent
Use semi synchronous replication , Can greatly reduce the risk of data loss , If only one slave Has received the latest binary log ,MHA You can apply the latest binary logs to all other slave Server , Therefore, the data consistency of all nodes can be guaranteed
at present MHA Support one master multi-slave architecture , At least three servers , That is, one master and two slaves

Two 、 build MySQL+MHA

Experimental thinking
1、MHA framework

Database installation
One master and two slaves
MHA build

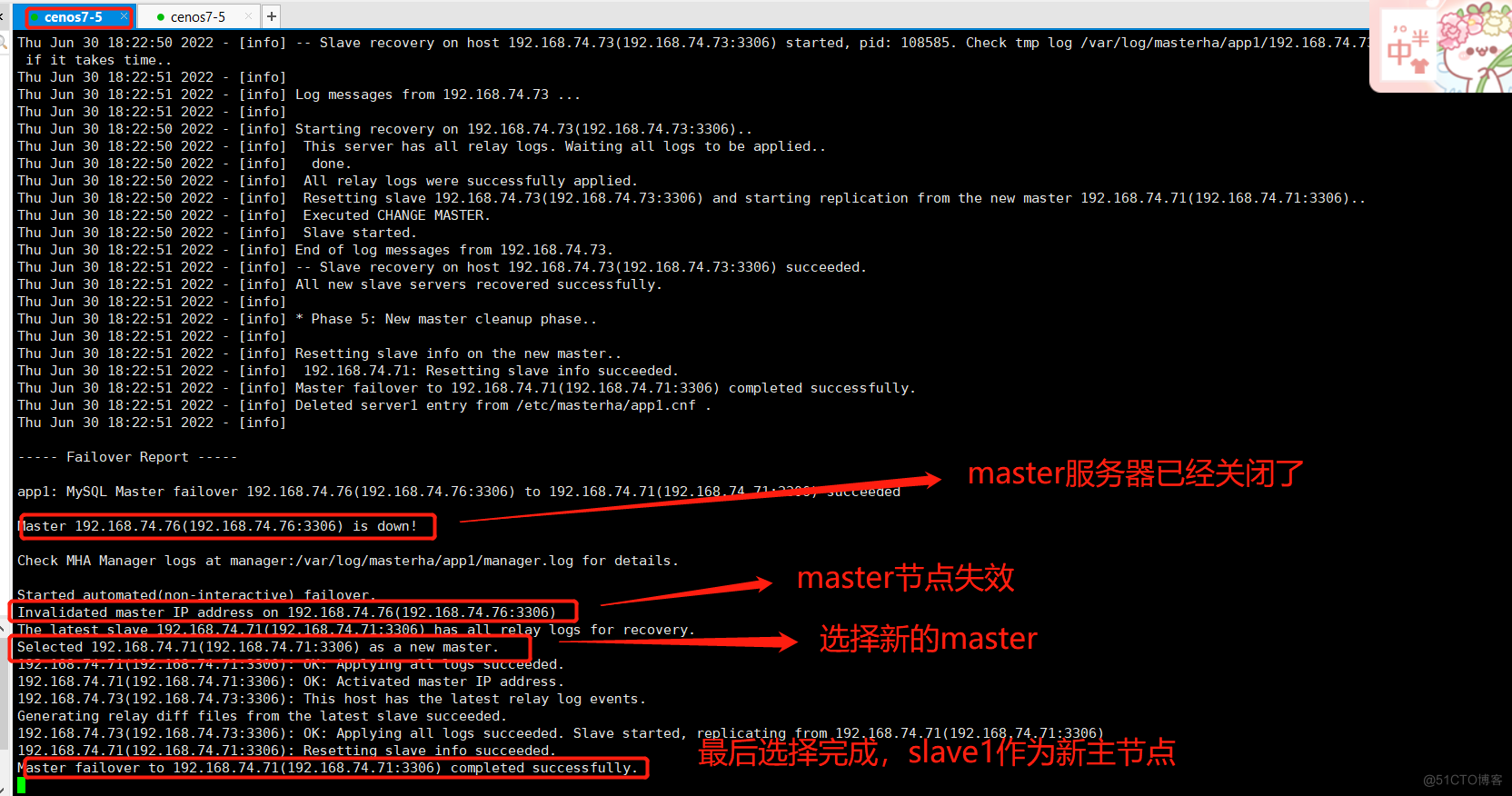

2、 fault simulation

Simulate the failure of the main library
The alternate master database becomes the master database
The original fault main database is restored and rejoined to MHA Become a slave
Experiment preparation
MHAmanager 192.168.74.75
mysql1 192.168.74.76
mysql2 192.168.74.71
mysql3 192.168.74.73
Now three mysql Installed on the host mysql, You can see the script I wrote earlier
Turn off firewalls and security

Log in and copy

systemctl stop firewalld
systemctl disable firewalld
setenforce 0





1.

2.

3.

4.


1、 modify mysql The hostname of the node

192.168.74.76

Log in and copy

hostnamectl set-hostname mysql1
su -




1.

2.


192.168.74.71

Log in and copy

hostnamectl set-hostname mysql2
su -
```192.168.74.73
```html/xml
hostnamectl set-hostname mysql3
su -




1.

2.

3.

4.

5.

6.

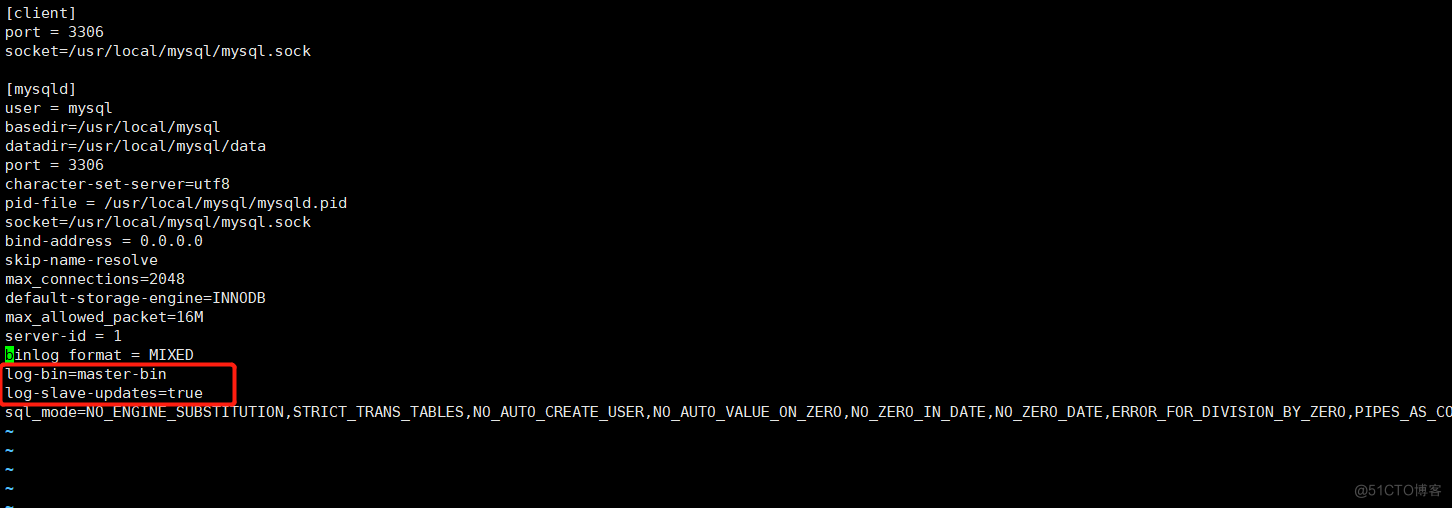

2、 Modify three MySQL The main profile of the server /etc/my.cnf, And create a command soft link

192.168.74.76

Log in and copy

vim /etc/my.cnf
[mysqld]
server-id = 1
log_bin = master-bin
log-slave-updates = true

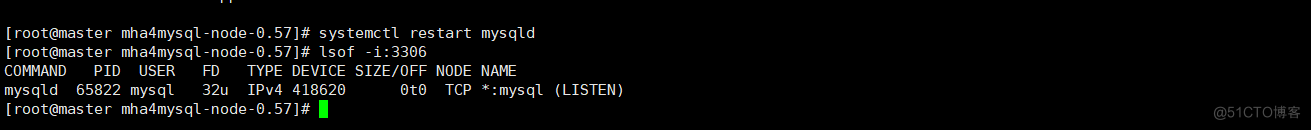

systemctl restart mysqld

ln -s /usr/local/mysql/bin/mysql /usr/sbin/
ln -s /usr/local/mysql/bin/mysqlbinlog /usr/sbin/





1.

2.

3.

4.

5.

6.

7.

8.

9.

10.

11.

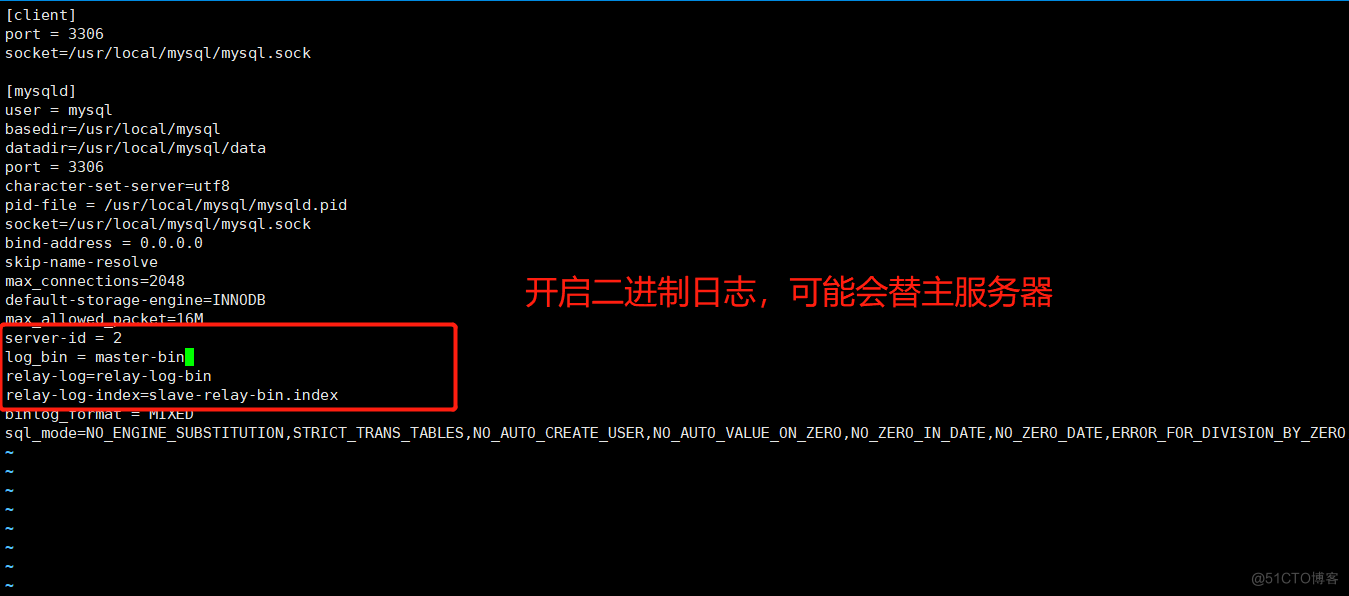

192.168.74.71
192.168.74.73

Log in and copy

vim /etc/my.cnf
server-id = 2
#server-id = 3  mysql3 Then for 13, Three servers  server-id  It can't be the same
log_bin = master-bin
relay-log = relay-log-bin
relay-log-index = slave-relay-bin.index

systemctl restart mysqld

ln -s /usr/local/mysql/bin/mysql /usr/sbin/
ln -s /usr/local/mysql/bin/mysqlbinlog /usr/sbin/





1.

2.

3.

4.

5.

6.

7.

8.

9.

10.

11.

12.


3、 To configure MySQL One master and two slaves

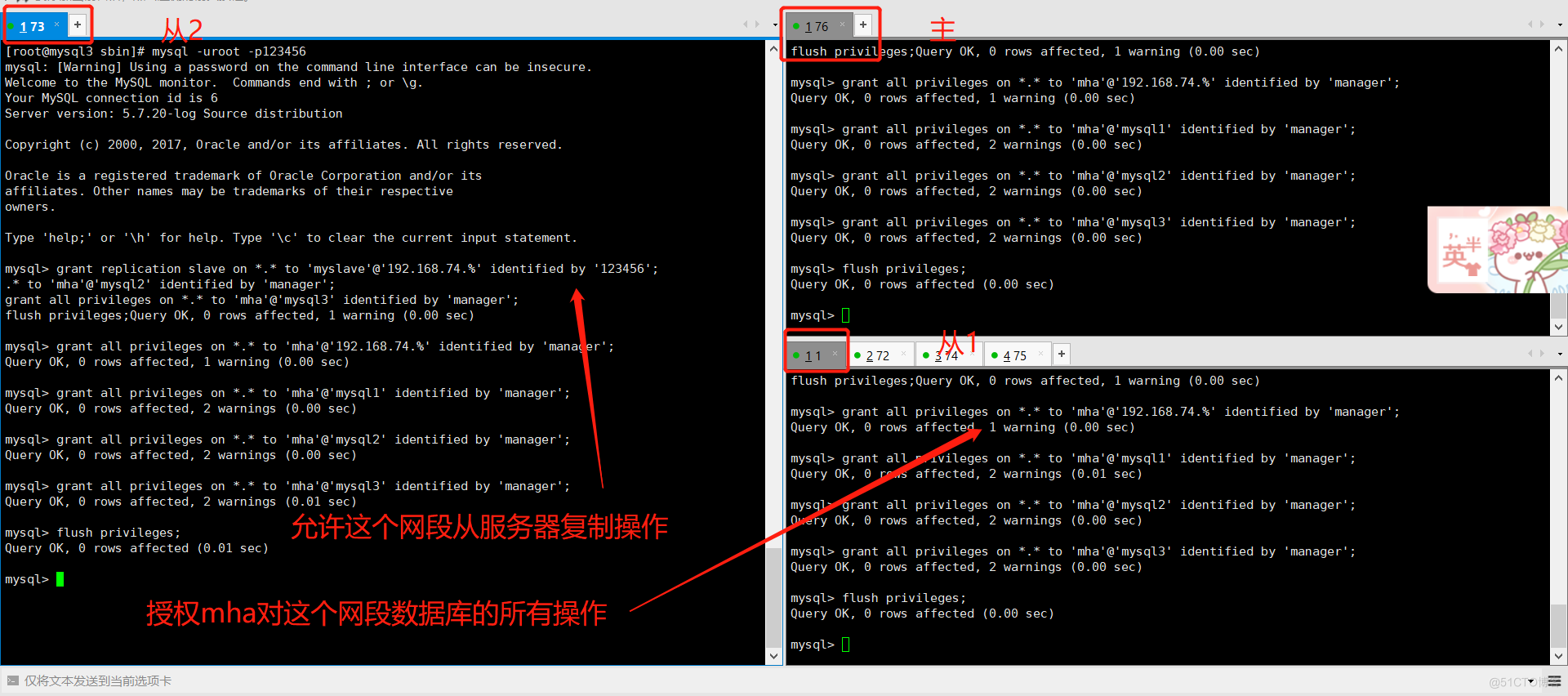

（1） all MySQL Server run MySQL to grant authorization

Log in and copy

mysql -uroot -p123456
grant replication slave on *.* to 'myslave'@'192.168.74.%' identified by '123456';
grant all privileges on *.* to 'mha'@'192.168.74.%' identified by 'manager';
grant all privileges on *.* to 'mha'@'mysql1' identified by 'manager';
grant all privileges on *.* to 'mha'@'mysql2' identified by 'manager';
grant all privileges on *.* to 'mha'@'mysql3' identified by 'manager';
flush privileges;





1.

2.

3.

4.

5.

6.

7.

8.


（2） stay Master Node to view binaries and synchronization points

192.168.74.76
show master status;
# Everyone's binary file name or offset may be different , Remember your

（3） stay Slave1、Slave2 The node performs a synchronization operation

Log in and copy

change master to master_host='192.168.74.76',master_user='myslave',master_password='123456',master_log_file='master-bin.000004',master_log_pos=1745;

start slave;

show slave status\G
Slave_IO_Running: Yes
Slave_SQL_Running: Yes

# commonly  Slave_IO_Running: No  The possibility of ：
# The Internet is not working
#my.cnf Configuration problem
# password 、file file name 、pos The offset is not right
# The firewall is not closed





1.

2.

3.

4.

5.

6.

7.

8.

9.

10.

11.

12.

13.

14.


（4）Slave1、Slave2 The node is set to read-only mode

Log in and copy

set global read_only=1;
# Change back to read-write state set global read_only=0;





1.

2.

3.


（5） Master slave replication verification

Log in and copy

create database ky20;
use ky20;
create table ky20(id int);
insert into ky20 values(1);





1.

2.

3.

4.

5.


4、 install MHA Software

MHAmanager（192.168.74.75）
mysql1（192.168.74.76）
mysql2（192.168.74.71）
mysql3（192.168.74.73）
First installation epel Source , Online source installation is required
Then install... On all servers node Components

Log in and copy

# Install online source
mv /etc/yum.repos.d/repos.bak/CentOS-* /etc/yum.repos.d/
yum list

yum install epel-release --nogpgcheck -y

yum install -y perl-DBD-MySQL \
perl-Config-Tiny \
perl-Log-Dispatch \
perl-Parallel-ForkManager \
perl-ExtUtils-CBuilder \
perl-ExtUtils-MakeMaker \
perl-CPAN





1.

2.

3.

4.

5.

6.

7.

8.

9.

10.

11.

12.

13.

14.


2） install MHA node software package

MHAmanager（192.168.74.75）
mysql1（192.168.74.76）
mysql2（192.168.74.71）
mysql3（192.168.74.73）
For each operating system, the version is different , here CentOS7.4 Must choose 0.57 edition .
On all servers, you must first install node Components , Last in MHA-manager Install on node manager Components , because manager rely on node Components

Log in and copy

# Put the package mha4mysql-node-0.57.tar.gz Put in /opt Under the table of contents
cd /opt
tar zxvf mha4mysql-node-0.57.tar.gz
cd mha4mysql-node-0.57
perl Makefile.PL
make && make install





1.

2.

3.

4.

5.

6.

7.


（3） stay MHA manager Install on node manager Components

192.168.74.75

Log in and copy

# Put the package mha4mysql-manager-0.57.tar.gz Put in /opt Under the table of contents
cd /opt
tar zxvf mha4mysql-manager-0.57.tar.gz
cd mha4mysql-manager-0.57
perl Makefile.PL
make && make install





1.

2.

3.

4.

5.

6.

7.

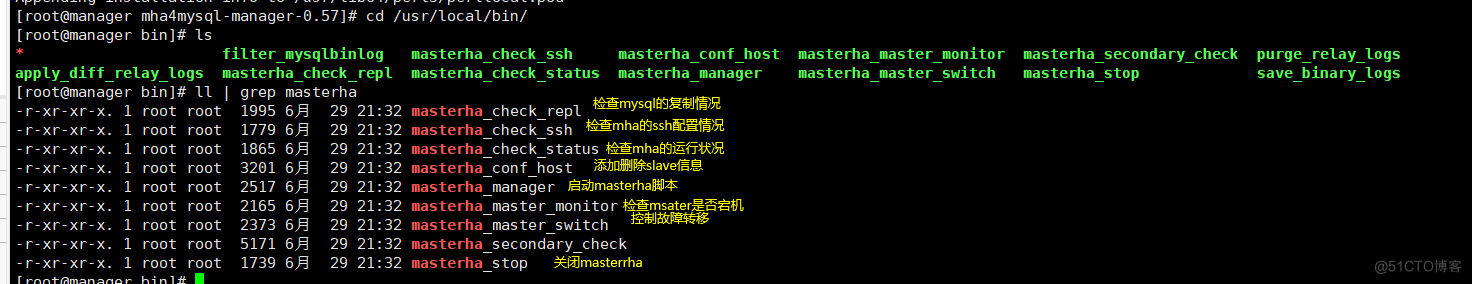

manager After the components are installed, install them in /usr/local/bin The following tools will be generated

It mainly includes the following ：

node Components will also be installed in /usr/local/bin Several scripts will be generated below （ These tools are usually made of MHAManager The script triggers , There is no need for human operation ）

Mainly as follows ：

5、 Configure password less authentication on all servers

（1） stay manager Configure password less authentication to all database nodes on the node

192.168.74.75

Log in and copy

ssh-keygen -t rsa 				# Press enter all the way
ssh-copy-id 192.168.74.76
ssh-copy-id 192.168.74.71
ssh-copy-id 192.168.74.73





1.

2.

3.

4.

5.


（2） stay mysql1 Configuration to the database node mysql2 and mysql3 No password authentication ssh-keygen -t rsa

mysql1（192.168.74.76）

Log in and copy

ssh-keygen -t rsa
ssh-copy-id 192.168.74.71
ssh-copy-id 192.168.74.73





1.

2.

3.

4.


（3） stay mysql2 Configuration to the database node mysql1 and mysql3 No password authentication

mysql1（192.168.74.71）

Log in and copy

ssh-keygen -t rsa
ssh-copy-id 192.168.74.76
ssh-copy-id 192.168.74.73





1.

2.

3.

4.


（4） stay mysql3 Configuration to the database node mysql1 and mysql2 No password authentication

mysql1（192.168.74.73）

Log in and copy

ssh-keygen -t rsa
ssh-copy-id 192.168.74.76
ssh-copy-id 192.168.74.71




1.

2.

3.


6、 stay manager Configuration on node MHA

MHAmanager（192.168.74.75）

（1） stay manager Copy related scripts on node to /usr/local/bin Catalog

Log in and copy

cp -rp /opt/mha4mysql-manager-0.57/samples/scripts /usr/local/bin

# After copying, there will be four execution files
ll /usr/local/bin/scripts/





1.

2.

3.

4.

5.


（2） When copying the above automatic switching VIP Manage scripts to /usr/local/bin Catalog , Use here master_ip_failover Scripts to manage VIP And failover

Log in and copy

cp /usr/local/bin/scripts/master_ip_failover /usr/local/bin





1.

2.


Log in and copy

# Empty the original content first
echo '' > /usr/local/bin/master_ip_failover

# Directly copy and modify vip Related parameters

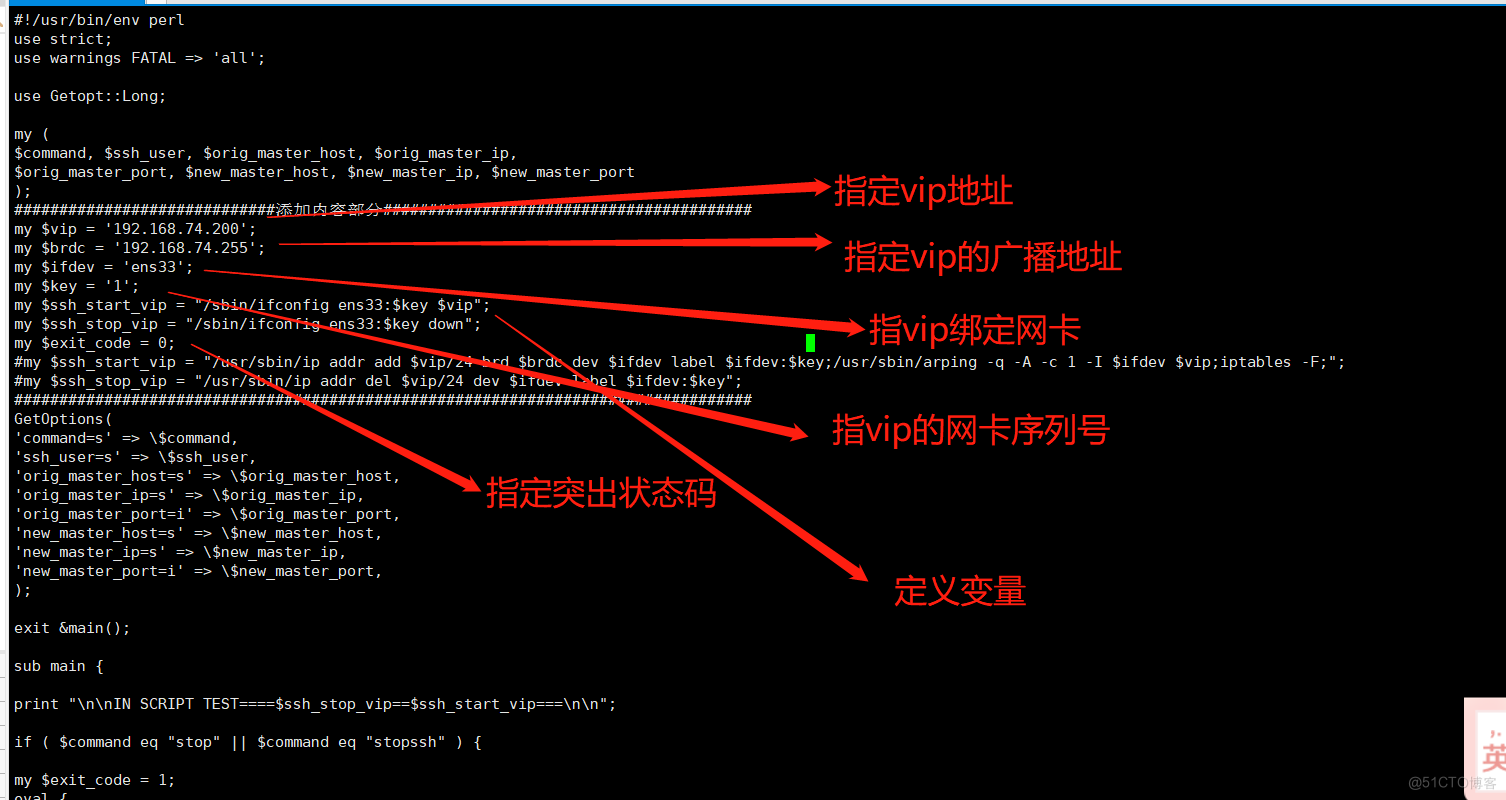

vim /usr/local/bin/master_ip_failover
#!/usr/bin/env perl
use strict;
use warnings FATAL => 'all';

use Getopt::Long;

my (
$command, $ssh_user, $orig_master_host, $orig_master_ip,
$orig_master_port, $new_master_host, $new_master_ip, $new_master_port
);
############################# Add content section #########################################
my $vip = '192.168.74.200';							# Appoint vip The address of
my $brdc = '192.168.74.255';							# Appoint vip The address of
my $ifdev = 'ens33';									# Appoint vip Bound network card
my $key = '1';											# Appoint vip Serial number of the bound virtual network card
my $ssh_start_vip = "/sbin/ifconfig ens33:$key $vip";	# Represents that the value of this variable is ifconfig ens33:1 192.168.74.200
my $ssh_stop_vip = "/sbin/ifconfig ens33:$key down";	# Represents that the value of this variable is ifconfig ens33:1 down
my $exit_code = 0;										# Specify the exit status code as 0
#my $ssh_start_vip = "/usr/sbin/ip addr add $vip/24 brd $brdc dev $ifdev label $ifdev:$key;/usr/sbin/arping -q -A -c 1 -I $ifdev $vip;iptables -F;";
#my $ssh_stop_vip = "/usr/sbin/ip addr del $vip/24 dev $ifdev label $ifdev:$key";
##################################################################################
GetOptions(
'command=s' => \$command,
'ssh_user=s' => \$ssh_user,
'orig_master_host=s' => \$orig_master_host,
'orig_master_ip=s' => \$orig_master_ip,
'orig_master_port=i' => \$orig_master_port,
'new_master_host=s' => \$new_master_host,
'new_master_ip=s' => \$new_master_ip,
'new_master_port=i' => \$new_master_port,
);

exit &main();

sub main {

print "\n\nIN SCRIPT TEST====$ssh_stop_vip==$ssh_start_vip===\n\n";

if ( $command eq "stop" || $command eq "stopssh" ) {

my $exit_code = 1;
eval {
print "Disabling the VIP on old master: $orig_master_host \n";
&stop_vip();
$exit_code = 0;
};
if ([email protected]) {
warn "Got Error: [email protected]\n";
exit $exit_code;
}
exit $exit_code;
}
elsif ( $command eq "start" ) {

my $exit_code = 10;
eval {
print "Enabling the VIP - $vip on the new master - $new_master_host \n";
&start_vip();
$exit_code = 0;
};
if ([email protected]) {
warn [email protected];
exit $exit_code;
}
exit $exit_code;
}
elsif ( $command eq "status" ) {
print "Checking the Status of the script.. OK \n";
exit 0;
}
else {
&usage();
exit 1;
}
}
sub start_vip() {
`ssh $ssh_user\@$new_master_host \" $ssh_start_vip \"`;
}
## A simple system call that disable the VIP on the old_master
sub stop_vip() {
`ssh $ssh_user\@$orig_master_host \" $ssh_stop_vip \"`;
}

sub usage {
print
"Usage: master_ip_failover --command=start|stop|stopssh|status --orig_master_host=host --orig_master_ip=ip --orig_master_port=port --new_master_host=host --new_master_ip=ip --new_master_port=port\n";
}





1.

2.

3.

4.

5.

6.

7.

8.

9.

10.

11.

12.

13.

14.

15.

16.

17.

18.

19.

20.

21.

22.

23.

24.

25.

26.

27.

28.

29.

30.

31.

32.

33.

34.

35.

36.

37.

38.

39.

40.

41.

42.

43.

44.

45.

46.

47.

48.

49.

50.

51.

52.

53.

54.

55.

56.

57.

58.

59.

60.

61.

62.

63.

64.

65.

66.

67.

68.

69.

70.

71.

72.

73.

74.

75.

76.

77.

78.

79.

80.

81.

82.

83.

84.

85.

86.

87.

88.

89.

90.

91.

92.

93.


（3） establish MHA Software directory and copy configuration files , Use here app1.cnf Configuration files to manage mysql Node server

Log in and copy

mkdir /etc/masterha
cp /opt/mha4mysql-manager-0.57/samples/conf/app1.cnf /etc/masterha

vim /etc/masterha/app1.cnf
[server default]
manager_log=/var/log/masterha/app1/manager.log
manager_workdir=/var/log/masterha/app1
master_binlog_dir=/usr/local/mysql/data
master_ip_failover_script=/usr/local/bin/master_ip_failover
master_ip_online_change_script=/usr/local/bin/master_ip_online_change
user=mha
password=manager
ping_interval=1
remote_workdir=/tmp
repl_user=myslave
repl_password=123456
secondary_check_script=/usr/local/bin/masterha_secondary_check -s 192.168.74.71 -s 192.168.74.73
shutdown_script=""
ssh_user=root

[server1]
hostname=192.168.74.76
port=3306

[server2]
candidate_master=1
check_repl_delay=0
hostname=192.168.74.71
port=3306

[server3]
hostname=192.168.74.73
port=3306

#-------------------------- Profile explanation --------------------------------------------------------------------------
[server default]
manager_log=/var/log/masterha/app1/manager.log　　　 #manager journal
manager_workdir=/var/log/masterha/app1.log　　　　	#manager working directory
master_binlog_dir=/usr/local/mysql/data/　　　　　　　#master preservation binlog The location of , The path here has to do with master Internally configured binlog The path is the same , In order to MHA Can find
master_ip_failover_script=/usr/local/bin/master_ip_failover　          　# Set auto failover When the switch script , That's the script above
master_ip_online_change_script=/usr/local/bin/master_ip_online_change　　# Set the switch script for manual switching
user=mha					# Set up monitoring users root
password=manager			# Set up mysql in root User's password , This password is the one that created the monitoring user in the previous article
ping_interval=1				# Set up the main monitoring library , send out ping Time interval between packages 1 second , The default is 3 second , Try three times when there is no response failover
remote_workdir=/tmp			# Set the remote end mysql When a switch occurs binlog Where to save
repl_user=myslave			# Set the user of the copy user
repl_password=123456		# Set the password of the copy user
report_script=/usr/local/send_report　　# Set the script of the alarm sent after switching
secondary_check_script=/usr/local/bin/masterha_secondary_check -s 192.168.74.71 -s 192.168.74.73	# Specify the slave server to check IP Address
shutdown_script=""			# Set to close the failed host script after the failure occurs （ The main function of the script is to shut down the host and prevent brain crack , It's not used here ）
ssh_user=root				# Set up ssh Login user name of

[server1]
hostname=192.168.74.76
port=3306

[server2]
hostname=192.168.74.71
port=3306
candidate_master=1
# Set as candidate master, After setting this parameter , After the master-slave switch, the slave database will be promoted to the master database , Even if the main library is not the latest in the cluster slave
check_repl_delay=0
# By default, if one slave backward master  exceed 100M Of relay logs Words ,MHA Will not choose the slave As a new master,  Because for this slave It takes a long time to recover ; By setting check_repl_delay=0,MHA Trigger switch in selecting a new master The replication delay will be ignored , This parameter is set for candidate_master=1 Is very useful , Because the candidate must be new in the process of switching master

[server3]
hostname=192.168.74.73
port=3306





1.

2.

3.

4.

5.

6.

7.

8.

9.

10.

11.

12.

13.

14.

15.

16.

17.

18.

19.

20.

21.

22.

23.

24.

25.

26.

27.

28.

29.

30.

31.

32.

33.

34.

35.

36.

37.

38.

39.

40.

41.

42.

43.

44.

45.

46.

47.

48.

49.

50.

51.

52.

53.

54.

55.

56.

57.

58.

59.

60.

61.

62.

63.

64.

65.

66.

67.

68.


7、 The first configuration needs to be in Master Manually turn on the virtual server on the node IP

Master（192.168.74.76）

Log in and copy

/sbin/ifconfig ens33:1 192.168.74.200/24





1.

2.


8、 stay manager Testing on nodes ssh No password authentication

MHAmanager（192.168.74.75）

Log in and copy

masterha_check_ssh -conf=/etc/masterha/app1.cnf
# If it's normal, it will output  successfully;
# If it fails, you can go to the place where the server has no password authentication to see if there is a problem





1.

2.

3.

4.

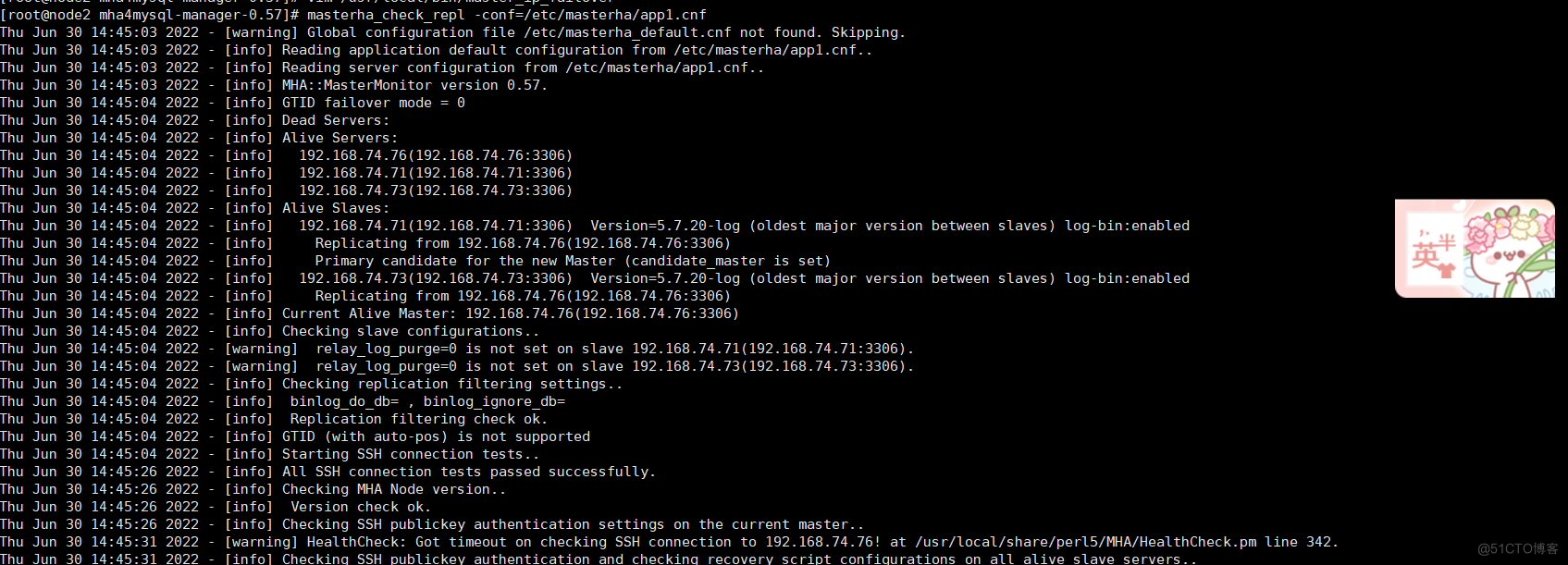

9、 stay manager Testing on nodes mysql Master-slave connection

Log in and copy

masterha_check_repl -conf=/etc/masterha/app1.cnf
# Last appearance  MySQL Replication Health is OK  The words indicate normal ;
# appear MySQL Replication Health is NOT OK! Of , You can have a look mysql Whether there are fewer soft links on the server --> Article location ：2、 Modify three MySQL The main profile of the server /etc/my.cnf, And create a command soft link





1.

2.

3.

4.


10、 stay manager Start on the node MHA

MHAmanager（192.168.74.75）

Log in and copy

nohup masterha_manager --conf=/etc/masterha/app1.cnf --remove_dead_master_conf --ignore_last_failover < /dev/null > /var/log/masterha/app1/manager.log 2>&1 &


#------------------------ Component interpretation ----------------------------------------------------------------------------------
--remove_dead_master_conf： This parameter represents when a master-slave switch occurs , Old master library  ip  Will be removed from the configuration file .
--manger_log： Log storage location .
--ignore_last_failover： By default , If  MHA  Continuous downtime detected , And the interval between two downtime is not enough  8  In an hour , It won't go on  Failover,  The reason for this restriction is to avoid  ping-pong  effect . This parameter means to ignore the last  MHA  Trigger the file generated by switching , By default ,MHA  After switching, the directory will be recorded in the log , That is, the log set above app1.failover.complete file , The next time you switch again, if you find the file in the directory, you will not be allowed to trigger the switch , Unless you receive a delete file after the first switch , For convenience , I'm going to set it to --ignore_last_failover.





1.

2.

3.

4.

5.

6.

7.

8.


11、 Check the status

MHAmanager（192.168.74.76）
see MHA state , You can see the current master yes Mysql1 node .

Log in and copy

masterha_check_status --conf=/etc/masterha/app1.cnf





1.

2.


MHAmanager（192.168.74.76）
see MHA journal , Also to see the current master yes 192.168.76.76

Log in and copy

cat /var/log/masterha/app1/manager.log | grep "current master"




1.


mysql1（192.168.74.76）
see Mysql1 Of VIP Address , see Mysql1 Of VIP Address 192.168.74.200 Whether there is , This VIP The address is not because manager Nodes stop MHA Service and disappear .

Log in and copy

ifconfig




1.


Add ： To shut down manager service , You can use the following command .

Log in and copy

masterha_stop --conf=/etc/masterha/app1.cnf
 Or you can directly use  kill  process  ID  The way to turn off .





1.

2.

3.


3、 ... and 、 fault simulation

1、 fault simulation

（1） stay manager Monitoring observation logging on the node

MHAmanager（192.168.74.75）

Log in and copy

tail -f /var/log/masterha/app1/manager.log





1.

2.


（2） stay Master node Mysql1 Stop on mysql service

mysql1（192.168.74.76）

Log in and copy

systemctl stop mysqld
 or
pkill -9 mysql





1.

2.

3.

4.


（3） see mysql2 Take over VIP

mysql2（192.168.74.71）

Log in and copy

ifconfig





1.

2.


Log in and copy

 Algorithm of failover alternative master database ：
1、 In general, the judgment from the database is from （position/GTID） Judge the pros and cons , The data are different , Closest to master Of slave, Become a candidate .
2、 When the data is consistent , In the order of configuration files , Select an alternate master library .
3、 Set weights （candidate_master=1）, Mandatory assignment of alternate masters by weight .
（1） By default, if one slave backward master 100M Of relay logs Words , Even with weight , It's going to fail .
（2） If check_repl_delay=0 Words , Even behind a lot of logs , It is also mandatory to choose it as the alternative host .





1.

2.

3.

4.

5.

6.

7.


2、 Troubleshooting steps

（1） Repair mysql

Log in and copy

systemctl restart mysqld





1.

2.


（2） Fix the master-slave

In the current main database server Mysql2 View binaries and synchronization points
mysql2（192.168.74.71）

Log in and copy

mysql -uroot -p123456 -e 'show master status;'
# Execute... In the database show master status;





1.

2.

3.


In the original master database server mysql1 Perform synchronous operation
mysql1（192.168.74.76）

Log in and copy

change master to master_host='192.168.74.71',master_user='myslave',master_password='123456',master_log_file='master-bin.000001',master_log_pos=1897;
start slave;
show slave status\G




1.

2.

3.


（3） stay manager Modify the configuration file on the node app1.cnf

MHAmanager（192.168.74.75）
Add this record to it , Because it will automatically disappear when it fails to detect

Log in and copy

[server default]
manager_log=/var/log/masterha/app1/manager.log
manager_workdir=/var/log/masterha/app1
master_binlog_dir=/usr/local/mysql/data
master_ip_failover_script=/usr/local/bin/master_ip_failover
master_ip_online_change_script=/usr/local/bin/master_ip_online_change
password=manager
ping_interval=1
remote_workdir=/tmp
repl_password=123456
repl_user=myslave
secondary_check_script=/usr/local/bin/masterha_secondary_check -s 192.168.74.76 -s 192.168.74.73
shutdown_script=""
ssh_user=root
user=mha
[server1]
hostname=192.168.74.71
port=3306

[server2]
candidate_master=1
check_repl_delay=0
hostname=192.168.74.76
port=3306

[server3]
hostname=192.168.74.73
port=3306





1.

2.

3.

4.

5.

6.

7.

8.

9.

10.

11.

12.

13.

14.

15.

16.

17.

18.

19.

20.

21.

22.

23.

24.

25.

26.

27.

28.

29.

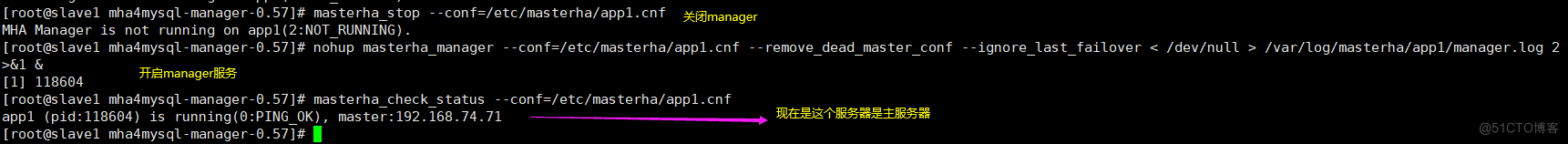

（4） stay manager Start on the node MHA

MHAmanager（192.168.74.75）

Log in and copy

masterha_stop --conf=/etc/masterha/app1.cnf

nohup masterha_manager --conf=/etc/masterha/app1.cnf --remove_dead_master_conf --ignore_last_failover < /dev/null > /var/log/masterha/app1/manager.log 2>&1 &

masterha_check_status --conf=/etc/masterha/app1.cnf





1.

2.

3.

4.

5.

6.


To sum up , You must see clearly when authorizing , If it weren't for you ip, If it weren't for the domain name , If it is a domain name, you must do domain name resolution .
