Use latex to typeset multiple-choice test paper

Food Guide ： Use python The language implements latex Pure text Automated choreography

---

One 、 Requirements describe

Work reason , You need to make a sheet containing 100 Multichannel selection Choose the test paper .
For beautiful typesetting , I got a job LaTeX Multiple choice question template ,
It's too troublesome to manually input each line , Then we found the corresponding Automation module

---

The most embarrassing thing happened , I found that the editor has its own replacement function ,
And support regular expressions

Two 、 Solution

1. Content processing

(1) Text answer digging

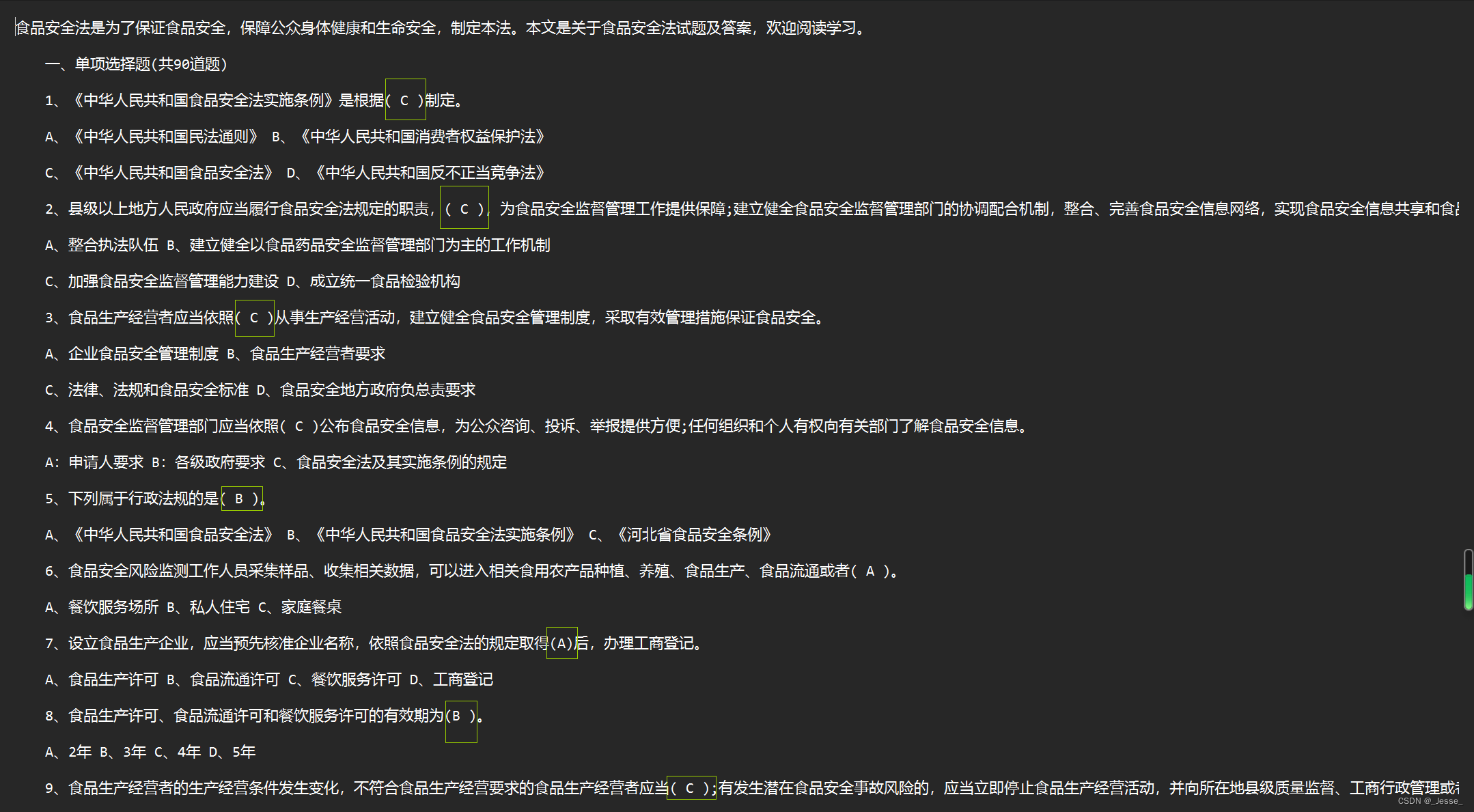

Copy several pages of the questionnaire txt In the text file , In order to dig out these correct answers , Replace with regular expressions directly

2. Typesetting processing

(1) The template is local miktex The compiler in

In order to achieve this step , There are three main points to pay attention to .

1. install miktex Choose to install... For all users
   ( Make sure the software starts , to update , The old version has some deadly bug)
2. Use xelatex compile
   ( In order to compile some macro packages normally )
3. Use ctex In the macro package ctexart Document class
   ( Don't display Chinese correctly , Make sure it is installed ctex Macro package , Installation can refer to The lack of lastpage Macro package processing method )

(2) Source code analysis of templates

３. Text and latex Interaction

Think of each topic as a basic unit , Function encapsulation of this basic unit
And then call 100 The second function can realize the writing of the whole manuscript .

3、 ... and 、 Encountered bug

1. LaTeX Problems arise

take LaTeX Multiple choice question template Copied to the TeXworks In the process , The following error has been reported .

Duplicate installation , Remember to choose for all users

The use of wildcards

By reference This blog The method is as follows ：

I solved this problem perfectly

Environmental problems

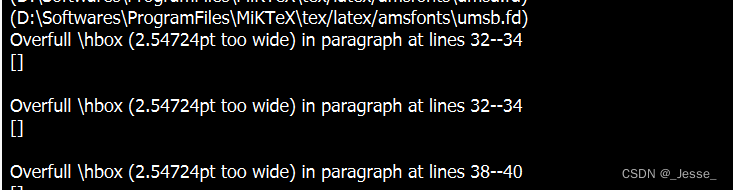

[ resolved ] LaTeX Medium enumerate The environment appears overfull box The situation of

Four 、 Exotic curiosity-a solution looking

##（ One ） Copied to the WPS Handle (word It's the same , Support genuine domestic )

##（ Two ） Use word Replacement sequence of
Use wildcards to replace
1. Question number replacement （ Replace two digits first , Replace one digit ： As for why not replace it all at once , Because I won't ）

First look at the content of wildcards ：^# For any number , Don't forget the back “、”, Otherwise, it may match the number in the stem

^#^#、

I want to change the sequence directly to latex Medium item command , because \item The command can automatically generate a sequence , Here is latex Source code , In contrast , It's easy to understand , Replacement target

But the sad thing is that direct replacement will report an error ,

So I improved

Here is my fifth replacement ,} must Because if you import latex in ,D You will find that there is no alternative slogan after choosing , Do you want to add one by one manually , Later, I found that I could change the serial number , Just manually Delete the first , to The last one is added with brackets That's it .^p Line break , It's OK to , Or add a few more as you need . It's for my latex The source code is more readable .（latex Source code inside , Segmentation equals newline , It should be because the compiler has to eat an empty line to know the end of a line ）^092 I won't say why ,~ It is used as a space , stay latex in , Otherwise \item There is no gap with the following Chinese , The command cannot be recognized

^#^#、
}^p^092item~

##（ 3、 ... and ） The answer is hollowed out
Use it directly

（  ）

Make a selection parenthesis
Replace with

~^092underline{
    ~~~~~~~~}

##（ Four ）A The option is replaced by the command
This order determines that I line up the multiple-choice questions , Or two lines , Or four elements .
Because most of the options are short , For the purpose of reducing manual modification , Select single line command ,
Insert picture description here

Don't compile when you finish modifying , Definitely , There should be some options only ABC No, D, I refer to the single line function written to compare dishes , You can't adapt to the three options .

^#^#、
}^p^092item~

##（ 5、 ... and ）B,CD Replace the selection with the corresponding brackets }{
^$ Represents any letter

This is the most embarrassing thing

Other references

1. Plot NetworkX Graph with numpy array error

2. AttributeError: module ‘scipy.sparse’ has no attribute ‘coo_array’

3. attributeError： modular ’scipy.sparse’ There is no attribute ’coo_array’

4. Use networkx When drawing , Report errors ：AttributeError: module ‘scipy.sparse’ has no attribute ‘coo_array’

Two additional steps

The smallest workable solution

\documentclass{
    ctexart}%
\usepackage{
    lineno,hyperref}
\usepackage{
    colortbl}
\usepackage{
    amsmath,amssymb,amsfonts}
\usepackage{
    algorithmic}
\usepackage{
    graphicx}
\usepackage{
    float}

\usepackage[T1]{
    fontenc}%
\usepackage[utf8]{
    inputenc}%
\usepackage{
    lmodern}%
\usepackage{
    textcomp}%

\usepackage{
    ctex}
\usepackage{
    enumerate}
\usepackage{
    geometry}
\geometry{
    a4paper,left=2cm,right=2cm,top=2cm,bottom=2cm}



\newcommand{
    \twolines}[4]{
    \\\begin{
    tabular}{
    *{
    2}{
    @{
    }p{
    8cm}}}(A)~#1 & (B)~#2\end{tabular}\\
					\begin{
    tabular}{
    *{
    2}{
    @{
    }p{
    8cm}}}(C)~#3 &(D)~#4\end{tabular}} % Two lines, four

\newcommand{
    \twolinesT}[3]{
    \\\begin{
    tabular}{
    *{
    2}{
    @{
    }p{
    8cm}}}(A)~#1 & (B)~#2\end{tabular}\\
					\begin{
    tabular}{
    *{
    2}{
    @{
    }p{
    8cm}}}(C)~#3\end{tabular}} % Two lines, four

\newcommand{
    \fourlines}[4]{
    \\(A)~#1 \\ (B)~#2 \\ (C)~#3 \\ (D)~#4} %


\newcommand{
    \fourlinesT}[3]{
    \\(A)~#1 \\ (B)~#2 \\ (C)~#3} % 3 Every line 1 individual

%===========================================
\begin{
    document}

\par

\section{
     Multiple choice questions ( common 90 topic )}

\begin{
    enumerate}


\item   When food producers and operators purchase food raw materials , In addition to the need to check the supplier's license , Also check ~\underline{
    ~~~~~~~~}
\twolines{
     Product qualification certificate  }{
     emdical certificate }{
     Training certificate  }{
     Power of attorney of legal person }



\end{
    enumerate}

\section{
     Multiple choice questions ( common 10 topic )}

\begin{
    enumerate}



\item~ Imported food additives should have ~\underline{
    ~~~~~~~~}.
\twolines{
     Export country logo }{
     Chinese label }{
     Chinese instructions }{
     English description }

\item~ In the investigation of food safety accidents , No unit or individual shall be responsible for food safety accidents ~\underline{
    ~~~~~~~~}, Do not destroy relevant evidence .
\twolines{
     hide }{
     Lie about }{
     Report to the media }{
     Delayed reporting }

\end{
    enumerate}


\end{
    document}

Second parts ： Use the replacement function
It is also possible to excavate directly in this way

My brackets are full angle , But some cases , The number doesn't matter
_{……092underline{} ~~~~~~~}
（*）
