It is the most difficult to teach AI to play iron fist frame by frame. Now arcade game lovers have something

Bowen From the Aofei temple
qubits | official account QbitAI

current AI Have begun to learn to rub the move frame by frame to play the arcade ？

《 The king of Fighters 98》、《 Street Fighter 》、《 Death or life 》…… I've played with all my childhood memories , There are also claims to fight 5000 site To get started 3D Fighting games 《 An iron fist 》：

you 're right , It's the one who is very unfriendly to novices 《 An iron fist 》, Casually pull a character's rubbing table to feel the complexity ：

（ you 're right , Various framing decisions JF Technology is one of its characteristics ）

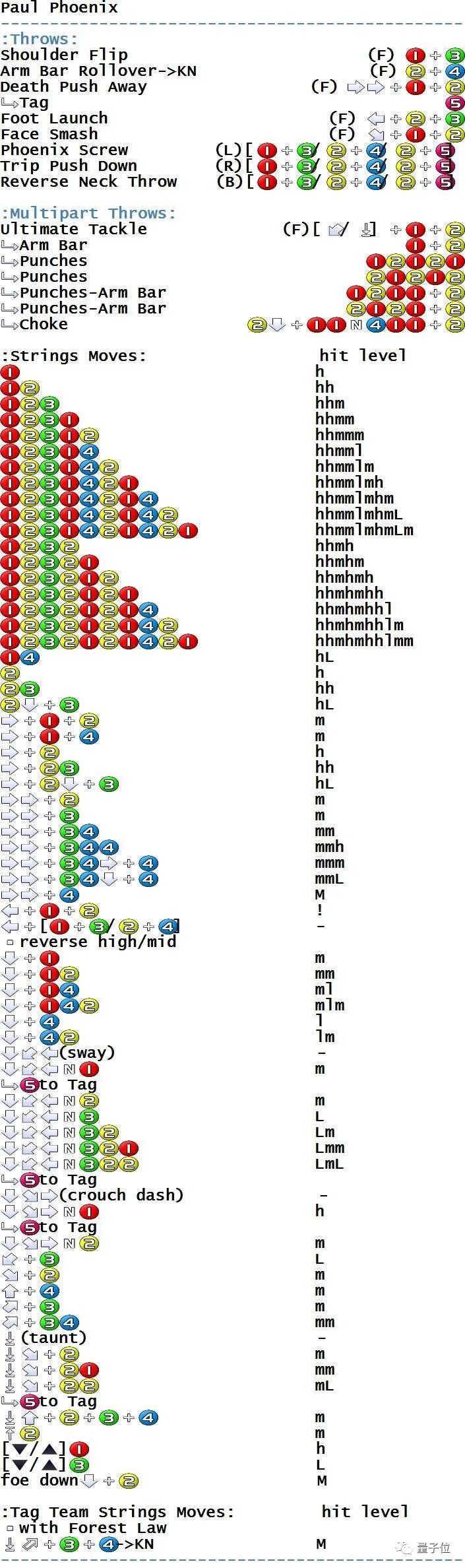

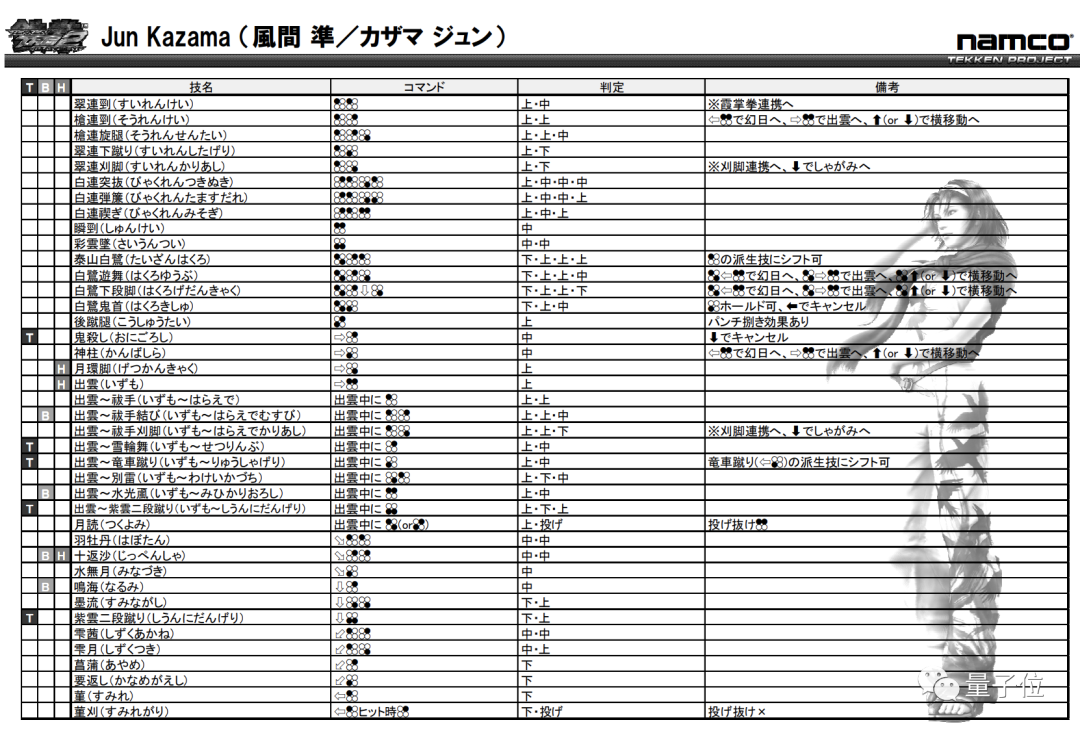

△ An iron fist TT2 List of moves

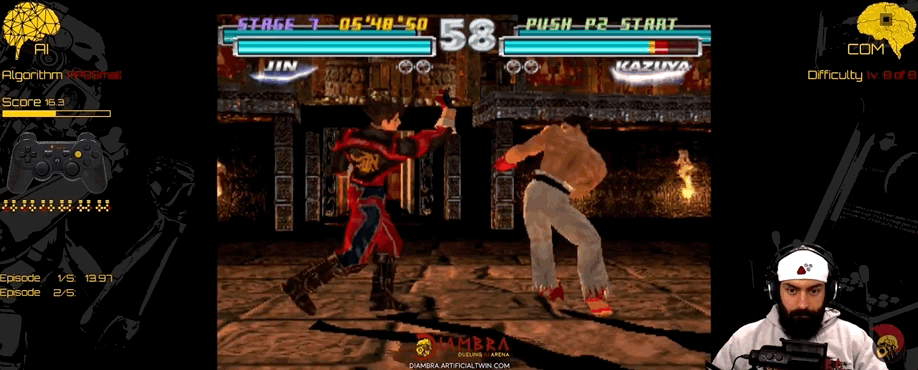

but AI It happens that you can pass the customs before long after entering the pit The highest difficulty ：

△ On the left AI

This kind of AI Behind it is a personal developer , He is also a hardcore arcade game enthusiast .

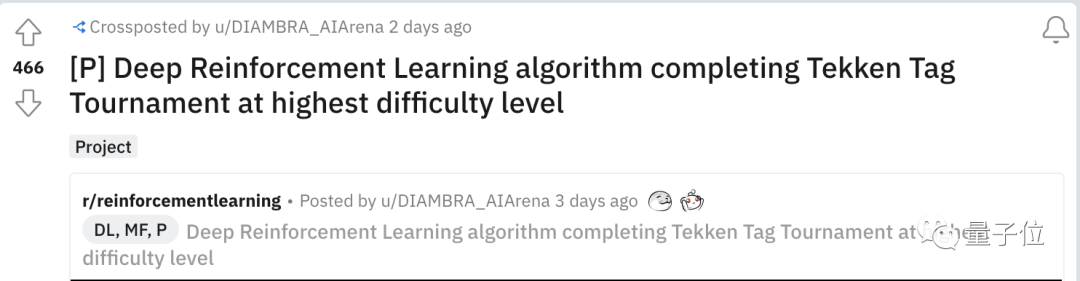

He trained novices “ Blacksmith ” stay Reddit Of “ Game recording ” There has been a near 500 The heat of the ：

Reinforcement learning and training framework

the AI Behind the blacksmith , It's called DIAMBRA Arena Reinforcement learning interaction framework .

DIAMBRA Arena It provides multiple reinforcement learning research and experimental environments , Episodic reinforcement learning tasks , By discrete actions （ Such as joystick buttons ） And pixels and data in the screen （ Such as human blood bar ） form .

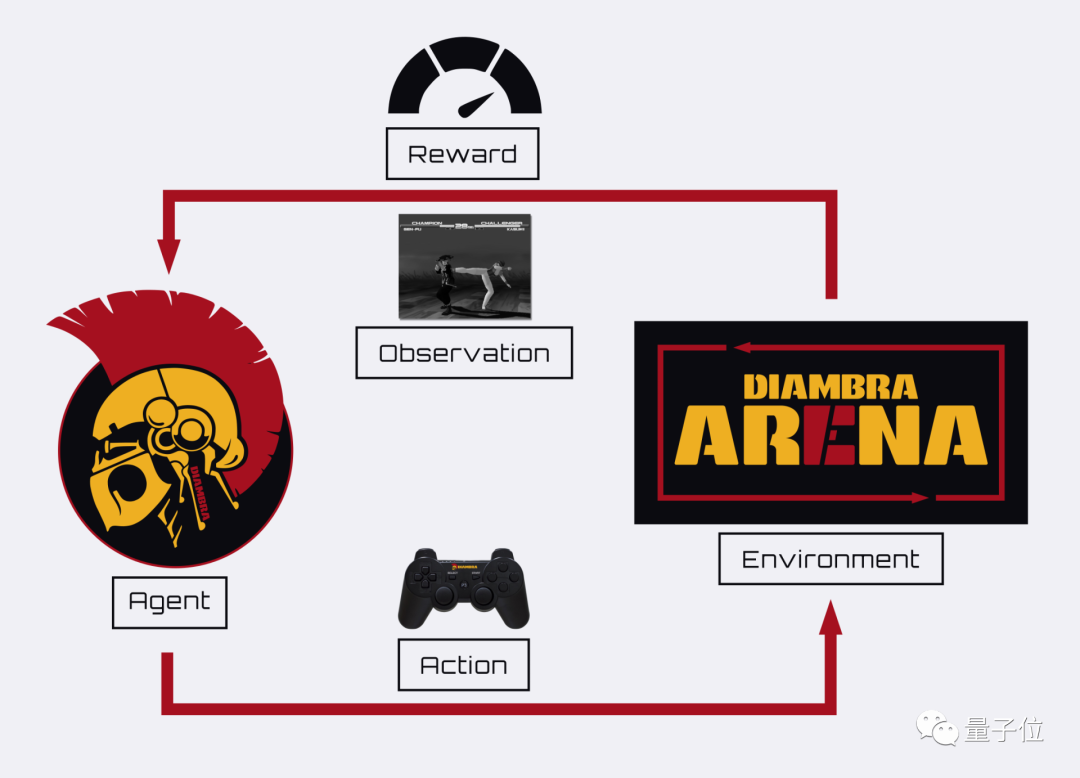

In this framework , Intelligent experience sends an action to the environment , The environment treats it , And correspondingly transform a starting state into a new state , Then return the observation and reward to the agent , With this interactive loop ：

The code to implement the above loop is also very simple ：

import diambraArena

# Mandatory settings
settings = {}
settings["gameId"] = "doapp" # Game selection
settings["romsPath"] = "/path/to/roms/" # Path to roms folder

env = diambraArena.make("TestEnv", settings)
observation = env.reset()

while True:

    actions = env.action_space.sample()
    observation, reward, done, info = env.step(actions)

    if done:
        observation = env.reset()
        break

env.close()

This framework currently supports Linux、Windows、MacOS And other mainstream operating systems .

which AI Of “ Real battlefield ” For the early Tekken Tag Tournament, Of course , The complexity of rubbing moves is not inferior to that of the later new version ……

Developers chose fengjianren （Jin） Hejiguang （Yoshimitsu） Two representative roles are the main operation objects .

The inputs are ： from RGB Convert to grayscale , And shrink to 128 x 128px Pixel value of the game screen 、 To the number of battles （Stage）、 Character blood bar 、 One side of the game interface .

The reward in training is a function based on health , If the opponent's HP is damaged, he will get a positive reward , The loss of health of the character controlled by your side will be negatively punished .

meanwhile ,AI The action rate of is also limited to the maximum rate 1/10, That is, every 6 Step send an action .

Because the framework uses a discrete action space , therefore , An agent can only choose one movement at a time during training 9 Up , Wait down ） Or attack （ impact , kick , Punch ).

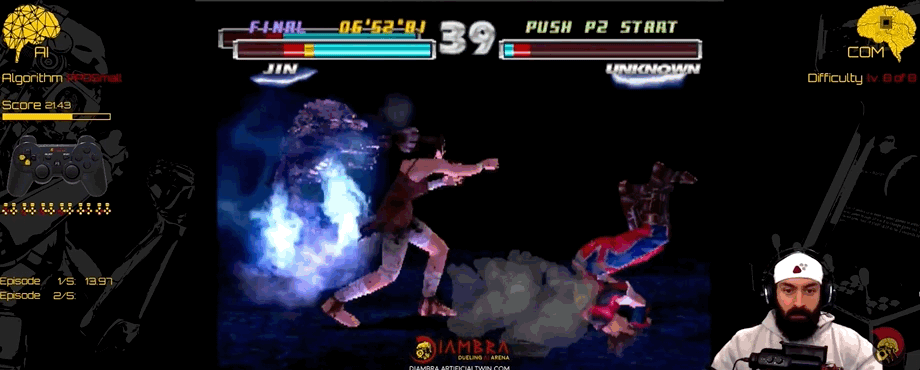

therefore , Although a combo combination has stronger actual combat ability , But because of AI Cannot click two actions at the same time , In the real battle , It will appear. AI Use kicks frequently （Kick） And changing roles （swap） Two actions ：

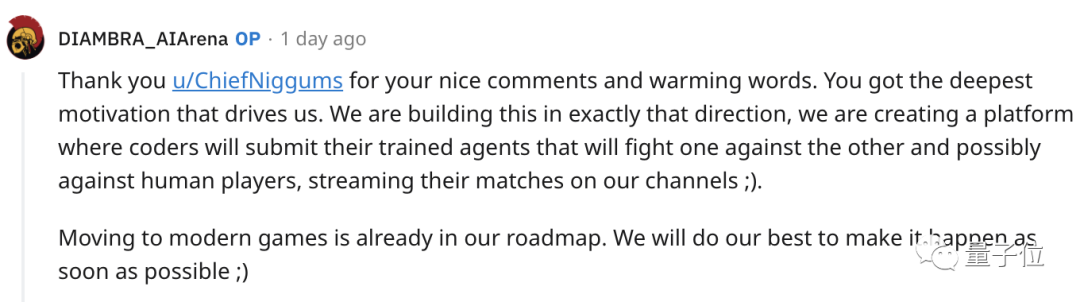

There are senior in the comment area PVP Fans say , Want to see this top AI Fierce scenes of players' mutual abuse , The developer himself agrees with this ：

We are creating a platform , On this platform , Programmers will submit their well-trained AI And confront each other , And broadcast the game on our channel .

AI The tournament

Now? , The developer team has begun to formally prepare for this “AI Game Championship ”, The programmers and developers behind it are quite so “ The coach ” perhaps “ Parents of contestants ”, The final winner can get 1400 Swiss francs （ Renminbi conversion 9261 element ）.

“ event ” It's not just iron fist , Developers say , The underlying mechanisms of these fighting games are similar , Just modify the combination skill 、 The difference attribute of games such as character blood bar value .

therefore , their DIAMBRA Arena Framework for all kinds of arcade video games to provide full compliance OpenAI Gym The standard Python API.

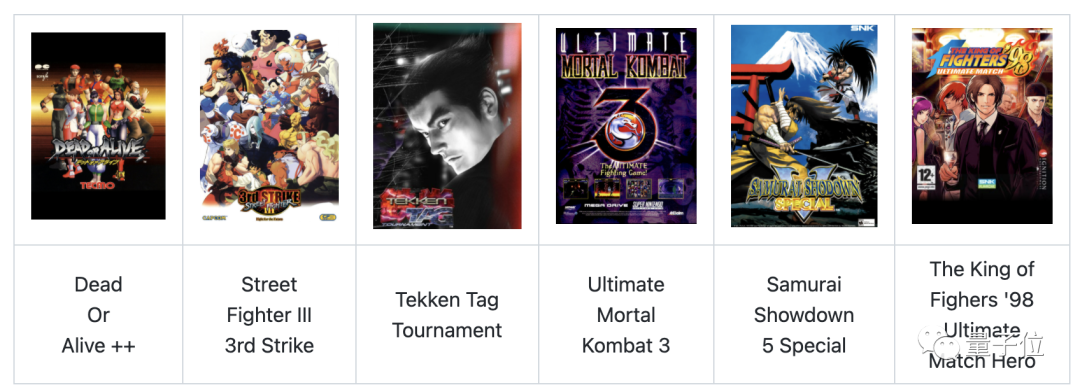

Like death or life 、 Street fighter and many other popular arcade games have been included ：

GitHub link ：

https://github.com/diambra/diambraArena

Video link ：
https://www.youtube.com/watch?v=9HAKEjhIfJY

Reference link ：
[1]https://www.reddit.com/r/reinforcementlearning/comments/sq1s3f/deep_reinforcement_learning_algorithm_completing/
[2]https://www.reddit.com/r/MachineLearning/comments/sqra1n/p_deep_reinforcement_learning_algorithm/
