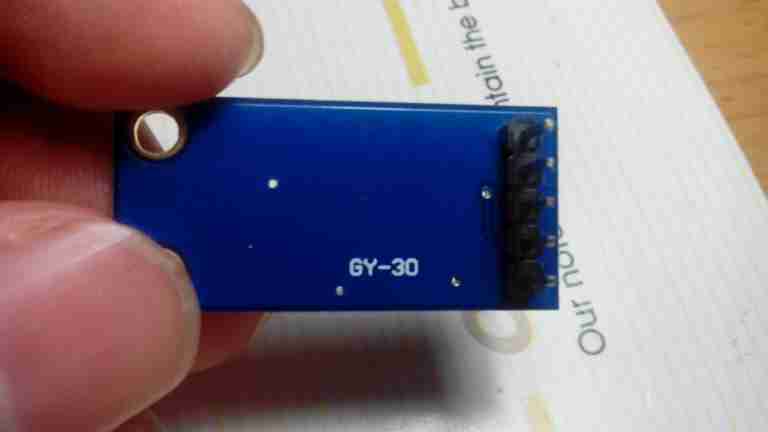

Modular programming of digital light intensity sensor module gy-30 (main chip bh1750fvi) controlled by single chip microcomputer (under continuous updating)

Here I write STC12C5A60S2 The single chip microcomputer controls the digital illumination intensity module GY-30（ Main chip BH1750FVI） Share your program , It's to make the elder correct .

to update ：

2014/04/29 14:05

（ Add ： The following code only needs to be modified .h The document contains “ choice ” Part of the word , The effect of reuse can be achieved ）

For the serial port debugging part , Please refer to 《 SCM program assisted debugging method （ One ） Serial debugging 》 Click to enter

about BH1750FVI Yes 6 Working mode , The mode selected in the article is  Continuously H-Resolution Mode

The test program ：

#include <reg52.h>
#include "BH1750FVI.h"
#include "uart.h"

void main()
{
	UartInit() ;
	BH1750FVIInit();
	while(1)
	{
		UartSendValue("Ambient Light Value  (lx): ", BH1750FVIReadResult() );
	}
}

/*################BH1750FVI.h start ################*/

#ifndef __BH1750FVI_H__
#define __BH1750FVI_H__

#include <reg52.h>
#include "common.h"

sbit  BH1750FVI_sclk_bit=P2^0;      /* According to the hardware selection */
sbit  BH1750FVI_sda_bit=P2^1;       /* According to the hardware selection */

#define   BH1750FVI_ADDRESS_ON_ADD_LOW_LEVEL  0x46
#define   BH1750FVI_ADDRESS_ON_ADD_HIGH_LEVEL 0Xb8


/* Be careful : Here ADD Pin connection VCC Time selection BH1750FVI_ADDRESS_ON_ADD_HIGH_LEVEL,
            When ADD Pin connection GND Time selection BH1750FVI_ADDRESS_ON_ADD_LOW_LEVEL.
            In the lab. , I picked up GND, So I chose BH1750FVI_ADDRESS_ON_ADD_LOW_LEVEL

            Select according to the hardware connection */
#define	  BH1750FVI_ADDRESS   BH1750FVI_ADDRESS_ON_ADD_LOW_LEVEL

#define BH1750FVI_READ	 0x01
#define BH1750FVI_WRITE	 (0x01 & (~(0x01<<0)))


// command  ( reference datasheet)
#define BH1750FVI_POWER_DOWM	0x00
#define BH1750FVI_POWER_ON 		0x01
#define BH1750FVI_RESET			0x07
#define BH1750FVI_CONTINUOUSLY_H_RESOLUTION_MODE 	0x10
#define BH1750FVI_CONTINUOUSLY_H_RESOLUTION_MODE2	0x11
#define BH1750FVI_CONTINUOUSLY_L_RESOLUTION_MODE    0x13
#define BH1750FVI_ONE_TIME_H_RESOLUTION_MODE		0x20
#define BH1750FVI_ONE_TIME_H_RESOLUTION_MODE2		0X21
#define BH1750FVI_ONE_TIME_L_RESOLUTION_MODE		0x23



/***************** External interface functions ******************/
// initialization , Access to electricity , Mode selection
extern void BH1750FVIInit() ;

// Read the results
extern UW16 BH1750FVIReadResult(void) ;

// Write orders
extern void BH1750FVIWriteCommand(UB8 command) ;
/**********************************************/


#endif /*__BH1750FVI_H__*/

/*################BH1750FVI.h end ################*/

/*################BH1750FVI.c start ################*/

/***************************************************************************
Module	:BH1750FVI.c

Purpose	:Implementation of BH1750FVI module.( Digital light intensity module GY-30)

Version	:0.01							2014/02/03 12:00(OK)

Complier:Keil 8051 C complier V9.01

MCU		:STC12C5A60S2

Author	:yangrui

QQ		:279729201

Email	:[email protected]


Modification:
=================
	2014/04/29 14:35
	Reason:
		1. The working mode adopted here is  Continuously H-Resolution Mode, Continuous high resolution mode .
		 besides , There are other modes of operation , About 6 The operating modes in are summarized as follows :
		Continuously H-Resolution Mode  ;(at 1LX resolution,Measurement Time is  typically 120ms)

		Continuously H-Resolution Mode2 ;(at 0.5LX resolution,Measurement Time is  typically 120ms)

		Continuously L-Resolution Mode  ;(at 4LX resolution,Measurement Time is  typically 16ms)

		One Time H-Resolution Mode      ;(at 1LX resolution,Measurement Time is  typically 120ms,
										  It is autionmatically set to power dowm mode after measurement,
										  so if want to read ,you shoule set "power on")

		One Time H-Resolution Mode      ;(at 0.5LX resolution,Measurement Time is  typically 120ms,
										  It is autionmatically set to power dowm mode after measurement,
										  so if want to read ,you shoule set "power on")

		One Time L-Resolution Mode      ;(at 4LX resolution,Measurement Time is  typically 16ms,
										  It is autionmatically set to power dowm mode after measurement,
										  so if want to read ,you shoule set "power on")


		2.BH1750FVI Write data and other data in the internal address IIC The device is slightly different , other IIC Device after transmitting device address , There is also a need to transmit the inside of the device
		   Address , however BH1750FVI When writing data , It's a command , So no internal device address is required , So the function is directly named
		  BH1750FVIWriteCommand(...), The code here is from my at24c02.c Evolved , If there are many in the project IIC device ,
		   Want to put IIC The communication protocol is encapsulated , Be sure to pay attention to this detail .

=================



***************************************************************************/

#include <intrins.h>
#include "BH1750FVI.h"

/* The external interface function is in BH1750FVI.h In a statement */

/***************** Internal function ******************/
//static void delay5usForBH1750FVI(void) ;
static void delay180msForBH1750FVI(void) ;
static void BH1750FVIStartSignal(void) ;
static void BH1750FVIStopSignal(void) ;
static void BH1750FVIFreeBus(void) ;
static void BH1750FVIAcknowledge(void) ;
static void mcuAcknowledge(void) ;
static void BH1750FVIWriteByte(UB8 dat) ;
static UB8 BH1750FVIReadByte() ;
static void BH1750FVIPowerOn(void) ;

/**********************************************/

///******************************************************
//Function	:delay5usForBH1750FVI
//Input		:N/A
//Output		:N/A
//Return		:N/A
//Description	:N/A
//Note		: from STC-ISP V6.69 The software is for the corresponding MCU Generate , if MCU Different
//			 It is best to modify this function as well .
//******************************************************/
//static void delay5usForBH1750FVI(void)		//@11.0592MHz
//{
//	unsigned char i;
//
//	_nop_();
//	_nop_();
//	_nop_();
//	i = 10;
//	while (--i);
//}

/******************************************************
Function	:delay180msForBH1750FVI
Input		:N/A
Output		:N/A
Return		:N/A
Description	:N/A
Note		: from STC-ISP V6.69 The software is for the corresponding MCU Generate , if MCU Different
			 It is best to modify this function as well .
******************************************************/
static void delay180msForBH1750FVI(void)		//@11.0592MHz
{
	unsigned char i, j, k;

	i = 8;
	j = 145;
	k = 99;
	do
	{
		do
		{
			while (--k);
		} while (--j);
	} while (--i);
}


/******************************************************
Function	:BH1750FVIStartSignal
Input		:N/A
Output		:N/A
Return		:N/A
Description	:BH1750FVI start signal
Note		:N/A
******************************************************/
static void BH1750FVIStartSignal(void)
{
	BH1750FVI_sda_bit = HIGH_LEVEL ;
	//_nop_() ;
	BH1750FVI_sclk_bit = HIGH_LEVEL ;
	//_nop_() ;
	BH1750FVI_sda_bit = LOW_LEVEL ;
	//_nop_();
}

/******************************************************
Function	:BH1750FVIStopSignal
Input		:N/A
Output		:N/A
Return		:N/A
Description	:BH1750FVI stop signal
Note		:N/A
******************************************************/
static void BH1750FVIStopSignal(void)
{
	BH1750FVI_sda_bit = LOW_LEVEL ;
	//_nop_() ;
	BH1750FVI_sclk_bit = HIGH_LEVEL ;
	//_nop_() ;
	BH1750FVI_sda_bit = HIGH_LEVEL ;
	//_nop_();
}

/******************************************************
Function	:BH1750FVIFreeBus
Input		:N/A
Output		:N/A
Return		:N/A
Description	: Release the bus
Note		:N/A
******************************************************/
static void BH1750FVIFreeBus(void)
{
	//free bus
	BH1750FVI_sclk_bit = HIGH_LEVEL ;
	BH1750FVI_sda_bit = HIGH_LEVEL ;
}

/******************************************************
Function	:BH1750FVIAcknowledge
Input		:N/A
Output		:N/A
Return		:N/A
Description	: The host is waiting BH1750FVI The reply
Note		:N/A
******************************************************/
static void BH1750FVIAcknowledge(void)
{
	UB8 i=0 ;

	BH1750FVI_sclk_bit = LOW_LEVEL ;
	//_nop_() ;

	BH1750FVI_sclk_bit = HIGH_LEVEL ;
	//_nop_() ;


	while((BH1750FVI_sda_bit) && (i<250))
	{
		i++;// temporary , See commissioning for details
		// After testing , there 250 Big enough
	}
	BH1750FVI_sclk_bit = LOW_LEVEL ;
}

/******************************************************
Function	:mcuAcknowledge
Input		:N/A
Output		:N/A
Return		:N/A
Description	: The host receives... As a receiver BH1750FVI After the data , Send a reply signal
Note		:N/A
******************************************************/
static void mcuAcknowledge(void)
{
	BH1750FVI_sclk_bit = LOW_LEVEL ;
	//_nop_();
	BH1750FVI_sda_bit = LOW_LEVEL ;
	//_nop_();
	BH1750FVI_sclk_bit = HIGH_LEVEL;
}

/******************************************************
Function	:BH1750FVIWriteByte
Input		:dat
Output		:N/A
Return		:N/A
Description	:write byte-data to BH1750FVI
Note		:N/A
******************************************************/
static void BH1750FVIWriteByte(UB8 dat)
{
    UB8 i;

    for (i=0; i<8; i++)
    {
		BH1750FVI_sclk_bit = LOW_LEVEL ;
		//_nop_();

		// Method 1
		BH1750FVI_sda_bit = (bit)(dat & (0x80>>i)) ;

		// Method 2
		//temp <<= 1 ;
		//BH1750FVI_sda_bit = CY ;

		//delay5usForBH1750FVI();/* It can be shielded after testing */

		//_nop_();
		BH1750FVI_sclk_bit = HIGH_LEVEL ;
		//_nop_();

    }
}

/******************************************************
Function	:BH1750FVIReadByte
Input		:N/A
Output		:N/A
Return		:byte-data from BH1750FVI
Description	: Read byte data
Note		:N/A
******************************************************/
static UB8 BH1750FVIReadByte()
{
    	UB8 i ;
	UB8 dataCode = 0x00 ;

	//Ready
	/*Data on sda pin may change during scl low timer period*/
	BH1750FVI_sclk_bit = LOW_LEVEL ;
	//_nop_() ;
	BH1750FVI_sda_bit = HIGH_LEVEL ;
	//_nop_() ;

	for(i=0; i<8 ; i++)
	{
		BH1750FVI_sclk_bit = HIGH_LEVEL ;
		//_nop_() ;
		dataCode<<= 1;
		dataCode |= BH1750FVI_sda_bit ;
		//_nop_() ;
		BH1750FVI_sclk_bit = LOW_LEVEL ;
		//_nop_() ;
	}

	return dataCode ;
}

/******************************************************
Function	:BH1750FVIWriteCommand
Input		:command Code
Output		:N/A
Return		:N/A
Description	: Write BH1750FVI Built in commands
Note		:N/A
******************************************************/
void BH1750FVIWriteCommand(UB8 command)
{
    BH1750FVIStartSignal();

    BH1750FVIWriteByte(BH1750FVI_ADDRESS | BH1750FVI_WRITE);
	BH1750FVIAcknowledge();

    BH1750FVIWriteByte(command);
    BH1750FVIAcknowledge();

    BH1750FVIFreeBus() ;
}

/******************************************************
Function	:BH1750FVIReadResult
Input		:N/A
Output		:N/A
Return		:Ambient Light Value
Description	: Read brightness value
Note		:N/A
******************************************************/
UW16 BH1750FVIReadResult(void)

{
	UW16 temp ;
	UB8 msb,lsb ;

    BH1750FVIStartSignal();

    BH1750FVIWriteByte(BH1750FVI_ADDRESS | BH1750FVI_READ ) ;
    BH1750FVIAcknowledge();

    msb= BH1750FVIReadByte() ;
    mcuAcknowledge();

    lsb= BH1750FVIReadByte();
    /* After the next byte is read , The host replaces the reply signal with the end signal */

    BH1750FVIStopSignal();

    BH1750FVIFreeBus() ;

    temp = ((UW16)(msb)) <<8 | lsb ;

    temp = (float)temp/1.2 ;
    /* There are implicit type conversions :float -- >  unsigned int */

    return temp ;
}

/******************************************************
Function	:BH1750FVIPowerOn
Input		:N/A
Output		:N/A
Return		:N/A
Description	:" Access to electricity " command
Note		: about " Access to electricity " command , If you use "One Time...." Pattern ,
			  After converting the result , The hardware will automatically switch to POWER DOWM Pattern ,
			  Therefore, it is necessary to reuse the power on command , In the program , I use the
			  The pattern is "Continuously H-Resolution Mode", therefore
			  It will not automatically switch to power down mode , You only need to initialize , call
			  This function . If you use other modes , You may also need to call... Elsewhere .
			  And other functions should be encapsulated according to the actual situation .
******************************************************/
static void BH1750FVIPowerOn(void)
{
	BH1750FVIWriteCommand(BH1750FVI_POWER_ON); 	//power on
}

/******************************************************
Function	:Init_BH1750
Input		:N/A
Output		:N/A
Return		:N/A
Description	: initialization
Note		:N/A
******************************************************/
void BH1750FVIInit()
{
   BH1750FVIPowerOn();
   /* Mode selection is  Continuously H-Resolution Mode*/
   BH1750FVIWriteCommand(BH1750FVI_CONTINUOUSLY_H_RESOLUTION_MODE);

   delay180msForBH1750FVI();
}

/*################BH1750FVI.c end################*/

Add ：common.h

#ifndef __COMMON_H__
#define __COMMON_H__

typedef unsigned char UB8 ;
typedef unsigned short int UW16 ;
typedef unsigned long UL32 ;

typedef char SB8;
typedef short int SW16 ;
typedef long SL32 ;

#define HIGH_LEVEL 1
#define LOW_LEVEL  0


#endif	/*__COMMON_H__*/
