Docker uses mysql:5.6 and owncloud image to build a personal network disk, install and build a private warehouse harbor

1、 Use mysql:5.6 and owncloud Mirror image , Build a personal network disk .
2、 Install and set up a private warehouse Harbor
3、 To write Dockerfile Make Web Application system nginx Mirror image , Create a mirror image nginx:v1.1, And push it to a private warehouse . The specific requirements are as follows ：
（1） be based on centos base image ;
（2） Specify author information ;
（3） install nginx service , Will provide dest Catalog （ Provide default home page index.html） Transfer to the image , And will dest Copy the front-end files in the directory to nginx Working directory of ;
（4） expose 80 port ;
（5） Set up service self start .
（6） Verify image .
4、Dockerfile Quickly build your own LAMP Environmental Science , Create a mirror image lamp:v1.1, And push it to a private warehouse . The specific requirements are as follows ：
（1） be based on centos:7 base image ;
（2） Specify author information ;
（3） install httpd、mysql\mysql-server、php、php-mysql、php-gd;
（4） expose 80 and 3306 port ;
（5） Set up service self start .
（6） Verify image .

One 、 Use mysql:5.6 and owncloud Mirror image , Build a personal network disk

Pull mysql:5.6 and owncloud Mirror image

[[email protected] ~]# docker pull mysql:5.6
[[email protected] ~]# docker pull ow ncloud
[[email protected] ~]# docker -itd --name bdm --env MYSQL_ROOT_PASSWORD=123456 mysql:5.6
[[email protected] ~]# docker run -itd --name web1 --link bdm:bdm -p 80:80 owncloud:latest

Log in to this computer's ip Address , Enter your username and password , Next choice mysql Interface , First line input root, Then enter the password , Input again docker Name , Input again docker name :3306

After completion, you will enter the following page ：

Login success page ：

Two 、 Install and set up a private warehouse Harbor

# install docker Layout tools docker-compose
[[email protected] harbor]# curl -L https://get.daocloud.io/docker/compose/releases/download/1.25.1/docker-compose-`uname -s`-`uname -m` -o /usr/local/bin/docker-compose
# download Harbor Installation package
[[email protected] ~]# wget -c https://github.com/goharbor/harbor/releases/download/v2.4.1/harbor-offline-installer-v2.4.1.tgz
#  Apply executable permissions to binaries ：
[[email protected] harbor]# chmod +x /usr/local/bin/docker-compose
#  Test for successful installation
[[email protected] harbor]# docker-compose version
docker-compose version 1.25.1, build a82fef07
docker-py version: 4.1.0
CPython version: 3.7.4
OpenSSL version: OpenSSL 1.1.0l  10 Sep 2019
# To configure Harbor service
[[email protected] ~]# tar xf harbor-offline-installer-v2.4.1.tgz -C /usr/local/
[[email protected] ~]# cd /usr/local/harbor/
[[email protected] harbor]# cp harbor.yml.tmpl harbor.yml
[[email protected] harbor]# vim harbor.yml

# Add local DNS analysis
[[email protected]st harbor]# vim /etc/hosts

# Run the installation script
[[email protected] harbor]# ./install.sh
# verification
[[email protected] harbor]# ss -nutlp | grep docker
[[email protected] harbor]# docker ps
[[email protected] harbor]# docker login -u admin -p Harbor12345 1

Enter the local IP Add... To the address :8000, user name admin password Harbor12345. The login success page is as follows ：

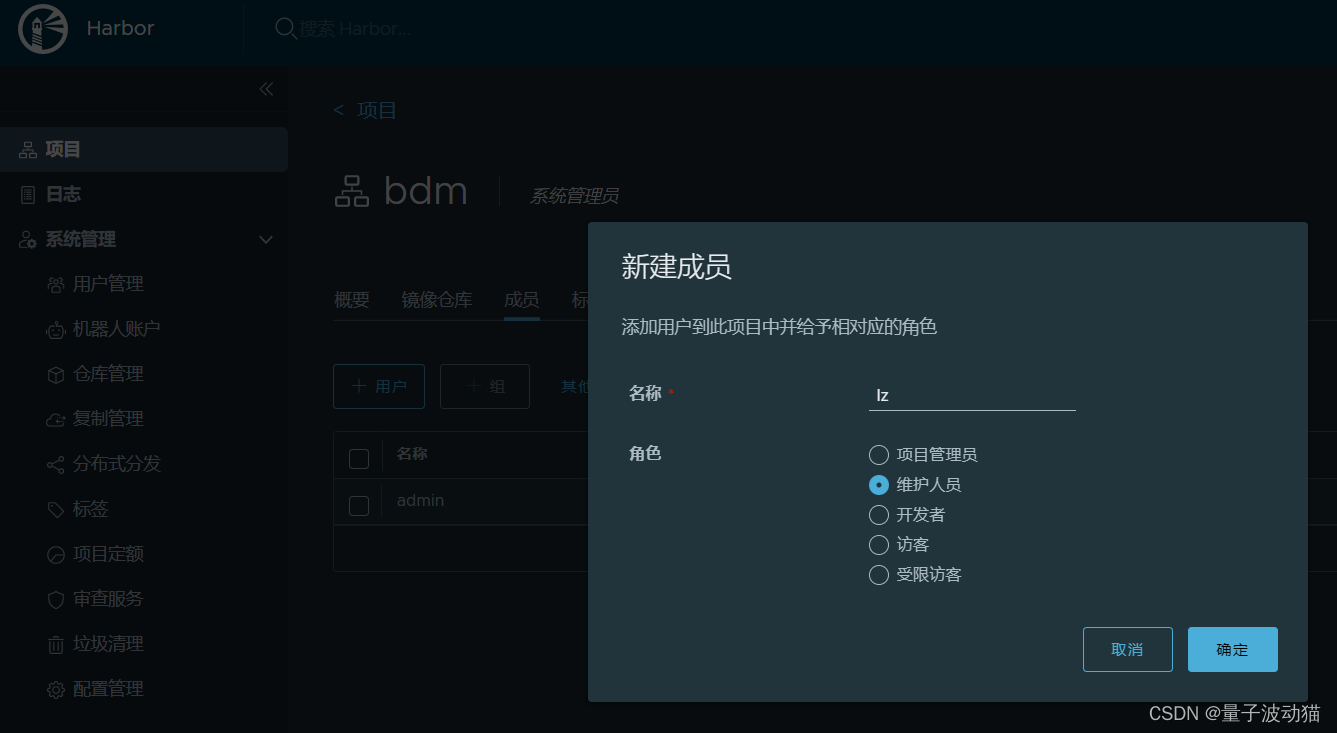

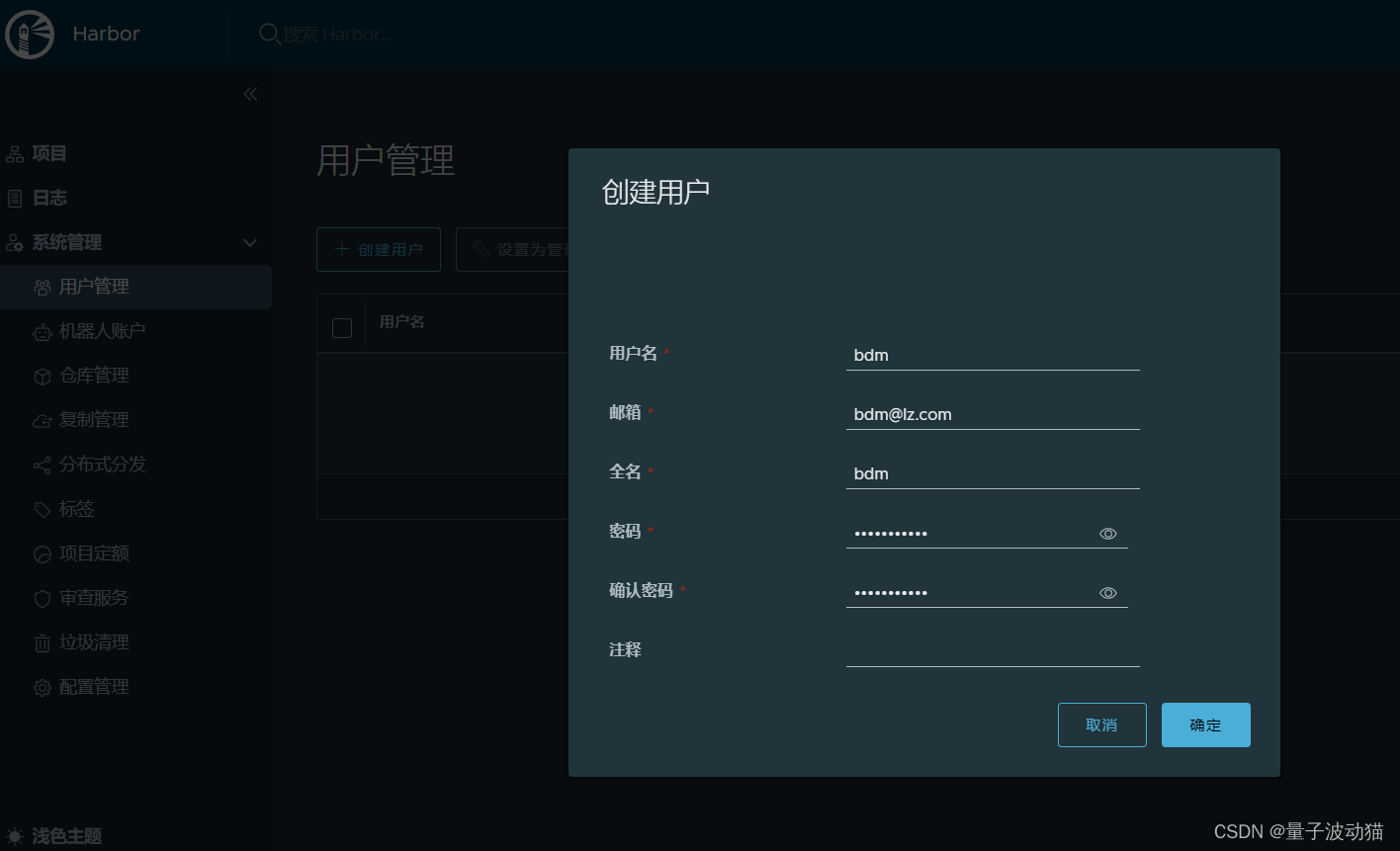

Do a simple operation ： Create user

New projects

3、 ... and 、 To write Dockerfile Make Web Application system nginx Mirror image , Create a mirror image nginx:v1.1, And push it to a private warehouse

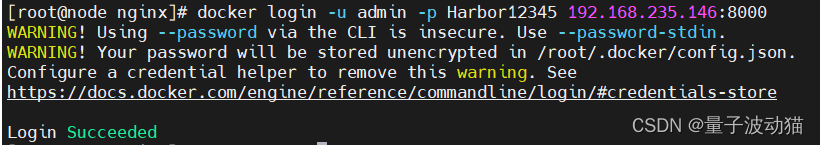

Sign in Harbor

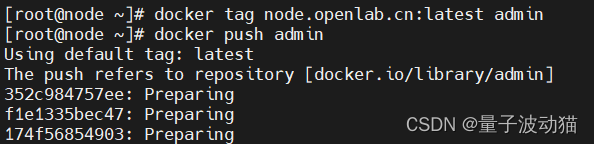

Push to warehouse

Four 、Dockerfile Quickly build your own LAMP Environmental Science , Create a mirror image lamp:v1.1, And push it to a private warehouse .

To write dockerfile:

Push to private warehouse ：
