Unitywebgl project summary (unfinished)

2022-07-24 20:22:00 【_ A little QQ】

One 、 Empty package export test

1、 Direct export will generate the following error , Unable to load

Packaging failed and cannot be run

Here we need to check Decompression Fallback, Repackage the output test

Package successfully （ Firefox ）

So here we pack successfully （ Here I add a few models casually ）

It should be noted that ：

We can use Firefox Conduct local tests , Refer to this article for specific configuration methods

(12 Bar message ) Unity WebGL How to run after packing （ Firefox configuration ）_Zhangxian_12 The blog of -CSDN Blog _unity webgl firefox

In addition, we can also use nginx To configure UnityWebgl file , Then you can use other browsers to test locally .

nginx: downloadhttp://nginx.org/en/download.html

1、 The first step is to download nginx

2、 Here I put nginx Put it in C:\MyTool\nginx-1.23.0

3、 I found no reaction after opening , So check the error log

C:\MyTool\nginx-1.23.0\logs\error.log

Check the problem because the port is occupied . Refer to the following article for specific solutions

(13 Bar message ) Windows On nginx Initiate error reporting ：bind() to 0.0.0.0:80 failed_ Onethousand one industry blog -CSDN Blog

4、 Then run successfully nginx

5、 Enter... In the browser localhost The following page appears , Then the local test configuration is successful

6、 We try to load pictures locally ( stay C:\MyTool\nginx-1.23.0\html Add a picture named 1.png)

There is no problem loading music locally

Summarize the above two methods ：
1、 use Firefox Direct tests
advantage ： Simple and convenient , It can be tested without too much back-end knowledge
shortcoming ：（1） Because our test files are all placed in StreamingAssets The file of , Therefore, it is necessary for us to place all resource files in Unity Of StreamingAssets In the folder , This will also affect our packaging speed .
（2） We can only limit the use Firefox , There are many limitations
Address ：path = Application.streamingAssetsPath + "/" + name;
2、 To configure nginx Conduct local environment test after environment
advantage ： Not limited to a browser , It's easy to use , And does not affect the packaging speed .
shortcoming ： Configuring the environment is troublesome
Address ：localhost/ + name;

Two 、 Start modeling

After the empty package test confirms that there is no problem , We can start Modeling .

It should be noted that , Because we need to browse our 3D model on the web , At this time, our three-dimensional model should not be complex , Especially Ensure the number of faces of the whole scene （ It is best to model on one side ）, The size and number of maps , Avoid subsequent browser failure .

3Dmax Model

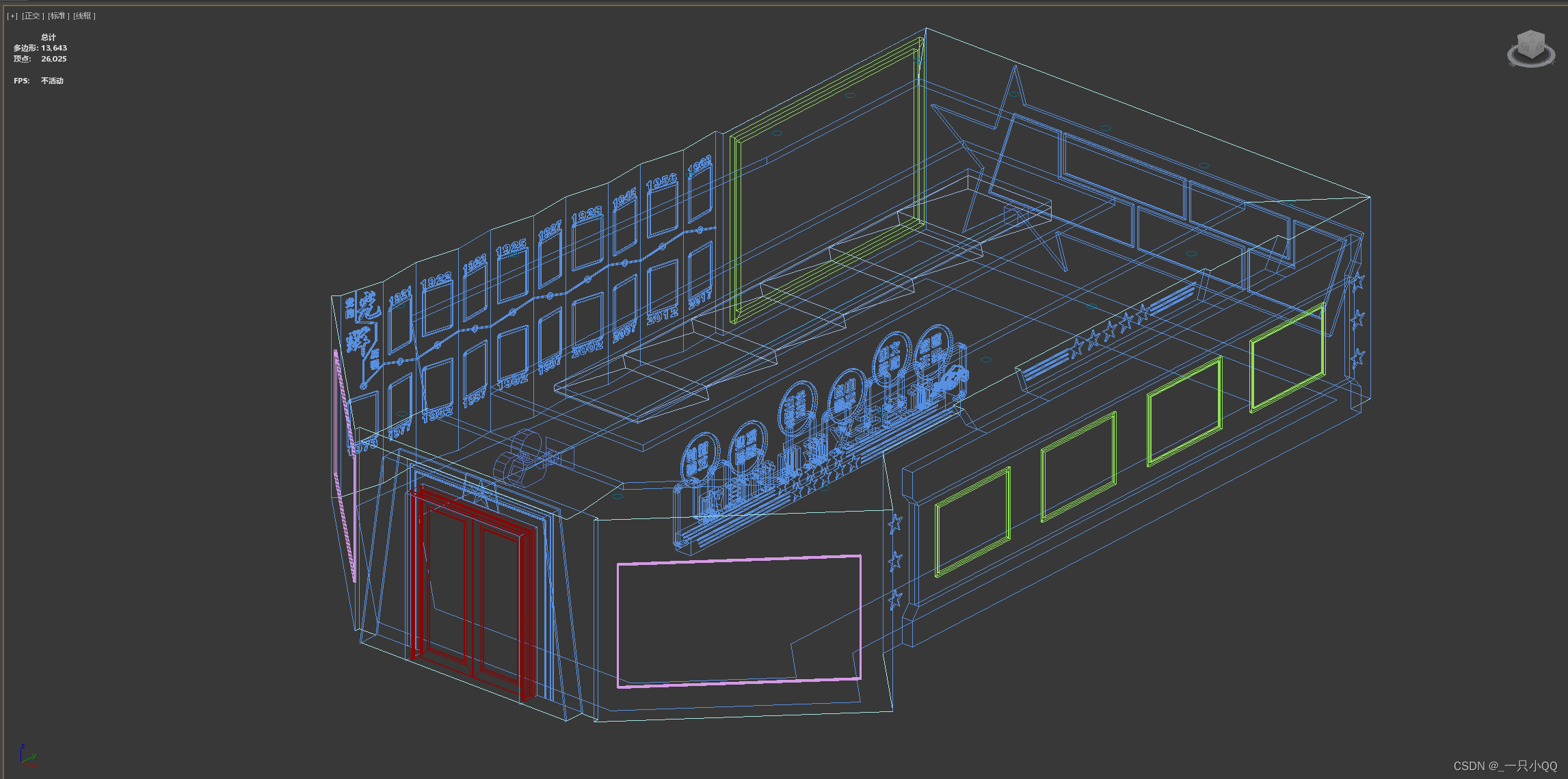

Here is my whole scene model 13000 Face to face , In fact, it can be more streamlined . The main waste of model faces lies in the text model , Text can actually be done with maps . I have little influence here because the scene is relatively small , If the scene is bigger , It is recommended that the text be demonstrated with a map .

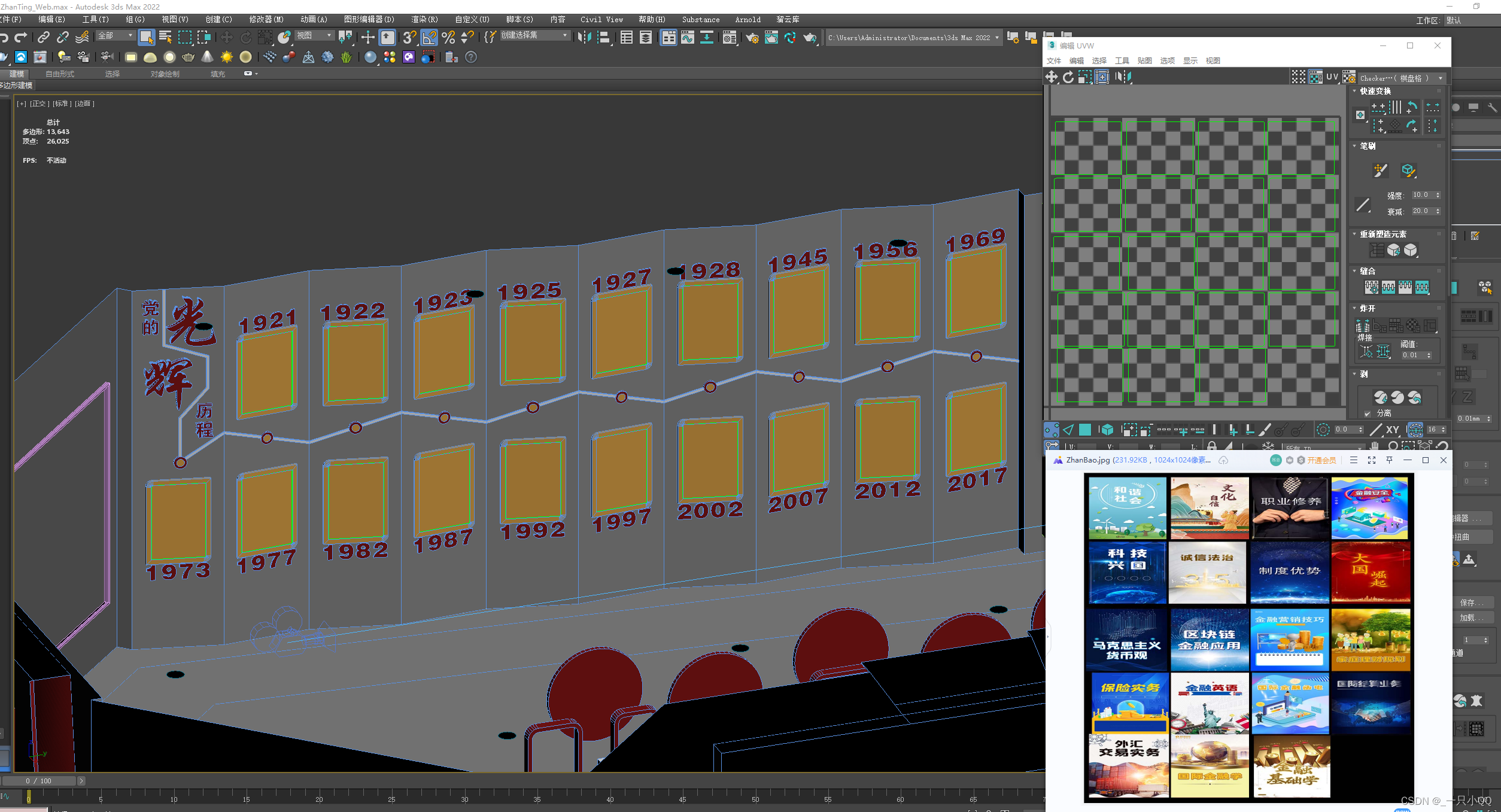

The second is to model as much as possible Merge UV, Reduce the number of maps

Unity3D Model

Unity3D In this part, I use URP pipeline .

This project mainly stepped on many holes in the procedure , Scene art is nothing more than verbose , You can see the video I made before .

【Unity3D Study 】Unity3D Scene fast baking 、 from 3Dmax To Unity3D workflow _ Bili, Bili _bilibili

3、 ... and 、 In terms of procedure

1、UnityWebgl These files will be generated after packaging the output . among StreamingAssets Is a read-only 、 Non writable directory ; The resources under this folder will remain in the original format （ For example, images will not be texture compressed by the engine ）.

So we can put all the resources （ Including multimedia files 、 Text files, etc ） Put it in StreamingAssets Intermediate testing .

（ Pictured ） Usually we have to UI Of Image Show pictures on , Turn the picture directly into Sprite Then drag it in Image Of Source Image that will do

（ Pictured ） When our pictures are placed in StreamingAssets in , Cannot operate , At this time, we can only write scripts to read StreamingAssets Picture below .

Because we need Access the network Of , We have four options for this ：

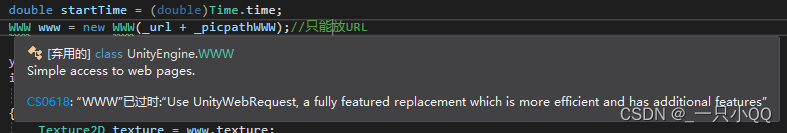

I tried to use it myself WWW and UnityWebRequest. Because I use higher Unity2021 edition ,WWW Has been officially abandoned , So I finally chose to use UnityWebRequest.

1、 How to read pictures as UI Of Image

The script is attached here

using System;
using System.Collections;
using System.Collections.Generic;
using UnityEngine;
using UnityEngine.Events;
using UnityEngine.Networking;
using UnityEngine.UI;

public class LoadPic : MonoBehaviour
{
    public RawImage image;
    private void Start()
    {
        StartCoroutine(TextureReader("BasketballPlayer.png", loadPic));
    }
    private void loadPic(Texture texture)
    {
        image.texture = texture;
    }
    /// <summary>
    ///  Read streamingAsset Picture in
    /// </summary>
    /// <param name="mediaName"></param>
    /// <param name="action"> Pass in a method group </param>
    /// <returns></returns>
    public static IEnumerator TextureReader(string name, UnityAction<Texture> action)
    {
        string path;
#if UNITY_WIN_STANDALONE || UNITY_IPHONE && !UNITY_EDITOR
        path = Application.streamingAssetsPath +"/" +name;
#else
        path = Application.streamingAssetsPath + "/" + name;
#endif
        UnityWebRequest unityWebRequest = UnityWebRequestTexture.GetTexture(path);
        yield return unityWebRequest.SendWebRequest();
        if (unityWebRequest.error != null)
            Debug.Log(unityWebRequest.error);
        else
        {
            byte[] bts = unityWebRequest.downloadHandler.data;
            if (action != null)
            {
                action(DownloadHandlerTexture.GetContent(unityWebRequest));
            }
        }
    }
}

Here, even if our image is loaded successfully , Let's pack him up , There's no problem with finding out

Here we change a picture （ Pay attention to consistent naming ）, Refresh the webpage, and the pictures are updated synchronously .

This method is convenient for our subsequent testing

2、 How to read pictures as material maps （ It is mainly used on the poster of subsequent maintenance and replacement ）

Just make the following changes to the above code

private void loadPic(Texture texture)
    {
        Plane.GetComponent<MeshRenderer>().material.mainTexture = texture;
        //image.texture = texture;
    }

3、 load Json file

First attach the script

using System.Collections;
using System.Collections.Generic;
using UnityEngine;
using UnityEngine.Events;
using UnityEngine.Networking;
using UnityEngine.UI;

public class LoadJson : MonoBehaviour
{
    string s = "";
    string m_s = "";
    public Text textStudent;
    private void OnGUI()
    {
        if (GUI.Button(new Rect(0, 100, 100, 50), "LoadJson"))
            StartCoroutine(TextReader("Test.json", ShowJson));
    }

    /// <summary>
    ///  Read json file
    /// </summary>
    /// <param name="s"></param>
    private void ShowJson(string s)
    {
        //json The format is utf-8  No bom function   , Otherwise, it will report a mistake
        StudentItem studentItem = JsonUtility.FromJson<StudentItem>(s);
        foreach (StudentData studentData in studentItem.infoList)
        {
            {
                m_s += (" full name :" + studentData.name + "   Age :" + studentData.age + "   Gender :" + studentData.sex + "\n");
            }
        }
        textStudent.text = m_s;

    }

    [System.Serializable]
    public struct StudentItem
    {
        public StudentData[] infoList;
    }
    /// <summary>
    /// json file information
    /// </summary>
    [System.Serializable]
    public struct StudentData
    {
        public string name;
        public double age;
        public string sex;
    }

    /// <summary>
    ///  Read StreamingAsset Configuration file in
    /// </summary>
    /// <param name="configName"></param>
    /// <param name="action"></param>
    /// <returns></returns>
    public static IEnumerator TextReader(string configName, UnityAction<string> action = null)
    {
        string path;
#if UNITY_WIN_STANDALONE || UNITY_IPHONE &&!UNITY_EDITOR
        path ="file://"+ Application.streamingAssets
        Path + configName;
#else
        path = Application.streamingAssetsPath + "/" + configName;
#endif
        UnityWebRequest unityWebRequest = UnityWebRequest.Get(path);
        yield return unityWebRequest.SendWebRequest();

        if (unityWebRequest.error != null)
            Debug.Log(unityWebRequest.error);
        else
        {
            string content = unityWebRequest.downloadHandler.text;
            if (action != null)
                action(content);
        }
    }
}

Effect demonstration

load Json File successfully

Here we try external modification Json file , It can also be loaded synchronously after refreshing the browser

load Json There are several pits here
1、 What I use here is Unity Official analysis Json Method ,UnityEngine.JsonUtility, It can only solve some simple problems , I only need a simple implementation here . If you want to implement complex functions, you still need a third-party library .JsonUtility.FromJson Only the first object can be resolved , Cannot resolve multiple objects . So our Json The file needs a shell [ ], Make it an element .
2、json The preservation of must be utf-8 Without signature , Otherwise, it will report a mistake ：ArgumentException: JSON parse error: Invalid value.
3、 Use JsonUtility Must have a serialization label [System.Serializable];
4、 Pay attention to the font type ,Unity Own is Arial typeface . however Arial Fonts do not support Chinese , pack UnityWebgl Then Chinese will disappear . Here we just need to find a font that supports Chinese （ What I use here is In black ）.

3、 load CSV file （ Same as loading Json file ）

4、 load Txt file （ Same as loading Json file ）

【Unity3D Study 】 use Unity3D Simply implement the question answering system —— You can write questions randomly _ Bili, Bili _bilibili

You can see this video in this part

5、 Load video file

（1） Here I am Unity There is nothing wrong with the internal playback

（2） There is no response in the browser after packaging （Edge, Google , Firefox has tried ）,F12 The view shows that there is no corresponding compiler

（3） My solution is to change the video loading mode to URL load , Move the video file to StreamingAssets Middle or nginx In the path .

Attach code

using System.Collections;
using System.Collections.Generic;
using UnityEngine;
using UnityEngine.Video;

public class LoadVideo : MonoBehaviour
{
    VideoPlayer video;
    private void Awake()
    {
        video = GetComponent<VideoPlayer>();
        video.url = Application.streamingAssetsPath + "/01.mp4";
    }
}

The pit here needs attention ：
1、 Be careful not to miss "/";
2、 Pay attention to the suffix of the video file ;
3、 The most important point ！！！ Video files cannot have Chinese ！！！

Finally, package all browsers （ Google 、Edge、 firefox ） Can play normally
