Section VII starting principle and configuration of zynq

ZYNQ Starting principle and configuration of

1 The boot process

The device configuration contains for initialization and configuration ps and pl All methods and processes . Under the control of software ,ps Internal DevC Provides for initialization and configuration ps and pl Means and methods , stay zynq Two modules are provided in to control the configuration process ：

1. BootROM, A static memory blocker block , After power on reset and warm reset , Yes Cortex-A9 Of CPU Execute this built-in program ;
2. Device configuration unit ： Used to control the JTAG Debug access and provide connections to AES、HMAC and PCAP Module interface , It is used to realize the pl Configuration and data decryption .

stay ps Under the control of , It can realize safe or non safe configuration ps and pl. adopt zynq Provided JTAG Interface , The user can control the... Under the control of an external host zynq To configure ,zynq Configuration from the beginning is not supported pl The process of . Yes zynq The configuration process for includes at least two stages , But it usually requires 3 Stages .

1. Stage 0： This stage is also called BootROM, This stage controls the start-up of the initial equipment .BootROM After power on reset or warm reset , The code executed by the processor that cannot be modified by the user , The code has been solidified to zynq Of BootROM in ;
2. Stage 1： In this phase , Usually the first level boot program is executed . however , It can also be any user controlled code ;
3. In this phase , Usually, the software program written by the user is executed , however , It can also be the second level boot program , This phase is completely under the control of the user .

2 zynq Of BootROM

BootROM characteristic ：

1. Provide 3 In a different way , Used for configuration PS： Two master modes and one slave mode , That's safety 、 Encrypted image 、 Main mode ; Non secure main mode ; adopt JTAG Non secure slave mode ;
2. Support 4 Different external startup sources ：Quad-SPI Flash、NAND Flash、NOR Flash、SD;
3. Support use AES-256 and HMAC(SHA-256) Of PS Security configuration ;
4. Support Soc Debug security ;
5. from NOR and QSPI The configuration process is performed in the chip .

After power on and reset , start-up PS The configuration process , When forbidden JTAG Mode time ,zynq Internal Cortex-A9 Processor from on-chip BootROM Start executing code ,BootROM Contains for driving NADN、NOR、Quad-SPI、SD and PCAP Basic program code .

stay BootROM Initialization of peripherals is not performed in , In phase 1 Or after this stage zynq To initialize other peripherals , Considering the safety factor , When out of the reset state ,Cortex-A9 The processor always PS The first device in all other master device modules in the , When executing BootROM when , Prohibition of execution JTAG, To ensure safe operation .

BootROM The code is also responsible for loading the first boot image file ,zynq The hardware in supports loading multi-level user boot images , After the first stage is started , The user is responsible for further loading the user initiated image , When BootROM Hand over control fsbl after , The user is responsible for further loading the user initiated image , When the reset operation , Will be re executed BootROM Code in .

BootROM Supports encrypted and unencrypted images , Besides , When using on-chip execution features , When from linear flash、NOR or QSP Copy the image directly or after execution ,BootROM Support from the OCM Start the execution phase 1 Mirror image .

At safe start CPU when , From safety BootROM Run code , also , For incoming users PS Image decoding and authentication , Save it to OCM RAM in , then , Branch into it , In case of unsafe startup CPU when , from BootROM Run code , If used XIP features , Jump to at branch OCM ROM or Flash When mirroring a user in , Disable all safe boot features , Unless you use something with XIP Start of , Generally will PS The boot image is limited to 192KB Within the scope of .

Then used for PS/PL The process of the start-up phase , It is the responsibility of the user , And under the control of the user . stay zynq in , Users are not allowed to access BootROM The code in , In the completion phase 1 After the process of safe start , The user can continue to perform subsequent security / Non safe start-up phase , If the first stage of non security is implemented at the beginning , Only the non safe phase can then be started .

adopt PL Hardwired inside AES-256 and SHA-256 modular ,PS Realize decryption and authentication , For this reason , At any stage of safe start-up , Even if only for PS To configure , Must also give PL Access to electricity , such , Users can use the on-chip eFUSE On a unit or chip BRAM, Select the key of the device .

stay zynq Internal support 5 Available starting devices , Include NAND、NOR、SD、Quad-SPI and JTAG, The top 4 Three startup sources are used for main mode startup .

1. During main mode startup ,Cortex-A9 The processor is responsible for loading the image file from the external nonvolatile memory to the on-chip PS in .
2. JTAG Can only be used to start the process from mode ,JTAG Only non safe startup is supported , An external computer acts as a master device , adopt JTAG Connect , Load the boot image into OCM, When the boot image is loaded ,PS CPU Keep idle mode .

BootROM The high-level configuration flow of is shown in the figure 2.1 Shown .

chart 2.1 BootROM High level configuration process

3 zynq Device configuration interface

Equipment configuration interface structure DevC Module by 3 A main module with independent operation ：

1. Used to connect to PL Configure logical AXI-PACP Interface ;
2. Device security management unit ;
3. One XDAC Interface ;

The device configuration interface contains a APB Interface , Host use APB Interface configuration 3 A module , And access the entire state as well as the implementation and PL XADC signal communication .

AXI-PCAP Bridge ：

AXI-PCAP Bridge will 32 position AXI Format data into 32 Bit PCAP agreement , vice versa , This bridge supports configuration data , Download and upload in concurrent and non concurrent ways , Pictured 3.1 Shown .

chart 3.1 AXI-PCAP Bridge

stay AXI and PCAP There is a send and receive between interfaces FIFO buffer , In the picture DMA The engine is used in FIFO And memory devices （OCM、DDR Memory , Or a peripheral memory ） Move data between .

When passed PCAP When the interface moves data , Must give zynq Of PL Power supply at one end , adopt DevC Controller register PCAP MODE and PCAP PR bits , Can make PCAP Interface , If you send encrypted data , You should also set QUARTER PCAP RATE EN bits .

adopt DevC Built in module DMA engine , stay PCAP Data transmission between interfaces . To start a data transfer process , It must be written in the following order 4 individual DMA register ：DMA Source address register ;DMA Destination address register ;DMA Source length register ;DMA Destination length register .

To pass through PCAP Transfer data to PL, The destination address should be set to 0xffffffff. Allied , adopt PCAP Interface from PL Reading data , The source address should be set to 0xffffffff, Must pass PCAP Interface to send encrypted PS Mirror image , This is because AES and HMAC The engines reside in PL one end . In this case ,DMA The source address should be set to an external memory interface , The destination address should be set to OCM.

DevC Of DMA The engine can be used to load unsafe PS Mirror image , Before loading , Set... In miscellaneous control register PCAP LPBK bits , This bit enables the internal loop , Bypass PCAP Interface , In the use of PCAP front , This bit needs to be disabled again ,DMA The source address should be set to an external memory , The destination address should be set to a OCM Or a valid external memory interface , Such as DDR.

PCAP Interface is also used to read back PL To configure . To perform a read back operation ,PS Software code must be run , Enable to produce the correct PL Read back instructions , Use two DMA Access cycle , Read back a PL To configure .

Equipment safety management ：

DevC It contains a security policy module , The following functions are provided ：

1. Monitoring system security , When a conflicting state is detected , Can confirm a safe reset , This state can indicate inconsistent system configuration or tampering ;
2. adopt APB Interface control and monitoring PL Configuration logic ;
3. control ARM CoreSight Debugger access port for DAP And commissioning level ;
4. Provide on-chip ROM control .

XADC Interface ：

1. Read and write XADC register ;
2. 15 A deep write command FIFO and 15 A deep reading FIFO（32 Bit width ）;
3. programmable FIFO Level interrupt ;
4. Alarm interrupt ;
5. Overtemperature interruption ;

3.1 PS The main equipment is not started safely

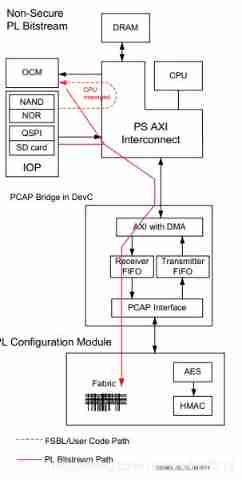

In this startup mode ,PS As the main equipment .BootROM Load a plain text from the selected external memory PS Mirror image , Pictured 3.2 Shown , under these circumstances , There is no demand for PL Access to electricity , have access to PS The image is loaded immediately or later PL Bit stream .

chart 3.2 PS Main non safety startup process

The main steps of the configuration process are as follows ：

1. Power on and reset the equipment ;
2. BootROM perform ：1, Read bootstrap program , To determine the external memory interface type ;2, Read start header information , To determine the state of encryption and the target of mirroring ;
3. BootROM Use DevC Of DMA, take FSBL Load into OCM Or other valid destination address ;
4. close BootROM, Release CPU Used to control the FSBL;
5. adopt PCAP,FSBL load PL Bit stream .

3.2 PS The main equipment starts safely

In this startup mode ,PS As the main equipment ,BootROM Load an encrypted... From the selected external storage PS Mirror image , Pictured 3.3 Shown , because AES and HMAC The engine resides in PL in , So it requires PL Power up to initialize the startup sequence , Trying to decrypt FSBL front ,BootROM verification PL It's powered on , When to start PS after , You can use an encrypted bitstream configuration , Or configure after power failure PL.

chart 3.3 PS Main safety start diagram

The detailed steps of the configuration process are given below ：

1. Power on and reset the equipment ;
2. BootROM perform ：1, Read bootstrap program , To determine the external memory interface ;2, Read start header , To determine the state of encryption （ Security ）;3, confirm PL Access to electricity , Start decrypting FSBL;
3. BootROM Use DevC DMA engine , adopt PCAP, Will be encrypted FSBL Sent PL Internal AES and HMAC;
4. PL Use PCAP To be decrypted FSBL Back to PS, then , Load it into the chip here OCM;
5. close BootROM, Release CPU Used to control the FSBL;
6. FSBL Configure with an encrypted stream PL.
