Interprocess communication

• Skillfully use pipe Communicate between parent and child processes
• Skillfully use pipe Communication between brother processes
• Skillfully use fifo Conduct unrelated interprocess communication
• Use mmap Carry out blood related interprocess communication
• Use mmap Conduct unrelated interprocess communication

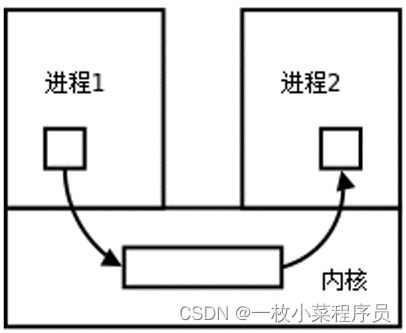

Linux In the environment , Process address spaces are independent of each other , Each process has a different user address space . The global variables of any process cannot be seen in another process , So processes and processes cannot access each other , To exchange data, you have to go through the kernel , Create a buffer in the kernel , process 1 Copy data from user space to kernel buffer , process 2 Then read the data from the kernel buffer , The mechanism provided by the kernel is called interprocess communication （IPC,InterProcess Communication）.

  The Conduit -pipe

• Function function :

Create a pipe

• The function prototype :

int pipe(int fd[2]);

• Function parameter :

If the function call succeeds ,fd[0] The reading end of the storage pipe ,fd[1] Store the write end of the pipe

• Return value :

• Successfully returns 0;
• Failure to return -1, And set up errno value .

         The function call successfully returns the file descriptors of the read side and the write side , among fd[0] It's the reading end , fd[1] It's the writing end , Reading and writing data to the pipeline is done by using these two file descriptors , The essence of the read-write pipeline is to operate the kernel buffer .

Create step summary ：

• Parent process call pipe Function to create a pipeline , Get two file descriptors fd[0] and fd[1], Point to the read end and write end of the pipeline respectively .
• Parent process call fork Create child process , Then the child process also has two file descriptors pointing to the same tube .
• The parent process closes the pipe reader , The child process closes the pipe writer . The parent process can write data to the pipeline , The subprocess reads the data from the pipeline , In this way, the communication between parent and child processes is realized .

How to set the pipe to non blocking

By default , The read and write ends of the pipe are blocked , To set the read or write side to non blocking , Can refer to

Take the test in the following three steps ：

The first 1 Step ： int flags = fcntl(fd[0], F_GETFL, 0);

The first 2 Step ： flag |= O_NONBLOCK;

The first 3 Step ： fcntl(fd[0], F_SETFL, flags);

If the reader is set to non blocking ：

• The write side is not closed , There is no data readable in the pipeline , be read return -1;
• The write side is not closed , There is data readable in the pipeline , be read Returns the actual number of bytes read
• The writer has been turned off , There is data readable in the pipeline , be read Returns the actual number of bytes read
• The writer has been turned off , There is no data readable in the pipeline , be read return 0

How to view the pipeline buffer size

• command

ulimit -a

• function

long fpathconf(int fd, int name);

printf("pipe size==[%ld]\n", fpathconf(fd[0], _PC_PIPE_BUF));

printf("pipe size==[%ld]\n", fpathconf(fd[1], _PC_PIPE_BUF));

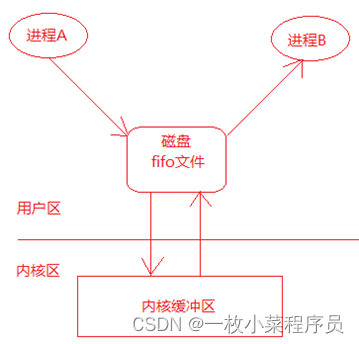

Create pipes

• The way 1- Use command mkfifo

Command format ： mkfifo Pipe name

for example ：mkfifo myfifo

• The way 2- Using functions

int mkfifo(const char *pathname, mode_t mode);

Parameter description and return value can be viewed man 3 mkfifo

When you create a FIFO, You can use open Function to open it , Common documents I/O Functions can be used for FIFO. Such as ：close、read、write、unlink etc. .

FIFO Strictly follow the "first in, first out" principle （first in first out）, Yes FIFO The read always returns data from the beginning , Writing them adds data to the end . They don't support things like lseek() Wait for file location operation



mmap function

• Function function :

Create a storage mapping area

• The function prototype

   void *mmap(void *addr, size_t length, int prot, int flags, int fd, off_t offset);

• Function return value ：

• success ： Return the first address of the created mapping area ;
• Failure ：MAP_FAILED macro

• Parameters ：
  • addr:       Specify the starting address of the mapping , Usually set to NULL, Specified by the system
  • length： File length mapped to memory
  • prot：     Protection mode of mapping area , Most commonly used :
    1. read ：PROT_READ
    2. Write ：PROT_WRITE
    3. Reading and writing ：PROT_READ | PROT_WRITE

• • flags：    Characteristics of the mapping area , It can be
    1. MAP_SHARED: The data written into the mapping area will be written back to the file , And allow other processes mapping the file to share .
    2. MAP_PRIVATE: Writing to the mapped area will produce a copy of the mapped area (copy-on-write), Changes made to this area will not be written back to the original file .
  • fd： from open File descriptor returned , Represents the file to map .
  • offset： Offset at the beginning of the file , Must be 4k Integer multiple , Usually it is 0, Indicates that the mapping starts from the file header .

• munmap function
  • Function function :

  • Release from mmap Function to create a storage mapping area

  • The function prototype :

  • int munmap(void *addr, size_t length);

  • Return value ：

  • success ： return 0

    Failure ： return -1, Set up errno value

  • Function parameter :
  • addr： call mmap The first address of the mapping area successfully returned by the function
  • length： Mapping area size （mmap The second parameter of the function ）
