Egret P2 physical engine (1) small ball falling demo

egret p2 Physics engine learning records

---

p2(physics) Download address ：https://download.csdn.net/download/qq_31189489/79552684

---

• Introducing the physics engine

1. download p2 Physical engine package

2. \physics\libsrc\bin\physics Copy all the files in the directory to root directory /../p2Physics Under the table of contents

3. Modify the project root configuration file egretProperties.json

4. The amendments are as follows

   {
         "name":"physics",
         "path":"../physics"

       }


5. compile open egret Editor wing find plug-in unit egret Project tools Build engine

   [ Failed to transfer the external chain picture , The origin station may have anti-theft chain mechanism , It is suggested to save the pictures and upload them directly (img-CiUikRO8-1644246147802)(attachment:9e3c157f63630e22e7e4397976151e41)]


6. See if the compilation is successful


   [ Failed to transfer the external chain picture , The origin station may have anti-theft chain mechanism , It is suggested to save the pictures and upload them directly (img-W7h4V40K-1644246147805)(attachment:5bbf974a7f99351d79a4eff9391377c4)]

7. If libs/modules/ There is... In the catalog physics Folder indicates that the compilation was successful




• Use the physics engine

1. Basic concepts

   [ Failed to transfer the external chain picture , The origin station may have anti-theft chain mechanism , It is suggested to save the pictures and upload them directly (img-H2CHqr3s-1644246147806)(attachment:9cd3b0b7d8e3d3d4fc61b6cffd30e5d3)]


   • The world ： Set the inside of the world Acceleration of gravity Additive elements add to World related settings And so on , such as Set the friction and correlation coefficient between materials
   • shape ： Draw the basic shape of the object , Every rigid body needs to add a shape , Set up Shape related properties such as ：
   • rigid body ： Set the rigid body , Physical related properties , such as Rigid body type weight Location , angular velocity , Location wait
   • Mapping ：displays, Show by mapping egret Related display elements , Binding display

2. Basic steps

   1. Create the world

      //  Instantiate a world object
          this.world = new p2.World();
          // Set up world To sleep
          this.world.sleepMode = p2.World.BODY_SLEEPING;
          this.world.gravity = [0,9.8]
          console.log('create world success')




      [ Failed to transfer the external chain picture , The origin station may have anti-theft chain mechanism , It is suggested to save the pictures and upload them directly (img-JnhP0XUJ-1644246147808)(attachment:fc678f9cfc7d342956195ddad8872e9e)]

   2. Create a floor

       //  Draw the ground , through shape and body  Two basic objects are combined
          let stageHeight = egret.MainContext.instance.stage.stageHeight
          var groundShape:p2.Plane = new p2.Plane()
          var groundBody:p2.Body = new p2.Body({
            type:p2.Body.STATIC,
            position:[0,stageHeight -100]
          })
          groundShape.material = this.steelMaterial
          groundBody.angle = Math.PI
          groundBody.addShape(groundShape)
          groundBody.displays = []
          this.world.addBody(groundBody)

          //  Because there is no bound material , Draw a line directly

          let groundLine:egret.Shape  = new egret.Shape

          groundLine.graphics.lineStyle(2,0x00ff00)

          groundLine.graphics.moveTo(0,stageHeight-90)
          groundLine.graphics.lineTo(egret.MainContext.instance.stage.stageWidth,stageHeight-90)
          this.addChild(groundLine)


      [ Failed to transfer the external chain picture , The origin station may have anti-theft chain mechanism , It is suggested to save the pictures and upload them directly (img-Pc6II9Ww-1644246147809)(attachment:f9d659f06f55c2597e34d72f82562a75)]


   3. Create a visual ball

      [ Failed to transfer the external chain picture , The origin station may have anti-theft chain mechanism , It is suggested to save the pictures and upload them directly (img-dr1kU5GJ-1644246147811)(attachment:d4015ba6d3120dfae802b32b9dad9226)]


      private display:egret.Shape;
        private createBody():void{
          var boxShape:p2.Shape =  new p2.Box({width:20,height:20})
          var boxBody:p2.Body = new p2.Body({ mass: 2, position: [200, 200],velocity:[30,5]})
          boxShape.material = this.iceMaterial
          this.display =  new egret.Shape()
          this.display.x = 100
          this.display.graphics.beginFill(0xff0000,1)
          this.display.graphics.drawCircle(0,0,(<p2.Box>boxShape).width)
          this.display.graphics.endFill()
          // this.display.width = (<p2.Box>bfoxShape).width
          // this.display.height = (<p2.Box>boxShape).height
          boxBody.displays = [this.display]
          boxBody.addShape(boxShape)
          this.world.addBody(boxBody)
          this.addChild(this.display)

          // var boxShape:p2.Shape = new p2.Shape()
          // var boxBody:p2.Body = new p2.Body({ mass: 1, position: [200, 180],angularVelocity:1 })
          // boxBody.addShape(boxShape)
          // this.world.addBody(boxBody)
          console.log('create body success')
        }

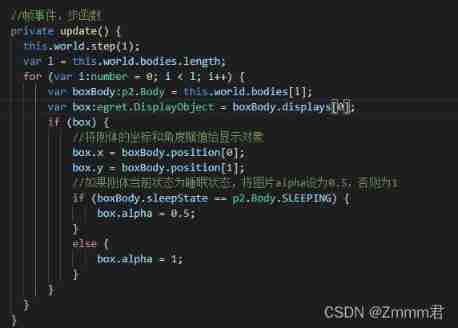

   4. Update the view world created , The motion logic is not automatically executed , Need to pass through world.step() Perform a step motion

      [ Failed to transfer the external chain picture , The origin station may have anti-theft chain mechanism , It is suggested to save the pictures and upload them directly (img-YgTZ2BvM-1644246147813)(attachment:68eb0e172825c999a5b375c373f38e3a)]


      this.world.step(1);
          var l = this.world.bodies.length;
          for (var i:number = 0; i < l; i++) {
              var boxBody:p2.Body = this.world.bodies[i];
              var box:egret.DisplayObject = boxBody.displays[0];
              if (box) {
                  // Assign the coordinates and angles of the rigid body to the display object
                  box.x = boxBody.position[0];
                  box.y = boxBody.position[1];
                  // If the current state of the rigid body is sleep , The picture alpha Set to 0.5, Otherwise 1
                  if (boxBody.sleepState == p2.Body.SLEEPING) {
                      box.alpha = 0.5;
                  }
                  else {
                      box.alpha = 1;
                  }
              }
          }


   5. Execute all methods in the main program , And the clock function is used to call update function , The final code is as follows main.ts

      [ Failed to transfer the external chain picture , The origin station may have anti-theft chain mechanism , It is suggested to save the pictures and upload them directly (img-kk6yiRPA-1644246147815)(attachment:7244415b79b4ba4c1e1a6f77c4df0d1b)]


        class HelloWorld extends eui.UILayer{
        //  Define a world Variable
        private world:p2.World
        //  Define a debug canvas
        private debugDraw:any

        //  Define two materials
        private iceMaterial = new p2.Material(1);
        private steelMaterial = new p2.Material(2);

        private async runGame(){
          console.log(' load resources ')

          //  Entry method
          await this.loadResource()

          // console.log(' Create a background ')

          // this.createBg()

          console.log(' Create a gray mask ')

          this.createMask()

          // console.log(' draw movieClips')
          // this.createClips()

          this.createWorld()
          this.createGround()
          this.createBody()
          this.addEventListener(egret.Event.ENTER_FRAME,this.update,this);
        }

        private createClips(){
          let data = RES.getRes("chara_json")
          let textr = RES.getRes('chara_png')
          let factorys:egret.MovieClipDataFactory =  new egret.MovieClipDataFactory(data,textr)
          let paimeng:egret.MovieClip = new egret.MovieClip(factorys.generateMovieClipData('paimeng'))
          this.addChild(paimeng)
          paimeng.gotoAndPlay("main",-1)

        }


        //  Entry function
        protected createChildren(): void {
            super.createChildren()
            this.runGame()
        }

        //  Create a background image
        private createBg(){
          let bg = new Util().createBitMap('bg_jpg')
          console.log(bg)
          this.addChild(bg)
          bg.width = this.stage.stageWidth
          bg.height = this.stage.stageHeight
        }


        //  load resources
        private async loadResource() {
          try {
              const loadingView = new LoadingUI();
              this.stage.addChild(loadingView);

              //  Temporarily annotate preloaded resources
              // await RES.loadConfig("resource/default.res.json", "resource/");
              // await RES.loadGroup("preload", 0, loadingView);
              this.stage.removeChild(loadingView);
          }
          catch (e) {
              console.error(e);
          }
        }

        //  Create a mask
        private createMask(){
          let mask = new egret.Shape()
          mask.graphics.beginFill(0xffffff,1)
          mask.graphics.drawRect(0,0,this.stage.stageWidth,this.stage.stageHeight)
          mask.graphics.endFill()
          mask.y = 0
          this.addChild(mask)
        }



        //  Create rigid bodies
        private createWorld():void{

          //  Instantiate a world object
          this.world = new p2.World();
          // Set up world To sleep
          this.world.sleepMode = p2.World.BODY_SLEEPING;
          this.world.gravity = [0,9.8]
          console.log('create world success')
        }


        // Generate floor Plane
        private planeBody:p2.Body;
        private createGround():void{
          //  Draw the ground , through shape and body  Two basic objects are combined
          let stageHeight = egret.MainContext.instance.stage.stageHeight
          var groundShape:p2.Plane = new p2.Plane()
          var groundBody:p2.Body = new p2.Body({
            type:p2.Body.STATIC,
            position:[0,stageHeight -100]
          })
          groundShape.material = this.steelMaterial
          groundBody.angle = Math.PI
          groundBody.addShape(groundShape)
          groundBody.displays = []
          this.world.addBody(groundBody)

          //  Because there is no bound material , Draw a line directly

          let groundLine:egret.Shape  = new egret.Shape

          groundLine.graphics.lineStyle(2,0x00ff00)

          groundLine.graphics.moveTo(0,stageHeight-90)
          groundLine.graphics.lineTo(egret.MainContext.instance.stage.stageWidth,stageHeight-90)
          this.addChild(groundLine)

          // // Build a shape shape
          // let planeShape:p2.Plane = new p2.Plane();
          // // establish body rigid body
          // this.planeBody= new p2.Body({
          //     // Rigid body type
          //     type:p2.Body.STATIC,
          //     // The position of the rigid body
          //     position:[0,this.stage.stageHeight]
          // });
          // this.planeBody.angle = Math.PI;
          // this.planeBody.displays = [];
          // this.planeBody.addShape(planeShape);
          // this.world.addBody(this.planeBody);
          console.log(' create ground success')
        }
        private display:egret.Shape;
        private createBody():void{
          var boxShape:p2.Shape =  new p2.Box({width:20,height:20})
          var boxBody:p2.Body = new p2.Body({ mass: 2, position: [200, 200],velocity:[30,5]})
          boxShape.material = this.iceMaterial
          this.display =  new egret.Shape()
          this.display.x = 100
          this.display.graphics.beginFill(0xff0000,1)
          this.display.graphics.drawCircle(0,0,(<p2.Box>boxShape).width)
          this.display.graphics.endFill()
          // this.display.width = (<p2.Box>bfoxShape).width
          // this.display.height = (<p2.Box>boxShape).height
          boxBody.displays = [this.display]
          boxBody.addShape(boxShape)
          this.world.addBody(boxBody)
          this.addChild(this.display)

          // var boxShape:p2.Shape = new p2.Shape()
          // var boxBody:p2.Body = new p2.Body({ mass: 1, position: [200, 180],angularVelocity:1 })
          // boxBody.addShape(boxShape)
          // this.world.addBody(boxBody)
          console.log('create body success')
        }


        // Frame event , Step function
        private update() {
          this.world.step(1);
          var l = this.world.bodies.length;
          for (var i:number = 0; i < l; i++) {
              var boxBody:p2.Body = this.world.bodies[i];
              var box:egret.DisplayObject = boxBody.displays[0];
              if (box) {
                  // Assign the coordinates and angles of the rigid body to the display object
                  box.x = boxBody.position[0];
                  box.y = boxBody.position[1];
                  // If the current state of the rigid body is sleep , The picture alpha Set to 0.5, Otherwise 1
                  if (boxBody.sleepState == p2.Body.SLEEPING) {
                      box.alpha = 0.5;
                  }
                  else {
                      box.alpha = 1;
                  }
              }
          }
        }
        // private createDebug():void{
        // }

        // private createTestPhysic():void{
        //   console.log('create begin')
        //   const body = new p2.Body()
        //   // Create a wide 4 Company 、 high 2 The rectangular shape of the unit
        //   const shpRect: p2.Shape = new p2.Shape({angle:1,position: [200, 180]});
        //   // Create a flat shape
        //   const shpPlane: p2.Plane = new p2.Plane();
        // }
      }



The pit encountered can be referred to this article : egret p2 Problems encountered by the physical engine （1）
