Sysbench Pressure Test Oracle (installation and use examples)

sysbench Is a testing tool, mainly including the following ways of testing ：
1、cpu performance
2、 disk io performance
3、 Scheduler performance
4、 Memory allocation and transmission speed
5、POSIX Thread performance
6、 Database performance (OLTP The benchmark ) Now? sysbench Main support MySQL,pgsql,oracle this 3 Species database , The default support MySQL, Want to support pgsql and oracle You need to specify parameters at compile time

Introduction to the environment

name	edition
sysbench Software version	sysbench 0.5
operating system	rhel 6.5
Oracle	11.2.0.4

install

1. Install dependency packages

Log in and copy

yum -y install make m4  autoconf automake libtool pkgconfig libaio-devel




1.


2. Configure environment variables , Use practical ORACLE_HOME Catalog

Log in and copy

export CC=cc
export CXX=c++
export CFLAGS="-m64 -I /oracle/db11g/rdbms/public"
export CXXFLAGS="$CFLAGS"
export ORACLE_HOME=/oracle/db11g
export LD_LIBRARY_PATH=/oracle/db11g/lib




1.

2.

3.

4.

5.

6.


3. decompression sysbench Software

Log in and copy

tar -zxvf sysbench-0.5.tar.gz




1.


4. function autogen.sh, Generate configure Catalog

Log in and copy

cd /sysbench-0.5
./autogen.sh




1.

2.


5. Compilation parameter configuration , add –with-oracle

Log in and copy

./configure --prefix=/usr/local/sysbench --with-oracle --libdir=/oracle/db11g/lib --without-mysql




1.


6. Compile and install , Be careful to bring... Here oracle One of the so

Log in and copy

make ORA_LIBS=/oracle/db11g/lib/libclntsh.so
make install




1.

2.


7. Set up sysbench To path environment variable

Log in and copy

echo "export PATH=$PATH:/usr/local/sysbench/bin">>/etc/profile
source /etc/profile




1.

2.


8. Verify that the installation was successful

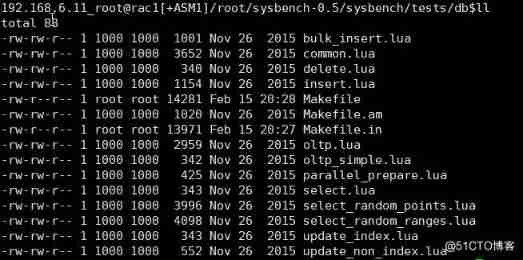

9.lua The file in sysbench Unzip the directory sysbench/tests/db

Test use

1. Create a test user

Log in and copy

create user sysbench identified by sysbench default tablespace users;
grant connect,resource to sysbench;




1.

2.


2. Prepare the data ,lua The file needs to specify an absolute path

Log in and copy

sysbench --test=/root/sysbench-0.5/sysbench/tests/db/oltp.lua --db-driver=oracle --oltp-table-name=sysbench --oltp-table-size=100000 --oltp-tables-count=8 --oracle-db=ucpaydb --oracle-user=sysbench --oracle-password=sysbench --max-time=60 --max-requests=10000000 --num-threads=2 --report-interval=1 prepare




1.


If you make a mistake Unknown database driver: oracle, It can be downloaded from https://github.com/osdba/sysbench_lua download lua file , After decompressing , The inside lua Replace all files with /usr/local/sysbench/share/sysbench/ in , Just do it again

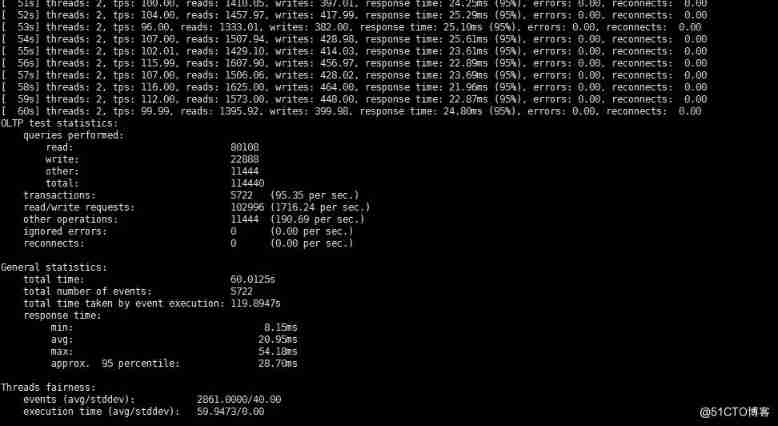

3. Run test data

Log in and copy

sysbench --test=/root/sysbench-0.5/sysbench/tests/db/oltp.lua --db-driver=oracle --oltp-table-name=sysbench --oltp-table-size=100000 --oltp-tables-count=8 --oracle-db=ucpaydb --oracle-user=sysbench --oracle-password=sysbench --max-time=60 --max-requests=10000000 --num-threads=2 --report-interval=1 run




1.


4. Clean up the test data

Log in and copy

sysbench --test=/root/sysbench-0.5/sysbench/tests/db/oltp.lua --db-driver=oracle --oltp-table-name=sysbench --oltp-table-size=100000 --oltp-tables-count=8 --oracle-db=ucpaydb --oracle-user=sysbench --oracle-password=sysbench --max-time=60 --max-requests=10000000 --num-threads=2 --report-interval=1 cleanup




1.
