Design of intelligent weighing system based on Huawei cloud IOT (STM32) [i]

1. Preface

With network technology , Various communication technologies , The rapid development of sensor technology , Internet of things technology has become a rapidly developing technology in today's technical field . The core of Internet of things technology is still based on Internet technology , The Internet of things is an important part of the new generation of information technology , It is also an important development stage in the information age . Internet of things through intelligent perception 、 Recognition technology, pervasive computing and other communication sensing technology , It is widely used in the integration of network , It's also known as the next computer 、 After the Internet, the third wave of world information industry development .

The model of this design comes from logistics 、 mine 、 Highway and other occasions , Intelligent upgrade requirements of vehicle weighing ground crab , Design an intelligent online weighing scheme based on the Internet of things , Develop intelligent weighing controller , Reasonably select and deploy multiple weight sensors and necessary algorithms 、 adopt WIFF Communication module 、GPS Positioning module , Collect vehicle weight data - geographic location information , And send it to the cloud platform through the network , Graphic design UI The interface shows weighing 、 Important information such as map location , Realize the remote monitoring of symmetrical weight system .

With the gradual development and maturity of Internet of things Technology , Internet of things technology is a large and wide application technology , Not limited to extended applications . It is believed that there will be more innovative application practices for the weighbridge . in general , Weighbridge modernization 、 Promotion of information technology 、 Intellectualization must follow the development of Internet of things technology , The development of Internet of things technology will also promote the rise of a new technological revolution .

Summary of design technology and hardware options ：

（1） The cloud communication module adopts ESP8266-WIFI

（2） The networking communication module adopts ：ESP8266

（3）GPS modular ： use ATGM336H Bimodal GPS modular

（4） Scale module ： For weighing

（5） Internet of things cloud platform ： Adopt Huawei cloud Internet of things platform

Design summary ：

（1） use ESP8266 Connect Huawei cloud to upload weighing data and GPS Data to the cloud （ use MQTT agreement ）

The cloud shows 2 Data ：GPS Location data -- The map shows , The data value of the load cell

（2）3 One load cell is connected to one scale surface to weigh and calculate the average value

（3） Local OLED The display shows GPS Latitude and longitude data 、 The data value of the load cell .

（4）OLED Design a page to display and set the current alarm upper limit . Add and subtract by pressing the key

When the weighing threshold exceeds the set threshold , Buzzer alarm .

2. Hardware selection

2.1 STM32F103C8T6

STM32F103C8T6 It's based on ARM Cortex-M kernel STM32 Series of 32 Bit of microcontroller , The capacity of program memory is 64KB, Voltage required 2V~3.6V, Operating temperature: -40°C ~ 85°C.

2.2 Scale sensor

HX711 It is specially designed for high-precision load cell 24 position A/D Converter chip .

2.3 ESP8266-wifi

2.4 GPS modular

2.5 Buzzer

3. Create cloud products and devices

3.1 Create products

Address ：https://www.huaweicloud.com/?locale=zh-cn

3.2 Create device

Address : https://console.huaweicloud.com/iotdm/?region=cn-north-4#/dm-portal/device/all-device

3.3 Custom model data

link ：https://console.huaweicloud.com/iotdm/?region=cn-north-4#/dm-dev/all-product/7211833377cf435c8c0580de390eedbe/product-detail/6277d70223aaf461a0f72a56 The model data is the data to be uploaded by the device .

3.4 MQTT Key generation
After creating the product 、 After the device , Then you need to know how to pass MQTT Log in to the Huawei ECS according to the protocol . The official details are here :https://support.huaweicloud.com/devg-iothub/iot_01_2127.html#ZH-CN_TOPIC_0240834853__zh-cn_topic_0251997880_li365284516112
Attribute reporting format :https://support.huaweicloud.com/api-iothub/iot_06_v5_3010.html

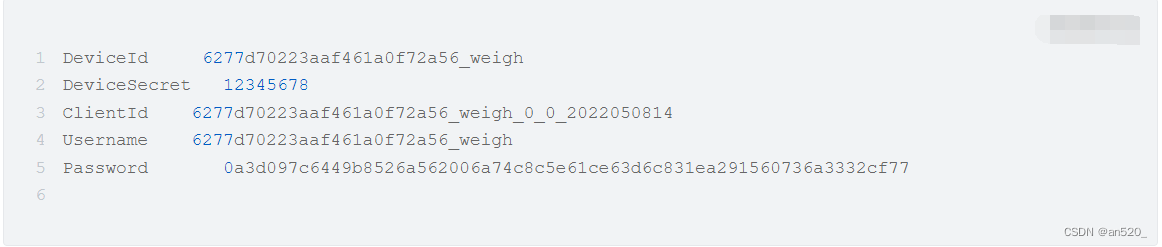

MQTT Device login key generation address :

https://iot-tool.obs-website.cn-north-4.myhuaweicloud.com/

The domain name of Huawei cloud Internet of things platform is : 161a58a78.iot-mqtts.cn-north-4.myhuaweicloud.com Of Huawei's cloud Internet of things platform IP The address is :121.36.42.100 After the parameters are filled correctly in the software , You can see that the device has been successfully connected . Next, open the device page , You can see that the device is online .
