ArcGIS and CASS realize elevation points of cross-section Exhibition

Arcgis part ： Generate elevation and coordinate information of points

① Editor → Construction point → Generate points by distance

tips： Will point shapefile The point layer of is set as the only editable layer

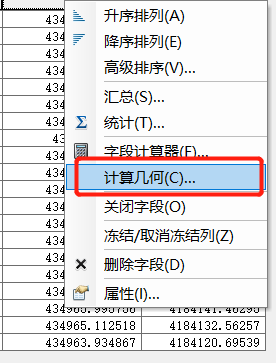

② After choosing a good point , Through tif Layers , Add the elevation attribute column , Then add X,Y Attribute column for

③ Export data to TXT The text of

Handle txt file

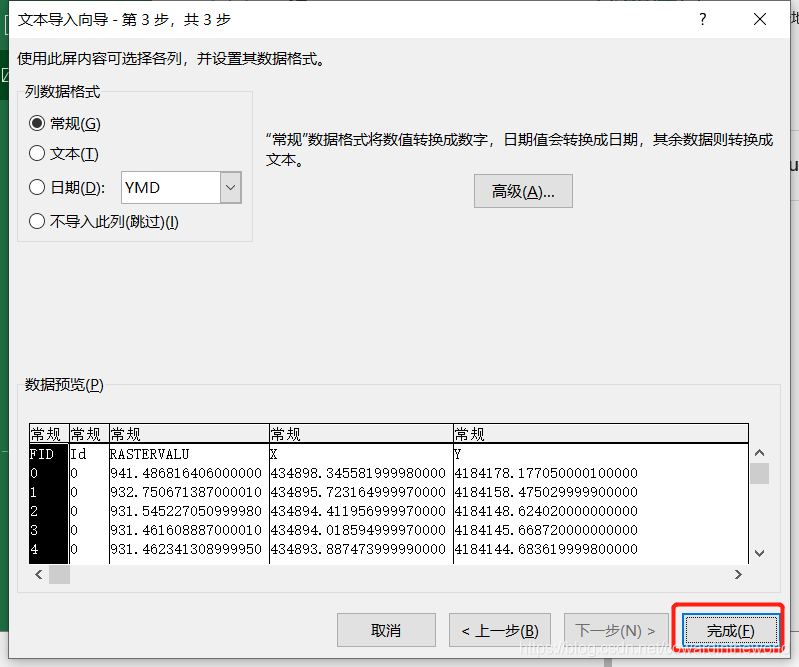

① take Arcgis Generated txt For documents Excel open

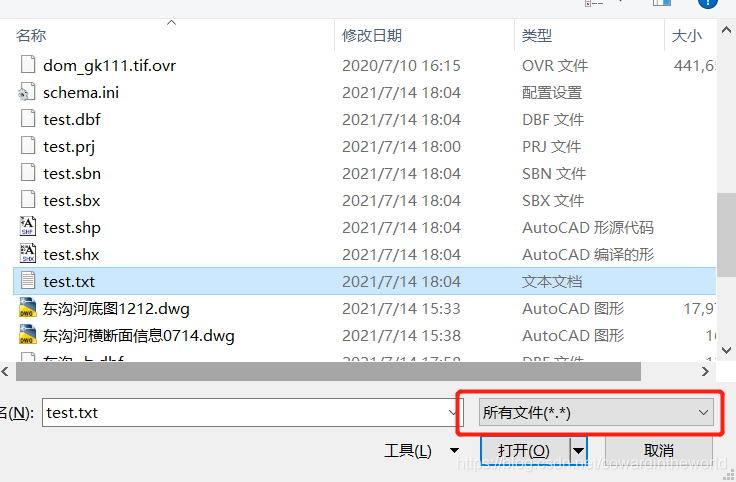

（ If the opening method cannot be found , You can open it first excel, find txt File to open ）

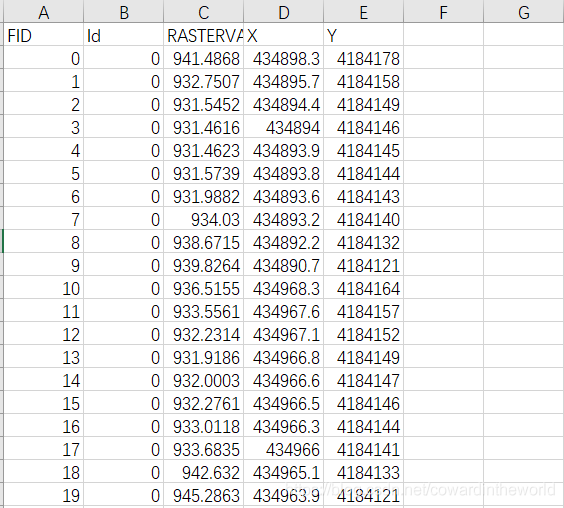

Change the above figure into the following figure （ Sure del B Column , Copy C→G Column ,D→C Column ,E→D Column ,G→E Column ）

② Copy the data in the table without Name column to a dat In file , You can do this by creating a txt, Change the suffix


Open it in the form of Notepad .dat file , Transfer the copied content
③ Change the data in the file , Copy a space , Point replacement


Save the file

Cass part ： Realize the elevation point

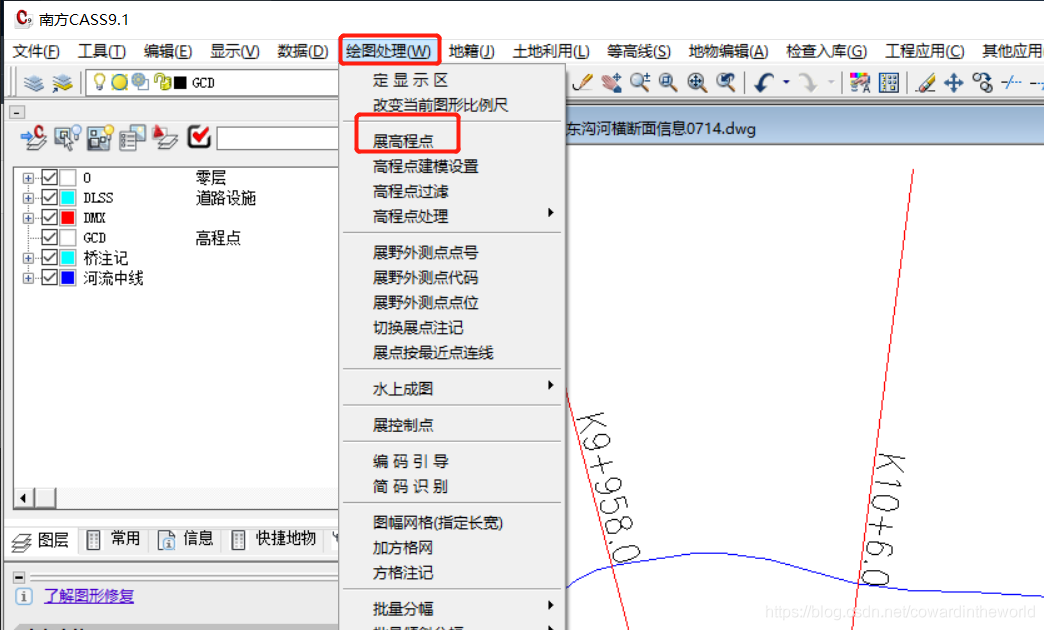

①cass The elevation point

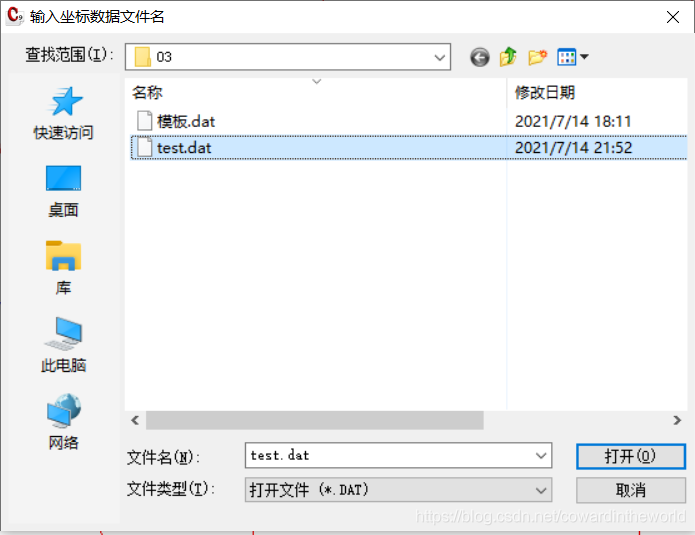

Directly enter


And then OK 了 , A little embellishment .
