Threejs basic introduction

  Hello, everyone , It has been a long time since it was updated , Studying recently threejs, Find it fun , So I learned about it

What is? threejs, It's simple , You understand it as three + js That's all right. .three Express 3D It means ,js Express javascript It means . So together ,three.js Is the use of javascript To write 3D The meaning of the procedure .

Javascript Is a scripting language that runs on the web side , So there's no doubt about it Three.js It also runs on the browser .

---

        Let's start with configuring the environment , If it has been configured node Of , Then directly npm Download it , If it is not configured properly , Or you may want to practice quickly and simply , It is recommended to download vscode A plug-in on is called live server

  In this way, it can be opened normally .



        First , We want to define threejs The most basic thing in ,scene( scene )、camera（ The camera ） and renderer（ Renderers ).


 // establish 3D Scene objects Scene
    var scene = new THREE.Scene();
 // Create a perspective camera object
    let width = window.innerWidth
    let height = window.innerHeight
    const camera = new THREE.PerspectiveCamera(45, width / height, 1, 8000)
 // Create a renderer object
    let renderer = new THREE.WebGLRenderer()

here , The basic steps have been completed , scene , The camera , The renderer has new Come out , Of course , It's not over yet.

Detailed explanation of perspective camera parameters



  The first parameter is the field of view （ That is, the angle ）, The second is the aspect ratio , The third is the distance from the near face , The fourth is the distance from the far side .

here , We need to do some operations on the renderer first ,

 // Sets the size of the renderer
    renderer.setSize(width, height)
    // Kaka    Rendering operations
    renderer.render(scene, camera)
    // Add to page
    document.body.appendChild(renderer.domElement)

here , If you open a page like this , Then these steps are no problem

  But you will find that there are two drop-down boxes , But you don't want , You can do this , Add some css The style is OK

 body {
            margin: 0;
            padding: 0;
            box-sizing: border-box;
            overflow: hidden;
        }

here , These two drop-down boxes are gone , The page is dark

here , We are about to create a geometric model , Here I create the simplest geometric object

 //  Create a box geometry object Geometry
    var geometry = new THREE.BoxGeometry(100, 100, 100);

The last three parameters correspond to the length, width and height respectively

here , We need to set the camera parameters

// Set camera position
 camera.position.set(200, 200, 200)
// Set where the camera will shoot
 camera.lookAt(0, 0, 0)

Of course , It is not enough for us to create geometric models , You need to create a base material object Material, The kind that can be displayed without illumination

 var material = new THREE.LineBasicMaterial（{}）

We can set a color , In that brace, we can write our configuration items

  // Create a material object Material
    var material = new THREE.LineBasicMaterial({
         color: 'pink',
        //  Turn on transparency
        // transparent: true,
        // transparency
        opacity: 1

    });

here , We also need to create a mesh model object Mesh

Put the geometric model and materials in , And add it to the scene

  // Create a mesh model object Mesh
    var mesh = new THREE.Mesh(geometry, material);
    scene.add(mesh);

here , You can see such a scene

That means your first small case has been successful ,

Let's strike while the iron is hot ,, Generate 121 A cube like this

We just need a double layer for loop

 for (let i = 0; i <= 10; i++) {
        for (let j = 0; j <= 10; j++) {
            // Create a mesh model object Mesh
            var mesh = new THREE.Mesh(geometry, material);
            mesh.position.set(i * 200, 0, j * 200);
            // Add mesh model objects to scene objects
            scene.add(mesh);
        }

    }

  however , We open the web , It is found that the generated is like this

here , We just need to change the camera parameters , Because standing high , To see far

    camera.position.set(2000, 2000, 2000)
    camera.lookAt(1000, 0, 1000)



  But then you want to scroll through the rest of the page , You find that you can't slide , Don't worry , You just need to

First, introduce a small control

<script src="./three.js-r137/examples/js/controls/OrbitControls.js"></script>

Then instantiate the control

 // Create a controller object
    const controls = new THREE.OrbitControls(camera, renderer.domElement)
    controls.target.set(1000,0,1000)
    controls.update()
    controls.addEventListener('change', function () {
        renderer.render(scene, camera)
    })

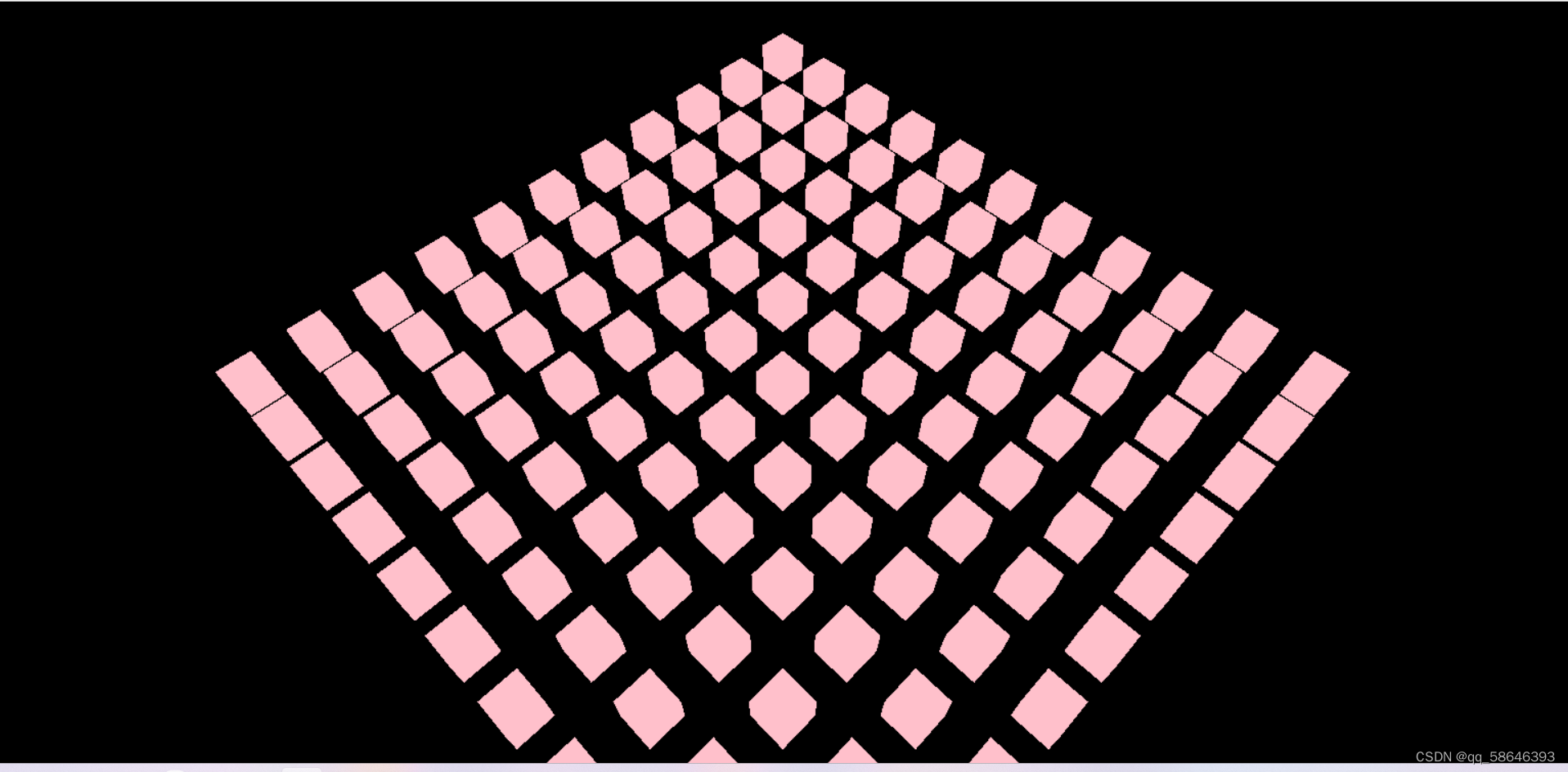

here , You can slide your page at will to enjoy this 121 A small cube

---

Okay , This is the end of this article , Attached source code for your reference

<!DOCTYPE html>
<html lang="en">

<head>
    <meta charset="UTF-8">
    <meta http-equiv="X-UA-Compatible" content="IE=edge">
    <meta name="viewport" content="width=device-width, initial-scale=1.0">
    <title>Document</title>
    <style>
        body {
            margin: 0;
            padding: 0;
            box-sizing: border-box;
            overflow: hidden;
        }
    </style>

</head>

<body>

</body>
<script src="./three.js-r137/build/three.js"></script>
<script src="./three.js-r137/examples/js/controls/OrbitControls.js"></script>
<script>
    // establish 3D Scene objects Scene
    var scene = new THREE.Scene();
    // Create a network model
    //  Create a box geometry object Geometry
    var geometry = new THREE.BoxGeometry(100, 100, 100);
    // Create a material object Material
    var material = new THREE.LineBasicMaterial({
        color: 'pink',
        // // Turn on transparency
        // transparent: true,
        // transparency
        opacity: 1

    });
     // Create a mesh model object Mesh
    // var mesh = new THREE.Mesh(geometry, material);
    // scene.add(mesh);
    for (let i = 0; i <= 10; i++) {
        for (let j = 0; j <= 10; j++) {
            // Create a mesh model object Mesh
            var mesh = new THREE.Mesh(geometry, material);
            mesh.position.set(i * 200, 0, j * 200);
            // Add mesh model objects to scene objects
            scene.add(mesh);
        }

    }



    // Create a perspective camera object
    let width = window.innerWidth
    let height = window.innerHeight
    const camera = new THREE.PerspectiveCamera(45, width / height, 1, 8000)
    // camera.position.set(200, 200, 200)
    camera.position.set(2000, 2000, 2000)
    // camera.lookAt(0, 0, 0)
    camera.lookAt(1000, 0, 1000)

    // Create a renderer object
    let renderer = new THREE.WebGLRenderer()
    // Sets the size of the renderer
    renderer.setSize(width, height)
    // Set the background color
    // renderer.setClearColor('gold', 0.5)
    // Kaka    Rendering operations
    renderer.render(scene, camera)
    // Add to page
    document.body.appendChild(renderer.domElement)

    // Create a controller object
    const controls = new THREE.OrbitControls(camera, renderer.domElement)
    controls.target.set(1000,0,1000)
    controls.update()
    controls.addEventListener('change', function () {
        renderer.render(scene, camera)
    })
</script>

</html>
