Implementing redis distributed locks using custom annotations

@ author ： Suddenly

@ Home page ： https://blog.csdn.net/zhuocailing3390

@ Community ： Java Technology stack communication

@ The theme ： Use custom annotations to implement Redis Distributed lock

️ @ Creation time ： 2022 year 06 month 29 Japan

1、RedisLockServer

Definition Redis locked 、 Unlock implementation class

import lombok.extern.slf4j.Slf4j;
import org.springframework.data.redis.core.StringRedisTemplate;
import org.springframework.data.redis.core.script.RedisScript;
import org.springframework.stereotype.Component;

import javax.annotation.Resource;
import java.util.Collections;
import java.util.List;
import java.util.concurrent.TimeUnit;


@Component
@Slf4j
public class RedisLockServer {


    @Resource
    private StringRedisTemplate stringRedisTemplate;


    public Boolean setLock(String lockKey, String value, long time) {

        if(time<=0){

            //  Do not set expiration time
            return stringRedisTemplate.opsForValue().setIfAbsent(lockKey, value);
        }
        return stringRedisTemplate.opsForValue().setIfAbsent(lockKey, value, time, TimeUnit.MILLISECONDS);
    }

    public void deleteLock(String lockKey, String value) {

        List<String> lockKeys = Collections.singletonList(lockKey);
        String lua = "if redis.call('get', KEYS[1]) == ARGV[1] then redis.call('del', KEYS[1]) return 1 else return 0 end";
        RedisScript<Long> luaScript = RedisScript.of(lua, Long.class);
        //  Delete lock
        stringRedisTemplate.execute(luaScript, lockKeys, value);
    }
}

2、RedisLock

Definition “ Custom annotation ”, It is used to realize the distributed lock

@Target(ElementType.METHOD)
@Retention(RetentionPolicy.RUNTIME)
@Documented
public @interface RedisLock {

    /** *  Locking method ,key The position of the parameter , Index from 0 Start  * @return */
    int keyNum();

    /** *  Lock duration , Default setting time  * @return */
    long lockTime() default 0;

    /** *  Try time , Try to acquire the lock by spin consensus within the set time , Default 0ms * @return */
    long tryTime() default 0;
}

Field description ：

• keyNum：
  keyNum It means to be @RedisLock The way to decorate , The number of parameters indicates locked key, Default first parameter , You can also specify key The location of , And the name of the parameter must be keyName

// key Is the first parameter value
void test(String keyName){
    }

// key Is the value of the third parameter
@RedisLock(keyNum=2)
void test(int a,int b,String keyName){
    }

• lockTime：
  lockTime Indicates the lock expiration time , The default is 0, It means that no locking treatment will be carried out ;

    public Boolean setLock(String lockKey, String value, long time) {

        if(time<=0){

            //  Do not set expiration time
            return stringRedisTemplate.opsForValue().setIfAbsent(lockKey, value);
        }
        return stringRedisTemplate.opsForValue().setIfAbsent(lockKey, value, time, TimeUnit.MILLISECONDS);
    }

• tryTime：
  tryTime Indicates the time when the lock was attempted , When the set time , Always acquire the lock by spinning

3、RedisLockAspect

Facet class definition , The code is as follows ：

import lhz.lx.config.RedisLockServer;
import lombok.extern.slf4j.Slf4j;
import org.aspectj.lang.JoinPoint;
import org.aspectj.lang.ProceedingJoinPoint;
import org.aspectj.lang.Signature;
import org.aspectj.lang.annotation.*;
import org.aspectj.lang.reflect.CodeSignature;
import org.aspectj.lang.reflect.MethodSignature;
import org.springframework.stereotype.Component;

import javax.annotation.Resource;
import java.lang.reflect.Method;
import java.util.UUID;

@Aspect
@Component
@Slf4j
public class RedisLockAspect {


    @Resource
    private RedisLockServer redisLockServer;

    private static final ThreadLocal<String> VALUE_THREAD = new ThreadLocal<>();

    private static final ThreadLocal<String> KEY_THREAD = new ThreadLocal<>();

    private static final ThreadLocal<Boolean> LOCK_THREAD = new ThreadLocal<>();

    @Pointcut("@annotation(lhz.lx.aspect.RedisLock)")
    public void lockPoint() {


    }

    /** *  Surrounding the notification , Calling the target method  */
    @Around("lockPoint()")
    public Object doAround(ProceedingJoinPoint proceedingJoinPoint) throws Throwable {

        //  Record the method execution start time
        long startTime = System.currentTimeMillis();

        Object[] args = proceedingJoinPoint.getArgs();
        if(args.length<=0){

            throw new RuntimeException("keyName non-existent ！");
        }
        String[] argNames = ((CodeSignature) proceedingJoinPoint.getSignature()).getParameterNames();

        Signature signature = proceedingJoinPoint.getSignature();
        MethodSignature methodSignature = (MethodSignature) signature;
        Method method = methodSignature.getMethod();
        RedisLock lock = method.getAnnotation(RedisLock.class);

        int keyNum = lock.keyNum();
        if(!"keyName".equals(argNames[keyNum])){

            throw new RuntimeException("keyName non-existent ！");
        }
        String key = args[keyNum].toString();
        long lockTime = lock.lockTime();
        long tryTime = lock.tryTime();
        String value = UUID.randomUUID().toString();

        VALUE_THREAD.set(value);
        KEY_THREAD.set(key);

        log.info(" Distributed lock lock ,key：{},value：{},lockTime：{}",key,value,lockTime);

        Boolean setLock = redisLockServer.setLock(key, value, lockTime);
        while (!setLock){

            //  retry
            setLock = redisLockServer.setLock(key, value, lockTime);
            if(System.currentTimeMillis()-startTime>tryTime) {

                LOCK_THREAD.set(false);
                log.error(" Lock failed ");
                throw new RuntimeException(" Lock failed ！");
            }
        }
        log.info(" The distributed lock is locked successfully ,key：{},value：{},lockTime：{}",key,value,lockTime);
        LOCK_THREAD.set(true);
        //  Calling the target method
        return proceedingJoinPoint.proceed();
    }

    /** *  Execute... After processing the request  * * @param joinPoint  Tangent point  */
    @AfterReturning(value = "lockPoint()", returning = "jsonResult")
    public void doAfterReturning(JoinPoint joinPoint, Object jsonResult) {

        handleData();
    }

    /** *  Intercept abnormal operations  * * @param joinPoint  Tangent point  * @param e  abnormal  */
    @AfterThrowing(value = "lockPoint()", throwing = "e")
    public void doAfterThrowing(JoinPoint joinPoint, Exception e) {

        handleData();
    }

    private void handleData() {

        try {

            String value = VALUE_THREAD.get();
            String key = KEY_THREAD.get();
            if(LOCK_THREAD.get()) {

                log.info(" Distributed lock unlock ,key：{},value：{}", key, value);
                redisLockServer.deleteLock(key, value);
            }
        } catch (Exception exception) {

            exception.printStackTrace();
        } finally {

            VALUE_THREAD.remove();
            KEY_THREAD.remove();
            LOCK_THREAD.remove();
        }
    }
}

4、 Turn on auto agent

Because it means AOP Cannot intercept calls between methods inside a class , You need to add... To the startup class @EnableAspectJAutoProxy To configure , The code is as follows ：

@SpringBootApplication
@EnableAspectJAutoProxy(exposeProxy = true)
public class RedisDemoApplication {


    public static void main(String[] args) {

        SpringApplication.run(RedisDemoApplication.class, args);
    }
}

For example, direct method calls ,A Method call B Method , Use as follows ：

public class RedisServiceImpl implements RedisService{

	public void A() {

		//  Method class calls
		RedisServiceImpl service = (RedisServiceImpl) AopContext.currentProxy();
		 service.B();
	}

	@RedisLock
	public void B() {

	}
}

5、 Use

Be careful ： When invoking methods that use distributed locks , Need to enter try…catch…, And in catch Handle locking failure in ;

TestController：

@RestController
@RequestMapping
@Slf4j
public class TestController {


    @Resource
    private RedisService redisService;

    @GetMapping(value = "/test")
    public String test() {

        redisService.test();
        return "success";
    }

    @GetMapping(value = "/test2")
    public String test2() {

        String key = UUID.randomUUID().toString();
        redisService.test2(key);
        return "success";
    }
}

RedisService ：

public interface RedisService {

    /** *  Method internal calls use locks  */
    void test();

    /** *  Method is called directly to use the lock  * @param keyName */
    void test2(String keyName);
}

RedisServiceImpl：

@Service
@Slf4j
public class RedisServiceImpl implements RedisService{


    /** *  Method internal calls use locks  */
    @Override
    public void test() {

        log.info(" Method internal calls use locks ");

        //  Call internal method
        RedisServiceImpl service = (RedisServiceImpl) AopContext.currentProxy();
        //  When invoking methods that use distributed locks , Need to enter try...catch..., And in catch Handle locking failure in
        try {

            service.testLock("test11");
        }catch (Exception e){

            e.printStackTrace();
        }
    }

    /** *  Method is called directly to use the lock  */
    @Override
    @RedisLock(keyNum = 0)
    public void test2(String keyName) {

        log.info(" Method is called directly to use the lock ");
    }
    /** *  Locked method , There must be a name "keyName" Parameters of  * @param keyName */
    @RedisLock
    public void testLock(String keyName) throws InterruptedException {

        log.info(keyName);
    }
}

6、 test

Test one ：
Normal locking conditions

Test two ：
Set up tryTime, also tryTime Less than lockTime; When configured like this , When the first thread does not end , The second thread , exceed tryTime Lock failure will occur ;

Modify the code as follows ：

    @RedisLock(keyNum = 0,lockTime = 3000,tryTime = 2000)
    public void testLock(String keyName) throws InterruptedException {

        log.info(keyName);
         TimeUnit.SECONDS.sleep(5);
    }

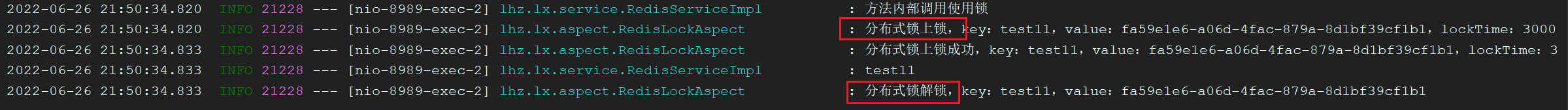

Fast Ask twice Interface , The screenshot is as follows ：

You can see through the screenshot , After the first thread is locked , After that 2000ms The prompt "locking failed" appears ;

Test three ：
Set up tryTime, also tryTime Greater than lockTime; When configured like this , There will be no lock failure , And the second thread will wait until the first thread ends ;
Modify the code as follows ：

    @RedisLock(keyNum = 0,lockTime = 3000,tryTime = 4000)
    public void testLock(String keyName) throws InterruptedException {

        log.info(keyName);
         TimeUnit.SECONDS.sleep(5);
    }

Fast Ask twice Interface , The screenshot is as follows ：

You can see through the screenshot , After the first thread is locked , More than the 3000ms after , The second thread starts locking successfully
