1. executive summary

        Hudi Provides Hudi The concept of table , These tables support CRUD operation , You can use existing big data clusters, such as HDFS Do data file storage , And then use SparkSQL or Hive Wait for the analysis engine to analyze and query the data .Hudi The three main components of the table ：1）、 Ordered timeline metadata , Similar to database transaction log .2）、 Hierarchical data files ： The data actually written into the table ;3） Indexes （ Multiple ways of implementation ）： Map the dataset containing the specified record .

2. time axis Timeline

• Hudi The core ： Maintained in all tables One contain In different instant （Instant） Time to data set operation （ For example, adding 、 Modify or delete ） Of time axis （Timeline）.

• stay Every time Hudi Data set operation of table All the time Of this table Timeline Generate a Instant, Thus, the data submitted successfully after only querying a certain point in time can be realized , Or just query the data before a certain time point , Effectively avoid scanning data in a larger time range .

• meanwhile , It can efficiently query only the files before change （ As in a Instant After submitting the change , only query Data before a certain point in time , You can still query Data before modification ）.
• Timeline yes Hudi Used to manage submission （commit） The abstraction of , Every commit All bound to a fixed timestamp , Spread out on the timeline .
• stay Timeline On , Every commit Abstracted as a HoodieInstant, One instant Recorded a submission (commit) act 、 Time stamp 、 And status .

• Time is used in the picture above （ Hours ） As a partition field , from 10:00 It began to produce all kinds of commits,10:20 Here comes a 9:00 The data of , The data can still fall into 9:00 Corresponding partition , adopt timeline Direct consumption 10:00 Incremental updates after （ Only consumption has new commits Of group）, So this delayed data can still be consumed to .

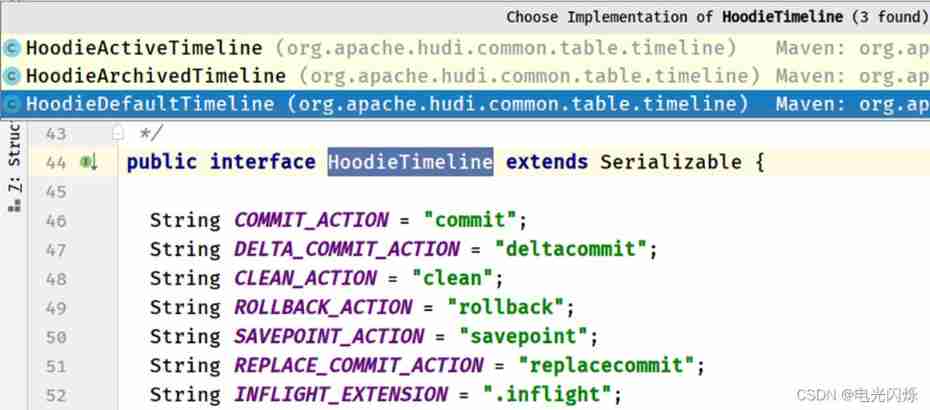

• time axis （Timeline） Implementation class of （ be located hudi-common-xx.jar in ）, The implementation classes related to the timeline are located in org.apache.hudi.common.table.timeline It's a bag .

3. file management

• Hudi take DFS Data sets on are organized into basic paths （HoodieWriteConfig.BASEPATHPROP） Under the directory structure .
• The dataset is divided into multiple partitions （DataSourceOptions.PARTITIONPATHFIELDOPT_KEY）, These partitions are related to Hive The watch is very similar , Is the folder containing the data files of the partition .

• In each zone , Files are organized into file groups , By document id Act as a unique identifier . Each filegroup contains multiple file slices , Each slice contains a submission at an instant / Compress the generated basic column file （.parquet） And a set of log files （.log）, This file contains inserts to the base file since it was generated / to update .

• Hudi Of base file (parquet file ) stay footer Of meta To record record key Composed of BloomFilter, Used in file based index To achieve high efficiency in the realization of key contains testing .
• Hudi Of log （avro file ） It's self coded , By accumulating data buffer With LogBlock Write... For the unit , Every LogBlock contain magic number、size、content、footer Etc , For data reading 、 Check and filter .

4. Indexes Index

• Hudi Provide efficient services through indexing mechanism Upsert operation , The mechanism will put a RecordKey+PartitionPath The combination method is mapped to a file as a unique identity ID, And this unique ID and filegroup / file ID The mapping between records will not change since the records are written to the filegroup .
  • Global index ： The key is required to be unique under all partition ranges of the whole table , That is, ensure that there is and only one corresponding record for a given key .
  • Non global index ： Only within one partition of the table, the key is required to be unique , It relies on the writer to provide a consistent partition path for the deletion of the same record .

5. Hudi Data storage management

---
