One 、 Experiment description and requirements

1、 Experimental instructions

1、 Through the experimental content 1 Understand the underlying programming .
2、 It is required to define a、b、c、x,a、b、c Unlimited initial value .
3、 The program is executed through debug Modify the parameters a、b、c Value .
4、 The result of the calculation is saved in the variable x in .

2、 The experimental requirements

1、 The experiment purpose .
2、 Simple program flow chart .
3、 Screenshots of memory status and running results during the experiment .
4、 Complete code （ Include necessary notes ）.

Two 、 Experimental code

DATAS SEGMENT
    ; Enter segment code here
    a dw +1H		;+1,-2,+3 B^-4AC=4-(12)=-8	 b^2-4ac<0, Rootless
    b dw -2H		;+1,-4,+4 B^-4AC=16-(16)=0	 b^2-4ac=0, There is one
    d dw +3H		;+1,-2,-3 B^-4AC=4-(-12)=16	 b^2-4ac>0, There are two
   	x1 dw 1H
   	x2 dw 1H


DATAS ENDS

STACKS SEGMENT
    ; Enter the stack segment code here
STACKS ENDS

CODES SEGMENT
    ASSUME CS:CODES,DS:DATAS,SS:STACKS


START:
    MOV AX,DATAS
    MOV DS,AX
    ; Code snippet code here
beginning:
    mov AX,b				;
    IMUL AX					;b^2
    MOV CX,AX 				;cx=b^2
    MOV AX,4				;ax=4
    IMUL A					;ax=4a
    IMUL D					;ax=4ac
    MOV BX,AX				;bx=4ac
    MOV AX,CX				;ax=b^2
    SUB AX,BX				;ax=b^3-4ac
    cmp AX,0				    ;b^<4ac
	JL no_answer			    ; Jump to no_answer
	CMP AX,0
	JE one_answer			; equal , Jump to ONE_ANSWER
    jmp two_answer			; Otherwise jump to two_answer


no_answer:
	mov x1,0
	mov x2,0
	jmp	end_work


one_answer:	; When it's worth it ：x1+x2=-b/(-2a)

	MOV AX,B		;AX:B
	MOV BX,A
	DIV BX			;AX:B/A
	MOV CX,2
	DIV CX			;AX:B/(2A)
	MOV CX,-1
	MUL CX			;AX:-B/(2A)
	MOV X1,AX		;X1=-B/(2A)
	MOV X2,AX		;X2:-B/(2A)
	JMP	end_worK

sqrt:	; seek ax Root of
	mov bx,+1	; use bx Compare
	mov cx,0	; use cx Record the number of roots
compute:
	SUB AX,BX		    ;ax-bx
	CMP AX,0
	JL continue_work	    ;<0
	CMP AX,0
	JE equal_cx1		    ;=0
						;>0
	add bx,2	;bx+2
	add cx,1	; Number of roots +1

	;cmp ax,bx	; Compare
	;jb continue_work	   ; When the residual value ax Less than bx when , The number of pieces is cx
	;cmp ax,bx 	; Compare
	;je equal_cx1		   ; When the residual value ax=bx when , The number of pieces is cx+1

	JMP compute

equal_cx1:		       ; When the residual value ax=bx when , The number of pieces is cx+1
	add cx,1
	jmp continue_work

two_answer:
    jmp sqrt
continue_work:	;cx: sqrt(b^2-4ac)
	mov AX,B	;ax=b
	MOV BX,-1
	IMUL BX	;AX=-1
	add AX,CX	;ax:-b+sqrt(b^2-4ac)
	MOV BX,2	;BX=2
	IDIV BX		;ax= [-b+sqrt(b^2-4ac)]/2
	mov BX,A	;BX=A
	IDIV BX		;ax= [-b+sqrt(b^2-4ac)]/(2a)
	MOV X1,AX

	mov AX,B	;ax=b
	MOV BX,-1
	IMUL BX	;AX=-b
	sub AX,CX	;ax:-b-sqrt(b^2-4ac)
	MOV BX,2	;BX=2
	IDIV BX		;ax= [-b-sqrt(b^2-4ac)]/2
	mov BX,A	;BX=A
	IDIV BX		;ax= [-b-sqrt(b^2-4ac)]/(2a)
	MOV X2,AX

end_work:
	jmp beginning	; Jump to the beginning , Re execution
	MOV AH,4CH		; sign out
    INT 21H

CODES ENDS
    END START

3、 ... and 、 Code thinking

Four 、 Program run results

（1）、 unsolvable

a=+1 b=-2 c=+3
b^2-4ac = 4-12 = -8<0
So make x1=0, x2=0
In the memory ,x1、x2 The initial values are as follows ：

Command execution ： Find jumping to no_answer situation

result ： You can see in memory x1=0,x2=0 The calculation is correct

（2）、 A solution （X1 = X2）

a= +1 b = -4 c = +4
b^2-4ac = 16-16=0
x1 = x2 =-2a/b=2

use debug Put... In memory a、b、c、x1、x2 Adjust to 1、-4、4、1、1

According to the running diagram, it can be seen that it has jumped to One_answer The situation .

Result analysis ： Multiply by signed numbers , Results the low order is effective .
Available ：x1=x2=2, So the calculation is correct .

（3）、 Two different solutions

a =+1 b=-2 c=-3
b^2-4ac=4-(-12)=16>0, All two roots
x1=3
x2=-1

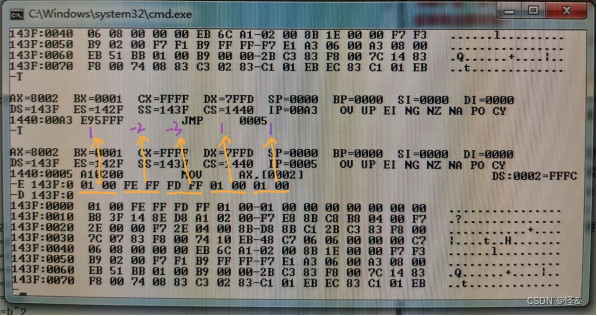

use debug Put... In memory a、b、c、x1、x2 Adjust to 1、-2、-3、1、1

Jump to two_answer situation （ Two different solutions ）

Find out $\sqrt{b^2-4ac}$ , The rooting part is ：sqrt identification , The result of rooting is saved in CX in

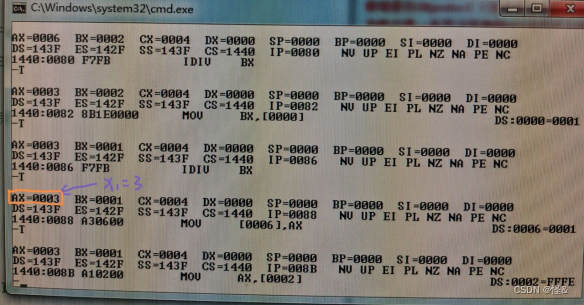

Find out x1=3

Find out x2=-1 （ Signed number operation , Only the low order is valid , The complement is FF, The true value is -1）

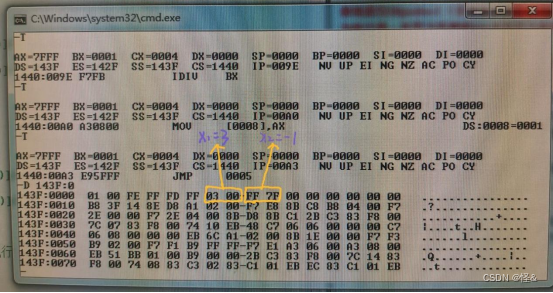

View the results in memory : X1=3 X2=-1
.

5、 ... and 、 Summary of the experiment

   In this experiment , I'm familiar with it again DEBUG The startup of and the use of its basic commands , At the same time, the register calling and addressing operations learned in class and practiced in previous experiments will be reviewed and consolidated again , And for assembly language ： Sequential programming 、 Branch programming 、 Loop program design has its own understanding and design .
   meanwhile , The solution of a quadratic equation of one variable involves the calculation of signed numbers , Therefore, we need to pay attention to the choice of instructions in branch jump and operation ,DIV/IDIV,MUL/IMUL etc. , I learned from the practice of code design and debugging that there are / Operation and storage of unsigned numbers , Be more proficient in flag register and branch jump .
   Because the solution of a quadratic equation of one variable has three cases ：1、 unsolvable 2、 A solution （ The two solutions are the same ） 3、 The case of two different solutions , And apply it to the cycle 、 Jump 、 Block and other ideas . During the experiment , I have some problems , For example, the order in which assembly code runs 、 Jump 、 The operation result has a symbolic judgment jump, etc , After the teacher's patient answer and my debugging again 、 In practice , Finally, all the experimental requirements were successfully completed , At the same time, carefully record the process and results .
  5 month 16 On the afternoon of Sunday 2:30-5:30 Compilation experiment class , I started in the afternoon 2:30 Until evening 9:30, Experienced nearly 100 times of debugging bug And tens of thousands of execution instructions , Finally, the required function is basically completed , But there are still some small places that are not perfect , Then he went to the laboratory three times to improve the code and picture records , Finally, it appears in this blog .
