Vcsa7u3c installation tutorial

Catalog

One 、 To configure DNS

1、 stay DNS Add host on Manager A Record

2、 On the local computer hosts Add local resolution to the file

Two 、 install VCSA

3、 ... and 、 land VCSA

summary

---

One 、 To configure DNS

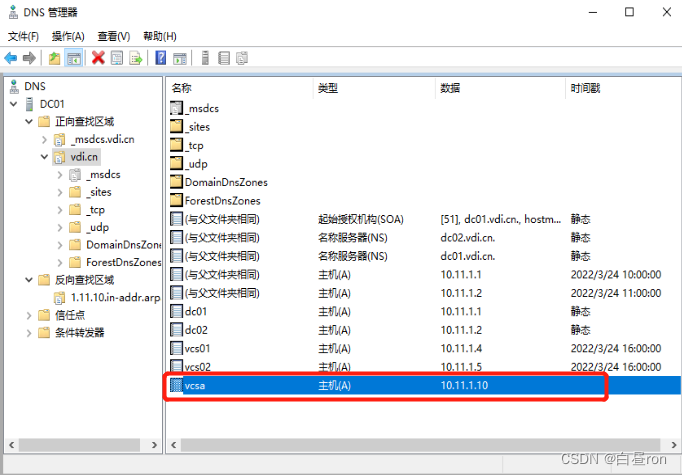

1、 stay DNS Add host on Manager A Record

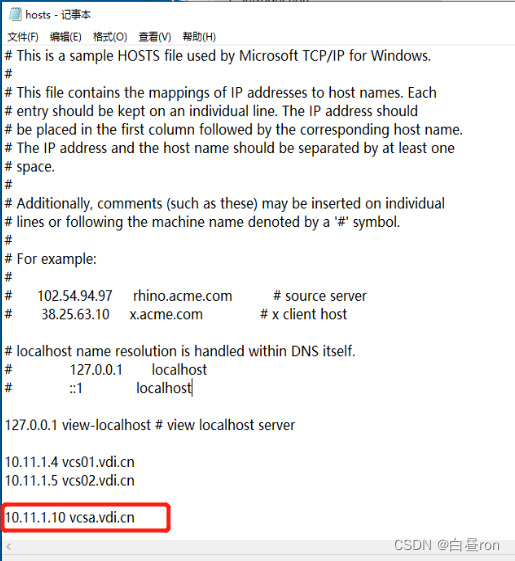

2、 On the local computer hosts Add local resolution to the file

Two 、 install VCSA

load ISO Mirror image , Find the following path , Click on the install ：

choice “Install”：

The first phase is deployment ：

Input the deployment vcsa Target host for IP And user name and password ：

Input vcsa Name and root password ：

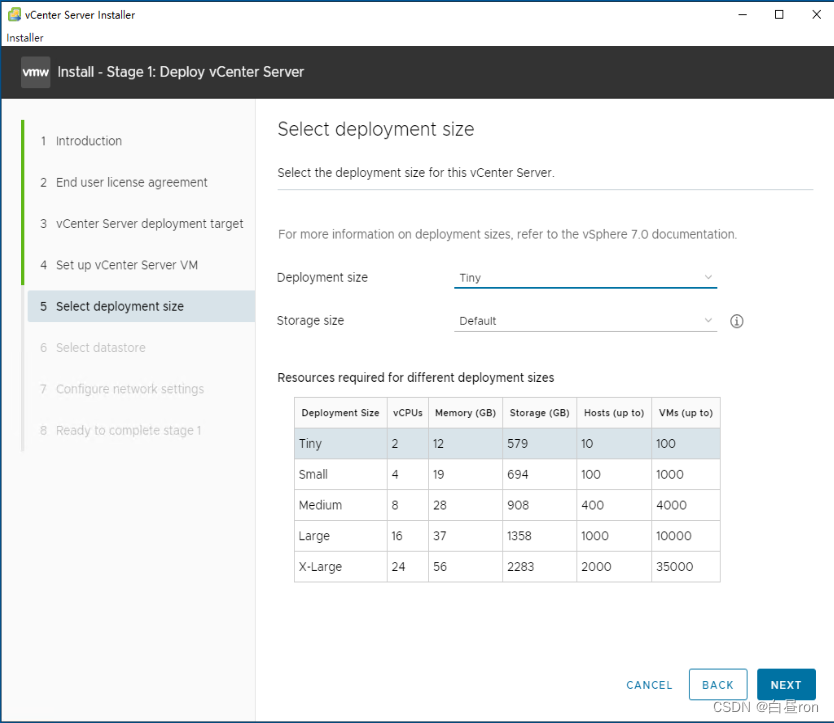

The deployment size type can be selected according to the actual situation , Here, select micro ：

Select local disk , And check the streamline mode ：

  Input vcsa Domain name of 、 static state IP、DNS Etc ：

Verify configuration information , Click again Finish：

The first phase of deployment is in progress ：

After the deployment of the first phase , Click on Continue：

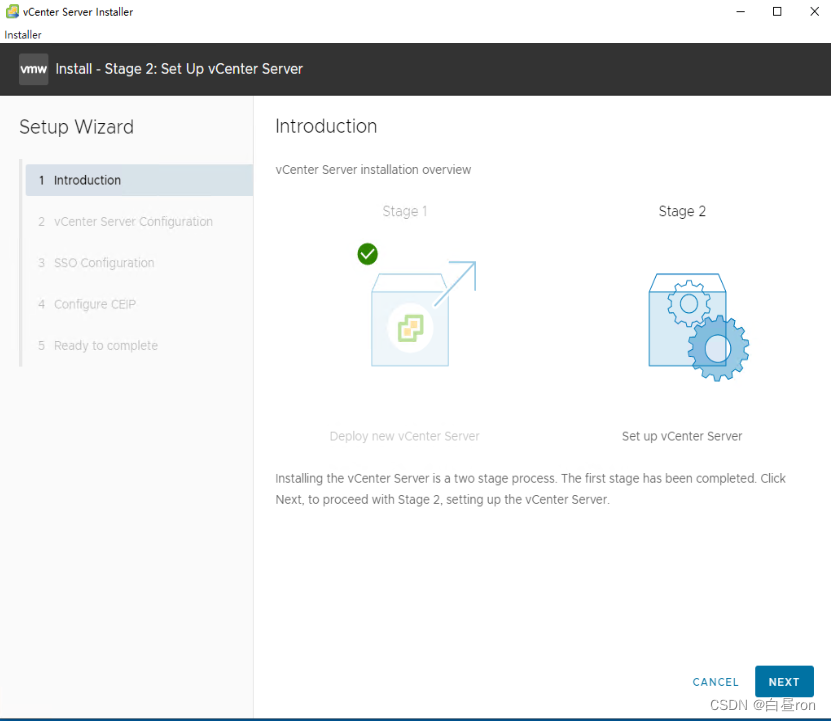

Start the second phase configuration ：

To configure vcsa Virtual machine and Esxi Host time synchronization ：

Enter the login domain name and password ：

After verifying the configuration information , Click on Finish：

The second phase configuration is in progress ：

The second stage configuration is completed , Click on Close：

3、 ... and 、 land VCSA

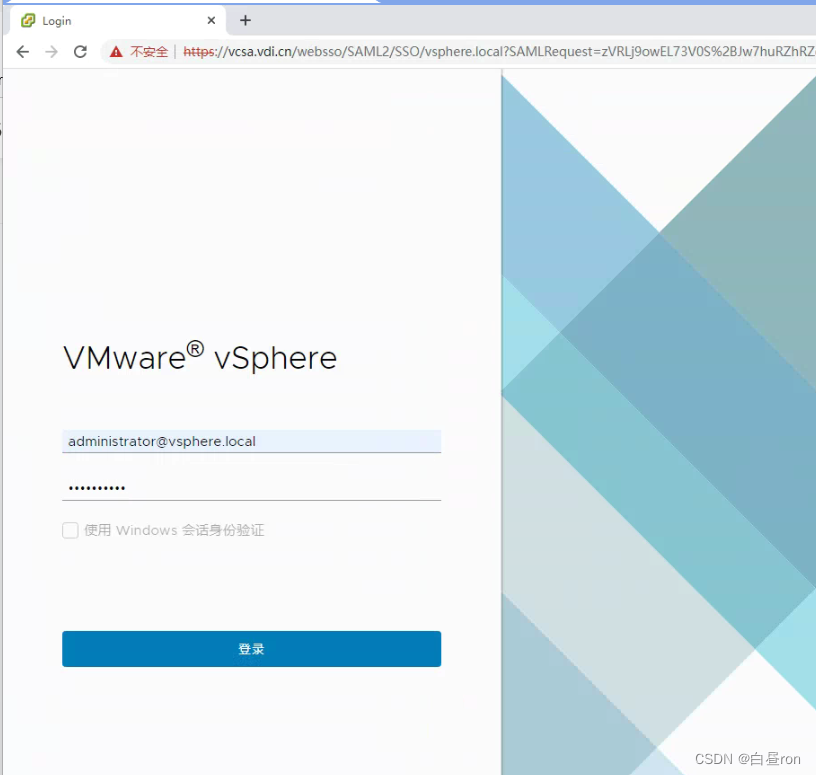

Open the url ：https://vcsa.vdi.cn

Enter your username and password , Click login ：

---

summary

from VMware vSphere 7.0 Start , It has been cancelled Windows Version of vCenter, Available only VCSA（vCenter Server Appliance） The way of installation . in addition , install vcsa7.0 Best configuration DNS, Otherwise, installation failures often occur ！
