Starring V6 platform development take out point process

The basic steps are as follows ： The system design —–> Defining services —–> Define service dependencies —–> Parameter configuration ——> Code writing —–> Custom development —–> Export the service and upload it to the running engine —-> Restart the running engine —-> test

JFDesign（ The system design ）

From the right drawing board, drag in the one out point control , Put it in the right border , And connect the intermediate service with the outgoing point , Modify the output point properties , name :json_output, describe ：json Outgoing point , Communication protocol ：HttpJSON

Click intermediary business , Combine the sub business with json Connect to the connection point

Defining services

Define service dependencies

JFConf（ Parameter configuration ）

Machine parameter configuration

Switch to JFConf page

Double click the exit point json_output, Switch to the machine parameters tab , Select the machine name

Log parameter configuration

Server address configuration

Java Perspective （ Code writing ）

JFBuilder( Custom development ）

Switch to JFBuilder View

Define data objects

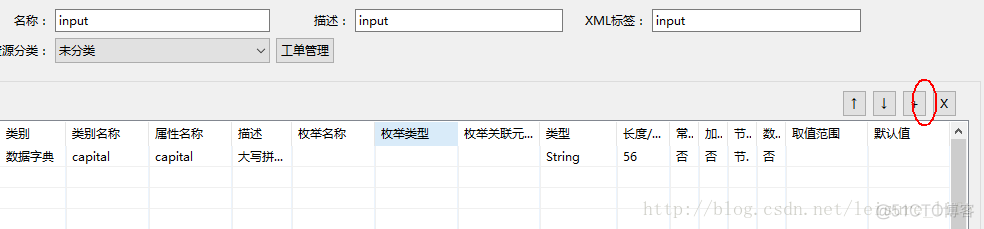

Data objects input

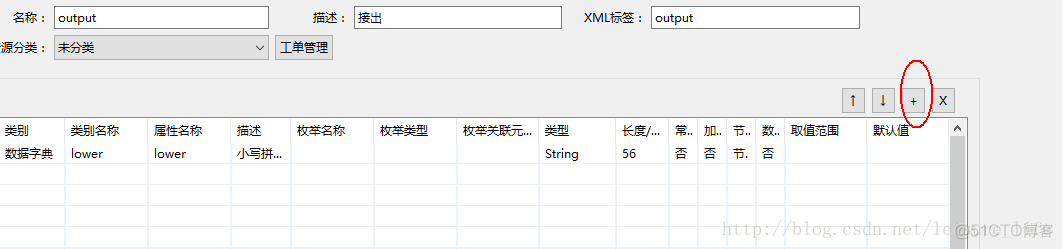

Data objects output

Service properties

OUT0001 service , double-click OUT0001 service , Define input and output data objects

Data mapping

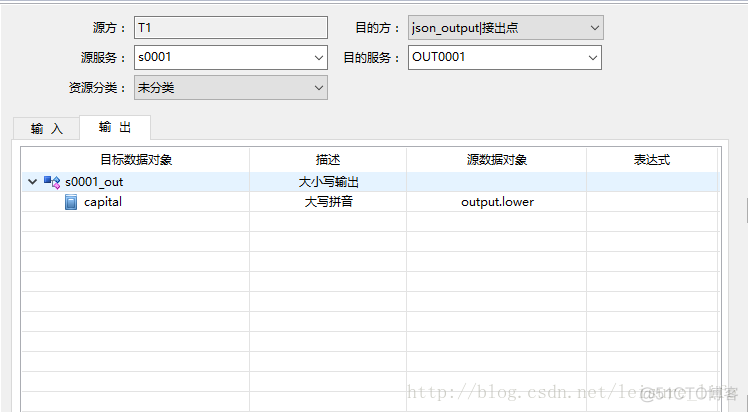

add to s0001 To OUT0001 Input data mapping for

add to s0001 To OUT0001 Data mapping for the output of

Service logic processing

double-click s0001 service , Switch to the process template interface , Drag the communication processing control in the basic part of the right panel to the drawing board

CallOutput attribute

Configure simulator

In the running environment $HOME/sim Under the table of contents

edit startsimsvr.sh, give the result as follows ：

edit Simhttpsrv.xml

Carry out orders :./startsimsrv.sh

Execute the following command

Log in and copy





       ps -ef|grep java







1.



You can see that it has started

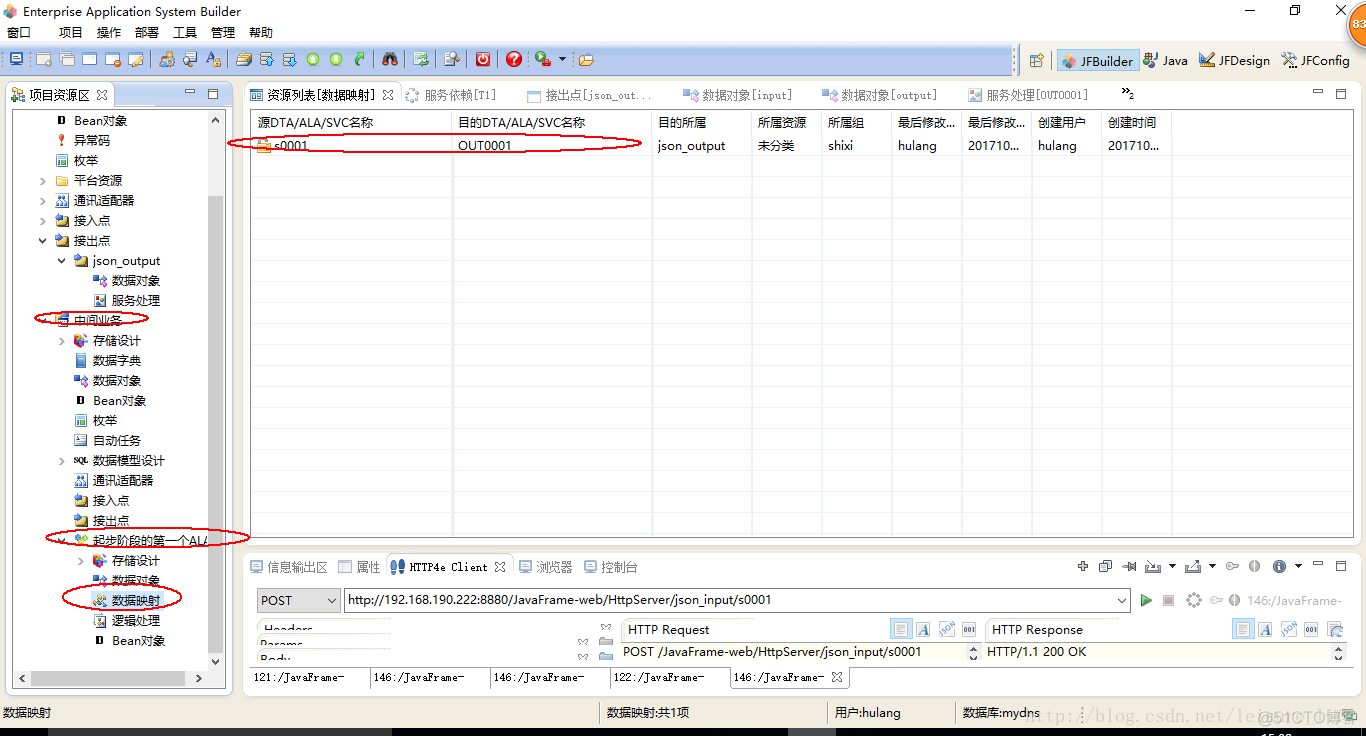

Export refresh

Switch to JFConfig Export all and refresh

All and refresh

Restart the engine

Kill the previous process first

Log in and copy





       ps -ef|grep java





// then


kill -9 7135







1.


2.


3.


4.



Switch directory to starring

Execute the following command

Log in and copy





       ./startStarring.sh







1.

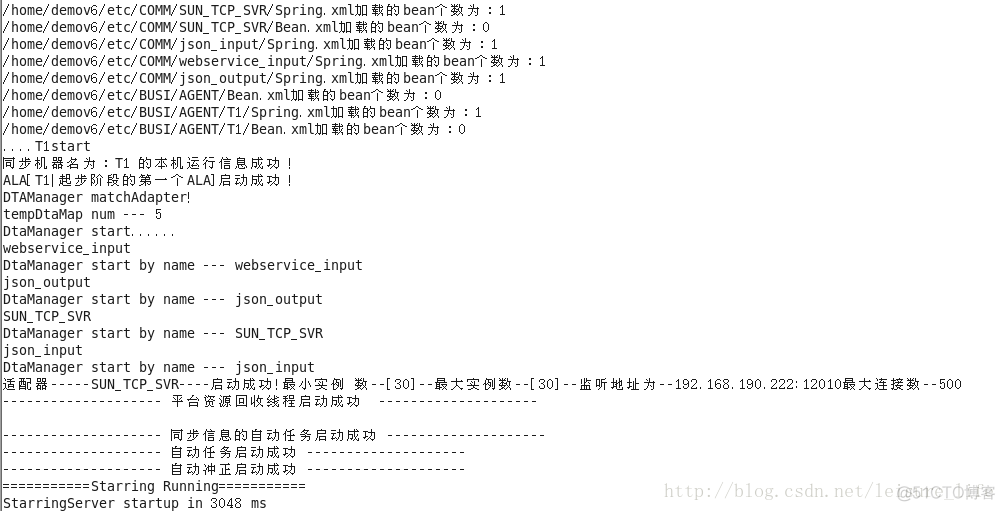

Successful launch

test

Switch to JFBuild View
