2. Realize the map of navigation bar and battle page

1. The overall framework

---

2. Implement navigation bar

---

2.1 Basic navigation bar

stay components Folder creation component ： NavBar.vue

stay template Next Import bootstrap Template

Take a chestnut ：

<nav class="navbar navbar-expand-lg navbar-light bg-light">
  <div class="container-fluid">
    <a class="navbar-brand" href="#">Navbar w/ text</a>
    <button class="navbar-toggler" type="button" data-bs-toggle="collapse" data-bs-target="#navbarText" aria-controls="navbarText" aria-expanded="false" aria-label="Toggle navigation">
      <span class="navbar-toggler-icon"></span>
    </button>
    <div class="collapse navbar-collapse" id="navbarText">
      <ul class="navbar-nav me-auto mb-2 mb-lg-0">
        <li class="nav-item">
          <a class="nav-link active" aria-current="page" href="#">Home</a>
        </li>
        <li class="nav-item">
          <a class="nav-link" href="#">Features</a>
        </li>
        <li class="nav-item">
          <a class="nav-link" href="#">Pricing</a>
        </li>
      </ul>
      <span class="navbar-text">
        Navbar text with an inline element
      </span>
    </div>
  </div>
</nav>

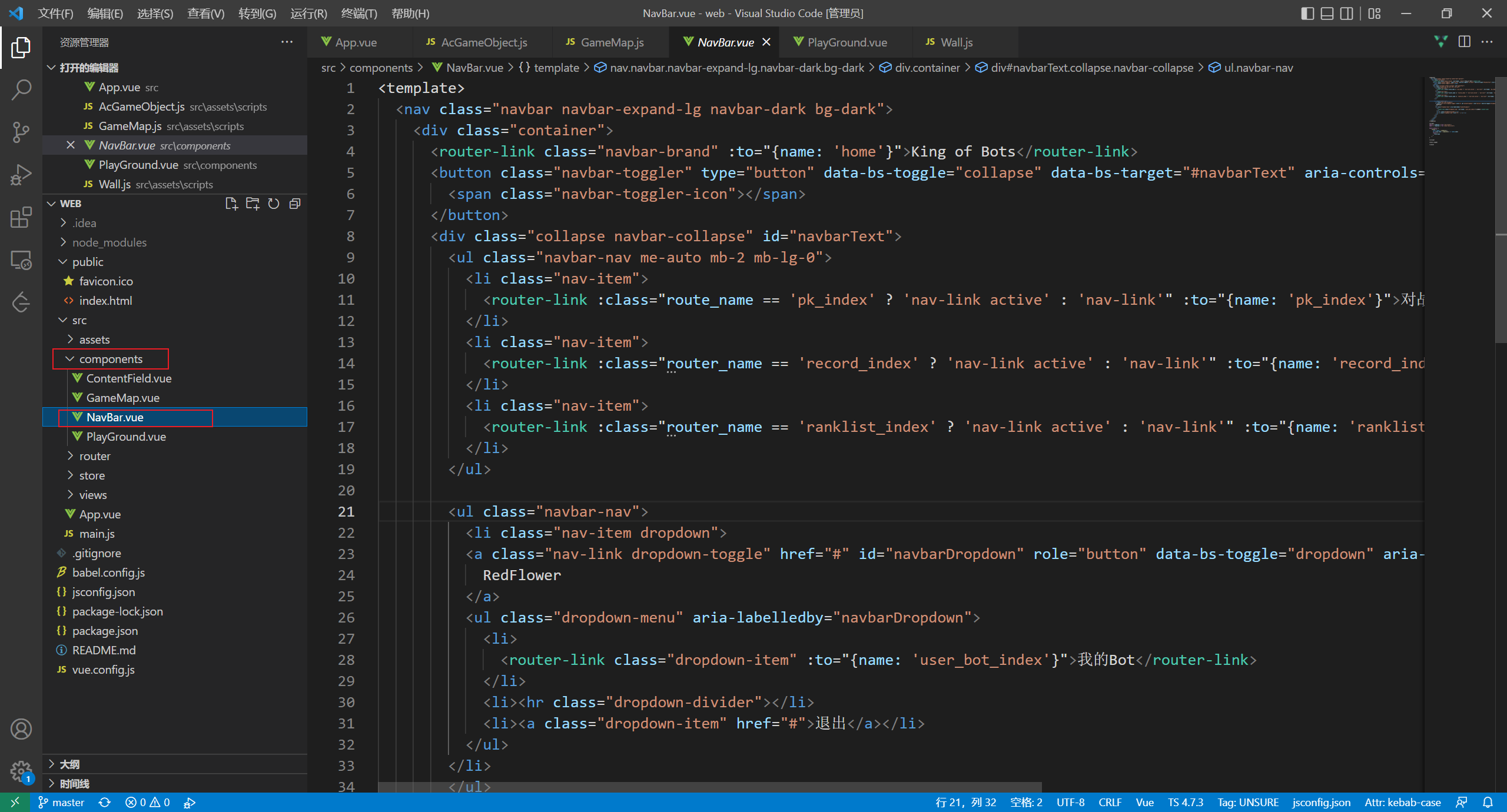

Create a successful NavBar.vue

stay App.vue Add NavBar Components ：

<template>
  <NavBar></NavBar>
  <router-view></router-view>
</template>

<script>

import NavBar from "@/components/NavBar.vue";
import "bootstrap/dist/css/bootstrap.min.css";
import "bootstrap/dist/js/bootstrap"

export default {
  components:{
    NavBar
  }
}
</script>

<style>
body {
  background-image: url("./assets/images/background.png");
  background-size: cover;
}
</style>

If an error is reported, you may need to add @popperjs/core rely on refresh

At the same time to modify bootstrap Words in the template , Change to the style you need

---

2.2 URL jump

aims: Enter a different address in the address bar , You need to jump to different interfaces
for example :

• http://localhost:8080/pk/ go to pk Interface
• http://localhost:8080/record/ go to Battle record Interface

2.2.1 Design page ：

Need to use 5 Interfaces

pk + record + ranklist + userbots + 404

2.2.2 Create folder and Corresponding page

stay views Create under folder ：

The template of each page is as follows , Different page modifications div The font inside can .

Modification of the war... War 、 The match list is modified to match list, etc 、

<template>
    <div> Against the </div>
</template>

<script>

</script>

<style scoped>
</style>

2.2.3 The address is associated with the page

stay router/index.js The following defines the URL

import PkIndexView from '../views/pk/PkIndexView'
import RanklistIndexView from '../views/ranklist/RanklistIndexView'
import RecordIndexView from '../views/record/RecordIndexView'
import UserBotIndexView from '../views/user/bot/UserBotIndexView'
import NotFound from '../views/error/NotFound'

const routes = [
  {

    path: "/",
    name: "home",
    redirect: "/pk/"
  },
  {

    path: "/pk/",
    name: "pk_index",
    component: PkIndexView,
  },
  {

    path: "/record/",
    name: "record_index",
    component: RecordIndexView,
  },
  {

    path: "/ranklist/",
    name: "ranklist_index",
    component: RanklistIndexView,
  },
  {

    path: "/user/bot",
    name: "user_bot_index",
    component: UserBotIndexView,
  },
  {

    path: "/404/",
    name: "404",
    component: NotFound,
  },
  {

    path: "/:catchAll(.*)",
    redirect: "/404/",
  }
]

At the same time NavBar Internal modification herf

---

2.2.4 Achieve click 、 Icon does not refresh

stay NavBar Modify the ： hold <a> Switch to <router-link> At the same time, modify according to the following ：

<router-link class="nav-link" :to="{name: 'pk_index'}"> Against the </router-link>

The following is the complete process ：

---

2.3 Implement the box of each page

Because these pages need borders , So we can treat this common part as a component

Create a new one ContentField.vue Components

 Shortcut key ： div.container>div.card>div.card-body>

Component code ：

<template>
    <div class="container content-field">
        <div class="card">
            <div class="card-body">
                <slot></slot>
            </div>
        </div>
    </div>
</template>

<script>

</script>

<style scoped>
    div.content-field{
        margin-top: 20px;
    }
</style>

Component content ：

After the component is created 、 We can introduce components in different interfaces , For example, in pk Interface ：

<template>
    <ContentField>
         Against the
    </ContentField>
</template>


<script>
import ContentField from '../../components/ContentField'

export default {
    components: {
        ContentField
    }
}
</script>

<style scoped>
</style>

In this way, components can be introduced into different interfaces .

---

2.4 Page focus

thought ：
Get the current interface of the mouse , modify NavBar.vue

<script> Is to get the current page , above <template> Use Ternary operator to judge , If so active.

as follows ：

<template>
  <nav class="navbar navbar-expand-lg navbar-dark bg-dark">
    <div class="container">
      <router-link class="navbar-brand" :to="{name: 'home'}">King of Bots</router-link>
      <button class="navbar-toggler" type="button" data-bs-toggle="collapse" data-bs-target="#navbarText" aria-controls="navbarText" aria-expanded="false" aria-label="Toggle navigation">
        <span class="navbar-toggler-icon"></span>
      </button>
      <div class="collapse navbar-collapse" id="navbarText">
        <ul class="navbar-nav me-auto mb-2 mb-lg-0">
          <li class="nav-item">
            <router-link :class="route_name == 'pk_index' ? 'nav-link active' : 'nav-link'" :to="{name: 'pk_index'}"> Against the </router-link>
          </li>
          <li class="nav-item">
            <router-link :class="router_name == 'record_index' ? 'nav-link active' : 'nav-link'" :to="{name: 'record_index'}"> Match list </router-link>
          </li>
          <li class="nav-item">
            <router-link :class="router_name == 'ranklist_index' ? 'nav-link active' : 'nav-link'" :to="{name: 'ranklist_index'}"> Ranking List </router-link>
          </li>
        </ul>

        <ul class="navbar-nav">
          <li class="nav-item dropdown">
          <a class="nav-link dropdown-toggle" href="#" id="navbarDropdown" role="button" data-bs-toggle="dropdown" aria-expanded="false">
            RedFlower
          </a>
          <ul class="dropdown-menu" aria-labelledby="navbarDropdown">
            <li>
              <router-link class="dropdown-item" :to="{name: 'user_bot_index'}"> my Bot</router-link>
            </li>
            <li><hr class="dropdown-divider"></li>
            <li><a class="dropdown-item" href="#"> sign out </a></li>
          </ul>
        </li>
        </ul>
      </div>
    </div>
  </nav>
</template>

<script>
import { useRoute } from "vue-router";
import { computed } from "@vue/reactivity";

export default {
    setup() {
      const route = useRoute();
      let route_name = computed(() => route.name)
      return {
        route_name
      }
    }
}

</script>

<style scoped>

</style>

---

2.5 Code address ：

https://git.acwing.com/syy/kob/-/commit/0e77363c84de61461eef77d514aa7565ad675ab8

---

3. Implement maps

---

3.1 Map features ：

1. size ：13 * 13

2. The center of the map is symmetrical , The edge is a wall , The lower left corner and the lower right corner generate two snakes , And the lower left corner and the lower right corner are connected

3. Different obstacles will be randomly generated on the map .

---

---

3.2 Draw the game area

It's equivalent to making your own wheels

stay assets Create a new folder in the directory Name it scripts

Create a new game class The name is : AcGameObject.js

const AC_GAME_OBJECTS = [];

export class AcGameObject {

    contructor() {

        AcGame_Object.push(this);
        this.timedelta = 0; //  Time interval every frame
        this.has_called_start = false;
    }

    start() {
     //  Only once

    }

    update() {
     // Execute once per frame

    }

    on_destroy() {
     // Execute before deleting

    }

    distory() {

        this.on_destroy();

        for (let i in AC_GAME_OBJECTS) {

            const obj = AC_GAME_OBJECTS[i];
            if (obj === this) {

                AC_GAME_OBJECTS.splice(i);
                break;
            }
        }
    }
}

let last_timestamp;
const step = timestamp => {

    for (let obj of AC_GAME_OBJECTS) {

        if (!obj.has_called_start) {

            obj.has_called_start = true;
            obj.start();
        } else {

            obj,timedelta = timestamp - last_timestamp;
            obj.update();
        }
    }

	last_timestamp = timestamp;
    requestAnimationFrame(step)
}

requestAnimationFrame(step)

Implement map class ：GameMap.js

import {
     AcGameObject } from "./AcGameObject";

export class GameMap extends AcGameObject {

    constructor(ctx, parent) {

        super();

        this.ctx = ctx;
        this.parent = parent;
        this.L = 0;

    }

    start() {


    }

    update() {

        this.rander();
    }

    // Rendering function
    render() {


    }
}

---

3.2.1 Draw the game area

stay pk The interface creates a game area , Used to show the battle .

stay commponts Write a component ： PlayGround.vue

<template>
    <div class="playground">

    </div>
</template>

<script>


</script>

<style scoped>
div.playground {
    width: 60vw;
    height: 70vh;
    background: lightblue;
}
</style>

And then in pk_index Introduce this component into ：

<template>
  <PlayGround/>
</template>


<script>
import PlayGround from '../../components/PlayGround.vue'

export default {
    components: {
        PlayGround
    }
}
</script>

<style scoped>
</style>

Because in pk The interface may also contain different things such as scoreboards .

So open a new component to store other types of components GameMap.vue

<template>
    <div class="gamemap"></div>
</template>

<script>

</script>

<style scoped>

div.gamemap {
    width: 100%;
    height: 100%;
}
</style>

stay PlayGround.vue Introduction in GameMap.vue

<template>
    <div class="playground">
        <GameMap/>
    </div>
</template>

<script>
import GameMap from "./GameMap.vue";

export default {
    components: {
        GameMap,
    }
}
</script>

stay GameMap.vue Add canvas

<template>
    <div ref="parent" class="gamemap">
        <canvas ref="canvas">
        </canvas>
    </div>
</template>

<script>
import { GameMap } from "@/assets/scripts/GameMap"
import { ref, onMounted } from 'vue'

export default {
    setup() {
        let parent = ref(null);
        let canvas = ref(null);

        onMounted(() => {
            new GameMap(canvas.value.getContext('2d'), parent.value);
        })
        return {
            parent,
            canvas
        }
    }
}

</script>

<style scoped>

div.gamemap {
    width: 100%;
    height: 100%;
}
</style>

---

The preliminary map is as follows ：

---

3.3 Dynamically calculate the internal area ：

stay GameMap.js Revision in China ：

import {
     AcGameObject } from "./AcGameObject";

export class GameMap extends AcGameObject {

    constructor(ctx, parent) {

        super();

        this.ctx = ctx;
        this.parent = parent;
        this.L = 0;

        this.rows = 13;
        this.cols = 13;
    }

    start() {


    }

    update_size() {

        //  Calculate the side length of the small square
        this.L = Math.min(this.parent.clientWidth / this.cols, this.parent.clientHeight / this.rows);
        this.ctx.canvas.width = this.L * this.cols;
        this.ctx.canvas.height = this.L * this.rows;
    }

    update() {

        this.update_size();
        this.render();
    }

    render() {

        // drawing
        this.ctx.fillStyle = 'green';
        this.ctx.fillRect(0, 0, this.ctx.canvas.width, this.ctx.canvas.height);
    }
}

How to center the area — > stay GameMap.vue Add

<style scoped>

div.gamemap {
    width: 100%;
    height: 100%;
    display: flex;
    justify-content: center;
    align-items: center;
}
</style>

---

Draw a square ：

3.4 Parity shows the small grid in the square area ：

stay GameMap.js Revision in China , The complete code is as follows ：

import {
     AcGameObject } from "./AcGameObject";

export class GameMap extends AcGameObject {

    constructor(ctx, parent) {

        super();

        this.ctx = ctx;
        this.parent = parent;
        this.L = 0;

        this.rows = 13;
        this.cols = 13;
    }

    start() {


    }

    update_size() {

        //  Calculate the side length of the small square
        this.L = Math.min(this.parent.clientWidth / this.cols, this.parent.clientHeight / this.rows);
        this.ctx.canvas.width = this.L * this.cols;
        this.ctx.canvas.height = this.L * this.rows;
    }

    update() {

        this.update_size();
        this.render();
    }

    render() {

        //  Take the color
        const color_eve = "#AAD751", color_odd = "#A2D149";
        //  dyeing
        for (let r = 0; r < this.rows; r ++ )
            for (let c = 0; c < this.cols; c ++ ) {

            if ((r + c) % 2 == 0) {

                this.ctx.fillStyle = color_eve;
            } else {

                this.ctx.fillStyle = color_odd;
            }
            // Top left corner left , clear canvas Coordinate system
            this.ctx.fillRect(c * this.L, r * this.L, this.L, this.L);
        }
    }
}

---

The effect of parity display small grid is as follows ：

---

3.5 Design wall

stay scripts Create a new one wall.js

import {
     AcGameObject } from "./AcGameObject";

export class Wall extends AcGameObject {

    constructor(r, c, gamemap) {

        super();

        this.r = r;
        this.c = c;
        this.gamemap = gamemap;
        this.color = "#B37226";
    }

    update() {

        this.render();
    }

    render() {

        const L = this.gamemap.L;
        const ctx = this.gamemap.ctx;

        ctx.fillStyle = this.color;
        ctx.fillRect(this.c * L, this.r * L, L, L);
    }
}

modify GameMap.js , introduce Wall

import {
     AcGameObject } from "./AcGameObject";
import {
     Wall } from "./Wall";

export class GameMap extends AcGameObject {

    constructor(ctx, parent) {

        super();

        this.ctx = ctx;
        this.parent = parent;
        this.L = 0;

        this.rows = 13;
        this.cols = 13;

        this.wall = [];
    }

    creat_walls() {

        //  wall  true  nothing  false
        const g = [];
        for (let r = 0; r < this.cols; r ++ ) {

            g[r] = [];
            for (let c = 0; c < this.cols; c ++ ) {

                g[r][c] = false;
            }
        }

        // Add walls around
        for (let r = 0; r < this.rows; r ++ ) {

            g[r][0] = g[r][this.cols - 1] = true;
        }

        for (let c = 0; c < this.cols; c ++ ) {

            g[0][c] = g[this.rows - 1][c] = true;
        }
        for (let r = 0; r < this.rows; r ++ ) {

            for (let c = 0; c < this.cols; c ++ ) {

                if (g[r][c]) {

                    this.wall.push(new Wall(r, c, this));
                }
            }
        }
    }

    start() {

        this.creat_walls();
    }

    update_size() {

        //  Calculate the side length of the small square
        this.L = parseInt(Math.min(this.parent.clientWidth / this.cols, this.parent.clientHeight / this.rows));
        this.ctx.canvas.width = this.L * this.cols;
        this.ctx.canvas.height = this.L * this.rows;
    }

    update() {

        this.update_size();
        this.render();
    }

    render() {

        //  Take the color
        const color_eve = "#AAD751", color_odd = "#A2D149";
        //  dyeing
        for (let r = 0; r < this.rows; r ++ )
            for (let c = 0; c < this.cols; c ++ ) {

            if ((r + c) % 2 == 0) {

                this.ctx.fillStyle = color_eve;
            } else {

                this.ctx.fillStyle = color_odd;
            }
            // Top left corner left , clear canvas Coordinate system
            this.ctx.fillRect(c * this.L, r * this.L, this.L, this.L);
        }
    }
}

---

---

3.6 Generate maps

modify GameMap.js , Randomly generated obstacles , At the same time, it is forbidden to The lower left corner and Upper right corner Creating obstacles .

import {
     AcGameObject } from "./AcGameObject";
import {
     Wall } from "./Wall";

export class GameMap extends AcGameObject {

    constructor(ctx, parent) {

        super();

        this.ctx = ctx;
        this.parent = parent;
        this.L = 0;

        this.rows = 13;
        this.cols = 13;

        this.inner_walls_count = 20;
        this.wall = [];
    }

    creat_walls() {

        //  wall  true  nothing  false
        const g = [];
        for (let r = 0; r < this.cols; r ++ ) {

            g[r] = [];
            for (let c = 0; c < this.cols; c ++ ) {

                g[r][c] = false;
            }
        }

        // Add walls around
        for (let r = 0; r < this.rows; r ++ ) {

            g[r][0] = g[r][this.cols - 1] = true;
        }

        for (let c = 0; c < this.cols; c ++ ) {

            g[0][c] = g[this.rows - 1][c] = true;
        }

        //  Create random obstacles
        for (let i = 0; i < this.inner_walls_count / 2; i ++ ) {

            for (let j = 0; j < 1000; j ++ ) {

                //  A random number
                let r = parseInt(Math.random() * this.rows);
                let c = parseInt(Math.random() * this.cols);
                if (g[r][c] || g[c][r]) continue;

                //  Exclude the lower left corner and upper right corner
                if (r == this.rows - 2  && c == 1|| r == 1 && c == this.cols - 2)
                    continue;
                //  symmetry
                g[r][c] = g[c][r] = true;
                break;
            }
        }

        for (let r = 0; r < this.rows; r ++ ) {

            for (let c = 0; c < this.cols; c ++ ) {

                if (g[r][c]) {

                    this.wall.push(new Wall(r, c, this));
                }
            }
        }
    }

    start() {

        this.creat_walls();
    }

    update_size() {

        //  Calculate the side length of the small square
        this.L = parseInt(Math.min(this.parent.clientWidth / this.cols, this.parent.clientHeight / this.rows));
        this.ctx.canvas.width = this.L * this.cols;
        this.ctx.canvas.height = this.L * this.rows;
    }

    update() {

        this.update_size();
        this.render();
    }

    render() {

        //  Take the color
        const color_eve = "#AAD751", color_odd = "#A2D149";
        //  dyeing
        for (let r = 0; r < this.rows; r ++ )
            for (let c = 0; c < this.cols; c ++ ) {

            if ((r + c) % 2 == 0) {

                this.ctx.fillStyle = color_eve;
            } else {

                this.ctx.fillStyle = color_odd;
            }
            // Top left corner left , clear canvas Coordinate system
            this.ctx.fillRect(c * this.L, r * this.L, this.L, this.L);
        }
    }
}

---

3.6.1 Connect the two blocks

Use flood fill Algorithm

import {
     AcGameObject } from "./AcGameObject";
import {
     Wall } from "./Wall";

export class GameMap extends AcGameObject {

    constructor(ctx, parent) {

        super();

        this.ctx = ctx;
        this.parent = parent;
        this.L = 0;

        this.rows = 13;
        this.cols = 13;

        this.inner_walls_count = 50;
        this.wall = [];
    }

    // flood fill Algorithm
    //  Parameters  , chart  , Starting point x,y  Key x, y
    check_connectivity(g, sx, sy, tx, ty) {

        if (sx == tx && sy == ty) return true;
        g[sx][sy] = true;

        let dx = [-1, 0, 1, 0], dy = [0, 1, 0, -1];
        for (let i = 0; i < 4; i ++ ) {

            let x = sx + dx[i], y = sy + dy[i];
            if (!g[x][y] && this.check_connectivity(g, x, y, tx, ty))
                return true;
        }

        return false;
     }

    creat_walls() {

        //  wall  true  nothing  false
        const g = [];
        for (let r = 0; r < this.cols; r ++ ) {

            g[r] = [];
            for (let c = 0; c < this.cols; c ++ ) {

                g[r][c] = false;
            }
        }

        // Add walls around
        for (let r = 0; r < this.rows; r ++ ) {

            g[r][0] = g[r][this.cols - 1] = true;
        }

        for (let c = 0; c < this.cols; c ++ ) {

            g[0][c] = g[this.rows - 1][c] = true;
        }

        //  Create random obstacles
        for (let i = 0; i < this.inner_walls_count / 2; i ++ ) {

            for (let j = 0; j < 1000; j ++ ) {

                //  A random number
                let r = parseInt(Math.random() * this.rows);
                let c = parseInt(Math.random() * this.cols);
                if (g[r][c] || g[c][r]) continue;

                //  Exclude the lower left corner and upper right corner
                if (r == this.rows - 2  && c == 1|| r == 1 && c == this.cols - 2)
                    continue;
                //  symmetry
                g[r][c] = g[c][r] = true;
                break;
            }
        }

        //  Judge whether it is connected
        //  Copy the current state
        const copy_g = JSON.parse(JSON.stringify(g)); //  Copied to the JSON And then switch back
        if (!this.check_connectivity(copy_g, this.rows - 2, 1, 1, this.cols - 2)) return false;

        for (let r = 0; r < this.rows; r ++ ) {

            for (let c = 0; c < this.cols; c ++ ) {

                if (g[r][c]) {

                    this.wall.push(new Wall(r, c, this));
                }
            }
        }

        return true;
    }

    start() {


        for (let i = 0; i < 1000; i ++ )
            if (this.creat_walls())
                break;
    }

    update_size() {

        //  Calculate the side length of the small square
        this.L = parseInt(Math.min(this.parent.clientWidth / this.cols, this.parent.clientHeight / this.rows));
        this.ctx.canvas.width = this.L * this.cols;
        this.ctx.canvas.height = this.L * this.rows;
    }

    update() {

        this.update_size();
        this.render();
    }

    render() {

        //  Take the color
        const color_eve = "#AAD751", color_odd = "#A2D149";
        //  dyeing
        for (let r = 0; r < this.rows; r ++ )
            for (let c = 0; c < this.cols; c ++ ) {

            if ((r + c) % 2 == 0) {

                this.ctx.fillStyle = color_eve;
            } else {

                this.ctx.fillStyle = color_odd;
            }
            // Top left corner left , clear canvas Coordinate system
            this.ctx.fillRect(c * this.L, r * this.L, this.L, this.L);
        }
    }
}

---

Final effect ：

3.7 Code address

https://git.acwing.com/syy/kob/-/commit/093d1651c831680d7f363a0f2653eb26c5958e6c

Small tips: How to change the icon ： stay public Replace favicon.icon
