Use of OpenCL thread algebra library viennacl

ViennaCL

Introduce

http://viennacl.sourceforge.net/

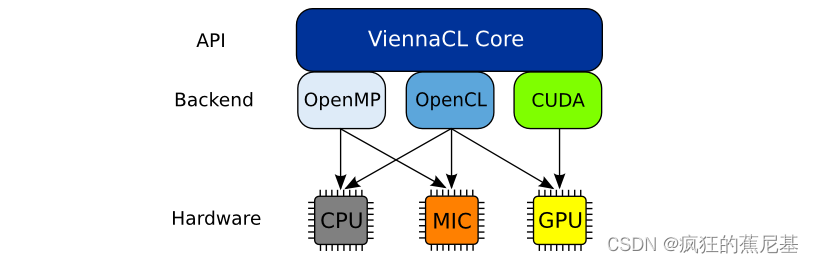

ViennaCL is a free open-source linear algebra library for computations on many-core architectures (GPUs, MIC) and multi-core CPUs. The library is written in C++ and supports CUDA, OpenCL, and OpenMP (including switches at runtime).

ViennaCL Is a free open source linear algebra library , For multi-core architecture (gpu, MIC) And multicore cpu The calculation of . The library uses c++ Compiling , Support CUDA、OpenCL and OpenMP( Including the switch during operation ).

newest 1.7 Highlights of the version .X The release series is :

• Fast sparse matrix-matrix multiplications, outperforming CUBLAS and MKL.
• Fast sparse matrix - Matrix multiplication , be better than CUBLAS and MKL.
• Fine-grained parallel algebraic multigrid preconditioners for CPUs, Xeon Phis, and GPUs.
• Fine grained parallel algebraic multigrid preprocessor cpu, Xeon phi Coprocessors and gpu.
• Fine-grained parallel incomplete LU factorization preconditioners for CPUs, Xeon Phis, and GPUs.
• Fine grained parallelism is not complete LU Disassembly preprocessor , be used for cpu, Xeon phi Coprocessors and gpu.


download

http://viennacl.sourceforge.net/viennacl-download.html
Download connection as above , Please use the corresponding version if you need it .
ViennaCL-1.7.1.tar.gz

compile

• Unzip the downloaded source code

unzip ViennaCL-1.7.1.zip

The following directory will be generated , Get into build

[email protected]:ViennaCL-1.7.1$ ls
build      CL     CMakeLists.txt  examples  libviennacl  README  viennacl
changelog  cmake  doc             external  LICENSE      tests

perform cmake-gui ../ And then click Configure.
At this time, it will automatically be in usr Look for OpenCL Compile the header and library files required by the environment （libOpenCL.so）. If not, please install the corresponding graphics card driver SDK, If it is an embedded board , Please select cross compile , Then specify but for the desired opencl Header and library files .

Make the header file path and library file path , Click on Generate. Generate Makefile, And then execute make
Or reference build/README.txt
Wait for the compilation to succeed , Move to the corresponding platform .

Use

We see ：
In the compiled code examples There will be many executable examples under , For user's use .

benckmarks

#./dense_blas-bench-opencl
----------------------------------------------
               Device Info
----------------------------------------------

Vendor:              Vivante Corporation
Type:                GPU
Available:           1
Max Compute Units:   1
Max Work Group Size: 1024
Global Mem Size:     268435456
Local Mem Size:      32768
Local Mem Type:      2
Host Unified Memory: 1

Benchmark : BLAS
----------------
sCOPY : 2 GB/s
sAXPY : 2 GB/s
sDOT : 4 GB/s
sGEMV-N : 1.97 GB/s
sGEMV-T : 1.48 GB/s
sGEMM-NN : 0.246 GFLOPs/s
sGEMM-NT : 0.246 GFLOPs/s
sGEMM-TN : 0.246 GFLOPs/s
sGEMM-TT : 0.246 GFLOPs/s
----

Benchmark : BLAS
----------------
sCOPY : 0.195 GB/s
sAXPY : 0.196 GB/s
sDOT : 0.171 GB/s
sGEMV-N : 0.0303 GB/s
sGEMV-T : 0.0517 GB/s
sGEMM-NN : 0.00863 GFLOPs/s
sGEMM-NT : 0.234 GFLOPs/s
sGEMM-TN : 0.00868 GFLOPs/s
sGEMM-TT : 0.00863 GFLOPs/s
----
dCOPY : 0.381 GB/s
dAXPY : 0.377 GB/s
dDOT : 0.327 GB/s
dGEMV-N : 0.0596 GB/s
dGEMV-T : 0.101 GB/s
dGEMM-NN : 0.00797 GFLOPs/s
dGEMM-NT : 0.00774 GFLOPs/s
dGEMM-TN : 0.00821 GFLOPs/s
dGEMM-TT : 0.00797 GFLOPs/s

#./opencl-bench-opencl
----------------------------------------------
               Device Info
----------------------------------------------
Name:                Vivante OpenCL Device VIP8000-OI.8102.0000
Vendor:              Vivante Corporation
Type:                GPU
Available:           1
Ma[ 5243.331300] VIP8000 SetPower 0
x Compute Units:		 1
Max Work Group Size: 1024
Global Mem Size:     268435456
Local Mem Size:      32768
Local Mem Type:      2
Host Unified Memory: 1


----------------------------------------------
----------------------------------------------
## Benchmark :: OpenCL performance
----------------------------------------------

   -------------------------------
   # benchmarking single-precision
   -------------------------------
Time for building scalar kernels: 4e-06
Time for building vector kernels: 1.446
Time for building matrix kernels: 2.98157
Time for building compressed_matrix kernels: 1.88953
Time for 100000 entry accesses on host: 0.004118
Time per entry: 4.118e-08
Result of operation on host: 104839
Time for 100000 entry accesses via OpenCL: 35.0961
Time per entry: 0.000350961
Result of operation via OpenCL: 104839

bandwidth-reduction

#./bandwidth-reduction
-- Generating matrix --
 * Unknowns: 262144
 * Initial bandwidth: 8192
 * Randomly reordered bandwidth: 262051
-- Cuthill-McKee algorithm --
 * Reordered bandwidth: 6207
-- Advanced Cuthill-McKee algorithm --
 * Reordered bandwidth: 6207
-- Gibbs-Poole-Stockmeyer algorithm --
 * Reordered bandwidth: 6207
!!!! TUTORIAL COMPLETED SUCCESSFULLY !!!!

fft

Computing FFT Matrix
m: [4,8]((0,0,1,1,2,2,3,3),(0,1,1,2,2,3,3,4),(1,1,2,2,3,3,4,4),(1,2,2,3,3,4,4,5))
o: [4,8]((0,0,0,0,0,0,0,0),(0,0,0,0,0,0,0,0),(0,0,0,0,0,0,0,0),(0,0,0,0,0,0,0,0))
Done
m: [4,8]((0,0,1,1,2,2,3,3),(0,1,1,2,2,3,3,4),(1,1,2,2,3,3,4,4),(1,2,2,3,3,4,4,5))
o: [4,8]((32,40,-16,0,-8,-8,-9.53674e-07,-16),(-8,0,0,0,0,0,0,0),(0,-8,0,0,0,0,0,0),(-4.76837e-07,-8,0,0,0,0,0,0))
Transpose
m: [4,8]((0,0,1,1,2,2,3,3),(0,1,1,2,2,3,3,4),(1,1,2,2,3,3,4,4),(1,2,2,3,3,4,4,5))
o: [4,8]((0,0,0,1,1,1,1,2),(1,1,1,2,2,2,2,3),(2,2,2,3,3,3,3,4),(3,3,3,4,4,4,4,5))
---------------------
Computing FFT bluestein
input_vec: [16](0,0,1,0,2,0,3,0,4,0,5,0,6,0,7,0)
Done
input_vec: [16](0,0,1,0,2,0,3,0,4,0,5,0,6,0,7,0)
output_vec: [16](28,2.38419e-07,-4,9.65685,-4,4,-4,1.65685,-4,-3.2981e-07,-4,-1.65685,-4,-4,-4,-9.65685)
---------------------
Computing FFT
input_vec: [16](0,0,1,0,2,0,3,0,4,0,5,0,6,0,7,0)
Done
input_vec: [16](0,0,1,0,2,0,3,0,4,0,5,0,6,0,7,0)
output_vec: [16](28,0,-4,9.65685,-4,4,-4,1.65685,-4,0,-4,-1.65685,-4,-4,-4,-9.65685)
---------------------
Computing inverse FFT...
input_vec: [16](0,0,1,0,2,0,3,0,4,0,5,0,6,0,7,0)
output_vec: [16](0,0,1,4.56956e-08,2,-2.78181e-08,3,-1.64905e-07,4,0,5,-7.35137e-08,6,2.78181e-08,7,1.92723e-07)
---------------------
Computing real to complex...
input_vec: [16](0,0,1,0,2,0,3,0,4,0,5,0,6,0,7,0)
output_vec: [16](0,0,0,0,1,0,0,0,2,0,0,0,3,0,0,0)
---------------------
Computing complex to real...
input_vec: [16](0,0,1,0,2,0,3,0,4,0,5,0,6,0,7,0)
output_vec: [16](0,1,2,3,4,5,6,7,2,0,0,0,3,0,0,0)
---------------------
Computing multiply complex
input_vec: [16](0,0,1,0,2,0,3,0,4,0,5,0,6,0,7,0)
input2_vec: [16](0,0,1,0,2,0,3,0,4,0,5,0,6,0,7,0)
Done
output_vec: [16](0,0,1,0,4,0,9,0,16,0,25,0,36,0,49,0)
---------------------
!!!! TUTORIAL COMPLETED SUCCESSFULLY !!!!

There are also many examples that can be compiled , You can explore .
