ASP. Net core Middleware

Middleware is a kind of software assembled into the application pipeline to handle requests and responses . Each component ：
1. Choose whether to pass the request to the next component in the pipeline .
2. Work can be performed before and after the next component in the pipeline .
The request delegate is used to generate the request pipeline . Request delegates to process each HTTP request .
Use Run 、Map and Use Extend the method to configure the request delegate . A separate request delegate can be specified as an anonymous method in parallel （ It's called middleware ）, Or define it in a reusable class . These reusable classes and parallel anonymous methods are called middleware , Also called middleware component . Each middleware component in the request pipeline is responsible for calling the next component in the pipeline , Or short-circuit the pipe . When the middleware is short circuited , It is called “ Terminal Middleware ” , Because it prevents the middleware from further processing requests .

Using middleware #

ASP.NET Core Middleware model is that we can develop our own middleware quickly , Complete the extension of the application , Let's start with a simple example of middleware development .

Run：

effect : first  Run  Delegate terminated pipeline .

public class Startup
{
    public void Configure(IApplicationBuilder app)
    {
        app.Run(async context =>
        {
            await context.Response.WriteAsync("Hello, World!");
        });
    }
}

Running results ：

Such results do not seem to clearly show Run The role of , Next, let's introduce a simple example ：

public void Configure(IApplicationBuilder app, IHostingEnvironment env)
{

                app.Run(async context =>
                {
                    await context.Response.WriteAsync("Hello, .Net");
                });
                app.Run(async context =>
                {
                    await context.Response.WriteAsync("Hello, Python!");
                });




}

Running results ：

  From these two simple pieces of code, we can see , Use Run Method to run a delegate , It is a simple middleware , It intercepts all requests , Return a piece of text in response . also Run The Commission terminated the operation of the pipeline , It is also called terminal middleware .

Use


Use Links multiple request delegates together .next Parameter represents the next delegate in the pipeline . Can be called by not calling next The parameter short-circuited the pipe . Operations can usually be performed before or after the next delegate , This is shown in the following example ：

public void Configure(IApplicationBuilder app, IHostingEnvironment env)
{

	app.Use(async (context, next) =>
	{
		// Do work that doesn't write to the Response.
		await context.Response.WriteAsync("before Use1 \r\n");
		//await next.Invoke();
		await context.Response.WriteAsync("After Use1 \r\n");
		// Do logging or other work that doesn't write to the Response.
	});

	app.Run(async context =>
	{
		await context.Response.WriteAsync("Hello from 2nd delegate.\r\n");
	});

}

Code execution result ：

Did you think the result would be like this ？ Would you say Run Is the termination Middleware , Why is the corresponding content not displayed ？ Let's think about it ....



















I believe everyone should have guessed , We were introducing it before Use When I said

Use Links multiple request delegates together .next Parameter represents the next delegate in the pipeline . Can be called by not calling next The parameter short-circuited the pipe .



Let's look at the next example ：

 public void Configure(IApplicationBuilder app, IHostingEnvironment env)
{


	app.Use(async (context, next) =>
	{
		// Do work that doesn't write to the Response.
		await context.Response.WriteAsync("before Use1 \r\n");
		await next.Invoke();

	});
	app.Run(async context =>
	{
		await context.Response.WriteAsync("Hello from 2nd delegate.\r\n");
	});

}

Let's guess what it will be ？ I believe everyone can get , You won't paste the results , You can experiment it yourself



Middleware sequence

ASP.NET Core The request pipeline contains a series of request delegates , In turn, calls .  The following diagram illustrates this concept .  Execute along the black arrow .

towards  Startup.Configure  Method the order in which middleware components are added defines the order in which these components are called for requests , And the reverse order of responses .  This sequence is important for security 、 Performance and functionality are critical .

Next let's look at the example ：



 public void Configure(IApplicationBuilder app, IHostingEnvironment env)
{


	app.Use(async (context, next) =>
	{
		// Do work that doesn't write to the Response.
		await context.Response.WriteAsync("before Use1 \r\n");
		await next.Invoke();
		await context.Response.WriteAsync("After Use1 \r\n");

	});
	app.Run(async context =>
	{
		await context.Response.WriteAsync("Hello from 2nd delegate.\r\n");
	});

}

Running results ：

The execution sequence of middleware may not be well understood through the above experiments , Let's take another example ：

public void Configure(IApplicationBuilder app, IHostingEnvironment env)
{

   app.Use(async (context, next) =>
	{
		// Do work that doesn't write to the Response.
		await context.Response.WriteAsync("before Use \r\n");
		await next.Invoke();
		await context.Response.WriteAsync("After Use \r\n");
		// Do logging or other work that doesn't write to the Response.
	});
	app.Use(async (context, next) =>
	{
		// Do work that doesn't write to the Response.
		await context.Response.WriteAsync("before Use1 \r\n");
		await next.Invoke();
		await context.Response.WriteAsync("After Use1 \r\n");

	});
	app.Run(async context =>
	{
		await context.Response.WriteAsync("Hello from 2nd delegate.\r\n");
	});

}

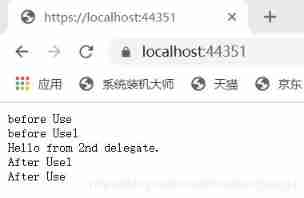

Running results ：

Through the experimental comparison of the two , We can find out , The running sequence of middleware is clockwise , Middleware ,next The previous one is executed from top to bottom according to the sorting order of middleware , stay next The subsequent code is executed in the reverse order of the middleware .

Customize ASP.NET Core middleware

Middleware is usually encapsulated in a class , And use extended methods to expose .

Middleware delegates are moved to classes ：

stay Middlewares Created in RequestMiddlewareExtensions class ：

public class RequestTestMiddleware
{
	private readonly RequestDelegate _next;
	public RequestTestMiddleware(RequestDelegate next)
	{
		_next = next;
	}
	public async Task InvokeAsync(HttpContext context)
	{

		await context.Response.WriteAsync("start RequestTestMiddleware  \r\n");

		await _next(context);
		await context.Response.WriteAsync("end  RequestTestMiddleware \r\n");
	}
}

Insert the middleware as follows ：

 public void Configure(IApplicationBuilder app, IHostingEnvironment env)
{
	// app.UseRequestCulture();
	app.UseMiddleware<RequestTestMiddleware>();
	app.Use(async (context, next) =>
	{
		// Do work that doesn't write to the Response.
		await context.Response.WriteAsync("before Use \r\n");
		await next.Invoke();
		await context.Response.WriteAsync("After Use \r\n");
		// Do logging or other work that doesn't write to the Response.
	});

	app.Use(async (context, next) =>
	{
		// Do work that doesn't write to the Response.
		await context.Response.WriteAsync("before Use1 \r\n");
		await next.Invoke();
		await context.Response.WriteAsync("After Use1 \r\n");
		// Do logging or other work that doesn't write to the Response.
	});

	app.Run(async context =>
	{
		await context.Response.WriteAsync("Hello from 2nd delegate.\r\n");
	});

}

  Execution results ：

Expose middleware through extension methods ：

Write extension methods RequestMiddlewareExtensions

public static  class RequestMiddlewareExtensions
{
	public static IApplicationBuilder UseRequestCulture(
		this IApplicationBuilder builder)
	{
		return builder.UseMiddleware<RequestTestMiddleware>();
	}
}

stay Startup Class to create a request processing pipeline for the application ：

 public void Configure(IApplicationBuilder app, IHostingEnvironment env)
{
	app.UseRequestCulture();
	//app.UseMiddleware<RequestTestMiddleware>();
	app.Use(async (context, next) =>
	{
		// Do work that doesn't write to the Response.
		await context.Response.WriteAsync("before Use \r\n");
		await next.Invoke();
		await context.Response.WriteAsync("After Use \r\n");
		// Do logging or other work that doesn't write to the Response.
	});

	app.Use(async (context, next) =>
	{
		// Do work that doesn't write to the Response.
		await context.Response.WriteAsync("before Use1 \r\n");
		await next.Invoke();
		await context.Response.WriteAsync("After Use1 \r\n");
		// Do logging or other work that doesn't write to the Response.
	});

	app.Run(async context =>
	{
		await context.Response.WriteAsync("Hello from 2nd delegate.\r\n");
	});

}



The implementation result is the same as above .

---
