If the detailed explanation is generated according to the frame code

1. According to the project deployment and local operation

Please see this article for the detailed process
https://blog.csdn.net/yu_fu_a_bu/article/details/125901873

2. Add a new school management directory

refresh

3. Modify the configuration

4. Create data tables

If there is a requirement according to the construction table ： Table field and surface , All need to be annotated , Comments are the display content of the generated page

5. Create a new one Model

6. Configuration project depends on

①： stay RuoYi Under the whole project pom.xml Introduce the newly created module

            <!-- Teacher module -->
            <dependency>
                <groupId>com.ruoyi</groupId>
                <artifactId>ruoyi-teacher</artifactId>
                <version>${ruoyi.version}</version>
            </dependency>

②： stay ruoyi-admin Of this module pom.xml Introduce the newly created module

       <dependency>
            <groupId>com.ruoyi</groupId>
            <artifactId>ruoyi-teacher</artifactId>
        </dependency>

③： Because the automatically generated code will use ruoyi-common The content in , We need to ruoyi-common Introduced into our new module

<dependencies>
    <dependency>
        <groupId>com.ruoyi</groupId>
        <artifactId>ruoyi-common</artifactId>
    </dependency>
</dependencies>

7. The structure of the import table

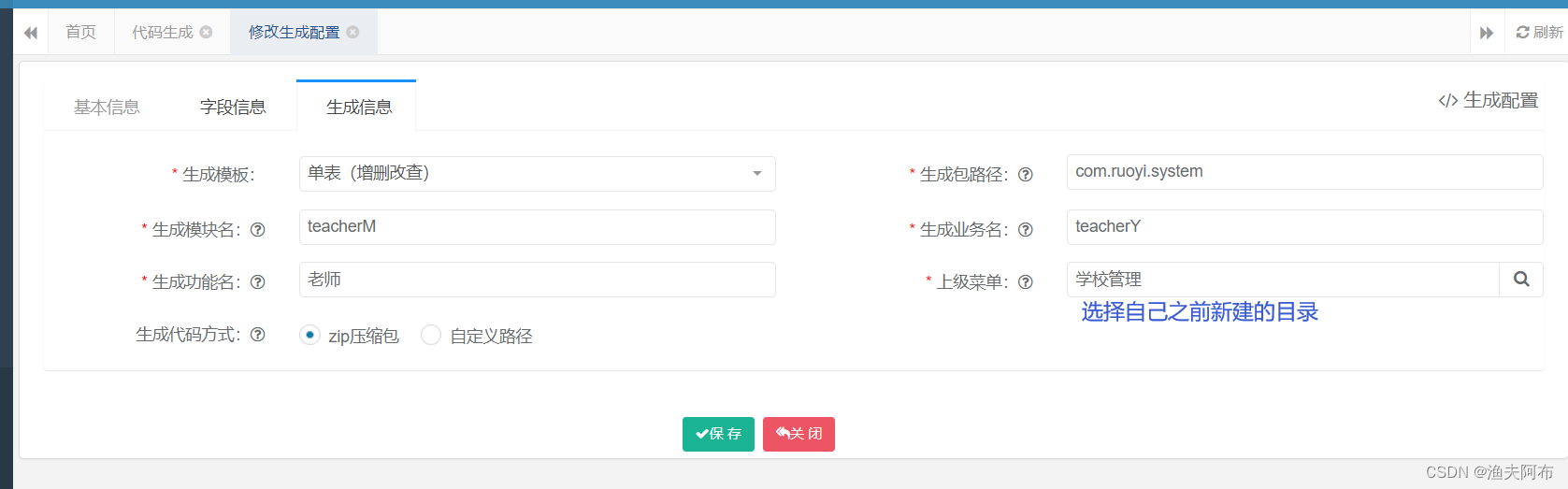

Click... After importing [ edit ] ,[ Generate information ] ： It is suggested to write the name of the generation module differently from the name of the generation business , Otherwise, you may encounter problems later

Click generate code

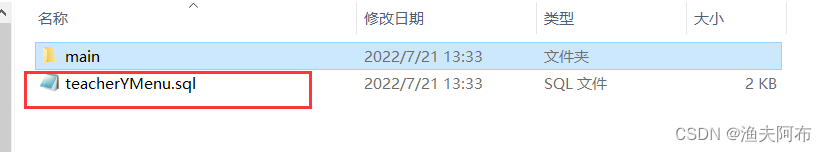

Compress the file

8. Copy code

Direct will main Copied to the src below

9. function SQL

There is a in the automatically generated compressed package SQL, This is used to generate menus , Go to the database and execute this SQL.

10. Restart project

Congratulations on completing ！
