The migration of arm architecture to alsa lib and alsa utils is smooth

introduction

• Basically transplant alsa-lib and alsa-utils The problem of transplantation can be found in this blog , If not found in the text , Please look at the difficult and miscellaneous diseases in the catalogue
• First of all, this article defaults that your root file system is guided by the network

Access to the source code

Download at https://www.alsa-project.org/main/index.php/Main_Page
The latest version is 1.2.7.2, The version used in this article is 1.2.2

Compile trial and error

• notes ： There was no success here , Just slowly reproduce the pit I encountered yesterday , Tell readers how I solved these mistakes , If you want to succeed at one time, please skip the step of compiling trial and error

New folder （ The default is in the downloaded source directory ）

First, you need to create some new folders , To provide our compilation results directory .

sudo mkdir /usr/share/arm-alsa
mkdir alsa-lib
mkdir alsa-utils

Decompress the package （ The default is in the downloaded source directory ）

tar -xvjf alsa-lib-1.2.2.tar.bz2
tar -xvjf alsa-utils-1.2.2.tar.bz2

compile alsa-lib

cd alsa-lib-1.2.2/
/*  Notice the alsa-lib Folder is what we do when we create a new folder  */
./configure --host=arm-linux-gnueabihf --prefix= Source code storage directory /alsa-lib --with-configdir=/usr/share/arm-alsa
 make
 sudo make install

If this error occurs , Because sudo Will switch to the root Under the user , But this
when root There is no cross compiler path in the environment variable under the user , Therefore, you will be prompted that you cannot find “arm-linux-gnueabihf-gcc”, Which leads to libatopology.la Compile failed , Do as follows

sudo -s // Switch to  root  user
source /etc/profile // perform /etc/profile
make install // install , At this time, I have been working in  root  Next , So there is no need to add “sudo”
su zuozhongkai // After compilation, return to the original user

compile alsa-utils

 cd alsa-utils-1.2.2/
 /*
 	--prefix= Appoint alsa-utils Which folder is the output file in
 	--with-alsa-inc-prefix= because alsa-utils rely on alsa-lib, So specified alsa-lib The header directory of
 	--with-alsa-prefix= because alsa-utils rely on alsa-lib, So specified alsa-lib The Library Directory of
  */
./configure --host=arm-linux-gnueabihf --prefix= Source code storage directory /alsa-utils --with-alsa-inc-prefix= Source code storage directory /alsa-lib/include/ --with-alsa-prefix= Source code storage directory /alsa-lib/lib/ --disable-alsamixer --disable-xmlto
make
sudo make install

Copy alsa-lab and alsa-utils Go to the root directory of the development board

Copy alsa-lab

cd alsa-lib // Get into  alsa-lib
sudo cp lib/*  Root file system directory /rootfs/lib/ -af
cd /usr/share/arm-alsa // Get into  arm-alsa  Catalog , Copy configuration file
mkdir  Root file system directory /rootfs/usr/share/arm-alsa/
sudo cp *  Root file system directory /rootfs/usr/share/arm-alsa/ -raf

Copy alsa-utils

cd alsa-utils
sudo cp bin/*  Root file system directory /rootfs/bin/ -rfa
sudo cp sbin/* Root file system directory //rootfs/sbin/ -rfa
sudo cp share/*  Root file system directory //rootfs/usr/share/ -rfa

Open... In the root file system of the development board /etc/profile file , Add the following

export ALSA_CONFIG_PATH=/usr/share/arm-alsa/alsa.conf

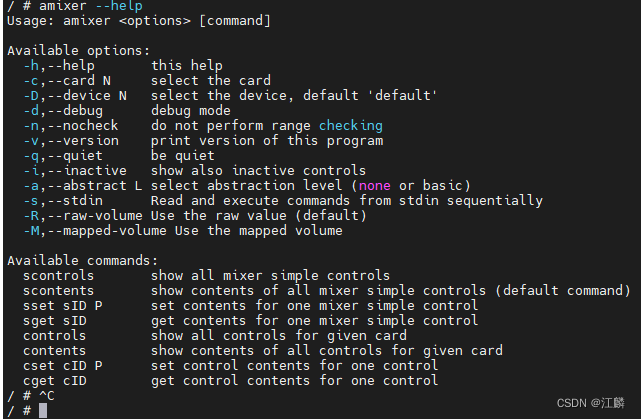

Run it on the development board amixer Tool testing

amixer --help

It seems to be 32 Bit system running 64 Bit program , And the architecture is incompatible , Let's check the properties of the compiled file

cd  Source code storage directory /alsa-utils/bin
file amixer

This document is for x86 Architecture compiled ？

stay ubuntu Try it on , Sure enough

./amixer --help

Get into makefile See whether the cross compilation chain is successfully configured

 cd alsa-utils-1.2.2/
 vi Makefile

It doesn't seem to be a problem ,host Specify normal

Let's think about it , When we perform the installation, we use sudo make install, Because some of the generated files need to be generated in the directory protected by the system , So it must be added sudo,sudo It runs in administrator mode , Then whether our administrator mode specifies the cross compilation chain directory ？ Test it

Compile successfully

sudo -s
arm-linux-gnueabihf-gcc -v

As expected, there is no , Then let's add a directory

export PATH=$PATH: Cross compile chain directory /bin

Clear the file directory just compiled

rm -rf alsa-lib/*
rm -rf alsa-utils/*
rm -rf /usr/share/arm-alsa/*

recompile alsa-lib

cd alsa-lib-1.2.2/
make clean

/*  Notice the alsa-lib Folder is what we do when we create a new folder  */
./configure --host=arm-linux-gnueabihf --prefix= Source code storage directory /alsa-lib --with-configdir=/usr/share/arm-alsa
 make
make install

Check any output file , Sure enough ,arm framework ,32 Yes.

compile alsa-utils

 cd alsa-utils-1.2.2/
 make clean
 /*

 	--prefix= Appoint alsa-utils Which folder is the output file in
 	--with-alsa-inc-prefix= because alsa-utils rely on alsa-lib, So specified alsa-lib The header directory of
 	--with-alsa-prefix= because alsa-utils rely on alsa-lib, So specified alsa-lib The Library Directory of

  */
./configure --host=arm-linux-gnueabihf --prefix= Source code storage directory /alsa-utils --with-alsa-inc-prefix= Source code storage directory /alsa-lib/include/ --with-alsa-prefix= Source code storage directory /alsa-lib/lib/ --disable-alsamixer --disable-xmlto
make
make install

according to Copy alsa-lab and alsa-utils Go to the root directory of the development board This step copies the file , You can succeed .

Difficult miscellaneous diseases

About configure: error: No linkable libasound was found

1. If the above errors occur , First check the directory 、 Whether the command is correct
2.alsa-lib and alsa-utils Not compiled by the same user , I stepped on this pit last night , If lib It's compiled x86 Running , that alsa-utils Configuration is ok , If lib It compiles arm Architecture operation , that alsa-utils The configuration will cause this error , Keep compiling in the same user , Because the output folder may need super user mode , So keep root Compile below , And in root The user configures the cross compilation chain , For details, please refer to Compile successfully

About the board running unsuccessfully

/bin/amixer: line 1:ELF: not found
/bin/amixer: line 2: H
                      : not found
/bin/amixer: line 3: P: not found
/bin/amixer: line 4: syntax error: unexpected ")"

If this error is reported , There's only one possibility , The files you compile are not used by the board, but x86 The use of , stay ubuntu Found this file on ,file once , Directory is alsa-utils Compile target directory /bin/amixer, You must be the following ：

Refer to Compilation success section Can solve
