Pytorch two-dimensional multi-channel convolution operation method

Fully connected convolution

For single channel convolution , I believe you have seen a lot

So in convolutional neural networks , How to realize the number of image channels “ from 3 To 8” Such a jump ？

Next, take the size 5 × 5 Do some experiments with the convolution kernel of ：

import torch

c1, c2, k = 3, 8, 5
#  Instantiate two-dimensional convolution ,  Don't use  padding
conv = torch.nn.Conv2d(in_channels=c1, out_channels=c2,
                       kernel_size=k, bias=False)
#  Two dimensional convolution  weight: [c2, c1, k, k]
weight = conv.weight.data
print('Weight shape:', weight.shape)

Use PyTorch Of Conv2d You can find ,weight Parametric shape yes [8, 3, 5, 5]

[3, 5, 5] Image （ Write it down as img） After the convolution operation, we get [8, 1, 1], Take this as an example , Make a guess ：

• img[..., r, c] Of shape by [3, ], That is, it represents the pixel 3 Values for channels
• weight[..., r, c] Of shape by [8, 3], Represents the receptive field of the convolution kernel , The first r Xing di c Column parameters
• Use matrix multiplication  weight[..., r, c] × img[..., r, c], The result is shape by [8, ] Tensor , Represents the pixel 8 Values for channels ; If all pixels 8 The values of the channels are added , The convolution result can be obtained

Write the following function for verification ：

#  Test the images used ,  After convolution : [c1, k, k] -> [c2, 1, 1]
img = torch.rand([1, c1, k, k])


def torch_conv():
    return conv(img).view(-1)


def guess_for_FCconv():
    '''  Fully connected convolution  ( Standard convolution )'''
    result = torch.zeros(c2)
    #  Operate on each pixel
    for r in range(k):
        for c in range(k):
            #  Each channel value of the corresponding pixel point : [c1, ]
            pixel = img[..., r, c].view(-1)
            #  Parameters of corresponding pixels in convolution kernel : [c2, c1]
            linear = weight[..., r, c]
            #  The contribution of the pixel to each channel : [c2, c1] × [c1, ] -> [c2, ]
            result += linear @ pixel
    return result


print('PyTorch:', torch_conv())
print('Guess:', guess_for_FCconv())

You can see ,PyTorch The result of the operation is the same as mine , The conjecture holds

Weight shape: torch.Size([8, 3, 5, 5])
PyTorch: tensor([-0.2874, -0.4310,  0.1660, -0.0021,  0.6042, -0.0716,  0.0821,  0.0322],
       grad_fn=<ViewBackward>)
Guess: tensor([-0.2874, -0.4310,  0.1660, -0.0021,  0.6042, -0.0716,  0.0821,  0.0322])

Put forward this operation method , To help you better understand convolution

In the actual deployment , I don't know whether to use this method to calculate

Depth separates the convolution

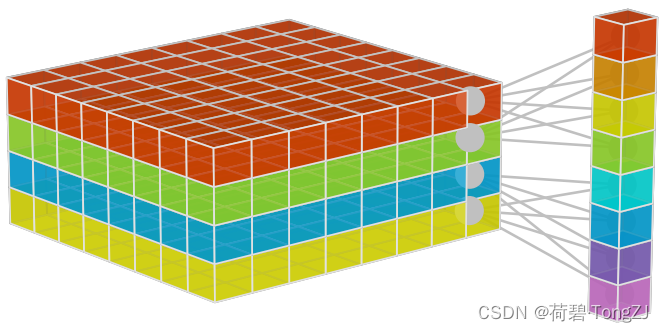

When the number of input channels is 4, The number of output channels is 8 when , Set the number of convolution kernel groups to 2

be weight Parametric shape by [8, 2, 5, 5], It can also be expressed as [8, 4/2, 5, 5]

import torch

c1, c2, k, g = 4, 8, 5, 2
#  Instantiate two-dimensional convolution ,  Don't use  padding
conv = torch.nn.Conv2d(in_channels=c1, out_channels=c2,
                       kernel_size=k, groups=g, bias=False)
#  Two dimensional convolution  weight: [c2, c1/g, k, k]
weight = conv.weight.data
print('Weight shape:', weight.shape)

#  Test the images used ,  After convolution : [c1, k, k] -> [c2, 1, 1]
img = torch.rand([1, c1, k, k])

The number of input channels is grouped , So when the image is calculated , Must be separated on the channel

The number of output channels is not grouped , Is the image separated in the operation ？

[4, 5, 5] Image （ Write it down as img） After the convolution operation, we get [8, 1, 1], Take this as an example , Make a guess ：

• Group the number of channels of the image ：img It can be expressed as [2, 2, 5, 5], namely 2 Zhang [2, 5, 5] Image
• Yes weight The number of output channels ：weight It can be expressed as [2, 4, 2, 5, 5], namely 2 individual weight by [4, 2, 5, 5] All connected convolution of
• Separate use [4, 2, 5, 5] The full connected convolution of can be obtained 2 Zhang [4, 1, 1], After being spliced together, we get [8, 1, 1]

  Write the following function for verification ：

#  Test the images used ,  After convolution : [c1, k, k] -> [c2, 1, 1]
img = torch.rand([1, c1, k, k])


def torch_conv():
    return conv(img).view(-1)


def guess_for_DWConv():
    '''  Depth separates the convolution '''
    #  take  c2  Channels are represented as  g × c2/g
    result = torch.zeros([g, c2 // g])
    #  Group the channels of the image : [1, c1, k, k] -> [g, c1/g, k, k]
    img_ = img.view(g, -1, k, k)
    #  The weight of convolution kernel is extracted by grouping : [c2, c1/g, k, k] -> [g, c2/g, c1/g, k, k]
    for i, w in enumerate(weight.view(g, -1, c1//g, k, k)):
        #  Operate on each pixel
        for r in range(k):
            for c in range(k):
                #  Each channel value of the corresponding pixel point : [c1/g, ]
                pixel = img_[i, :, r, c].view(-1)
                #  Parameters of corresponding pixels in convolution kernel : [c2/g, c1/g]
                linear = w[..., r, c]
                #  The contribution of the pixel to each channel : [c2/g, c1/g] × [c1/g, ] -> [c2/g, ]
                result[i] += linear @ pixel
    return result.view(-1)


print('PyTorch:', torch_conv())
print('Guess:', guess_for_DWConv())

Obvious , The result of the two functions is the same , The conjecture holds

Weight shape: torch.Size([8, 2, 5, 5])
PyTorch: tensor([ 0.1674, -0.1527,  0.4059, -0.3422, -0.2362, -0.4508,  0.3286,  0.3232],
       grad_fn=<ViewBackward>)
Guess: tensor([ 0.1674, -0.1527,  0.4059, -0.3422, -0.2362, -0.4508,  0.3286,  0.3232])
