Flood control and drainage monitoring automatic monitoring and telemetering terminal for flood control and drainage

Automatic monitoring system for flood control and drainage under water conservancy telemetry terminal , Water level at monitoring point 、 rainfall 、 video 、 Real time image acquisition , Upload to the cloud synchronously through the wireless network , Staff remote monitoring center 、pc、 Mobile multi mode 24 Hourly real-time data monitoring , Threshold overrun alarm prompt , Rely on big data cloud computing to effectively warn and reduce floods .

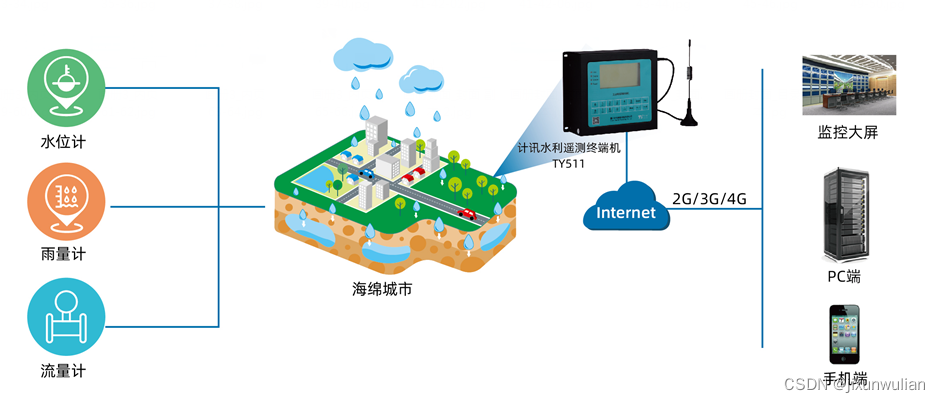

Telemetry terminal RTU Automatic monitoring of flood control and drainage
　　 perception ： Sensors at monitoring points , Water level gauge 、 Rain gauge 、 Video cameras , Monitoring factor perception acquisition .
　　 Network communication ： Water telemetry terminal RTU, Perception layer data collection , Three major operators 4G/3G/2G/GPRS Network wireless transmission .
　　 application layer ： Connect with the flood control and drainage monitoring cloud platform 、 Third party management platform , Check the liquid level in the monitoring area 、 rainfall 、 Centralized display and supervision of video status , Abnormal alarm 、 Disaster early warning .
　　

l The automatic monitoring system for flood control and drainage under the water conservancy telemetry terminal of Jixun IOT has data storage 、 Data query 、 Data statistics 、 Curve analysis function , Rely on big data basic liquid level data 、 Multi angle and multi-dimensional dynamic monitoring of rainfall data , Effectively improve the accuracy of drainage and flood prevention early warning .
　　l Telemetry terminal TY910 Support the double superposition of video and characters , Support equipment status monitoring at monitoring points , Remote upgrade 、 To configure 、 maintain 、 control 、 Start stop .
　　l GIS The map is distributed, monitored and controlled by the platform , Location information 、 Basic information 、 Real time status, etc .
　　

l The system has the function of information release 、 Alarm prompt and other functions . level 、 The local display screen of rainfall and other information is updated in real time , When the data exceeds the threshold, an alarm will be given .
　　 Water conservancy telemetry terminal
　　

l Support the State 《 Hydrological monitoring data communication protocol 》(ASCII and HEX Full term )、《 Water resources monitoring data transmission protocol 》 And other provincial and municipal special regulations 、SL180-2015 Hydrological automatic measuring and reporting system equipment telemetry terminal .
　　l Interface is rich , The access of equipment sensors is not limited , Equipped with RS232 Interface 、RS485 Interface 、I2C Interface 、TTL Level serial port 、 Switching quantity 、 Analog quantity 、 Relay output 、 Power output ( Peripheral power supply ) etc. .
　　l Various communication modes are not limited , Support GPRS/4G Wireless cellular network 、 SMS 、RS232/RS485, Optional NB-IOT、 Beidou and other means of communication .
　　l Support video data collection and upload , Support data character and video overlay function , And it can capture pictures .
　　l The receiving platform sends instructions , And can remotely control the field equipment , Support power supply status detection , Understand the power supply of equipment in real time .
　　l Data is collected regularly and reported actively , Support multi center communication , It can communicate with multiple background servers at the same time , The monitoring data can be reported to the provincial government at the same time 、 City 、 County level hydrological management platform .
　　l It can be accessed to the third-party platform or customized third-party protocol by providing the way of communication center warehousing , Support domestic mainstream configuration software ： Kingview 、 Three dimensional force control 、 Easy control and other configuration manufacturers .
　　l Operation standard Linux Intelligent operating system , It can open the secondary development function .
　　l Support local network port or WiFi The access and remote access modes are important for equipment maintenance 、 management 、 upgrade .
　　l Support power failure 、 Function of continuous transmission after network disconnection and automatic data reissue , Ensure data integrity .
　　l Three level watchdog detection mechanism 、PPP Layer heartbeat 、KeepAlive、TCP Heartbeat link detection mechanism , Automatic recovery of network failure 、 Automatic reconnection after dropping the line , Ensure that the equipment is online .
　　l Local data storage 、 Historical data export .
　　l Support municipal power or solar power supply .
　　l It can be built with high precision GPS modular , Can report site location information in real time ( Optional functions ).
　　l Industrial Design , after EMC test , High and low temperature resistance -35℃ to 75℃, Wide pressure 5V-35V, Moisture-proof 、 lightning protection 、 Anti electromagnetic interference , Stable and reliable operation .
