NDK learning notes (12) native graphics API, using avilib to create an avi video player

1. Practice hands , Use AVILib Create a AVI Video player

（1） First download transcode, And configuration avilib.

http://www.linuxfromscratch.org/blfs/view/svn/multimedia/transcode.html

take transcode Medium avilib Copy files to project .

edit platform.h file

#ifdef HAVE_CONFIG_H
#include "config.h"
#endif

stay avilib establish CMakeLists.txt

add_library( # Sets the name of the library.
        avi-lib

        # Sets the library as a shared library.
        SHARED

        # Provides a relative path to your source file(s).
        avilib.c
        platform_posix.c)

（2） establish AbstractPlayerActivity And implement native Method

Extract the shared code and abstract it into a class

public abstract class AbstractPlayerActivity extends Activity {


    public static final String EXTRA_FILE_NAME = "cn.study.aviplayer.EXTRA_FILE_NAME";

    protected long avi = 0;

    @Override
    protected void onStart() {

        super.onStart();

        try {


            avi = open(getFileName());
        } catch (IOException e) {


            new AlertDialog.Builder(this)
                    .setTitle(" Error message ")
                    .setMessage(e.getMessage())
                    .show();
        }
    }


    @Override
    protected void onStop() {

        super.onStop();

        if (0 != avi) {


            close(avi);
            avi = 0;
        }
    }

    protected String getFileName() {


        return getIntent().getExtras().getString(EXTRA_FILE_NAME);
    }


    /** *  Open the specified avi file  * * @return */
    protected native static long open(String fileName) throws IOException;

    /** *  Get the video width  * * @param avi * @return */
    protected native static int getWidth(long avi);

    /** *  Get video height  * * @param avi * @return */
    protected native static int getHeight(long avi);


    /** *  Get frame rate  * * @param avi * @return */
    protected native static double getFrameRate(long avi);

    /** *  Closes the specified based on the given file descriptor avi file  * * @param avi */
    protected native static void close(long avi);

}

Use javah To generate .h file .

/* DO NOT EDIT THIS FILE - it is machine generated */
#include <jni.h>
/* Header for class cn_study_aviplayer_AbstractPlayerActivity */

#ifndef _Included_cn_study_aviplayer_AbstractPlayerActivity
#define _Included_cn_study_aviplayer_AbstractPlayerActivity
#ifdef __cplusplus
extern "C" {

#endif
/* * Class: cn_study_aviplayer_AbstractPlayerActivity * Method: open * Signature: (Ljava/lang/String;)J */
JNIEXPORT jlong JNICALL Java_cn_study_aviplayer_AbstractPlayerActivity_open
  (JNIEnv *, jclass, jstring);

/* * Class: cn_study_aviplayer_AbstractPlayerActivity * Method: getWidth * Signature: (J)I */
JNIEXPORT jint JNICALL Java_cn_study_aviplayer_AbstractPlayerActivity_getWidth
  (JNIEnv *, jclass, jlong);

/* * Class: cn_study_aviplayer_AbstractPlayerActivity * Method: getHeight * Signature: (J)I */
JNIEXPORT jint JNICALL Java_cn_study_aviplayer_AbstractPlayerActivity_getHeight
  (JNIEnv *, jclass, jlong);

/* * Class: cn_study_aviplayer_AbstractPlayerActivity * Method: getFrameRate * Signature: (J)D */
JNIEXPORT jdouble JNICALL Java_cn_study_aviplayer_AbstractPlayerActivity_getFrameRate
  (JNIEnv *, jclass, jlong);

/* * Class: cn_study_aviplayer_AbstractPlayerActivity * Method: close * Signature: (J)V */
JNIEXPORT void JNICALL Java_cn_study_aviplayer_AbstractPlayerActivity_close
  (JNIEnv *, jclass, jlong);

#ifdef __cplusplus
}
#endif
#endif

stay native-lib.cpp Import avilib.h need .

extern "C" {

#include "avilib/avilib.h"
}

native-lib.cpp

#include <jni.h>
#include <string>

#include "cn_study_aviplayer_AbstractPlayerActivity.h"
#include "Common.h"
#include <android/bitmap.h>

extern "C" {

#include "avilib/avilib.h"
}

extern "C" JNIEXPORT jstring JNICALL
Java_cn_study_aviplayer_MainActivity_stringFromJNI(
        JNIEnv *env,
        jobject /* this */) {

    std::string hello = "Hello from C++";
    return env->NewStringUTF(hello.c_str());
}

extern "C"
JNIEXPORT jlong JNICALL
Java_cn_study_aviplayer_AbstractPlayerActivity_open(JNIEnv *env, jclass clazz, jstring file_name) {


    avi_t *avi = 0;
    // Get the file name and convert it to a string variable
    const char *cFileName = env->GetStringUTFChars(file_name, 0);
    if (0 == cFileName) {


        goto exit;
    }
    avi = AVI_open_input_file(cFileName, 1);
    env->ReleaseStringUTFChars(file_name, cFileName);

    if (0 == avi) {


        ThrowException(env, "java/io/IOException", AVI_strerror());
    }

    exit:
    return (jlong) avi;
}

extern "C"
JNIEXPORT jint JNICALL
Java_cn_study_aviplayer_AbstractPlayerActivity_getWidth(JNIEnv *env, jclass clazz, jlong avi) {


    return AVI_video_width((avi_t *) avi);
}

extern "C"
JNIEXPORT jint JNICALL
Java_cn_study_aviplayer_AbstractPlayerActivity_getHeight(JNIEnv *env, jclass clazz, jlong avi) {


    return AVI_video_height((avi_t *) avi);
}

extern "C"
JNIEXPORT jdouble JNICALL
Java_cn_study_aviplayer_AbstractPlayerActivity_getFrameRate(JNIEnv *env, jclass clazz, jlong avi) {


    return AVI_frame_rate((avi_t *) avi);
}

extern "C"
JNIEXPORT void JNICALL
Java_cn_study_aviplayer_AbstractPlayerActivity_close(JNIEnv *env, jclass clazz, jlong avi) {


    AVI_close((avi_t *) avi);
}

（3） To configure native-lib, Turn on jnigraphics, Connect avi-lib

cmake_minimum_required(VERSION 3.4.1)


add_library( # Sets the name of the library.
        native-lib

        # Sets the library as a shared library.
        SHARED

        # Provides a relative path to your source file(s).
        native-lib.cpp
        Common.cpp
        cn_study_aviplayer_BitmapPlayerActivity.cpp)
# Add subdirectories
add_subdirectory(avilib)


find_library( # Sets the name of the path variable.
        log-lib

        # Specifies the name of the NDK library that
        # you want CMake to locate.
        log)


find_library( # Sets the name of the path variable.
        jnigraphics-lib
        jnigraphics)

target_link_libraries( # Specifies the target library.
        native-lib
        # Links the target library to the log library
        # included in the NDK.
        ${
    jnigraphics-lib}# Turn on jnigraphics
        ${
    log-lib}
        avi-lib)

（4）jni graphics api

 retrieval bitmap Object information , Such as size 、 Pixel format . Successfully returns 0, Failure returns a negative number .
int AndroidBitmap_getInfo(JNIEnv* env, jobject jbitmap,AndroidBitmapInfo* info);

 Access the native pixel cache , Lock the pixel cache to ensure that the pixel's memory does not move .
 Successfully returns 0, Failure returns a negative number .
int AndroidBitmap_lockPixels(JNIEnv* env, jobject jbitmap, void** addrPtr);

 Free the native pixel cache
 Successfully returns 0, Failure returns a negative number
int AndroidBitmap_unlockPixels(JNIEnv* env, jobject jbitmap);

（5） Use bitmap Render to update avi player

public class BitmapPlayerActivity extends AbstractPlayerActivity {



    private final AtomicBoolean isPlaying = new AtomicBoolean();
    private SurfaceHolder surfaceHolder;
    private SurfaceView surfaceView;

    @Override
    protected void onCreate(Bundle savedInstanceState) {

        super.onCreate(savedInstanceState);
        setContentView(R.layout.activity_bitmap_player);

        surfaceView = findViewById(R.id.surface_view);

        surfaceHolder = surfaceView.getHolder();
        surfaceHolder.addCallback(shCallback);
    }


    private final SurfaceHolder.Callback shCallback = new SurfaceHolder.Callback2() {

        @Override
        public void surfaceRedrawNeeded(SurfaceHolder holder) {


        }

        @Override
        public void surfaceCreated(SurfaceHolder holder) {


            isPlaying.set(true);
            new Thread(renderer).start();
        }

        @Override
        public void surfaceChanged(SurfaceHolder holder, int format, int width, int height) {


        }

        @Override
        public void surfaceDestroyed(SurfaceHolder holder) {


            isPlaying.set(false);
        }
    };


    private final Runnable renderer = new Runnable() {


        @Override
        public void run() {


            Paint paint = new Paint();
            paint.setAntiAlias(true);
            paint.setColor(Color.BLACK);
            paint.setStyle(Paint.Style.FILL);


            int width = getWidth(avi);
            int height = getHeight(avi);


            Bitmap bitmap = Bitmap.createBitmap(width, height, Bitmap.Config.RGB_565);

            float sx = 2.0f;
            float sy = 2.0f;

            Matrix matrix = new Matrix();
            matrix.postScale(sx, sy);

            int vWidth = (int) (width * sx);
            int vHeight = (int) (height * sy);

            int x = (1080 - vWidth) / 2;
            int y = (1920 - vHeight) / 2;

            matrix.postTranslate(x, y);
            // Delay
            long frameDelay = (long) (1000 / getFrameRate(avi));
            while (isPlaying.get()) {

                render(avi, bitmap);

                Canvas canvas = surfaceHolder.lockCanvas();
                canvas.drawBitmap(bitmap, matrix, null);
                surfaceHolder.unlockCanvasAndPost(canvas);

                // Wait for the next stitch
                try {

                    Thread.sleep(frameDelay);

                } catch (InterruptedException e) {


                    break;
                }
            }

        }
    };

    /** *  from avi The file descriptor is output to the specified bitmap To render frames  * * @param avi * @param bitmap * @return */
    private native static boolean render(long avi, Bitmap bitmap);
}

cn_study_aviplayer_BitmapPlayerActivity.cpp

#include "Common.h"
#include "cn_study_aviplayer_BitmapPlayerActivity.h"
extern "C" {

#include "avilib/avilib.h"
}
#include <android/bitmap.h>

extern "C"
JNIEXPORT jboolean JNICALL
Java_cn_study_aviplayer_BitmapPlayerActivity_render(JNIEnv *env, jclass clazz, jlong avi,
                                                    jobject bitmap) {


    jboolean isFrameRead = JNI_FALSE;
    char *frameBuffer = 0;
    long frameSize = 0;
    int keyFrame = 0;

    if (0 > AndroidBitmap_lockPixels(env, bitmap, (void **) &frameBuffer)) {


        ThrowException(env, "java/io/IOException", " Cannot lock pixels ");
        goto exit;
    }

    // take avi frame byte Read bitmap in
    frameSize = AVI_read_frame((avi_t *) avi, frameBuffer, &keyFrame);

    // Unlock
    if (0 > AndroidBitmap_unlockPixels(env, bitmap)) {


        ThrowException(env, "java/io/IOException", " Cannot unlock pixels ");
        goto exit;
    }
    // Whether the reading is successful
    if (0 < frameSize) {


        isFrameRead = JNI_TRUE;
    }
    exit:
    return isFrameRead;

}

Want to use this avi player , The video file format must be avi Format , I hope the video load is through RGB565 The uncompressed original frame of color space .
Put the video in the specified directory , The operation effect is as follows ：

Detailed code and video files

https://gitee.com/xd_box/AviPlayer

2.android studio To configure javah

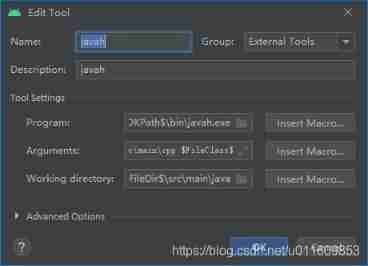

file>Setting>Tools>External Tools Click on + Number .

program：$JDKPath$\bin\javah.exe
arguments：-classpath . -jni -d $ModuleFileDir$\src\main\cpp $FileClass$
working directory：$ModuleFileDir$\src\main\java
