Based on Baiwen imx6ull_ Ap3216 experiment driven by Pro development board

Check the schematic diagram to determine the pin number

First, check the schematic diagram to know that this device is attached to I2C1 On , And it has an interrupt pin , This pin is GPIO4_IO16

Write a device tree

First of all to see i2c1 Of pinctrl Owned or not , I found the following , There is Then we don't need to write this part

Keep looking at i2c1 node , There are , And it is enabled

We write our own under it ap3216 node

[email protected]1e{

             compatible = "jianglin,ap3216";
             reg = <0x1e>;
     };

To write I2C Drive basic framework

#include <linux/module.h>

#include <linux/fs.h>
#include <linux/errno.h>
#include <linux/miscdevice.h>
#include <linux/kernel.h>
#include <linux/major.h>
#include <linux/mutex.h>
#include <linux/proc_fs.h>
#include <linux/seq_file.h>
#include <linux/stat.h>
#include <linux/init.h>
#include <linux/device.h>
#include <linux/tty.h>
#include <linux/kmod.h>
#include <linux/gfp.h>
#include <linux/of.h>
#include <linux/gpio.h>
#include <linux/of_gpio.h>
#include <linux/i2c.h>
#include <linux/slab.h>
#include <linux/delay.h>
#include <linux/interrupt.h>
#include <linux/irq.h>
#include <linux/poll.h>
#include <linux/signal.h>


#include "ap3216_reg.h"



#define DRV_NAME "[email protected]"
#define DEV_NUM 1

struct ap3216dev_info{

	int major;
	int minor;
	dev_t devid;
	struct cdev cdev;
	struct class *class;
	struct device *device;
	struct device_node *node;
	void* priv_dat;
};

static struct ap3216dev_info ap3216dev;


static int ap3216_write_bytes(struct ap3216dev_info *dev,u8 reg,u8 *buf,u8 len){

	u8 b[256];
	struct i2c_msg msg;
	struct i2c_client *client = (struct i2c_client *)dev->priv_dat;

	b[0] = reg; /*  Register first address  */
	memcpy(&b[1],buf,len); /*  Copy the data to be written to the array  b  Inside  */

	msg.addr = client->addr; /* ap3216  Address  */
	msg.flags = 0;

	msg.buf = b; /*  Data buffer to write to  */
	msg.len = len + 1; /*  The length of data to write  */

	return i2c_transfer(client->adapter, &msg, 1);
}

static int ap3216_read_bytes(struct ap3216dev_info *dev,u8 reg,u8 *buf,u8 len){

	int ret;
	struct i2c_msg msg[2];
	struct i2c_client *client = (struct i2c_client *)dev->priv_dat;

	msg[0].addr = client->addr; /* ap3216  Address  */
	msg[0].flags = 0; /*  Mark as send data  */
	msg[0].buf = &reg; /*  The first address to read  */
	msg[0].len = 1; /* reg  length  */

	/* msg[1] Reading data  */
	msg[1].addr = client->addr; /* ap3216c  Address  */
	msg[1].flags = I2C_M_RD; /*  Mark to read data  */
	msg[1].buf = buf; /*  Read data buffer  */
	msg[1].len = len; /*  The length of data to read  */

	ret = i2c_transfer(client->adapter, msg, 2);
	if(ret == 2) {

		ret = 0;
	} else {

		printk("i2c rd failed=%d reg=%06x len=%d\n",ret, reg, len);
		ret = -EREMOTEIO;
	}
	return ret;
}

static int ap3216_read_byte(struct ap3216dev_info *dev,u8 reg){

	u8 dat;
	ap3216_read_bytes(dev,reg,&dat,1);
	return dat;
}

static void ap3216_write_byte(struct ap3216dev_info *dev,u8 reg,u8 val){

	u8 dat = val;
	ap3216_write_bytes(dev,reg,&dat,1);
}

static int ap3216_drv_open (struct inode *node, struct file *filep){

	printk("%s %s line%d\r\n",__FILE__,__FUNCTION__,__LINE__);
	/*  Set up private data  */
	filep->private_data = (void*)&ap3216dev;


	return 0;
}

static ssize_t ap3216_drv_read(struct file *filp, char __user *buf, size_t cnt, loff_t *offt){

	int ret = 0;

	return ret;
}


static int ap3216_drv_close(struct inode *inode, struct file *filp){

	printk("%s %s line%d\r\n",__FILE__,__FUNCTION__,__LINE__);
	return 0;
}

static struct file_operations ap3216_drv_opr = {

	.owner = THIS_MODULE,
	.open = ap3216_drv_open,
	.read = ap3216_drv_read,
	.release = ap3216_drv_close,
};

static int ap3216_drv_probe(struct i2c_client *client, const struct i2c_device_id *id){

	printk("%s %s line%d\r\n",__FILE__,__FUNCTION__,__LINE__);

	/*  If there is a master device number  */
	if(ap3216dev.major){

		ap3216dev.minor = 0;
		ap3216dev.devid = MKDEV(ap3216dev.major,ap3216dev.minor);
		register_chrdev_region(ap3216dev.devid,DEV_NUM,DRV_NAME);
	}
	else{
    /*  If there is no master equipment number  */
		alloc_chrdev_region(&ap3216dev.devid,0,DEV_NUM,DRV_NAME);
		ap3216dev.major = MAJOR(ap3216dev.devid);
		ap3216dev.minor = MINOR(ap3216dev.devid);
	}

	/*  Initialize and add a character device  */
	ap3216dev.cdev.owner = THIS_MODULE;
	cdev_init(&ap3216dev.cdev,&ap3216_drv_opr);
	cdev_add(&ap3216dev.cdev,ap3216dev.devid,DEV_NUM);

	ap3216dev.class = class_create(THIS_MODULE,DRV_NAME);
	if(IS_ERR(ap3216dev.class)){

		return PTR_ERR(ap3216dev.class);
	}

	ap3216dev.device = device_create(ap3216dev.class,NULL,ap3216dev.devid,NULL,DRV_NAME);
	if(IS_ERR(ap3216dev.device)){

		return PTR_ERR(ap3216dev.device);
	}

	ap3216dev.priv_dat = (void*)client;


	return 0;
}
static int ap3216_drv_remove(struct i2c_client *client){

	printk("%s %s line%d\r\n",__FILE__,__FUNCTION__,__LINE__);

	unregister_chrdev_region(ap3216dev.devid,DEV_NUM);
	cdev_del(&ap3216dev.cdev);

	device_destroy(ap3216dev.class, ap3216dev.devid);
	class_destroy(ap3216dev.class);
	return 0;
}

static const struct of_device_id ap3216_of_match[] = {

	{
    .compatible = "jianglin,ap3216"},
	{
    }
};

/*  Traditional matching  ID  list  */
static const struct i2c_device_id ap3216_id[] = {

	{
    "jianglin,ap3216", 0},
	{
    }
};


static struct i2c_driver ap3216_driver = {

	.probe = ap3216_drv_probe,
	.remove = ap3216_drv_remove,
	.driver = {

		.owner = THIS_MODULE,
		.name =
"ap3216",
		.of_match_table = ap3216_of_match,
	},
	.id_table = ap3216_id,
};



static int __init ap3216_drv_init(void){

	int ret;
	printk("%s %s line%d\r\n",__FILE__,__FUNCTION__,__LINE__);

	ret = i2c_add_driver(&ap3216_driver);
	printk("i2c_add_driver ret:%d \n",ret);

	return ret;
}

static void __exit ap3216_drv_exit(void){

	printk("%s %s line%d\r\n",__FILE__,__FUNCTION__,__LINE__);

	i2c_del_driver(&ap3216_driver);
}

module_init(ap3216_drv_init);
module_exit(ap3216_drv_exit);

MODULE_LICENSE("GPL");
MODULE_AUTHOR("jianglin");

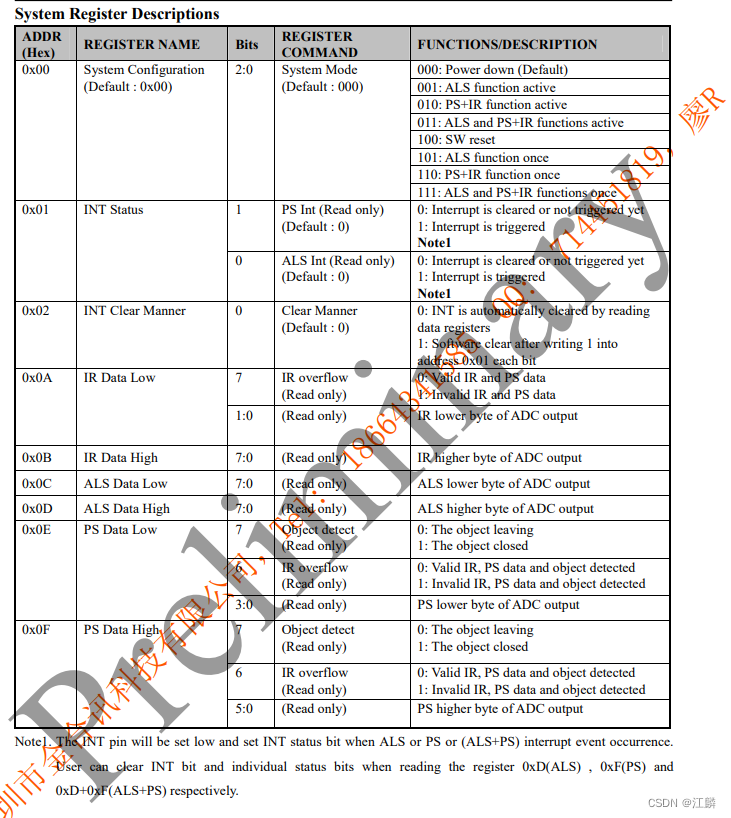

see AP3216 Data manual

From here we can see the following
IR_H(0x0B) << 8 | IR_L(0X0a) = Infrared value
ALS_H(0x0D) << 8 | ALS_L = Illumination value
PS_H(0X0f) << 8 | PS_L(0X0E) = Distance value

One more SW_RESET Bit , Let's take a detailed look at the instructions , This soft reset must be maintained 10ms above , Otherwise, it may lead to exceptions , It didn't specify that the software must be reset , But let's do a reset , So as to avoid any unknown problems

Perfect the program

Add and write ap3216_reg.h

#ifndef AP3216C_H
#define AP3216C_H
/* AP3316C  register  */
#define AP3216C_SYSTEMCONG 0x00 /*  Configuration register  */
#define AP3216C_INTSTATUS 0X01 /*  Interrupt status register  */
#define AP3216C_INTCLEAR 0X02 /*  Interrupt clear register  */
#define AP3216C_IRDATALOW 0x0A /* IR  Data low byte  */
#define AP3216C_IRDATAHIGH 0x0B /* IR  Data high byte  */
#define AP3216C_ALSDATALOW 0x0C /* ALS  Data low byte  */
#define AP3216C_ALSDATAHIGH 0X0D /* ALS  Data high byte  */
#define AP3216C_PSDATALOW 0X0E /* PS  Data low byte  */
#define AP3216C_PSDATAHIGH 0X0F /* PS  Data high byte  */

#define AP3216C_ALS_LOW_TRIGGER_LOW 0x1A
#define AP3216C_ALS_LOW_TRIGGER_HIGH 0x1B
#define AP3216C_ALS_HIGH_TRIGGER_LOW 0x1C
#define AP3216C_ALS_HIGH_TRIGGER_HIGH 0x1D

#define AP3216C_PS_LOW_TRIGGER_LOW 0x2A
#define AP3216C_PS_LOW_TRIGGER_HIGH 0x2B
#define AP3216C_PS_HIGH_TRIGGER_LOW 0x2C
#define AP3216C_PS_HIGH_TRIGGER_HIGH 0x2D
#endif

Perfect drive

add to ap3216_init function

static void ap3216_init(struct ap3216dev_info *dev){

	/*  initialization  AP3216C */
	ap3216_write_byte(dev, AP3216C_SYSTEMCONG, 0x04);
	mdelay(50); /* AP3216C  Reset at least  10ms */
	ap3216_write_byte(dev, AP3216C_SYSTEMCONG, 0X03);
}

add to ap3216dev_data Structure

struct ap3216dev_data{

	/*  Three optical sensor data  */
	unsigned short ir;
	unsigned short als;
	unsigned short ps;
};
struct ap3216dev_info{

	...
	struct ap3216dev_data dat;
	void* priv_dat;
};

add to ap3216_read_data function

static void ap3216_read_data(struct ap3216dev_info *dev){

	unsigned char i =0;
	unsigned char buf[6];

	/*  Cycle through all sensor data  */
	for(i = 0; i < 6; i++) {

		buf[i] = ap3216_read_byte(dev, AP3216C_IRDATALOW + i);
	}

	if(buf[0] & 0X80) /* IR_OF  Position as  1, The data is invalid  */
	dev->dat.ir = 0;
	else /*  Read  IR  Sensor data  */
	dev->dat.ir = ((unsigned short)buf[1] << 2) | (buf[0] & 0X03);

	dev->dat.als = ((unsigned short)buf[3] << 8) | buf[2];/* ALS  data  */

	if(buf[4] & 0x40) /* IR_OF  Position as  1, The data is invalid  */
	dev->dat.ps = 0;
	else /*  Read  PS  Sensor data  */
	dev->dat.ps = ((unsigned short)(buf[5] & 0X3F) << 4) | (buf[4] & 0X0F);
}

perfect ap3216_drv_probe function

static int ap3216_drv_probe(struct i2c_client *client, const struct i2c_device_id *id){

	...
	p3216_init(&ap3216dev);
}

perfect ap3216_drv_read function

static ssize_t ap3216_drv_read(struct file *filp, char __user *buf, size_t cnt, loff_t *offt){

	int ret;
	short buff[3];
	struct ap3216dev_info *dev = (struct ap3216dev_info *)filp->private_data;


	ap3216_read_data(dev);

	buff[0] = dev->dat.ir;
	buff[1] = dev->dat.als;
	buff[2] = dev->dat.ps;
	ret = copy_to_user(buf, &buff, sizeof(buff));
	return 0;
}

Write applications

int main(int argc,char** argv){

	short buf[3];
	unsigned short ir;
	unsigned short als;
	unsigned short ps;
	if(argc != 2){

		printf("Error Usage!\r\n");
		return -1;
	}
	//int fd = open(argv[1],O_RDWR);
	int fd = open(argv[1],O_RDWR | O_NONBLOCK);
	if(fd < 0){

		printf("open %s err\n",argv[1]);
		return -1;
	}

	while(1){

		int ret = read(fd, buf, sizeof(buf));
		if(ret == 0) {
     /*  Data read successful  */
			ir = buf[0];
			als = buf[1];
			ps = buf[2];
			printf("ir: %d als: %d ps: %d\r\n", ir,als,ps);
		}
		sleep(1);
	}
	close(fd);
	return 0;
}

Covering with your hand, you can see that the distance value and illumination value are changing

Add interrupt

Modify the device tree

[email protected]1e{

             compatible = "jianglin,ap3216";
             reg = <0x1e>;
             /*  use pinctrl The subsystem sets the pin to normal GPIO4 */
             pinctrl-names = <default>;
             pinctrl-0 = <&pinctrl_ap3216_int>;
             /*  Set pin interrupt attribute   This allows direct access i2c->irq Get the terminal number  */
             interrupt-parent = <&gpio4>;
             interrupts = <16 IRQ_TYPE_EDGE_FALLING>;
     };
&iomuxc{

	...
	imx6ul-evk{

		pinctrl_ap3216_int: ap3216_int{

			fls,pins = <
				MX6UL_PAD_NAND_DQS__GPIO4_IO16	0x00010B0
			>;
		};
	};
};

Read the data book

We can know by reading 0x02 register , also &0x02 Can be judged PS The interrupt ,&0x01 Can be judged ALS The interrupt ,0x02 We can ignore this register , Because it says , Reading the data register will automatically clear .

These four registers seem to set the interrupt threshold , Take a detailed look

It seems that interrupts will be triggered as long as the threshold is exceeded , This basically needs software processing , We just do a simple little demo, Don't use this , Keep looking down PS The interrupt

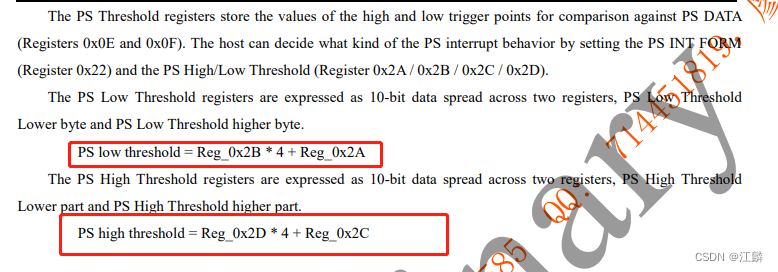

stay PS The threshold register sees an interrupt mode here

The default interrupt mode is 2, Take a look at the mode 2 Description of

Found that in this mode , It will only be triggered once when the threshold is exceeded , Then do this PS The interrupt

Change drive

modify ap3216dev_data Structure

struct ap3216dev_data{

	/*  Whether the data is new  */
	char isNew;
	/*  Three optical sensor data  */
	unsigned short ir;
	unsigned short als;
	unsigned short ps;
	/*  by 1 When someone   by 0 no one */
	char ps_status;
};

modify ap3216_drv_probe function

static int ap3216_drv_probe(struct i2c_client *client, const struct i2c_device_id *id){

	int err;
	...
	ap3216dev.dat.isNew = 0;
	ap3216dev.dat.ps_status = 0;
	err = request_threaded_irq(client->irq,__ap3216_int_isr,__ap3216_int_threaded_func,IRQF_TRIGGER_FALLING, "ap3216_int", &ap3216dev);

}

add to wq queue

static DECLARE_WAIT_QUEUE_HEAD(wait_queue_head);

Add interrupt handling function

static irqreturn_t __ap3216_int_threaded_func(int irq, void *data){

	unsigned char int_status = 0;
	struct ap3216dev_info* dev = (struct ap3216dev_info*)data;


	//printk("AP3216C_INTSTATUS: 0x%x\n",ap3216_read_byte(&ap3216dev, AP3216C_INTSTATUS));
	int_status = ap3216_read_byte(dev,AP3216C_INTSTATUS);
	printk("int_status：0x%x\n",int_status);
	/*  If it is ps Interrupted  */
	if(int_status & 0x02){

		ap3216_read_data(dev);
		dev->dat.isNew = 1;	// There's new data
		if(dev->dat.ps >= AP3216C_PS_HIGH_TRIGGER_VALUE){

			dev->dat.ps_status = 1;// Someone is approaching
		}
		else{

			dev->dat.ps_status = 0;// People left
		}
	}
	wake_up_interruptible(&wait_queue_head);
	return IRQ_HANDLED;
}

static irqreturn_t __ap3216_int_isr(int irq, void *dev){

	printk("%s %s line%d\r\n",__FILE__,__FUNCTION__,__LINE__);

	return IRQ_WAKE_THREAD;
}

modify ap3216_drv_read function

static ssize_t ap3216_drv_read(struct file *filp, char __user *buf, size_t cnt, loff_t *offt){

	int ret;
	char ps_status;
	struct ap3216dev_info *dev = (struct ap3216dev_info *)filp->private_data;
	/*  Clear every time you read 0  Wait for the interrupt to set 1 */
	dev->dat.isNew = 0;
	wait_event_interruptible(wait_queue_head,dev->dat.isNew);
	ps_status = dev->dat.ps_status;
	ret = copy_to_user(buf, &ps_status, 1);
	return 0;
}

modify ap3216_init function

In the data book we see , Calculation method of high threshold register and low threshold register , High byte *4, It's just moving left 2 Place? , Let's write a set of macros , It seems clear

#define AP3216C_PS_HIGH_TRIGGER_VALUE 450
#define AP3216C_PS_LOW_TRIGGER_VALUE 100

#define MAKE_PS_HIGH_BYTE(x) ((x)>>2)
#define MAKE_PS_LOW_BYTE(x) ((x) & 0x03)

modify init function , Set the threshold

static void ap3216_init(struct ap3216dev_info *dev){

	...
	/*  Set the distance minimum trigger threshold  */
	ap3216_write_byte(dev,AP3216C_PS_LOW_TRIGGER_LOW,
		MAKE_PS_LOW_BYTE(AP3216C_PS_LOW_TRIGGER_VALUE));
	ap3216_write_byte(dev,AP3216C_PS_LOW_TRIGGER_HIGH,
		MAKE_PS_HIGH_BYTE(AP3216C_PS_LOW_TRIGGER_VALUE));
	/*  Set the maximum trigger threshold of distance  */
	ap3216_write_byte(dev,AP3216C_PS_HIGH_TRIGGER_LOW,
		MAKE_PS_LOW_BYTE(AP3216C_PS_HIGH_TRIGGER_VALUE));
	ap3216_write_byte(dev,AP3216C_PS_HIGH_TRIGGER_HIGH,
		MAKE_PS_HIGH_BYTE(AP3216C_PS_HIGH_TRIGGER_VALUE));
}

Modify application

int main(int argc,char** argv){

	unsigned char ps_status;
	if(argc != 2){

		printf("Error Usage!\r\n");
		return -1;
	}
	//int fd = open(argv[1],O_RDWR);
	int fd = open(argv[1],O_RDWR | O_NONBLOCK);
	if(fd < 0){

		printf("open %s err\n",argv[1]);
		return -1;
	}

	while(1){

		int ret = read(fd, &ps_status, 1);
		if(ret == 0) {
     /*  Data read successful  */
			printf("have%speople\r\n", ps_status ? " " : " not ");
		}
	}
	close(fd);
	return 0;
}

Put your hand over the sensor , Move away again , You can see that there are two states of output, with and without people .
