Efga design open source framework openlane series (I) development environment construction

I am a snowy fish , a FPGA lovers , The research direction is FPGA Architecture exploration .
Notes sync in my Personal website updated , Welcome to check .
At present, we are studying eFPGA, At present, the academic community has recently published a new report on RTL TO GDSII Flow Open source framework of OpenLane

This framework will be used in my subsequent research , Therefore, build the development environment first , The process is recorded as follows .

Version	Date
V1.0	2022.1.30

One 、 Code download and compile

System :ubuntu20.04

1.1 rely on

• Docker 19.03.12+
• GNU Make
• Python 3.6+ with PIP
• Click, Pyyaml:

（1）Docker Please refer to my previous blog for the installation of OpenFPGA series （ One ） Development environment construction 2.1 section
（2）GNU Make There are many installation tutorials , Self search
（3）Python Recommended download Anaconda, Facilitate the subsequent establishment of a virtual environment for management , Please refer to my previous blog PyTorch In depth learning notes （ One ）PyTorch Environment configuration and installation 1.1 section
（4） stay （3） After step , Open the terminal , Enter the following command ：

conda create -n openlane python=3.7
source activate openlane
pip install pyyaml
pip install click

Create a be known as openlane python Version is 3.7 Virtual environment for , And activate the environment installation python package .( Because I have created a file named FABulous Virtual environment for , So I will operate in this virtual environment )

1.2 The code download

notes ： After full compilation , The required space is 37.4GB, Check whether the storage space is sufficient in advance .

In the storage directory , Open the terminal , Input ：

  git clone https://github.com/The-OpenROAD-Project/OpenLane.git

After downloading, enter ：

cd OpenLane
make pull-openlane

If the following error is reported ：

docker: Error response from daemon: Get https://registry-1.docker.io/v2/: net/http: request canceled while waiting for connection (Client.Timeout exceeded while awaiting headers).

Just modify docker Mirror source ,docker The default source is foreign official source , Slow download , It can be changed to domestic , Accelerate . Replace Docker Mirror source reference blog

FULL_PDK=1 make pdk

obtain SkyWater130nm Open source PDK, Here I choose to download the complete PDK, Save to by default OpenLane/pdks/skywater-pdk Under the path
The problems encountered in this process ：

ConfigurationLoadError: Unable to load configuration file.
  path: /home/jc-cao/Disk_sda3/Fudan_FPGA/OpenLane/pdks/skywater-pdk/env/conda/.condarc
  reason: invalid yaml at line 3, column 0

The reason for the error ： Because the current virtual environment is FABulous, Has its own configuration file , So it's impossible to put OpenLane/pdks/skywater-pdk/env/conda/.condarc Load as configuration file .
resolvent ： Delete OpenLane/pdks/skywater-pdk/env/conda/.condarc, Reenter the command make pdk

Come here OpenLane The development environment is compiled and built .
* notes ：
（1） perform make pdk Other problems encountered in the process , You can view section 2 make pdk Resolve by parsing , No more details here .
（2） My virtual machine always gets stuck downloading packages , Thought it was a ladder problem , Later, I checked and found that it was not , But because of the wired connection , Instead of WIFI After that, we can .
*

1.3 test

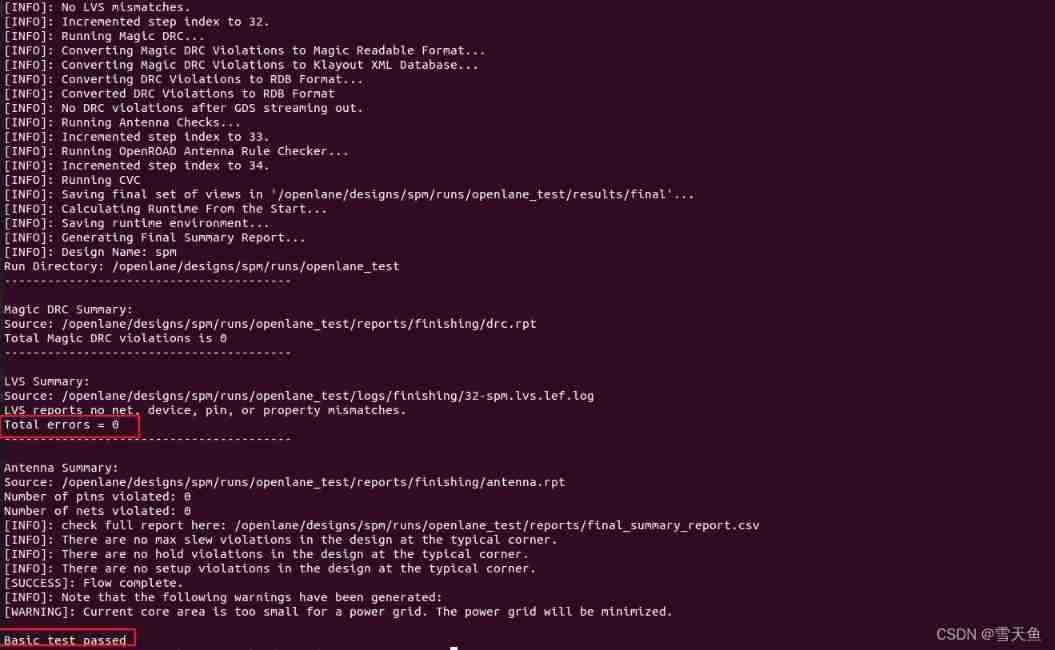

And then in openlane Root directory , Activate the virtual environment first , My name is FABulous, namely source activate FABulous, Input again make test Start testing ：




You can see that the test passed , No problem with compilation ！

This framework will be used later to do some RTL to GDS Flow Test of

Two 、make full-pdk analysis

2.1 pdk.mk analysis

notes ;2022 year 1 month 29 Number OpenLane There was an update , at present pdk The environment building instructions are make pdk, Through the variable FULL_PDK
To set whether to get the complete PDK. The following error records and solutions are applicable to previous versions , For reference only .

full-pdk It's a fake target , stay OpenLane/dependencies/pdk.mk In the definition of ：

Including five sub pseudo targets , Check and analyze one by one ：

• skywater-pdk

• all-skywater-libraries

• open_pdks

• build-pdk

  What I am compiling is , Stuck in the 90 That's ok ：

  It's because of my docker need root Permission to run , Then let it run with sudo You can solve the problem ,
  ENV_COMMAND Variable in OpenLane/Makefile The first 76 Line definition ：
  Then add sudo Just go ：

  Re input make full-pdk test , You can see sudo After that, you can continue to compile normally


2.2 What if it gets stuck ？

I pdk.mk Of 105 That's ok , Compile target gen-sources Get stuck

At this time, in order to avoid repeating the target compiled before compilation , Will directly gen-sources The command corresponding to the target is copied to a separate file , And will gen-sources Renamed as gen-sourcestwo：

(1) Assign values to variables
(2) take gen-sourcestwo Set as pseudo target
Name this file pdk2.mk, Put it in openlane Under the root directory of , Then input

make -f pkd2.mk

source file ：
