GitHub OAuth2.0 Sign in SpringBoot Principle and practice

1. Preface

Recently, I had two wonderful dreams and shared happiness with you .
Dream 1: In my first dream, I dreamed that I was with trump having dinner , Then tell trump He needs to learn from China , Take epidemic prevention as the first task , Then he didn't listen , He left angrily , Then I will call on everyone to oppose him , Later, more and more people opposed it , << Friends >> Medium Chandler ( I don't know why it's him ) Also joined my camp , trump I can't sit down , Just put it in front of me Chandler I threw it down from the roof of a 100 story building (Sorry), Dead old miserable (Sorry too…)…

Dream2: The second dream was made on Friday night this week , Dream of going back to my hometown , Then transfer the subway to the bus for an hour and a half , After getting off the bus, I have to transfer to the city bus for thirty or forty minutes to get home , Feel so far away , I don't know << naruto -- Fast wind >> Inside, the fourth forbearance world war Compendium The upper line was too far away, so he used the space-time Ninja to transmit materials to the front line of the fourth World War , So , I was thinking. , Can you expand Java Of IO flow , Will oneself Write Back home ( This dream , Very speechless )

These two dreams make me happy every time I think of them , I hope you too … Ha ha ha ha … Okay , Get down to business

just as As mentioned above , User registration is a very disgusting thing for users , therefore , quick , Convenient user registration process can better retain users , therefore , jfoa: https://github.com/JavaFamilyClub/jfoa Introduced OAuth 2.0 authentication , At present, we support GitHub Authentication realizes registration and login . As promised , Talk to you today OAuth 2.0 The implementation and principle of .

OAuth 2.0 yes RFC 6749: https://tools.ietf.org/html/rfc6749 Proposed an authorization framework model , RFC 6749 Yes OAuth 2.0 The introduction is as follows :
The OAuth 2.0 authorization framework enables a third-party application to obtain limited access to an HTTP service, either on behalf of a resource owner by orchestrating an approval interaction between the resource owner and the HTTP service, or by allowing the third-party application to obtain access on its own behalf. This specification replaces and obsoletes the OAuth 1.0 protocol described in RFC 5849.
OAuth 2.0 The authorization framework supports third-party applications to obtain access to HTTP Limited access to services , Coordinate approval interactions to represent resource owners between resource owners and HTTP Between services , Or by allowing third-party applications to gain access on their behalf . This specification replaces and eliminates RFC 5849: https://tools.ietf.org/html/rfc5849 Described in OAuth 1.0 agreement .

2. OAuth role

OAuth Four roles are defined :

• Resource owner

An entity that can grant access to protected resources , When the resource owner is a person , It's called the end user .

• Resource server

The server hosting the protected resource , Be able to accept and respond to requests from protected resources using access tokens .

• Customer （client）

Applications that make requests for protected resources on behalf of resource owners and their authorizations .

• Authorization server

After successfully authenticating the resource owner and obtaining authorization , The server issues an access token to the client .

A basic access process is as follows :

• （A） The client requests authorization from the resource owner . The authorization request can be sent directly to the resource owner , Or it is better to use the authorization server as an intermediary indirectly .

• （B） The client receives the license , The authorization license is the credential that indicates the authorization of the resource owner , Use OAuth 2.0 One of the four authorization types provided or the extended authorization type represents . The type of authorization depends on the client of the method used , Request authorization and authorize the server through supported types .

• （C） The client requests an access token by authenticating with the authorization server and providing authorization permission .

• （D） The authorization server authenticates the client and verifies the authorization license , If effective , Issue an access token .

• （E） Client requests protected resources from resource server , And authenticate by providing an access token .

• （F） Resource server authentication access token , If effective , Then service the request .

3. OAuth The license

Licensing is the client's use of resources ( Access to its protected resources ) To obtain the credentials of the access token , The specification defines four authorization methods

• Authorization code
• Implicit
• Resource owner password
• Client credentials

Besides , OAuth 2.0 It also provides user-defined extensible mechanisms of other types .

3.1 Authorization code

By using the authorization server as an intermediary between the client and the resource owner , You can get the authorization code . The client does not request authorization directly from the resource owner , Instead, the resource owner is directed to the authorization server （ adopt RFC2616: https://tools.ietf.org/html/rfc2616 User agents defined in ）, The latter guides the resource owner back to the client together with the authorization code .

Before using the authorization code to guide the resource owner back to the client , The authorization server authenticates the resource owner and obtains authorization . Because the resource owner only authenticates through the authorization server , Therefore, the credentials of the resource owner will never be shared with the client .

Authorization code provides some important security benefits , For example, the ability to authenticate clients , And the process of transferring the access token directly to the client , Instead of passing it on to the user agent of the resource owner and possibly exposing it to others , Including resource owners .

3.2 Implicit license

Implicit authorization is a simplified authorization code process , This process is aimed at using JavaScript Such scripting languages are optimized for the client implemented in the browser . In an implicit process , Do not issue authorization codes to clients , Instead, the access token is granted directly to the client （ As a result of the authorization of the resource owner ）. The grant type is implicit , Because no intermediate certificate was issued （ For example, the authorization code used to obtain the access token in the future ）.

When issuing an access token in the implicit grant process , The authorization server will not authenticate the client . In some cases , You can use redirection to pass the access token to the client URI Verify client identity . Access tokens can expose access rights to resource owners or other user agent applications with resource owners .

Implicit grant improves some clients （ for example , Implement as the client of the application in the browser ） Responsiveness and efficiency , Because it reduces the number of round trips required to obtain an access token . however , This convenience should be weighed against the security risks caused by the use of implicit authorization , Especially when the authorization code authorization type is available .

3.3 Resource owner password

The password of the resource owner （ User name and password ） It can be directly used as an authorization to obtain an access token . Only when there is high trust between the resource owner and the client （ for example , The client is part of the device operating system or highly privileged Application ）, And other authorization types are not available （ For example, authorization code ）, You should use this licensing method .

Even if this grant type requires the client to directly access the resource owner credentials , Resource owner credentials are also used for individual requests , And exchange access tokens . This grant type can eliminate the need for clients to store resource owner credentials for future use by exchanging credentials with long-term access tokens or refresh tokens .

3.4 Customer voucher

When the authorization scope is limited to the protected resources under the control of the client or the protected resources previously arranged with the authorization server , Client credentials can be （ Or other forms of client authentication ） As a license . Usually , When the client represents itself （ The client is also the resource owner ） Action or access to protected resources based on authorization requests previously scheduled with the authorization server , Client credentials will be used as authorization licenses .

There are many concepts and details , If you are interested, you can refer to RFC 6749: https://tools.ietf.org/html/rfc6749 .

4. Practical drill

Here it is... Here it is , Here comes the play , Today is the day jfoa: https://github.com/JavaFamilyClub/jfoa To do it Github OAuth2.0 Sign in SpringBoot application The drill of , because jfoa Self support Github register / After logging in and going online , It has experienced the test of real server and production environment for some time .

jfoa Use authorization code Github Certificate authority . The basic process is as follows :

4.1 Application registration

An application requires OAuth to grant authorization , You must register at the other party's website first , Let the other party know who is requesting . therefore , You have to go first GitHub Check in .

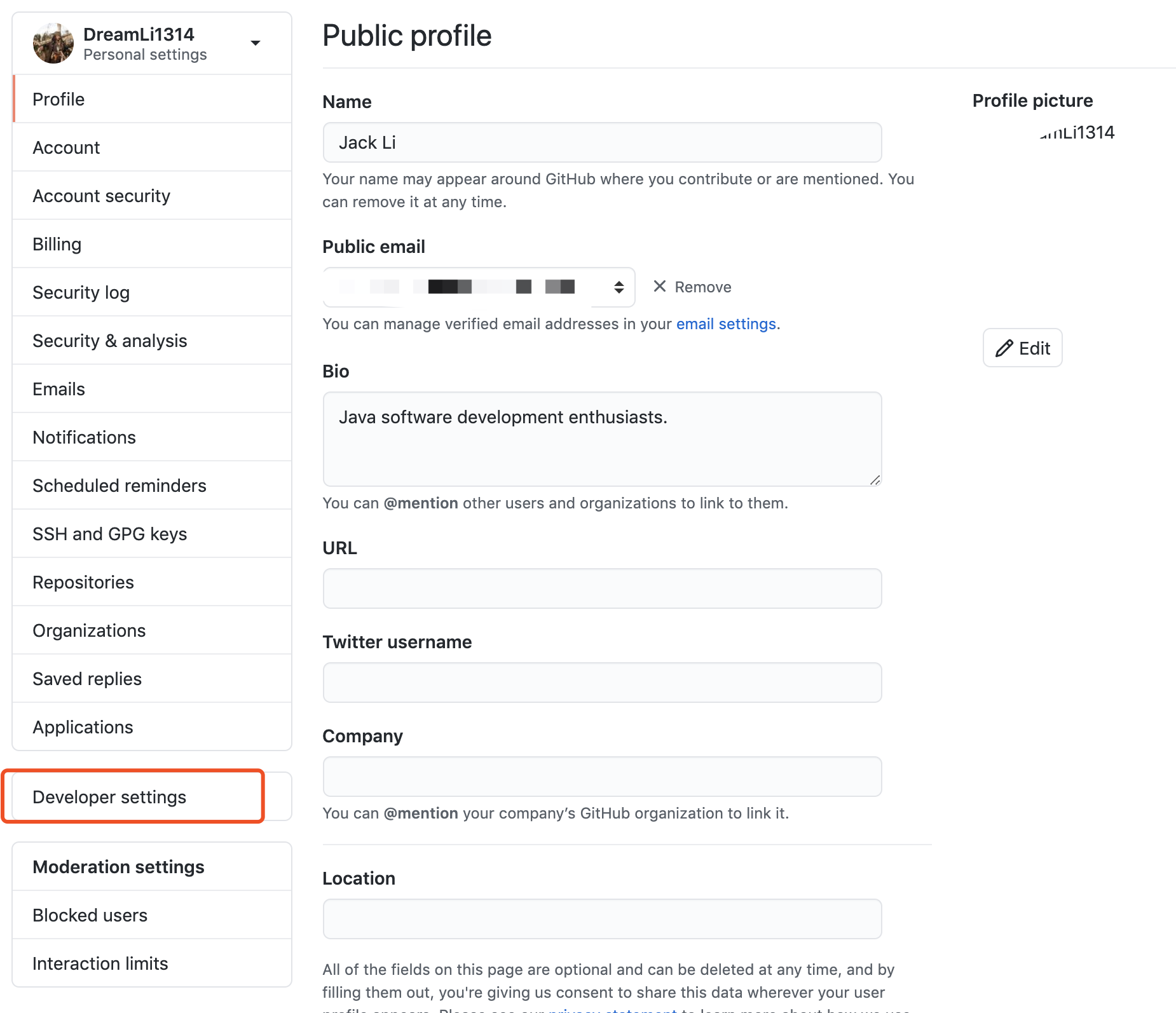

• Get into GitHub Setting

• Enter developer settings

• Get into OAuth Apps, establish App

There are already two in the figure above App, One is jfoa Production environment App, One is jfoa Development environment App(jfoa Adopt the development mode of separating production environment and development environment , otherwise , Development debugging or testing will have an impact on the production environment , For example, the development environment registers users , Deleting users will affect the development environment and generate dirty data )

• Fill in App Information ( Tips : Local localhost Applications are also supported , Because it's just a callback address ), The following is the development mode jfoa Of App To configure

• see client_id And generate client_secret

4.2 Available in browser through GitHub Login interface

As shown in the figure above , jfoa For security reasons , take client_id and client_secret And other important information are stored in Server And encrypted , So the UI Not directly request Github to grant authorization , But first visit jfoa The server of gets parameter information , Then redirect .

   @GetMapping("/public/oauth/github/auth")
   public String auth() {

      String authorizeUrl = githubProvider.getAuthorizeUrl();

      return "redirect:" + authorizeUrl;
   }

also jfoa Store the ciphertext in the environment variable , And in build.gradle Reference environment variables in . If you refer to jfoa Project words , Need to replace jfoa/runner/src/main/resources/application.yml Medium client_id and client_secret For your own information

Final , Click on GitHub The login button will redirect to : https://github.com/login/oauth/authorize?scope=user:emailresponse_type=code&redirect_uri=http://localhost/public/oauth/github/callback&state=1&client_id=XXX

4.3 Jump to GitHub To authorize

You will enter through the redirection in the previous step GitHub The authorization server of , to grant authorization GitHub You need to log in first GitHub

After login , First visit OAuth App when GitHub Will need you to OAuth App To authorize . This page will list OAuth App Basic information and OAuth App Requested resources ( This is it. OAuth 2.0 Resource access restrictions )

4.4 Return authorization code

When you are right OAuth App After authorization , Github The authorization server will carry the authorization code and status information to redirect to your request GitHub Carried during certification redirect_uri Designated address . namely : http://localhost/public/oauth/github/callback?code=YYY&state=1
jfoa You will visit the following controller:

   @GetMapping("/public/oauth/github/callback")
   public String callback(@RequestParam("code") String code,
                          @RequestParam("state") String state)
   {

      AccessTokenResponse accessTokenResponse
         = githubProvider.queryAccessToken(code, state);

      authentication(accessTokenResponse);

      return "redirect:/";
   }

ad locum , adopt RestTemplate + Apache Http Client request GitHub Authorization code , The request address is as follows :

https://github.com/login/oauth/access_token?client_id=XXX&client_secret=***&code=YYY&redirect_uri=http://localhost/public/oauth/github/callbackstate=1

4.5 adopt access_token Access resources

Get access_token Then you can access the resources authorized by the user , such as jfoa Currently, the user's account will be requested , user name , company , Introduction and email information .
Through the following request :

https://api.github.com/user?access_token=*****

access_token It needs to be transmitted with the information of the request header , above URL It only states that you need to carry this information

   default HttpHeaders queryResourceHeader(AccessTokenResponse token) {

      HttpHeaders headers = new HttpHeaders();
      headers.set(authorizationParamName(),
         token.getToken_type()
            + " " + token.getAccess_token());

      return headers;
   }

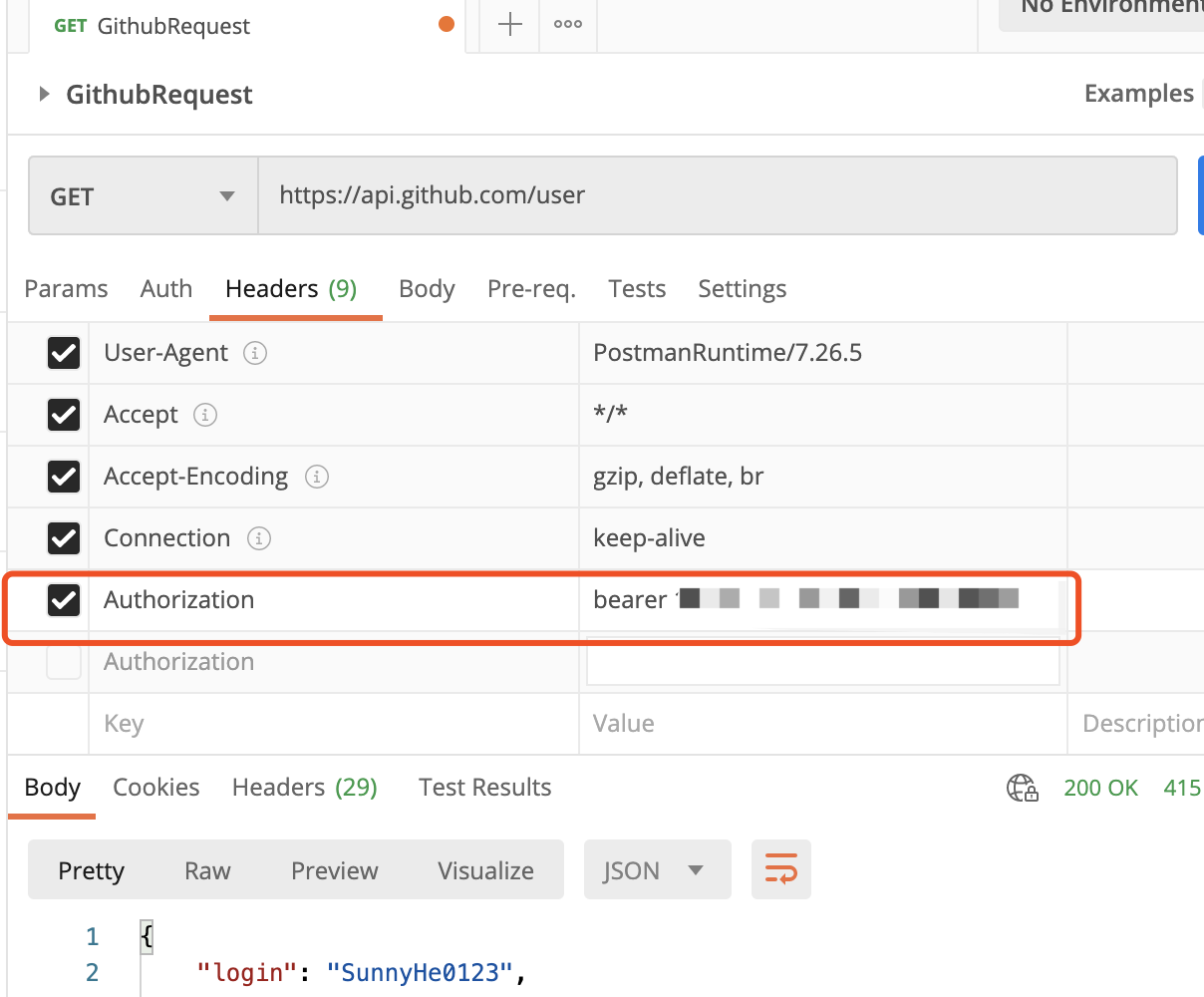

Postman In the following configuration :

4.6 Authenticate users according to the obtained user information and business

jfoa Will use “GitHub:” + user GitHub Account is used as user account to register and login users . You can change flexibly according to your business needs .

thus , OAuth 2.0 The basic theory and practice of , On the whole OAuth2.0 have a lucid brain , Specific goals , But if you are in contact for the first time, you still need to practice it yourself , Shuai Shuai also encountered some problems in practice and has a deep memory , I'll share it with you later , Let's practice by ourselves .
