Hcip the next day

Catalog

One 、 The experiment purpose

Two 、 The experimental requirements

3、 ... and 、 The experimental steps

1、 According to the requirements of the experiment 192.168.0.0/24 The network segment is divided into subnets

2、 Change the device name

3、 Allocation of interfaces IP Address

4、AR10 and Vlan Configuration of

Four 、 test

---

One 、 The experiment purpose

Through static routing configuration, the topology environment shown in the figure below can be reached throughout the network

---

Two 、 The experimental requirements

1. Through static routing configuration, the topology environment shown in the figure can be reached throughout the network

2. The addresses required in the topology are all based on 192.168.0.0/24 Divide the income

3.R8 The three loops need to be summarized manually

---

3、 ... and 、 The experimental steps

1、 According to the requirements of the experiment 192.168.0.0/24 The network segment is divided into subnets

AR8 Yes 3 Loopback segments , namely 1 Loop back to the master network

The whole topology environment has 8 Backbone link network segments

1 Loopback bus segment +8 Backbone link network segments =9 Net segment

Loop back to the master network ：192.168.0.16/28

Loopback subnet ：

①192.168.0.16/30

②192.168.0.20/30

③192.168.0.24/30

Retain ：

192.168.0.28/30

Backbone link network segment ：

192.168.0.32/28

192.168.0.48/28

192.168.0.64/28

192.168.0.80/28

192.168.0.96/28

192.168.0.112/28

192.168.0.128/28

192.168.0.144/28

Retain ：

192.168.0.0/28

192.168.0.160/28

192.168.0.176/28

192.168.0.192/28

192.168.0.208/28

192.168.0.224/28

192.168.0.240/28

IP The division of address subnet is shown in the figure ：

2、 Change the device name

  With AR8 For example ：

[Huawei]sysname R8

[R8]

3、 Allocation of interfaces IP Address

With AR8 and AR11 For example

1）AR8

[R8]int g0/0/0

[R8-GigabitEthernet0/0/0]ip address 192.168.0.17 28

[R8-GigabitEthernet0/0/1]ip address 192.168.0.113 28

[R8]interface LoopBack 0

[R8-LoopBack0]ip address 192.168.0.17 30

[R8]interface LoopBack 1

[R8-LoopBack1]ip address 192.168.0.21 30

[R8]interface LoopBack 2

[R8-LoopBack2]ip address 192.168.0.25 30

2）AR11

[R11]interface g0/0/0

[R11-GigabitEthernet0/0/0]ip address 192.168.0.50 28

[R11]interface g0/0/1

[R11-GigabitEthernet0/0/1]ip address 192.168.0.98 28

[R11]interface g0/0/2

[R11-GigabitEthernet0/0/2]ip address 192.168.0.81 28

[R11]interface g4/0/0

[R11-GigabitEthernet4/0/0]ip address 192.168.0.65 28

4、AR10 and Vlan Configuration of

Switch to SW1 For example

 1）SW1

[SW1]vlan batch 2 3

[SW1]int e0/0/1

[SW1-Ethernet0/0/1]port link-type trunk

[SW1-Ethernet0/0/1]port trunk allow-pass vlan 2 3

[SW1]int e0/0/2

[SW1-Ethernet0/0/2]port link-type trunk

[SW1-Ethernet0/0/2]port trunk allow-pass vlan 2 3

[SW1]int e0/0/4

[SW1-Ethernet0/0/4]port link-type access

[SW1-Ethernet0/0/4]port default vlan 2

[SW1]int e0/0/3

[SW1-Ethernet0/0/3]port link-type access

[SW1-Ethernet0/0/3]port default vlan 3

2）AR10

[R10]dhcp enable

[R10]interface g0/0/2.1

[R10-GigabitEthernet0/0/2.1]ip address 192.168.0.129 28

[R10-GigabitEthernet0/0/2.1]dot1q termination vid 2

[R10-GigabitEthernet0/0/2.1]arp broadcast enable

[R10]ip pool a

[R10-ip-pool-a]network 192.168.0.128 mask 255.255.255.240

[R10-ip-pool-a]gateway-list 192.168.0.129

[R10-ip-pool-a]dns-list 8.8.8.8

[R10-GigabitEthernet0/0/2.1]dhcp select global

[R10]interface g0/0/2.2

[R10-GigabitEthernet0/0/2.2]ip address 192.168.0.145 28

[R10-GigabitEthernet0/0/2.2]dot1q termination vid 3

[R10-GigabitEthernet0/0/2.2]arp broadcast enable

[R10]ip pool b

[R10-ip-pool-b]network 192.168.0.144 mask 255.255.255.240

[R10-ip-pool-b]gateway-list 192.168.0.145

[R10-ip-pool-b]dns-list 8.8.8.8

[R10-GigabitEthernet0/0/2.2]dhcp select global

5、 Static routing configuration

With AR8 For example

AR8

[R8]ip route-static 0.0.0.0 0 192.168.0.34

[R8]ip route-static 192.168.0.16 28 NULL 0

[R8]ip route-static 192.168.0.48 28 192.168.0.34

[R8]ip route-static 192.168.0.64 28 192.168.0.34

[R8]ip route-static 192.168.0.80 28 192.168.0.98

[R8]ip route-static 192.168.0.96 28 192.168.0.114

[R8]ip route-static 192.168.0.128 28 192.168.0.114

[R8]ip route-static 192.168.0.144 28 192.168.0.114

---

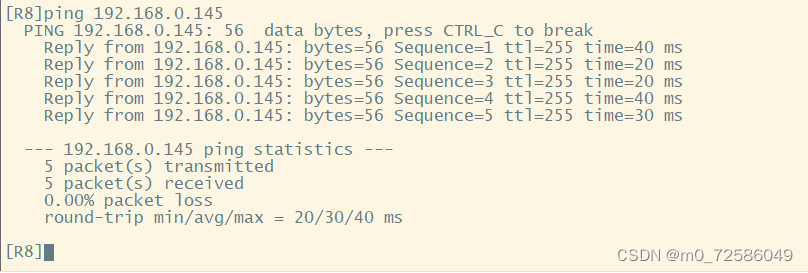

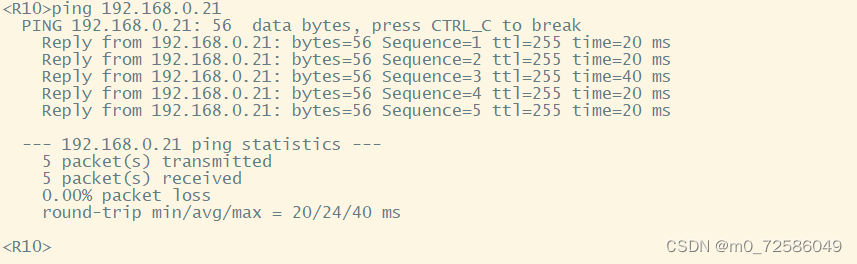

Four 、 test

As mentioned above ： All the requirements of the experiment have been met  , Successful experiment
